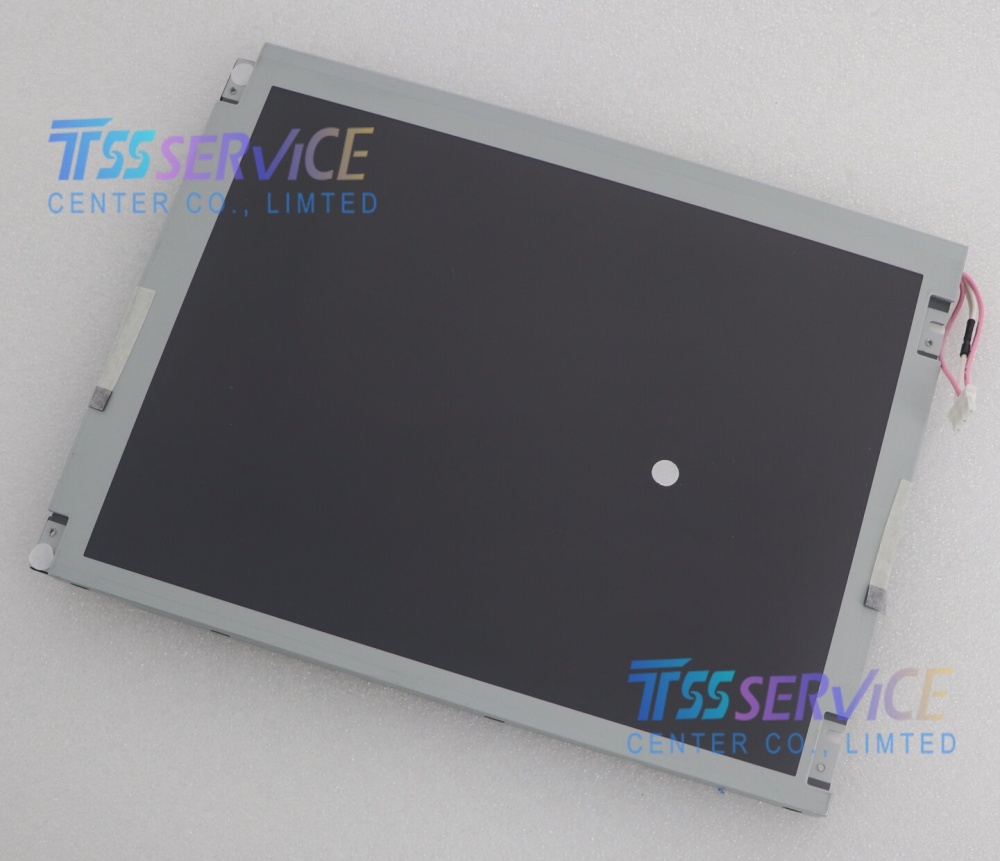

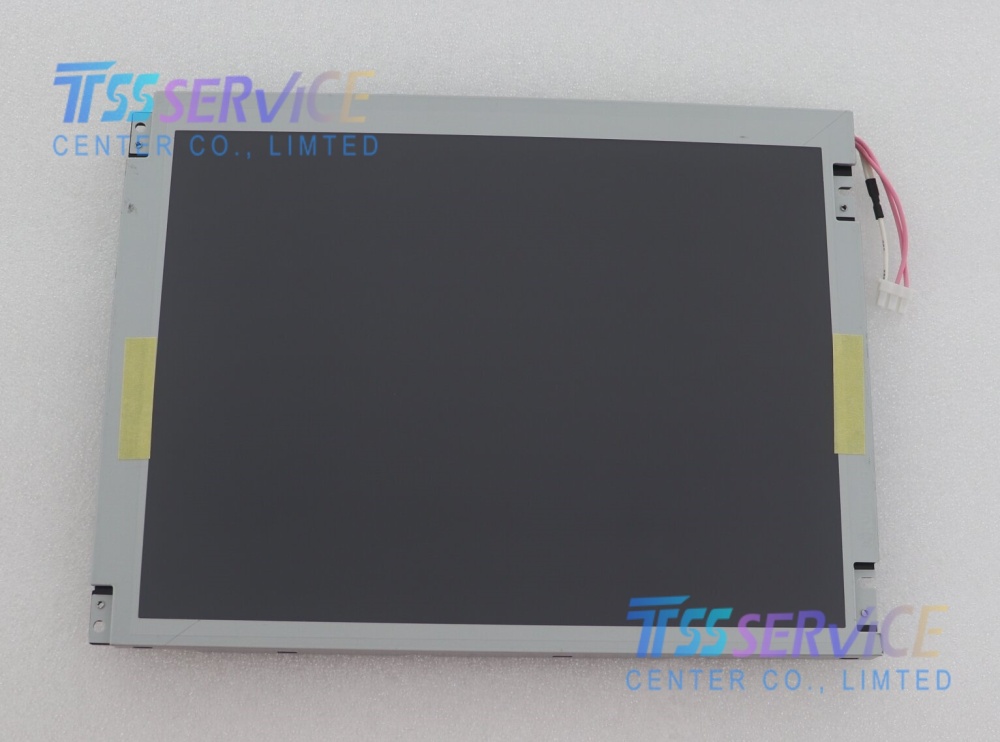

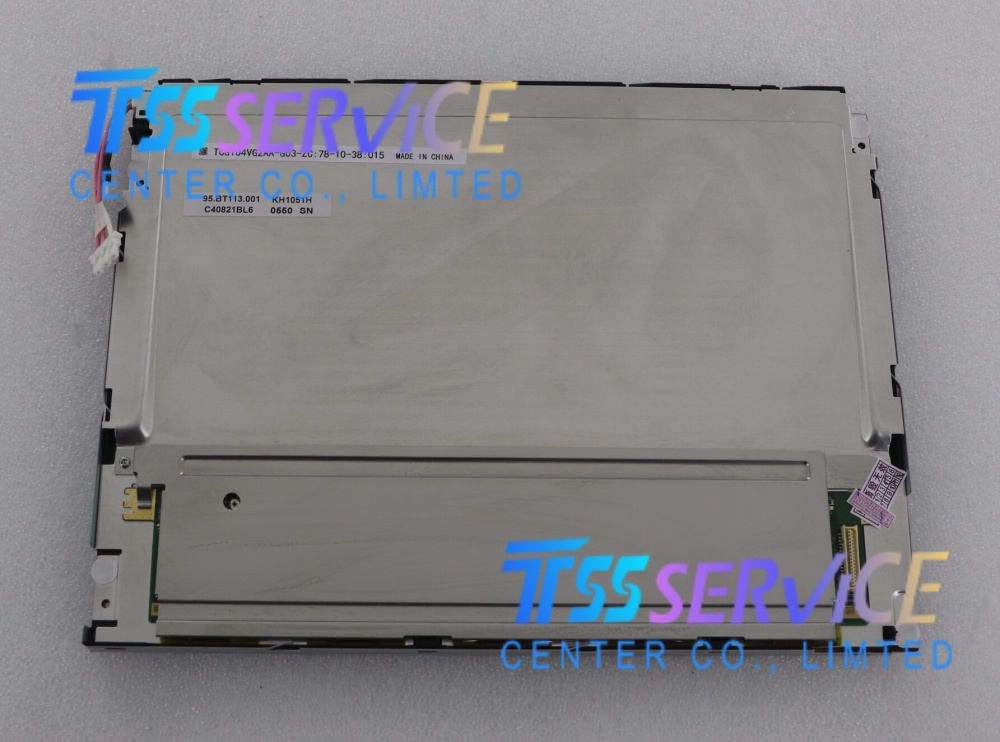

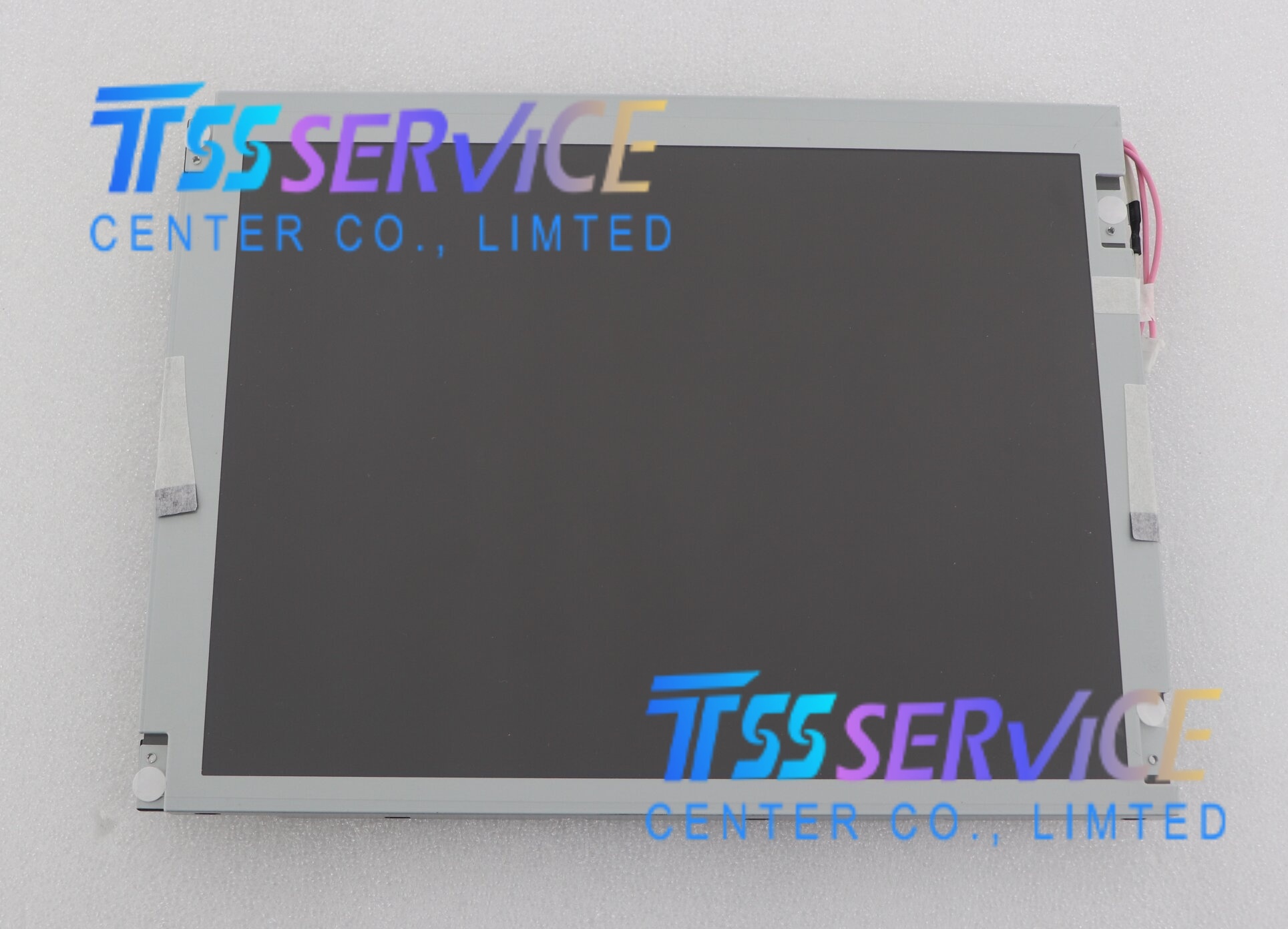

TCG104VG2AA-G06 | Kyocera 10.4" VGA CCFL Industrial TFT-LCD Module
TCG104VG2AA-G06 is a 10.4-inch VGA industrial TFT LCD module manufactured by Kyocera Display. It adopts TN normally white transmissive technology, dual CCFL backlight, single-channel 6-bit parallel RGB TTL 31-pin FPC interface, matte anti-glare 3H hard coating and wide industrial temperature range (-20℃ ~ +70℃). The suffix G06 stands for customized CCFL circuit layout and enhanced ESD protection version, without integrated touch screen, compatible with external 4-wire resistive touch overlay. With stable anti-vibration metal frame, 450 cd/m² high brightness and long-lifetime CCFL backlight, it is widely applied for industrial HMI, injection molding machinery control panels, construction machinery on-board terminals, laboratory analytical instruments and maintenance replacement for legacy industrial equipment.
| Parameter Item |
Specification Details |
| Full Part Number |
TCG104VG2AA-G06 |
| Manufacturer |
Kyocera Display (京瓷) |
| Diagonal Size |
10.4 inch, landscape, 4:3 aspect ratio |
| Native Resolution |
640(H) × 480(V) pixels (VGA, 76 PPI) |
| Display Technology |
a-Si TFT-LCD, TN mode, Normally White, Transmissive |
| Pixel Arrangement |
RGB vertical stripe |
| Pixel Pitch |
0.330 mm (H) × 0.330 mm (V) |
| Active Area (AA) |
211.2 mm (W) × 158.4 mm (H) |
| Overall Outline Dimension |
243.0 mm (W) × 185.1 mm (H) × 10.5 mm (Thickness) |
| Typical Brightness |
450 cd/m² (high brightness for bright factory environment) |
| Typical Contrast Ratio |
750:1 |
| Viewing Angle (L/R/U/D, CR≥10) |
70° / 70° / 60° / 70°, optimal viewing: 6 o'clock |
| Response Time (Tr / Td) |
10 ms / 20 ms typical |
| Display Color Depth |
262K colors (6-bit single channel) |
| Backlight System |
Dual CCFL lamp, service life ≥ 50,000 hours, external inverter required, G06 dedicated wiring |
| Signal Interface |
Single-channel parallel RGB TTL (6-bit), 31-pin dedicated FPC connector |
| Logic Supply Voltage |
3.3 VDC (industrial standard) |
| Refresh Rate |
60 Hz standard |
| Touch Function |
No integrated touch panel (external resistive touch overlay customizable) |
| Surface Treatment |
Matte anti-glare polarizer, 3H scratch-resistant hard coating |
| Housing Structure |
Reinforced metal shielding frame, anti-electromagnetic interference & anti-vibration |
| Operating Temperature |
-20°C ~ +70°C |
| Storage & Transport Temp |
-30°C ~ +80°C |
| Net Weight |
Approx. 580 g |
| Compliance Standard |
RoHS compliant industrial grade |
| Version Feature vs G00/G04 |
Optimized CCFL cable layout, upgraded ESD immunity, fully mechanical interchangeable with same series |
| Production Status |
Discontinued original mass production, sufficient stock for equipment maintenance & retrofit projects |
