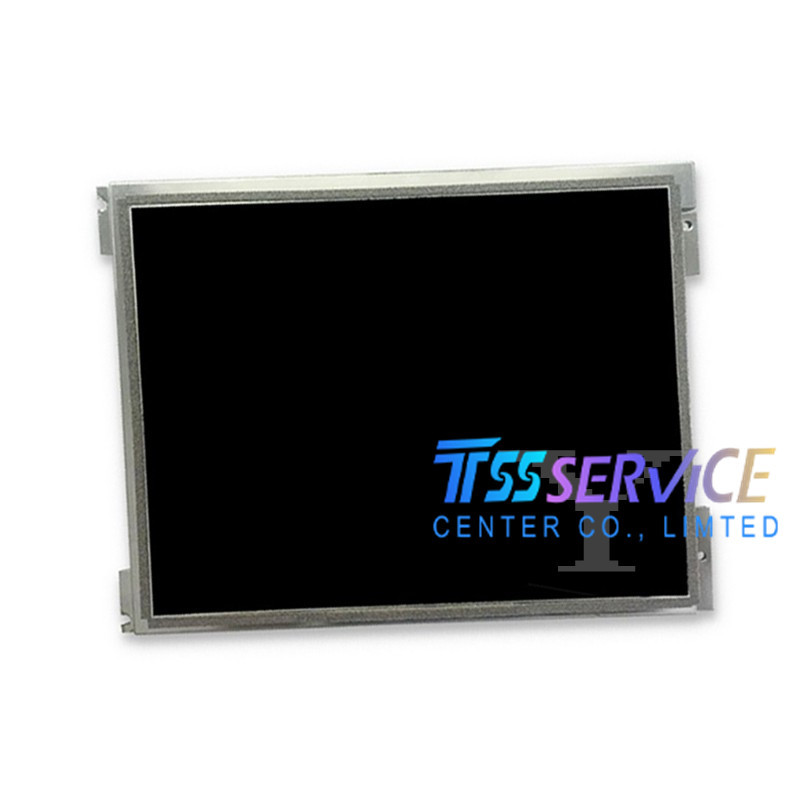

TCG104VGLAAAFA-AA00-TA LCD Display is a 10.4-inch LCD screen from KYOCERA brand with touch. It has a resolution of 640x480 pixels (VGA), a brightness of 320 cd/m ², a input voltage of 3.3V, and a working frequency of 60Hz. With a contrast ratio of 500:1 and a wide operating temperature, this LCD screen is mainly used in these fields: Factory automation equipment field.
SPECIFICATION
| Active Area |
211.2(W)×158.4(H) mm |
Bezel Opening |
215.4(W)×162.2(H) mm |
| Resolution |
640(RGB)×480, VGA 76PPI |
Pixel Format |
RGB Vertical Stripe |
| Diagonal Size |
10.4" |
Panel Type |
a-Si TFT-LCD, LCM |
| Input Voltage |
3.3V (Typ.) |
Signal Interface |
Parallel RGB (1 ch, 6-bit) , 40 pins Connector |
