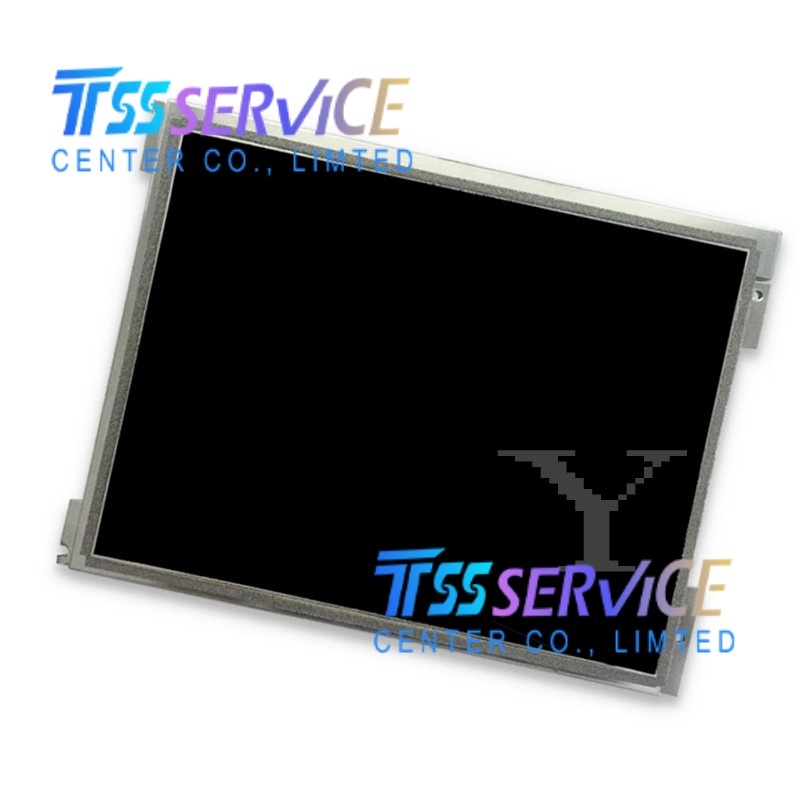

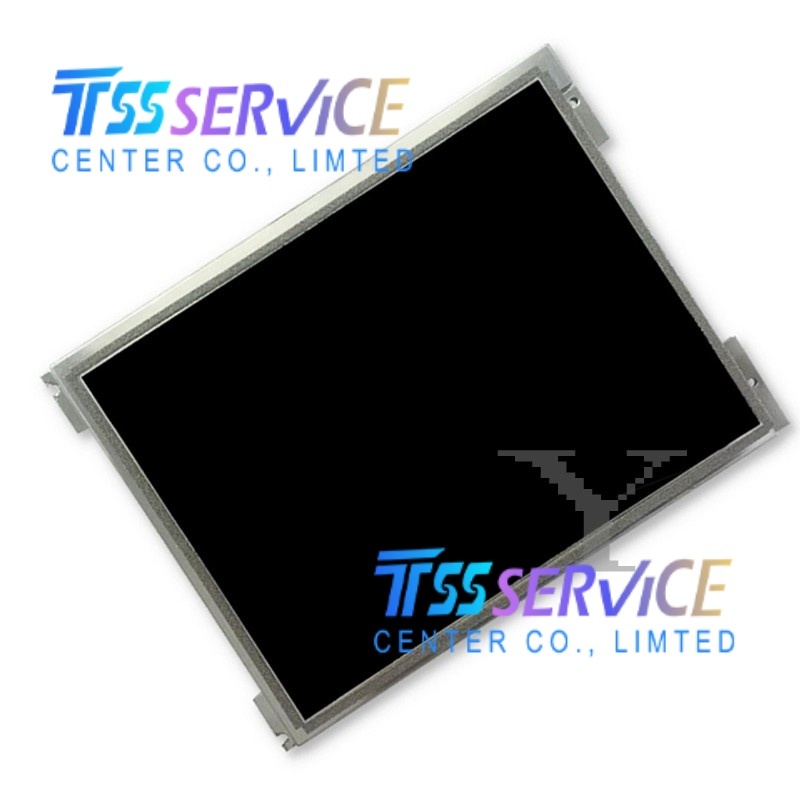

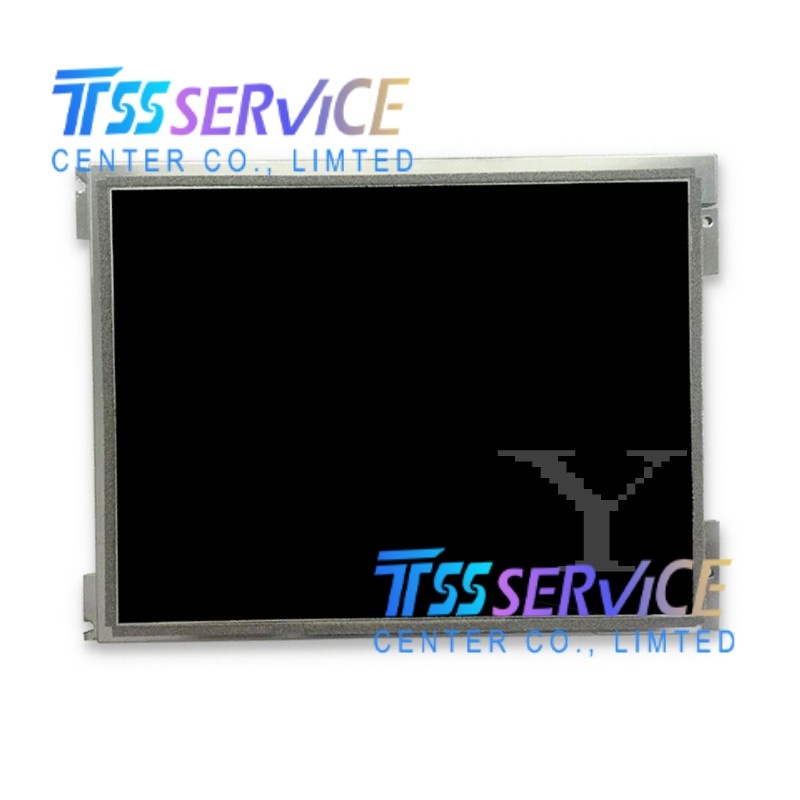

KYOCERA NEW 10.4 inch LCD Display Panel TCG104VGLAAAFA-AA20-S for Industrial
| Parameter |
Specification |
Details / Notes |
| Model Number |
TCG104VGLAAAFA-AA20-S |
Kyocera (Optrex) Industrial LCD Module |
| Screen Size |
10.4 inches |
Diagonal measurement |
| Active Area (AA) |
211.2 × 158.4 mm |
Standard 4:3 aspect ratio |
| Outline Dimensions |
Approx. 240.7 × 180.2 × 9.5 mm |
Includes metal bezel; compact depth (may vary slightly by revision) |
| Resolution |
640 (RGB) × 480 |
VGA Format |
| Pixel Pitch |
0.33 × 0.33 mm |
RGB Vertical Stripe arrangement |
| Display Mode |
TN (Twisted Nematic) |
Transmissive, Normally White |
| Color Depth |
262K colors |
6-bit per color (18-bit total) |
| Brightness |
600 ~ 800 cd/m² |
Typical (High Brightness "FA" series, exact value depends on bin) |
| Contrast Ratio |
700:1 ~ 1000:1 |
Typical (CR ≥ 10), superior to standard TN panels |
| Viewing Angle |
80/80/80/60° |
Typical (Left/Right/Up/Down) at CR≥10 (Wide view for TN) |
| Response Time |
15/25 ms |
Typical (Tr + Td) |
| Backlight Type |
WLED |
White LED Array (Mercury-free, High Brightness) |
| Backlight Life |
70,000+ hours |
Until brightness drops to 50% |
| Interface |
LVDS |
Low-Voltage Differential Signaling (1-channel, 6-bit or 8-bit) |
| Input Voltage |
3.3V |
Logic voltage; Integrated LED Driver (No external inverter needed) |
| Power Consumption |
~3.5W - 5.0W |
Typical (Varies with brightness setting) |
| Operating Temp. |
-30°C to +80°C |
Wide Industrial Temperature Range (Specific to FA/AA20 series) |
| Storage Temp. |
-40°C to +90°C |
Non-operating storage range |
| Weight |
Approx. 450g - 500g |
Depending on specific frame configuration |
| Surface Treatment |
Haze 25%, 3H Hard Coat |
Anti-glare and scratch-resistant |
| RoHS Compliance |
Yes |
Mercury-free and lead-free |
The TCG104VGLAAAFA-AA20-S is targeted at high-reliability sectors where high brightness, wide temperature tolerance, and safety visibility are critical.
-
Transportation & Railway Systems (High Visibility):
- Train Driver Consoles: Used in cockpit displays for speed, signaling, and system status. The wide temperature range (-30°C to +80°C) handles the extreme conditions of rail environments (e.g., cold winters, hot engine rooms), while the high brightness ensures readability even when direct sunlight hits the screen.
- Outdoor Passenger Information: Deployed in semi-outdoor bus stops or train platforms where standard screens would be washed out by sunlight.
-
Medical Instrumentation (Safety Critical):
- Surgical & Emergency Monitors: Embedded in patient monitors for vital signs (ECG, SpO2). The "Normally White" mode is a critical safety feature, ensuring that alarm text remains visible if the backlight power fails during a procedure. The high brightness allows clear viewing under intense surgical lighting.
- Portable Diagnostic Tools: Used in handheld ultrasound or defibrillator units where reliability and battery efficiency (LED) are paramount.
-
Industrial Automation & HMI (Harsh Environments):
- Factory Floor Control Panels: Integrated into CNC machines, robotic controllers, and PLC interfaces in factories with high ambient light or temperature fluctuations (e.g., foundries, glass manufacturing).
- Outdoor Industrial Kiosks: Used in oil & gas fields, mining operations, and utility substations where equipment must operate reliably in extreme heat or cold without enclosure heating/cooling.
-
Marine & Aviation:
- Ship Bridge Displays: Used for radar, chart plotting, and engine monitoring. The module's resistance to humidity, vibration, and wide temperature swings makes it ideal for marine environments.
- Ground Support Equipment: Deployed in airport baggage handling systems and aircraft maintenance carts.
-
Test & Measurement Equipment (Field Use):
- Portable Analyzers: Built into field service tools for telecommunications, power grids, and environmental monitoring. The high brightness allows technicians to read data clearly outdoors, and the low power consumption extends battery life.
-
Legacy System Modernization (High-Performance Retrofit):
- Upgrade Path: Frequently used to replace aging CCFL displays in legacy machinery where the original screen is no longer readable due to low brightness or yellowing. The mechanical compatibility allows for a "drop-in" upgrade that significantly improves visibility and lifespan without redesigning the control panel.
