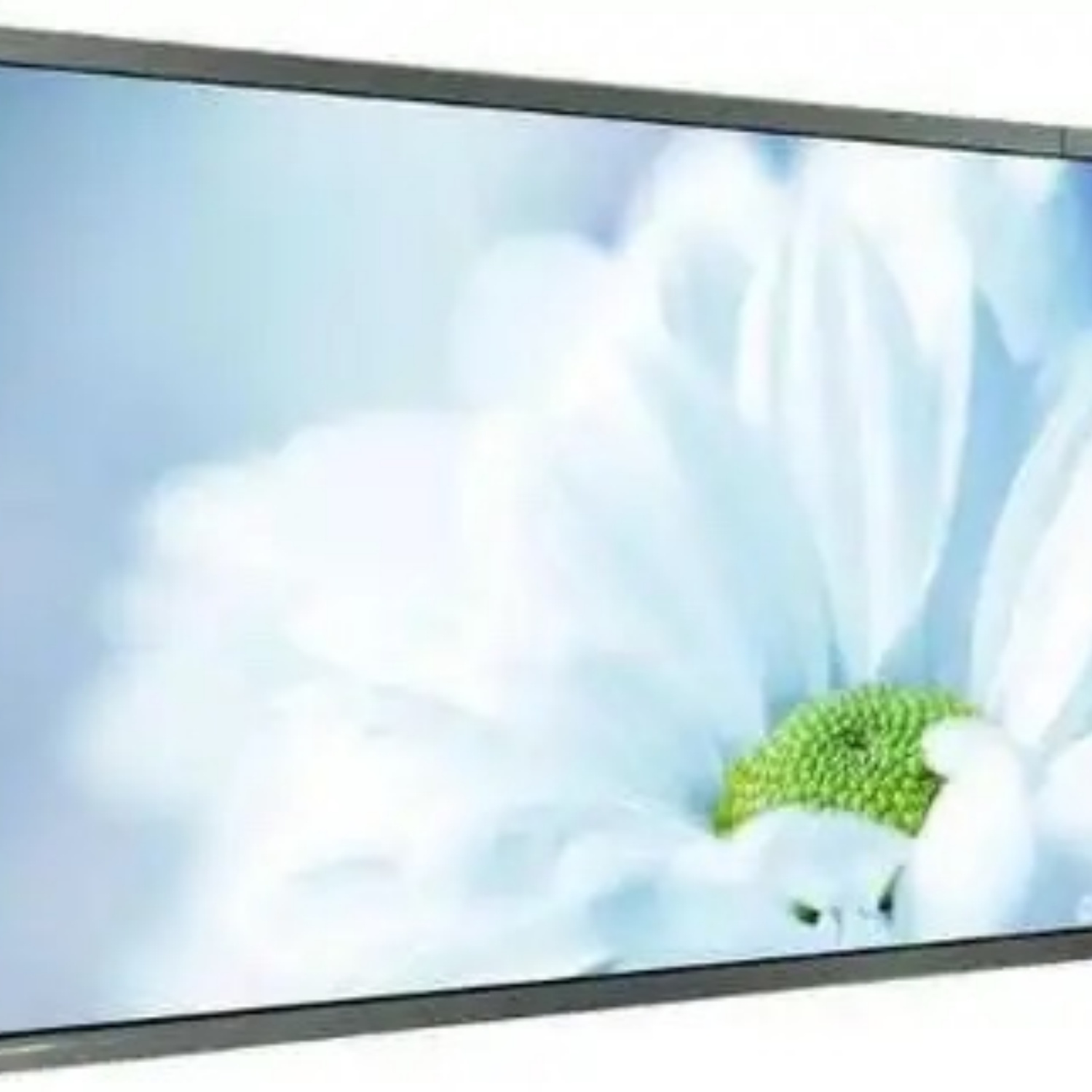

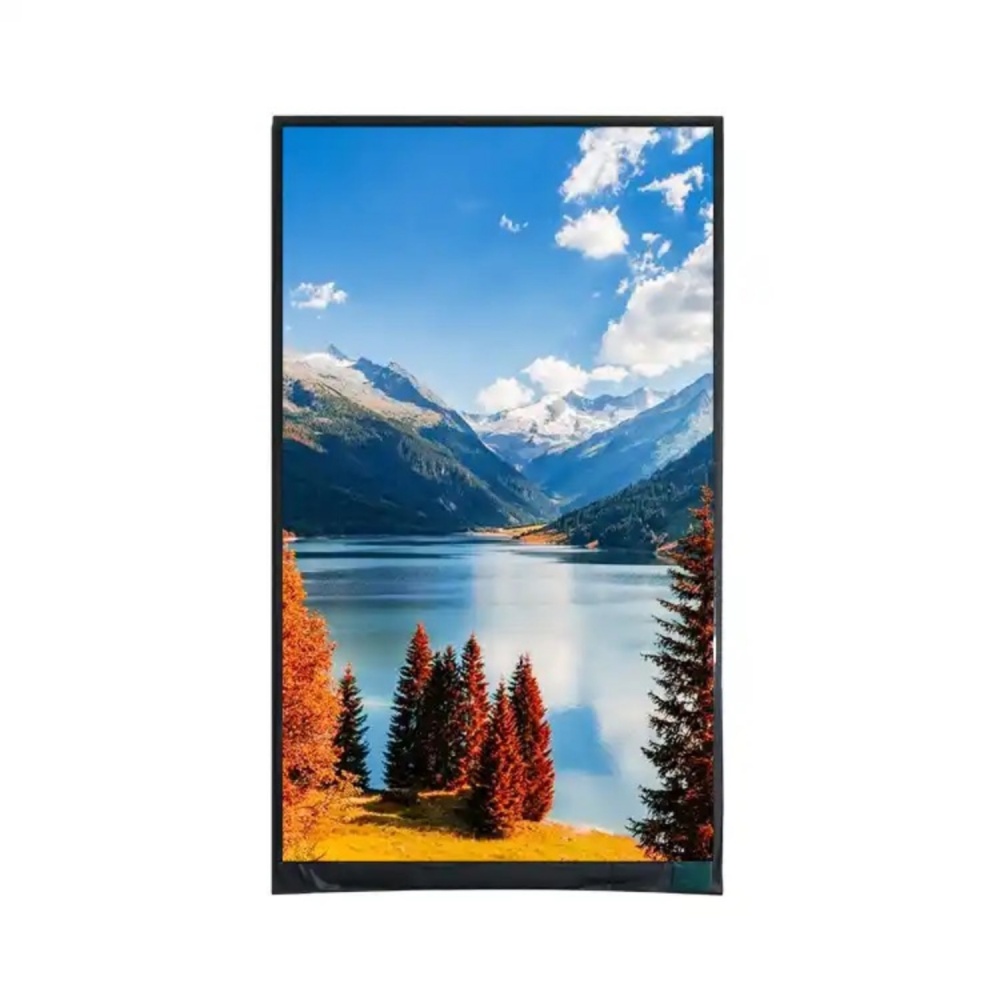

KYOCERA NEW 10.4 inch LCD Display Panel TCG104VGLAAANN-AN00 for Industrial
| Parameter |
Specification |
Details / Notes |
| Model Number |
TCG104VGLAAANN-AN00 |
Kyocera (Optrex) Industrial LCD Module |
| Screen Size |
10.4 inches |
Diagonal measurement |
| Active Area (AA) |
211.2 × 158.4 mm |
Standard 4:3 aspect ratio |
| Outline Dimensions |
Approx. 240.7 × 180.2 × 9.5 mm |
Includes metal bezel; compact depth |
| Resolution |
640 (RGB) × 480 |
VGA Format |
| Pixel Pitch |
0.33 × 0.33 mm |
RGB Vertical Stripe arrangement |
| Display Mode |
TN (Twisted Nematic) |
Transmissive, Normally White |
| Color Depth |
262K colors |
6-bit per color (18-bit total) |
| Brightness |
400 ~ 450 cd/m² |
Typical (High brightness for indoor/semi-outdoor) |
| Contrast Ratio |
500:1 ~ 700:1 |
Typical (CR ≥ 10) |
| Viewing Angle |
80/80/80/60° |
Typical (Left/Right/Up/Down) at CR≥10 (Wide view for TN) |
| Response Time |
15/25 ms |
Typical (Tr + Td) |
| Backlight Type |
WLED |
White LED Array (Mercury-free) |
| Backlight Life |
70,000+ hours |
Until brightness drops to 50% |
| Interface |
LVDS |
Low-Voltage Differential Signaling (1-channel, 6-bit or 8-bit) |
| Input Voltage |
3.3V |
Logic voltage; Integrated LED Driver (No external inverter needed) |
| Power Consumption |
~3.0W - 4.0W |
Typical (Low power due to LED efficiency) |
| Operating Temp. |
-20°C to +70°C |
Wide Industrial Temperature Range |
| Storage Temp. |
-30°C to +80°C |
Non-operating storage range |
| Weight |
Approx. 450g - 500g |
Depending on specific frame configuration |
| Surface Treatment |
Haze 25%, 3H Hard Coat |
Anti-glare and scratch-resistant |
| RoHS Compliance |
Yes |
Mercury-free and lead-free |
The TCG104VGLAAANN-AN00 is targeted at high-reliability sectors where display failure is not an option and visibility under varying light conditions is critical.
-
Transportation & Railway Systems:
- Train Driver Consoles: Used in cockpit displays for speed, signaling, and system status. The wide temperature range (-20°C to +70°C) handles the extreme conditions of rail environments, while the "Normally White" mode ensures safety readability if power is lost.
- Passenger Information Displays (PID): Deployed in trains and buses for route maps and announcements. The high brightness ensures visibility even when sunlight enters the vehicle.
-
Medical Instrumentation:
- Patient Monitors: Embedded in bedside monitors for vital signs (ECG, SpO2, Blood Pressure). The high contrast and anti-glare coating allow medical staff to clearly read waveforms under bright hospital lighting.
- Diagnostic Equipment: Used in ultrasound and endoscopy carts where reliable, flicker-free imaging is essential.
-
Industrial Automation & HMI:
- Factory Control Panels: Integrated into CNC machines, robotic controllers, and PLC interfaces. The rugged design withstands vibration, dust, and temperature fluctuations common on factory floors.
- Process Control: Used in oil & gas, chemical, and power plant control rooms where long-term stability and 24/7 operation are required.
-
Outdoor & Semi-Outdoor Kiosks:
- Self-Service Terminals: Ideal for ATMs, ticket vending machines, and parking payment kiosks located in covered outdoor areas. The 400+ nits brightness combats glare better than standard 250-nit screens.
- Smart City Interfaces: Used in public information boards and wayfinding systems that must operate reliably in varying weather conditions.
-
Test & Measurement Equipment:
- Portable Analyzers: Built into field service tools for telecommunications and power grids. The low power consumption of the LED backlight extends battery life for portable units.
-
Marine & Aviation:
- Ship Navigation Systems: Used in bridge displays for radar and chart plotting, resisting humidity and temperature changes.
- Avionics Ground Support: Deployed in ground control equipment for aircraft maintenance and logistics, where wide temperature tolerance is mandatory.
