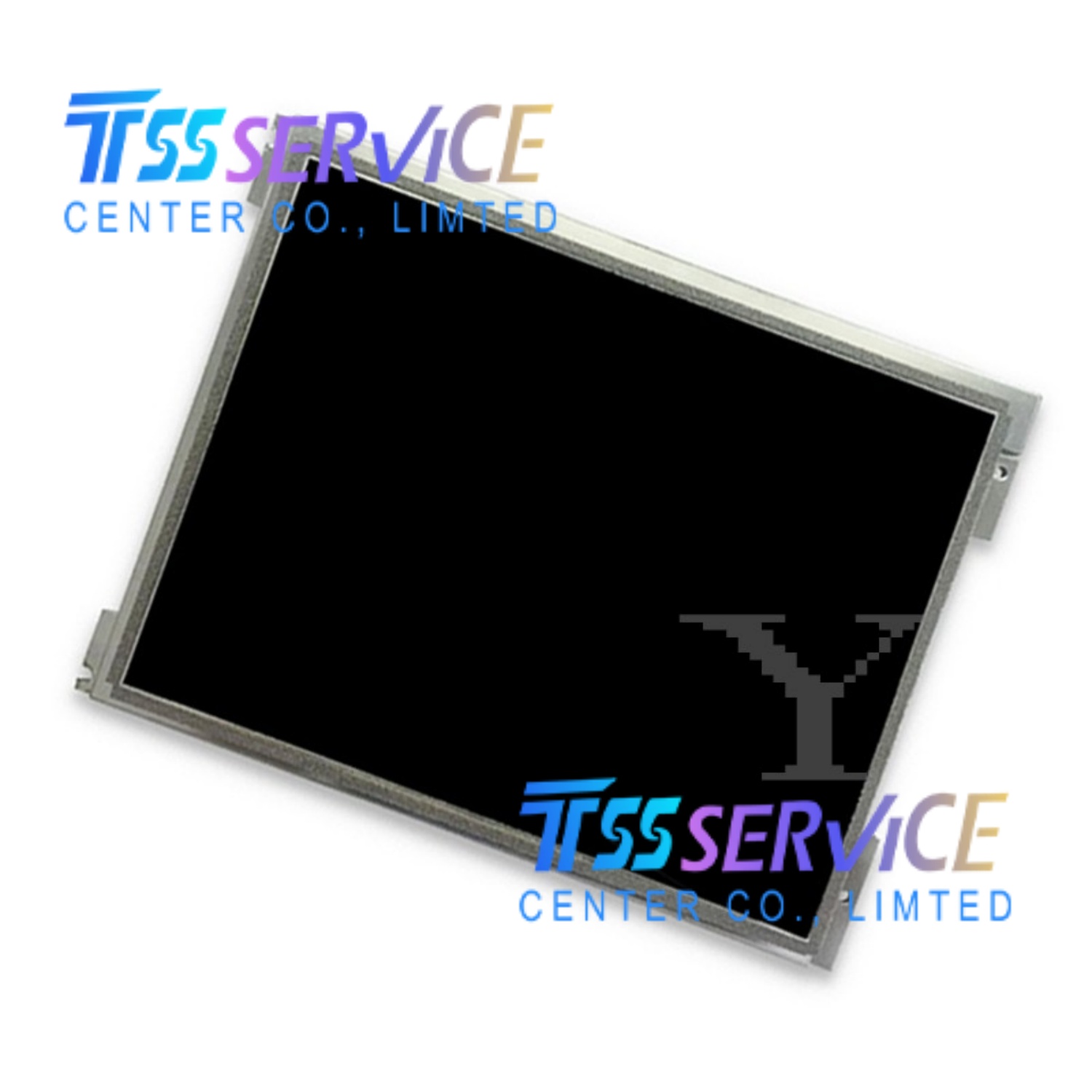

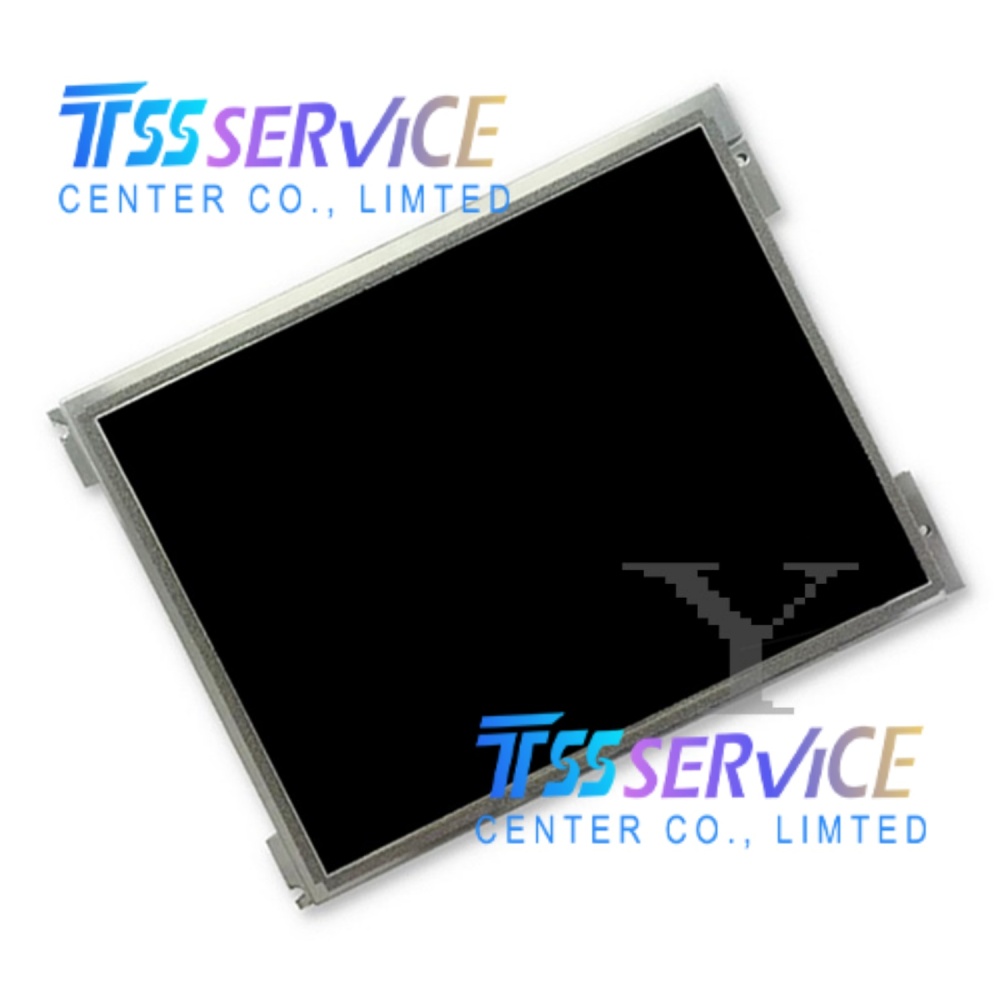

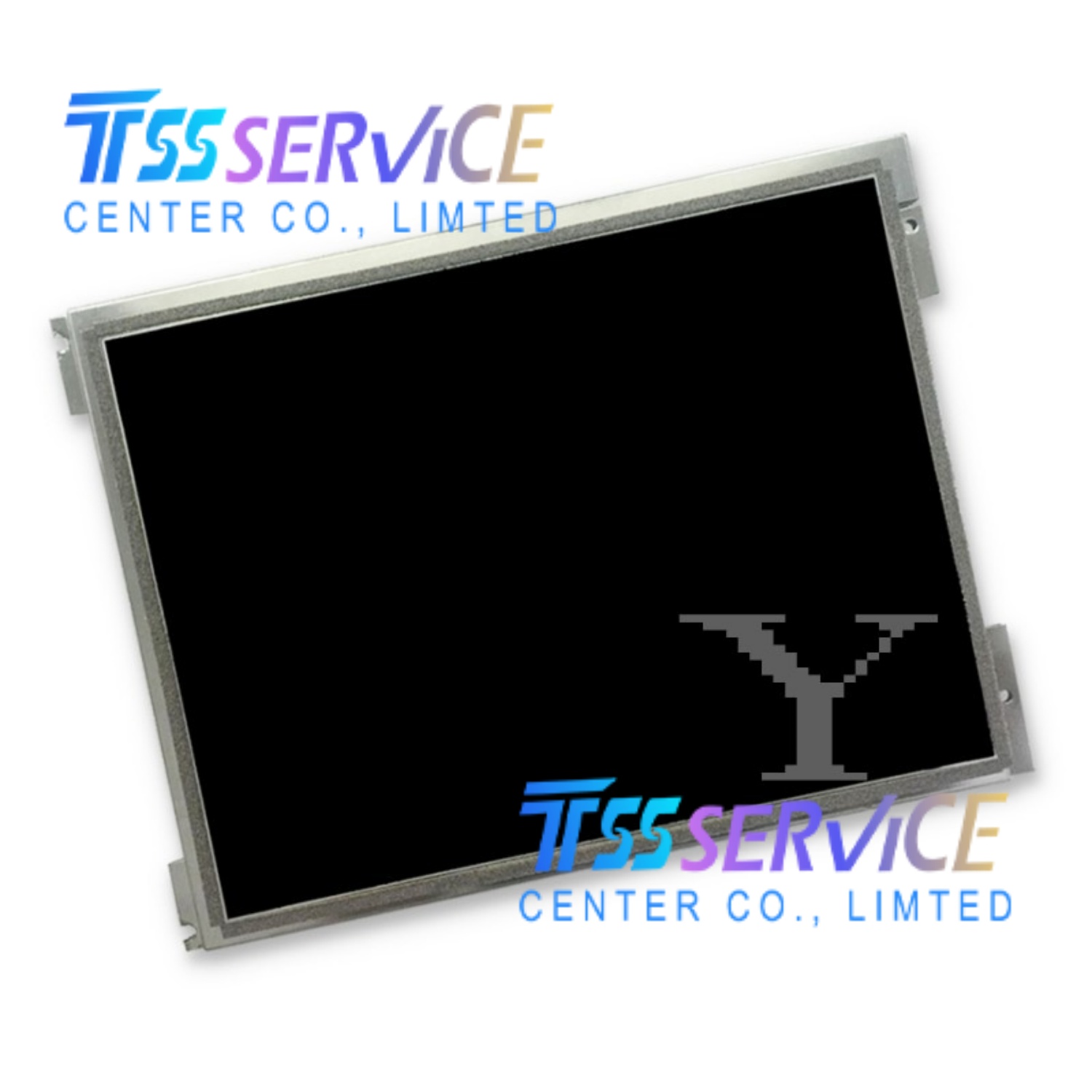

Model P/N： TCG104VGLPCANN-AN40
Diagonal Size： 10.4"
Panel Type： a-Si TFT-LCD, LCM
Resolution： 640(RGB)×480, VGA 76PPI
Pixel Format： RGB Vertical Stripe
| Parameter | Specification |
|---|---|
| Model Number | TCG104VGLPCANN-AN40 |
| Manufacturer | Kyocera |
| Panel Size | 10.4 inch |
| Resolution | 800 (RGB) × 600 |
| Pixel Pitch | 0.264 mm (H) × 0.264 mm (V) |
| Display Type | a-Si TFT-LCD, Transmissive, Normally White |
| Brightness | 1300 cd/m² (Typ.) |
| Contrast Ratio | 700:1 ~ 800:1 (Typ.) |
| Viewing Angle | 85/85/85/85 (Left/Right/Up/Down) (CR≥10) |
| Color Depth | 16.7M Colors (8-bit per color) or 262K (6-bit + FRC) |
| Interface | LVDS (Low-Voltage Differential Signaling), 1 channel, 24-bit (or 18-bit depending on config) |
| Backlight Type | WLED (White LED) |
| Backlight Life | ≥ 50,000 hours (to 50% brightness) |
| Operating Temperature | -30°C to +80°C (Wide Temperature Range) |
| Storage Temperature | -40°C to +90°C |
| Active Area | 211.2 mm (H) × 158.4 mm (V) |
