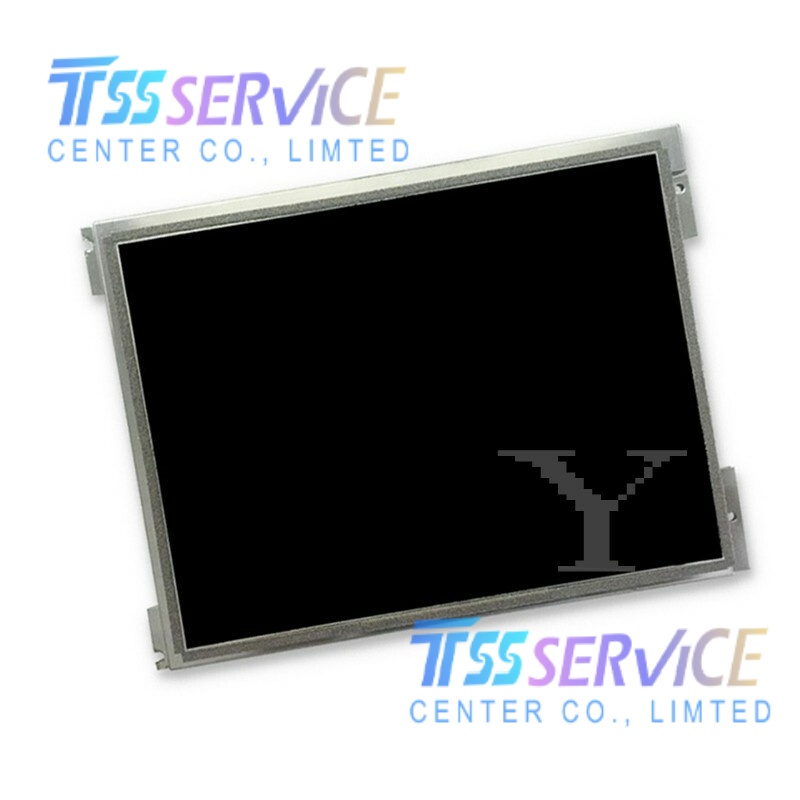

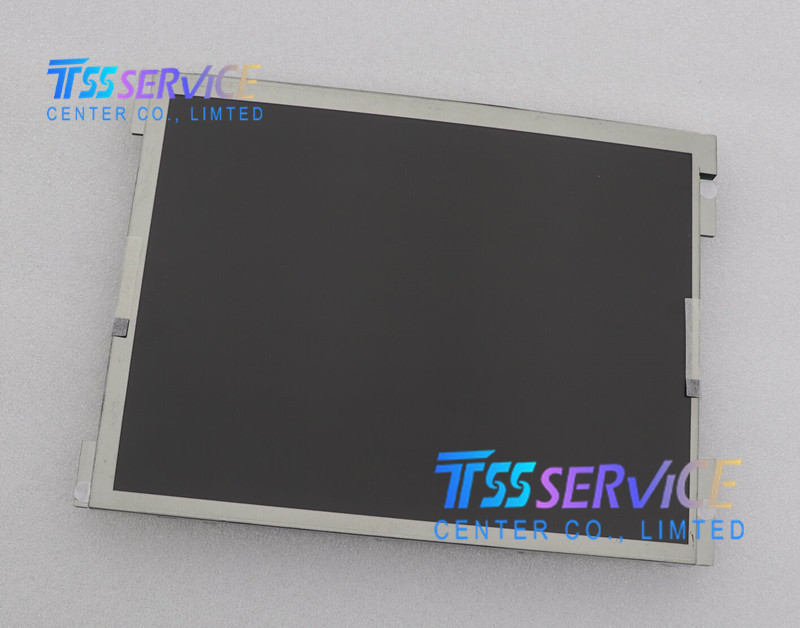

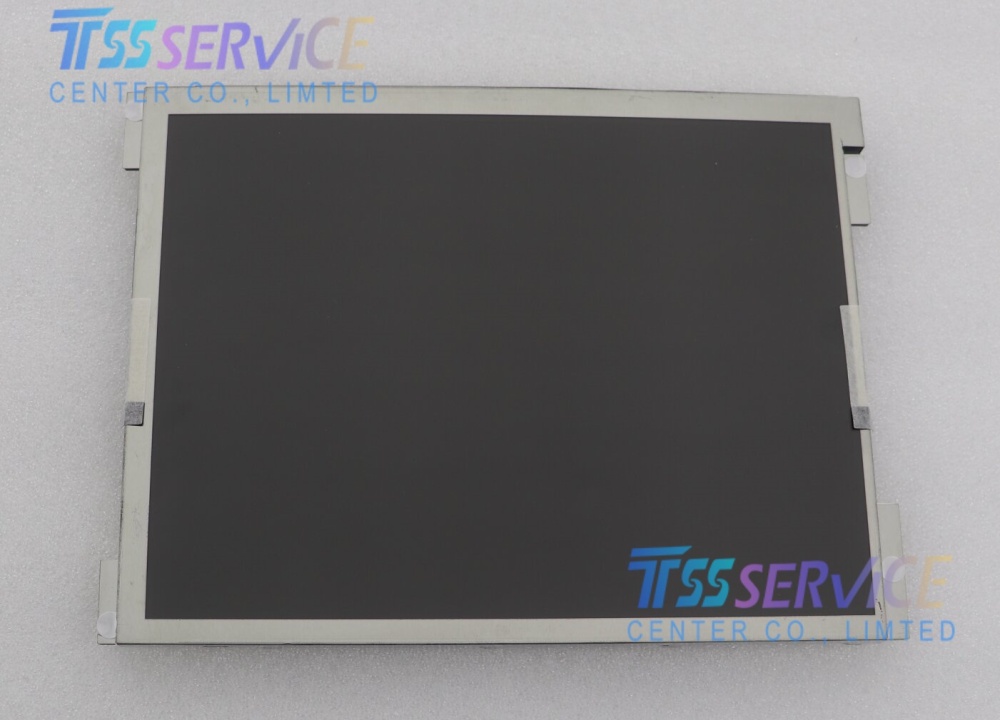

Kyocera TCG104VGLPEANN-AN60-S 10.4 Inch 640×480 Industrial TFT LCD Panel Display Screen for HMI Medical CNC Equipment

Name: Kyocera TCG104VGLPEANN-AN60-S 10.4 Inch 640×480 Industrial TFT LCD Panel Display Screen for HMI Medical CNC Equipment
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: TCG104VGLPEANN-AN60-S
Price: 270 USD
Availability: InStock

SKU: TCG104VGLPEANN-AN60-S

Model No.: TCG104VGLPEANN-AN60-S
Diagonal Size: 10.4 inch
Resolution: 640 × 480 (VGA)
Display Type: a-Si TN TFT-LCD

0.0 (0 Reviews)

0 Sold

~~$340.00~~ $270.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Kyocera TCG104VGLPEANN-AN60-S 10.4 Inch 640×480 Industrial TFT LCD Panel Display Screen for HMI Medical CNC Equipment

Parameter Item	Specific Specification
Model No.	TCG104VGLPEANN-AN60-S
Brand	Kyocera (Kyocera Display)
Diagonal Size	10.4 inch
Resolution	640 × 480 (VGA)
Display Type	a-Si TN TFT-LCD, Transmissive Normally White
Active Area	211.2(H) × 158.4(V) mm
Overall Dimension	240.7(H) × 180.2(V) × 9.5(D) mm
Net Weight	445g (Typical)
Brightness	480 cd/m² (Typ.)
Contrast Ratio	500:1 (Typ.)
Response Time	Tr=10ms / Td=20ms
Viewing Angle	70/70/60/70° (CR≥10)
View Direction	6 o'clock
Backlight	WLED, Lifespan 50,000 Hours, Built-in LED Driver
Surface Treatment	Anti-Glare Coating
Interface	Single Channel 8-bit LVDS, 30 Pin Connector
Supply Voltage	3.3V DC
Operating Temperature	-20°C ~ +80°C
Storage Temperature	-30°C ~ +80°C
Touch Panel	Without Touch Glass
Color Depth	262K Colors (RGB)

Application Scenarios

Industrial HMI Human Machine Interface, PLC Control Cabinet Touch Displays
CNC Machine Tools, Injection Molding & Packaging Automation Equipment Operation Screens
Medical Monitoring Devices, Diagnostic Instruments, Bedside Medical Terminals
Laboratory Test & Measuring Analysis Instruments
Engineering Vehicle, Construction Machinery On-board Control Displays
Intelligent Charging Piles, New Energy Industrial Control Terminals
Logistics Warehouse Monitoring Terminals, Factory Automation Control Panels
Printing, Textile & Welding Equipment Operation Display Modules
Marine & Transportation Industrial Monitoring Displays
