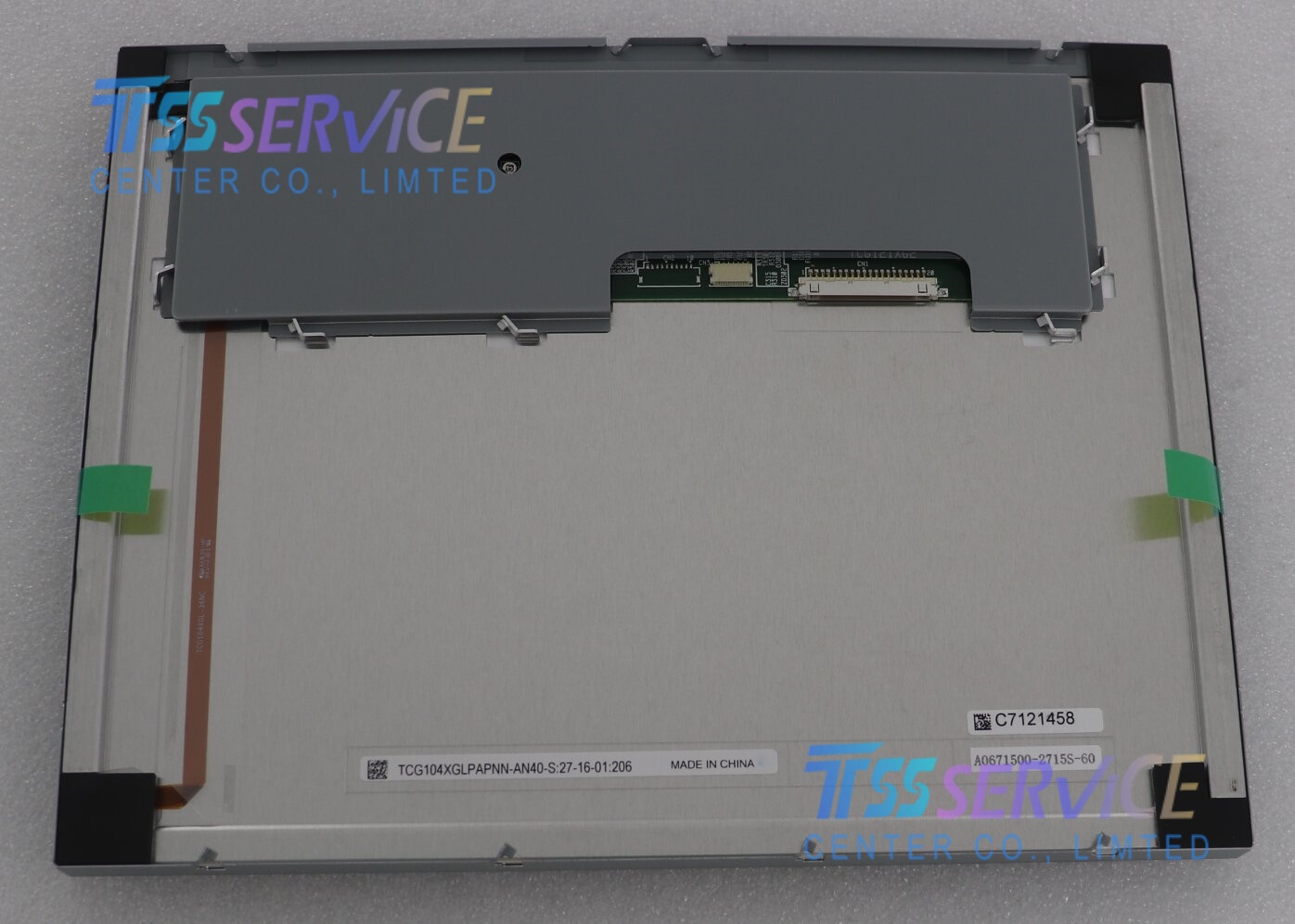

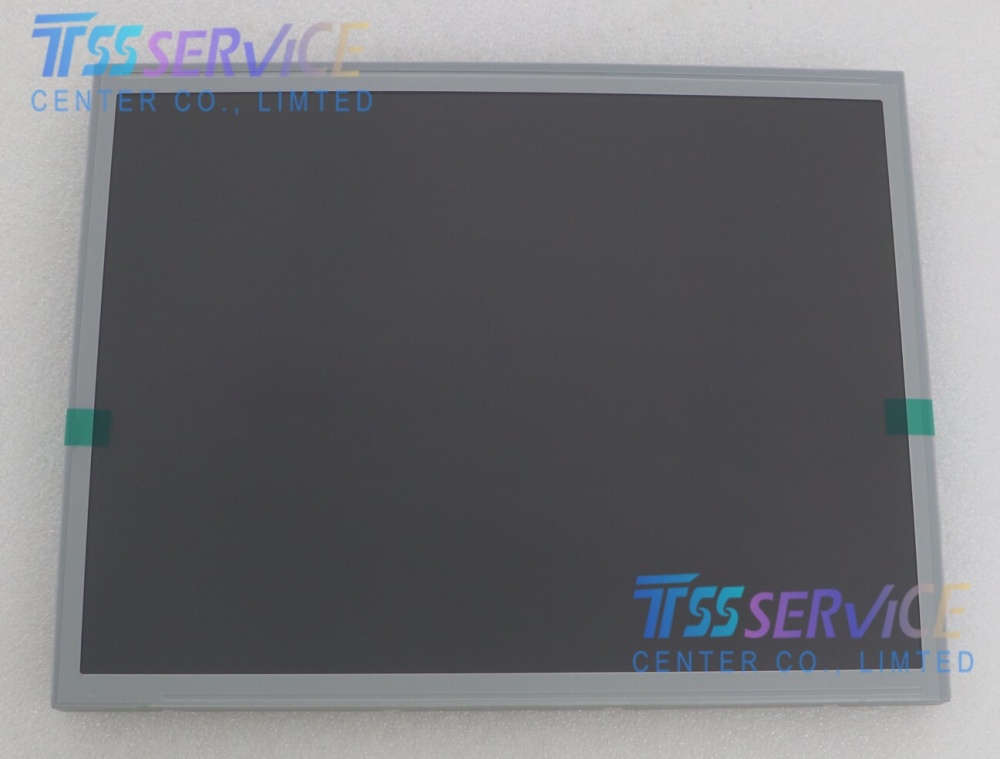

TCG104XGLPAPNN-AN40 10.4inch 1024(RGB)×768 Kyocera lcd panel

Name: TCG104XGLPAPNN-AN40 10.4inch 1024(RGB)×768 Kyocera lcd panel
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: TCG104XGLPAPNN-AN40
Price: 180 USD
Availability: InStock

SKU: TCG104XGLPAPNN-AN40

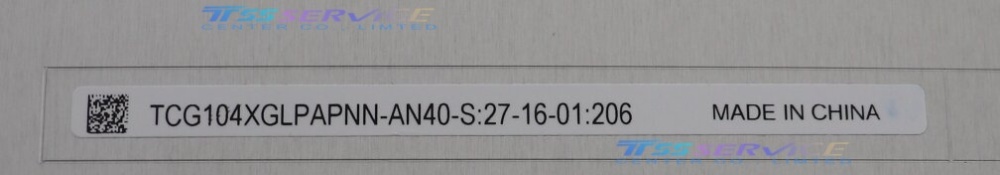

Model P/N：TCG104XGLPAPNN-AN40
Diagonal Size：10.4''
Panel Type：a-Si TFT-LCD, LCM
Resolution：1024(RGB)×768, XGA 123PPI
Pixel Format ：Vertical Stripe

0.0 (0 Reviews)

0 Sold

~~$182.00~~ $180.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

The Kyocera TCG104XGLPAPNN-AN40 is a high-performance 10.4-inch industrial TFT-LCD module, renowned for its exceptional optical quality and rugged construction. Featuring an XGA resolution (1024×768) with a 4:3 aspect ratio, this panel is engineered by Kyocera to meet the stringent demands of mission-critical applications where reliability, durability, and superior image clarity are paramount.

Category	Specification
Model	TCG104XGLPAPNN-AN40
Manufacturer	Kyocera
Screen Size	10.4 inches
Active Area	210.4(W)×157.8(H) mm
Resolution	1024 (RGB) × 768 pixels (XGA)
Display Type	a-Si TFT-LCD, Transmissive
Pixel Configuration	RGB Vertical Stripe
Brightness (Typical)	1300 cd/m² (Typ.)
Contrast Ratio (Typical)	700:1 (Typ.) (TM)
Viewing Angle (CR≥10)	85/85/85/85 (Typ.)(CR≥10)
Surface Treatment	Anti-glare (Haze 25%), Hard coating (3H)

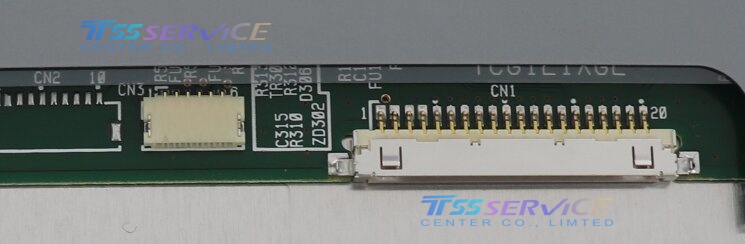

Interface	LVDS (1 ch, 6/8-bit) , 20 pins Connector
Backlight	WLED
Backlight Life	50,000 hours (typical)
Power Supply	3.3V (Logic), 12V / 24V (LED Backlight)
Operating Temperature	-30°C to +80°C
Storage Temperature	-30°C to +80°C

Typical Applications:

Transportation: Railway signage, aviation cockpit/cabin displays, marine navigation, heavy vehicle HMIs.
Outdoor & Rugged HMIs: Construction machinery, agricultural equipment, oil & gas field monitors.
Medical & Diagnostic Equipment: Surgical displays, patient monitoring systems.
Industrial Automation: Factory floor control panels, robotics interfaces, test & measurement devices.
Military & Defense: Field portable systems, command and control displays.
