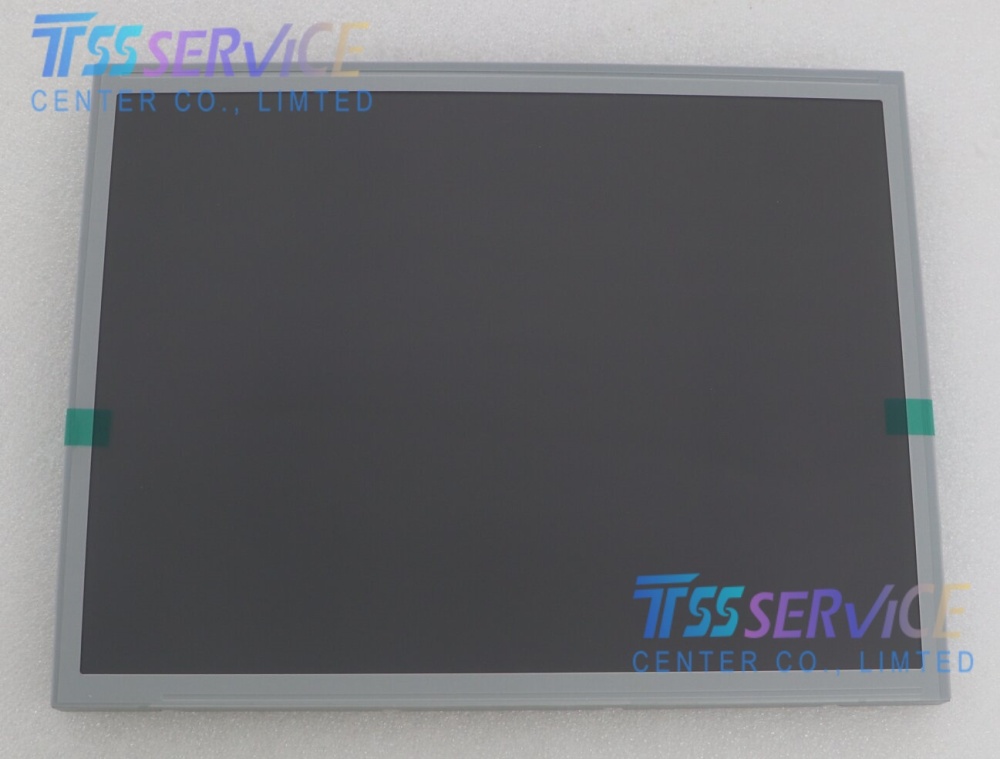

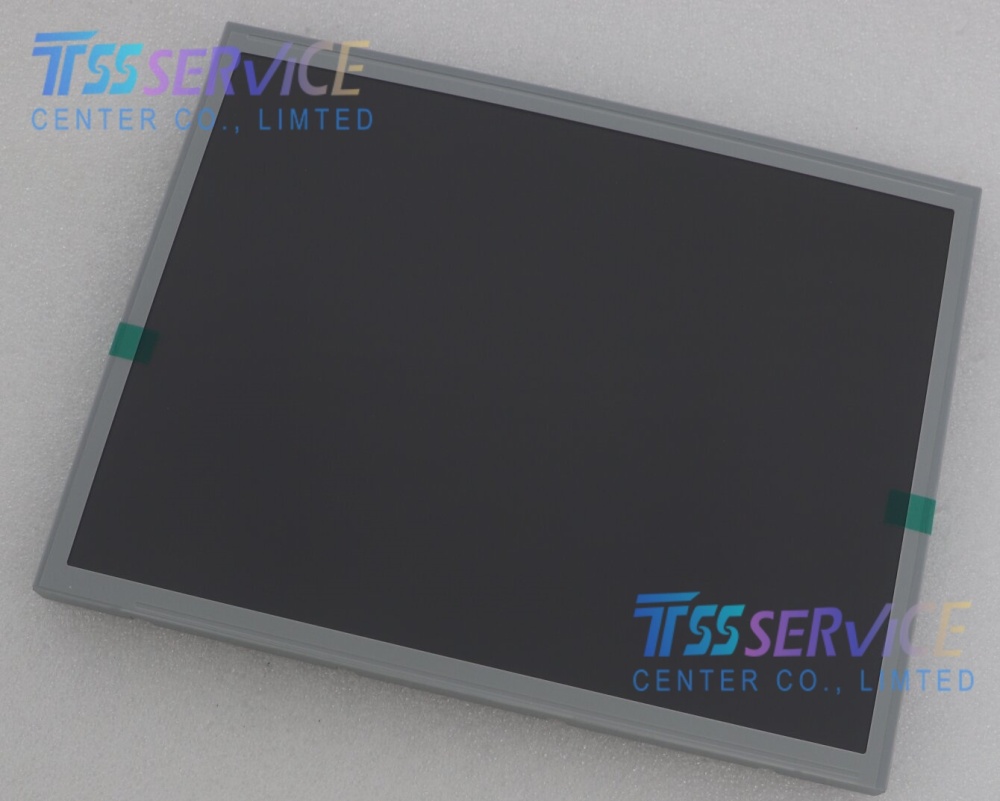

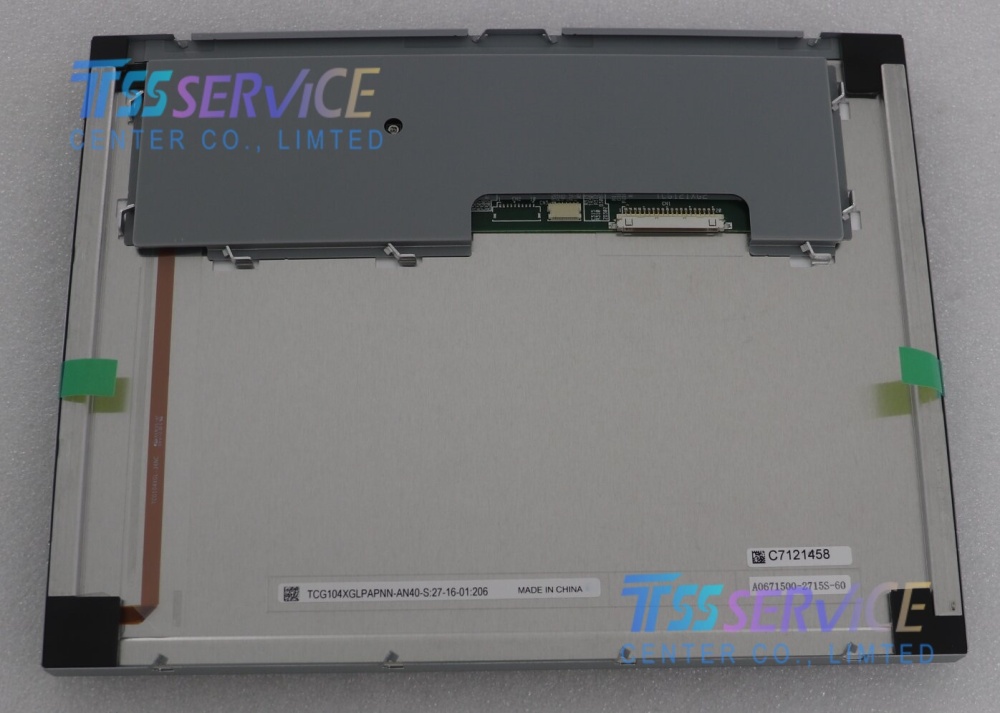

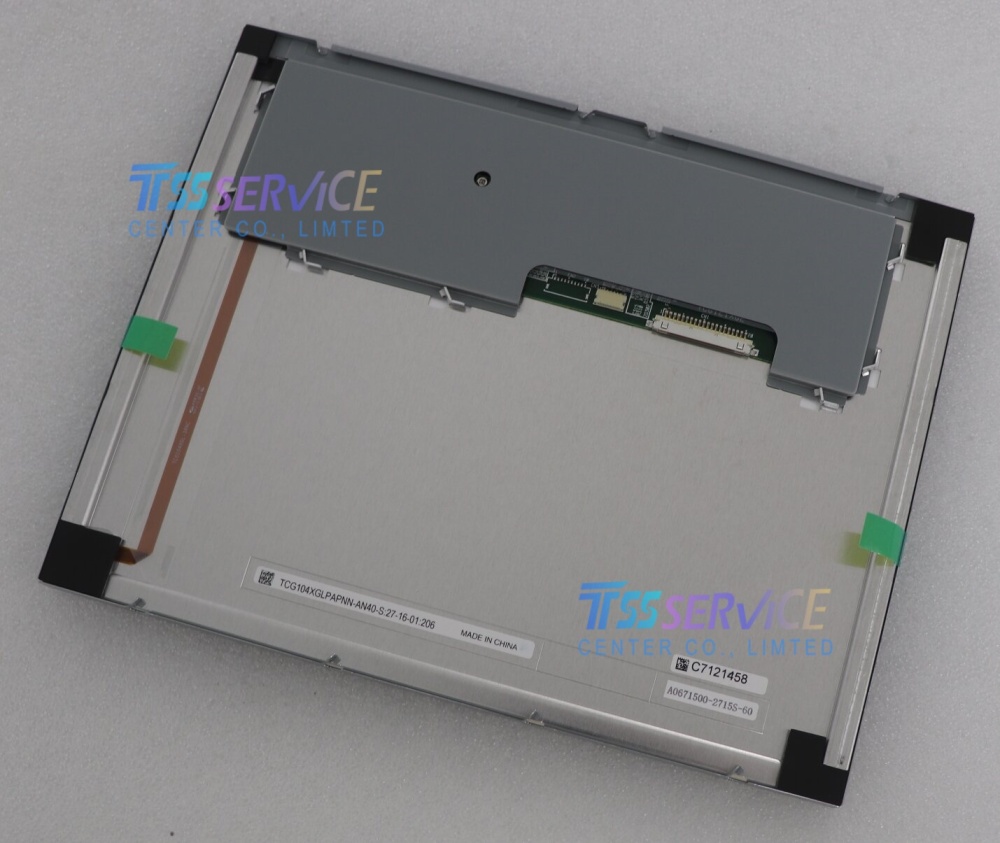

The Kyocera TCG104XGLPAPNN-AN40-S is a rugged, high-brightness 10.4-inch industrial TFT-LCD screen, designed for demanding applications that require superior readability, durability, and performance in extreme environments. As an extended variant (denoted by the "-S" suffix) of the base AN40 model, it incorporates specific enhancements tailored for specialized use cases, such as enhanced sealing, a specific touch interface, or custom signal timing.
| Category | Specification |
|---|---|

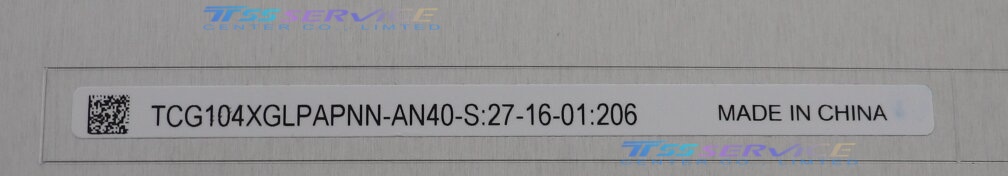

| Model | TCG104XGLPAPNN-AN40-S |
| Manufacturer | Kyocera |
| Screen Size | 10.4 inches |
| Active Area | 210.4(W)×157.8(H) mm |
| Resolution | 1024 (RGB) × 768 pixels (XGA) |
| Display Type | a-Si TFT-LCD, Transmissive |
| Pixel Configuration | RGB Vertical Stripe |
| Brightness | 1300 cd/m² (Typ.) |
| Contrast Ratio | 700:1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Surface Treatment | Anti-glare, Hard coating (3H) |
| Interface |
|
| Backlight | WLED |
| Backlight Life | 50,000 hours (typical) |
| Power Supply | 3.3V (Logic), 12V/24V (LED Backlight) |
