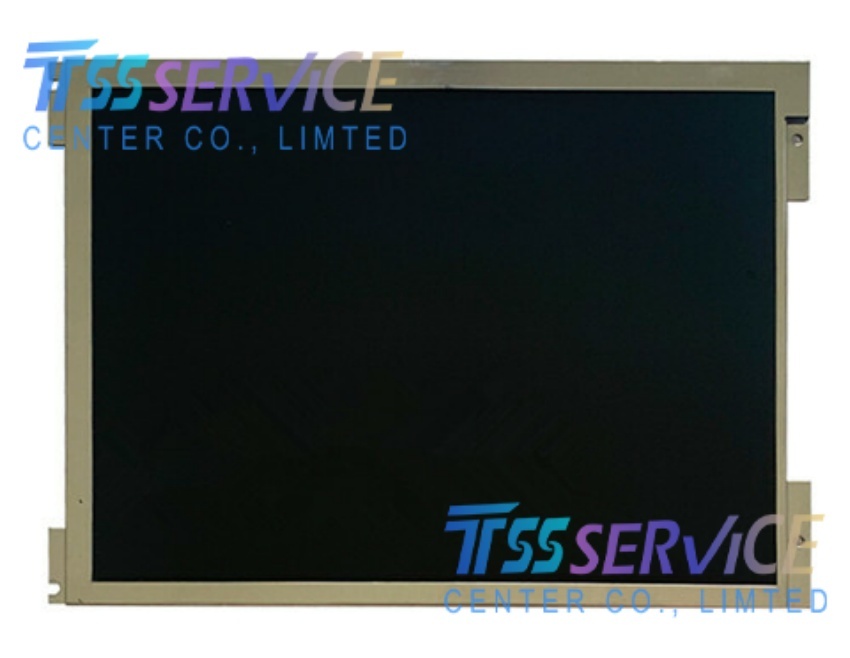

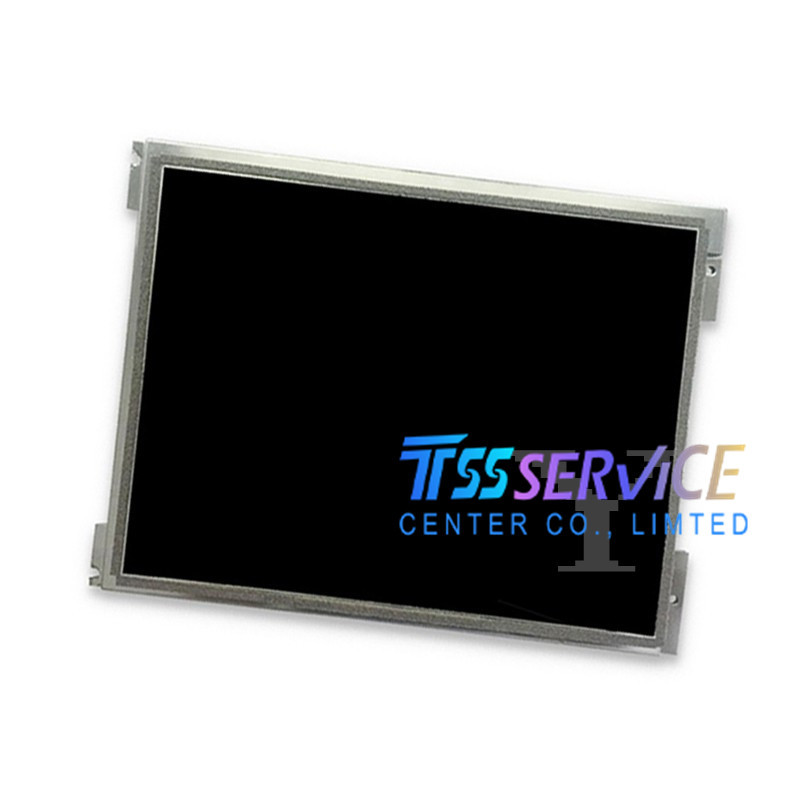

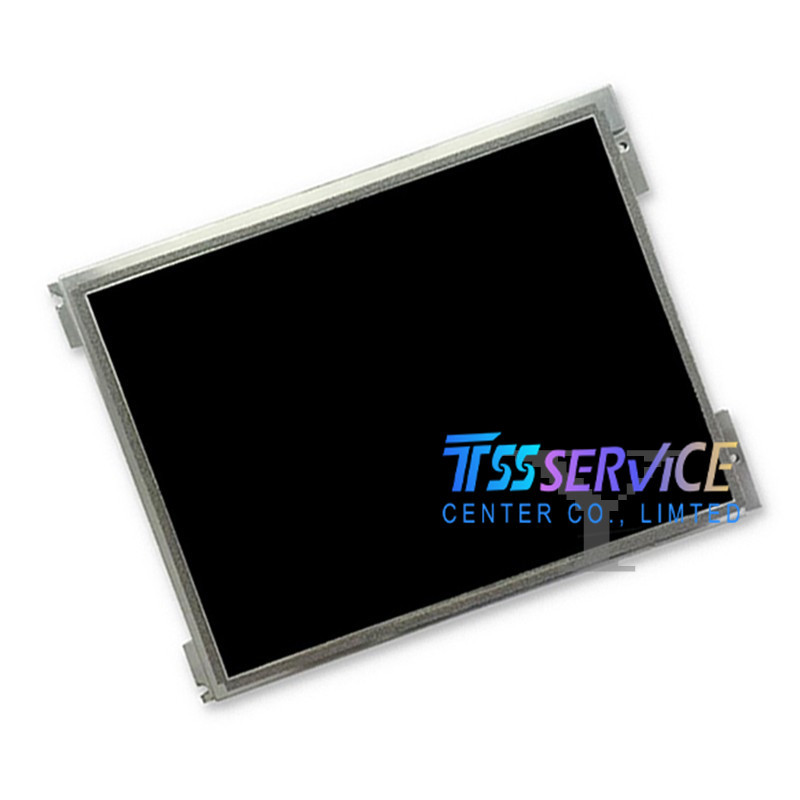

TCG104XGLPBPNN-AN70 Kyocera 10.4" XGA TFT-LCD 1024×768 Industrial Display Module

SKU: TCG104XGLPBPNN-AN70
Model: TCG104XGLPBPNN-AN70
Brand: Kyocera
Screen Size: 10.4 inches
Panel Type: a-Si TFT-LCD, Normally Black, Transmissive
Resolution: 1024×768 (XGA, 4:3)
0.0 (0 Reviews)
0 Sold
$200.00 $200.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
  • TCG104XGLPBPNN-AN70 Kyocera 10.4" XGA TFT-LCD 1024×768 Industrial Display Module
  • TCG104XGLPBPNN-AN70 Kyocera 10.4" XGA TFT-LCD 1024×768 Industrial Display Module
  • TCG104XGLPBPNN-AN70 Kyocera 10.4" XGA TFT-LCD 1024×768 Industrial Display Module
  • TCG104XGLPBPNN-AN70 Kyocera 10.4" XGA TFT-LCD 1024×768 Industrial Display Module
  • TCG104XGLPBPNN-AN70 Kyocera 10.4" XGA TFT-LCD 1024×768 Industrial Display Module
  • TCG104XGLPBPNN-AN70 Kyocera 10.4" XGA TFT-LCD 1024×768 Industrial Display Module
1/1
  • TCG104XGLPBPNN-AN70 Kyocera 10.4" XGA TFT-LCD 1024×768 Industrial Display Module
  • TCG104XGLPBPNN-AN70 Kyocera 10.4" XGA TFT-LCD 1024×768 Industrial Display Module
  • TCG104XGLPBPNN-AN70 Kyocera 10.4" XGA TFT-LCD 1024×768 Industrial Display Module
  • Description
TCG104XGLPBPNN-AN70 Kyocera 10.4" XGA TFT-LCD 1024×768 Industrial Display Module
Parameter Details
Model TCG104XGLPBPNN-AN70
Brand Kyocera
Screen Size 10.4 inches
Panel Type a-Si TFT-LCD, Normally Black, Transmissive
Resolution 1024×768 (XGA, 4:3)
Brightness 1300 cd/m² (Typ.)
Contrast Ratio 700:1 (Typ.)
Viewing Angle (CR≥10) 85°/85°/85°/85° (L/R/U/D)
Color Depth 262K Colors (6-bit)
Response Time 18 ms (G to G, Typ.)
Backlight WLED (2 strings), 70,000 hrs lifespan
Interface LVDS (1 ch, 8-bit), 30 pins
Operating Voltage 3.3V (Typ.)
Operating Temperature -30°C ~ +80°C
Storage Temperature -30°C ~ +80°C
Display Area 210.432 × 157.824 mm
Outline Dimension 230 × 180.2 × 10.5 mm
Weight Approx. 480g
Surface Treatment Hard Coating (2H)
Compliance RoHS
Product Status Active (In production)

Applications

  • Industrial Automation: High-end HMI, CNC machinery, process control systems
  • Outdoor & Sunlight Readable: Kiosks, outdoor digital signage, solar-powered devices
  • Transportation: Construction machinery, railway, marine navigation displays
  • Medical Equipment: High-brightness patient monitors, surgical displays
  • Harsh Environment: Oil & gas, mining, and military-grade terminals
