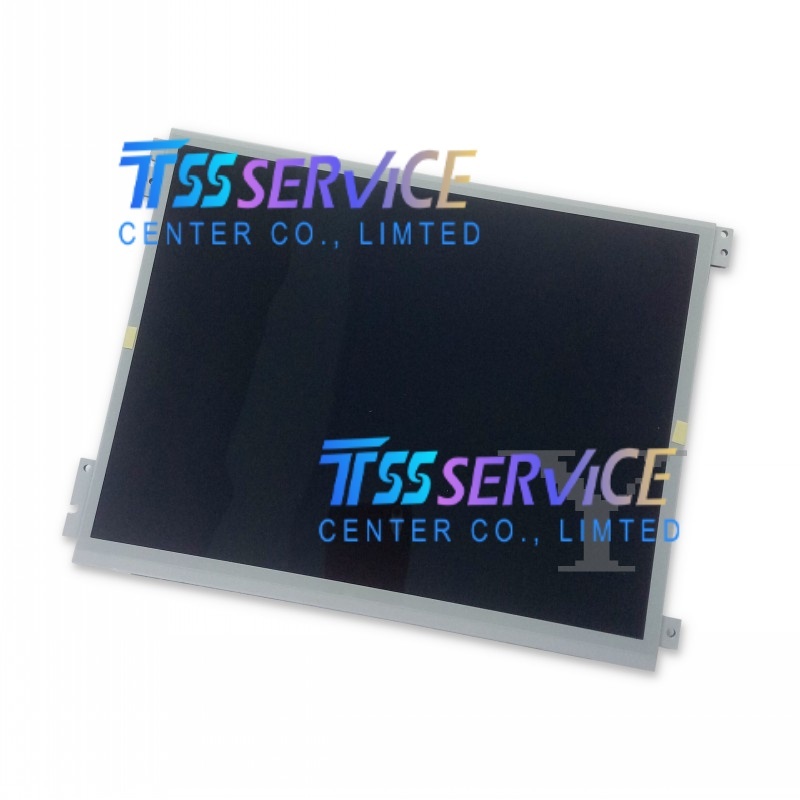

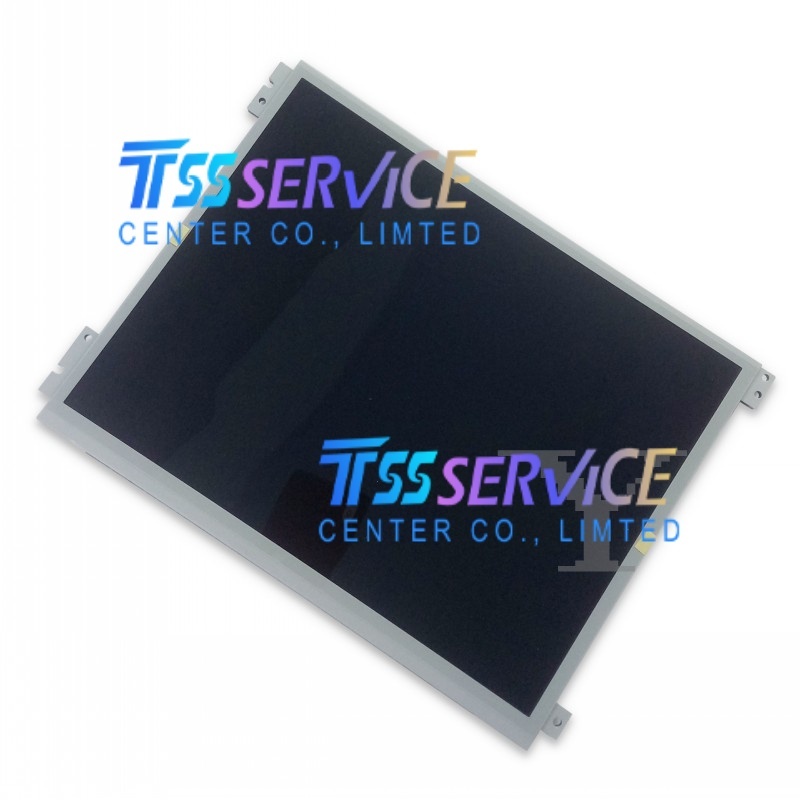

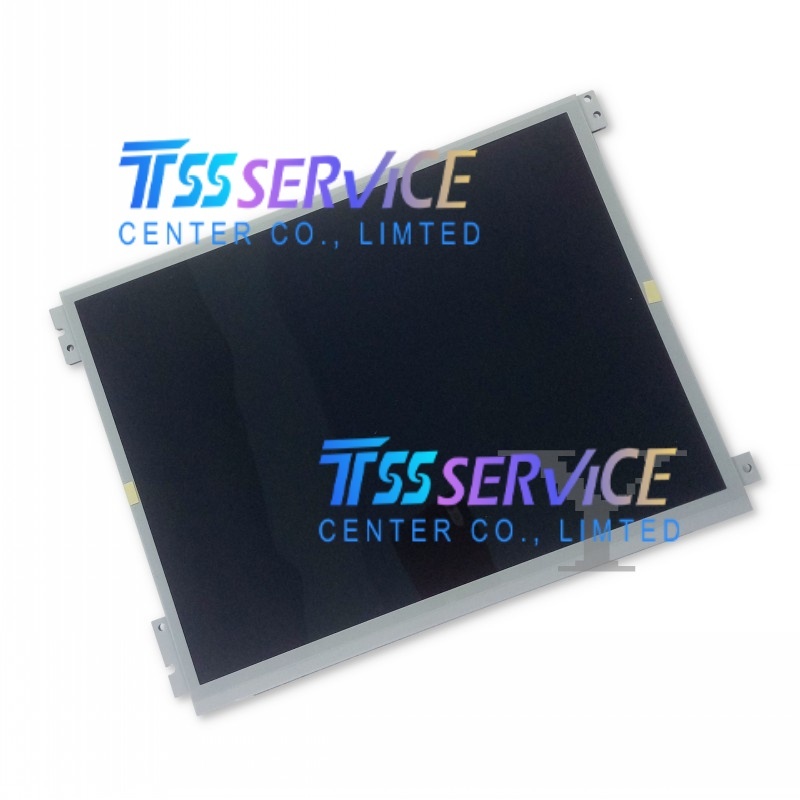

KYOCERA TCG121SVLCACFA-AA20 12.1 inch LCD Panel for Industrial Machine

Name: KYOCERA TCG121SVLCACFA-AA20 12.1 inch LCD Panel for Industrial Machine
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: TCG121SVLCACFA-AA20
Price: 250 USD
Availability: InStock

SKU: TCG121SVLCACFA-AA20

Model P/N: TCG121SVLCACFA-AA20
Diagonal Size: 12.1"
Panel Type: a-Si TFT-LCD, LCM
Resolution: 800 (H) × 600 (V) pixels (SVGA)
Pixel Format: RGB Vertical Stripe

0.0 (0 Reviews)

0 Sold

~~$252.00~~ $250.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

KYOCERA TCG121SVLCACFA-AA20 12.1 inch LCD Panel for Industrial Machine

Parameter	Details
Manufacturer	KYOCERA
Part Number	TCG121SVLCACFA-AA20
Module Type	a-Si TFT-LCD Module
Diagonal Size	12.1 inches
Resolution	800 (H) × 600 (V) pixels (SVGA)
Display Mode	TN, Normally White, Transmissive
Active Area	246.0 (W) × 184.5 (H) mm
Outline Dimensions	278.3 (W) × 207.5 (H) × 9.5 (D) mm
Pixel Format	RGB Vertical Stripe
Brightness (cd/m²)	400 cd/m² (Typical)KYOCERA Display
Contrast Ratio	1000:1 (Typical)KYOCERA Display
Response Time	4/22 ms (Tr/Td, Typical)
Viewing Angle (CR≥10)	80° (L) / 80° (R) / 80° (U) / 80° (D)
Display Colors	16.2M (8-bit)
Backlight	WLED, 70,000 hours Lifetime (Typical), Built-in CCC
Signal Interface	LVDS (1 channel, 8-bit), 30 pins
Supply Voltage	3.3V (Typical)
Power Consumption	630 mA (Max, Backlight ON)
Operating Temperature	-20°C to +70°C
Storage Temperature	-30°C to +80°C
Touch Panel	4-wire Resistive Touchscreen (Optional)KYOCERA Display
Surface Treatment	Anti-glare (Matte)
RoHS Compliance	RoHS Compliant
Production Status	Mass Production (In Stock)

Typical Applications

Industrial Control & HMI: Industrial human-machine interfaces, factory automation systems, PLC operation panels
Medical Equipment: Patient monitors, diagnostic devices, medical imaging displays
Test & Measurement: Oscilloscopes, spectrum analyzers, data loggers, precision instrumentation
Embedded & Rugged PCs: Industrial panel PCs, vehicle-mounted computers, marine/avionics displays
Office Automation: Printers, copiers, multi-function peripherals (MFPs) control panels
Specialized Displays: Outdoor/harsh environment terminals, point-of-sale (POS) systems, in-vehicle infotainment
