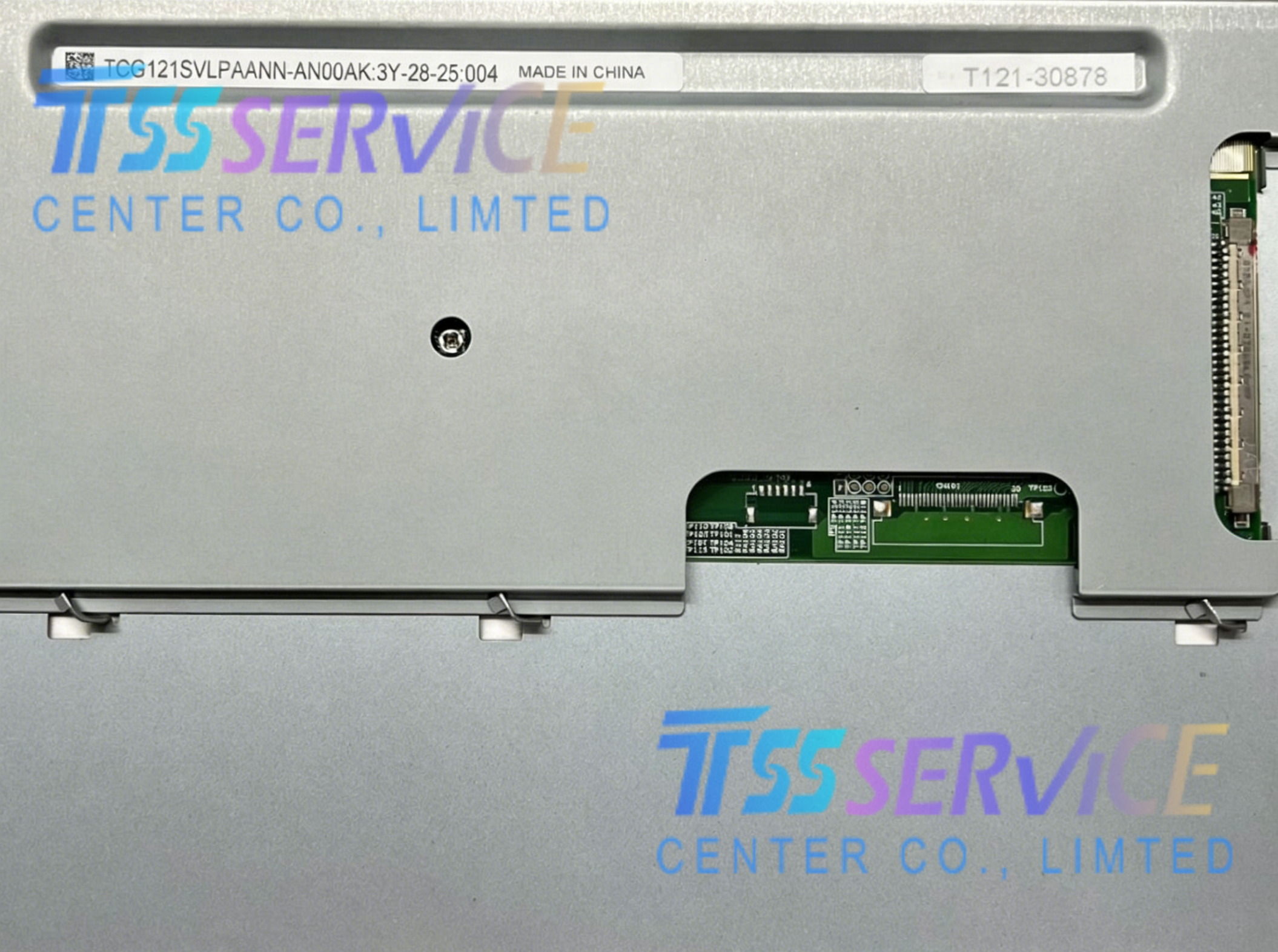

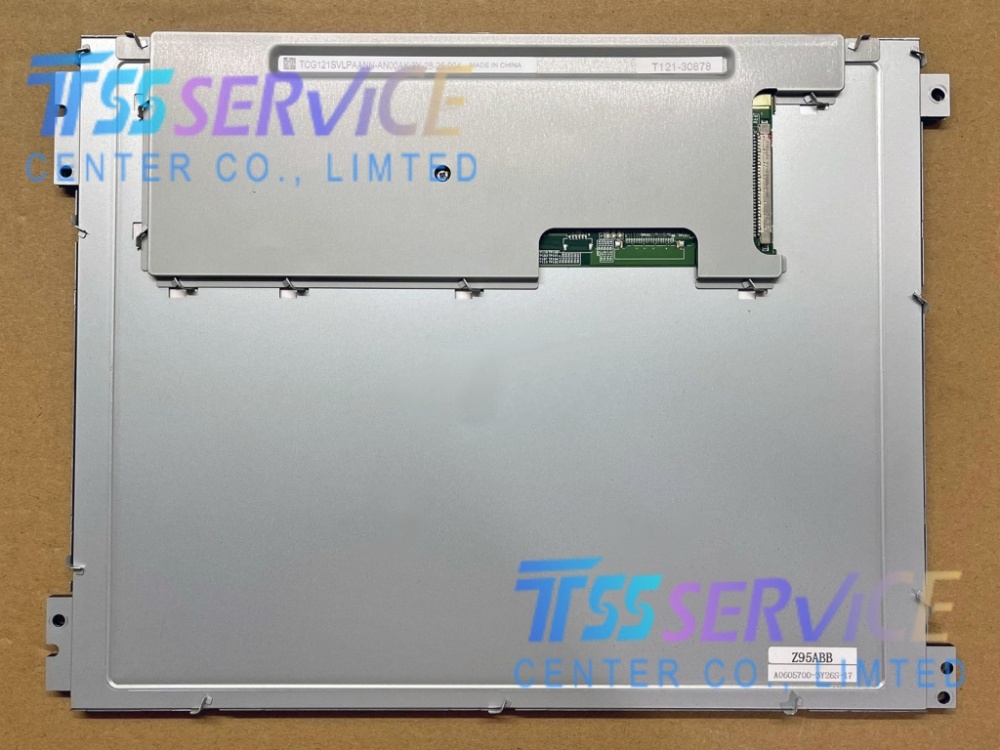

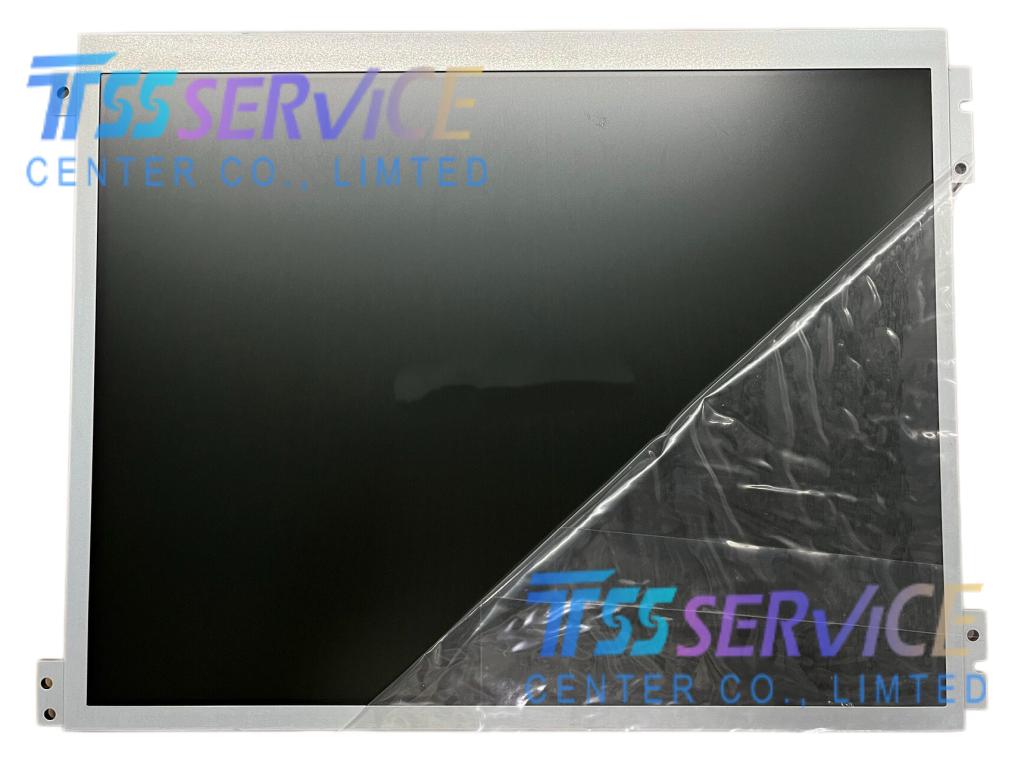

Kyocera TCG121SVLPAANN-AN00AK 12.1 inch 800×600 LCD Panel Screen For Industrial

Name: Kyocera TCG121SVLPAANN-AN00AK 12.1 inch 800×600 LCD Panel Screen For Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: TCG121SVLPAANN-AN00AK
Price: 248 USD
Availability: InStock

SKU: TCG121SVLPAANN-AN00AK

Model: TCG121SVLPAANN‑AN00AK
Brand: Kyocera
Diagonal Size: 12.1 inches
Display Type: a‑Si TFT‑LCD, TN, Normally White, Transmissive
Resolution: 800 × 600 (SVGA, RGB Vertical Stripe)

0.0 (0 Reviews)

0 Sold

~~$250.00~~ $248.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Kyocera TCG121SVLPAANN-AN00AK 12.1 inch 800×600 LCD Panel Screen For Industrial

Parameter	Value
Model	TCG121SVLPAANN‑AN00AK
Brand	Kyocera
Diagonal Size	12.1 inches
Display Type	a‑Si TFT‑LCD, TN, Normally White, Transmissive
Resolution	800 × 600 (SVGA, RGB Vertical Stripe)
Brightness	500 cd/m² (Typ.)
Contrast Ratio	1000:1 (Typ.)
Viewing Angle	80°/80°/80°/80° (L/R/U/D, CR≥10)
Color Depth	16.2M colors (24‑bit)
Backlight	WLED (7s3p), ≥70,000 hrs lifespan
Interface	LVDS (1 ch, 8‑bit), 30‑pin connector
Supply Voltage	3.3V (logic), 12V (backlight)
Operating Temp.	−20 °C ~ +70 °C (Industrial Wide Temp)
Storage Temp.	−30 °C ~ +80 °C
Active Area	246.0 × 184.5 mm
Outline Dimensions	278.3 × 207.5 × 10.0 mm
Weight	Approx. 645 g
Surface Treatment	Matte (Antiglare)
Features	Industrial grade, wide temp, high brightness, LVDS, long life LED, RoHS compliant

Typical Applications

Industrial HMI & Control PanelsFactory automation, PLC panels, CNC machinery, industrial workstations, robotics.
Medical EquipmentPatient monitors, diagnostic imaging, surgical displays, portable medical terminals.
Marine & Heavy‑Duty VehiclesShipbridge displays, onboard instrumentation, construction machinery, agricultural vehicles, railway HMIs.
Kiosks & POS / Self‑Service TerminalsIndustrial kiosks, factory data terminals, public information displays.
Test & Measurement / Lab InstrumentsOscilloscopes, data loggers, industrial controllers, analytical equipment.
