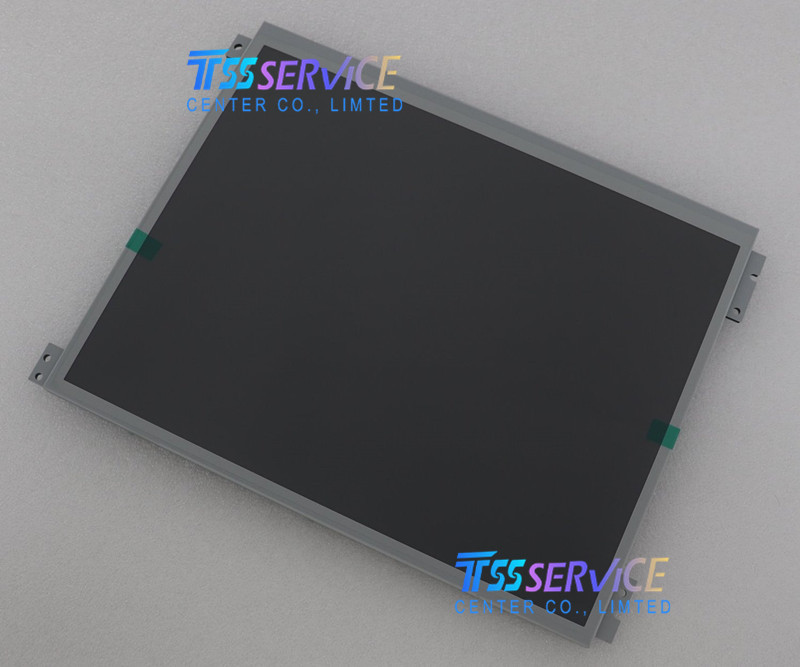

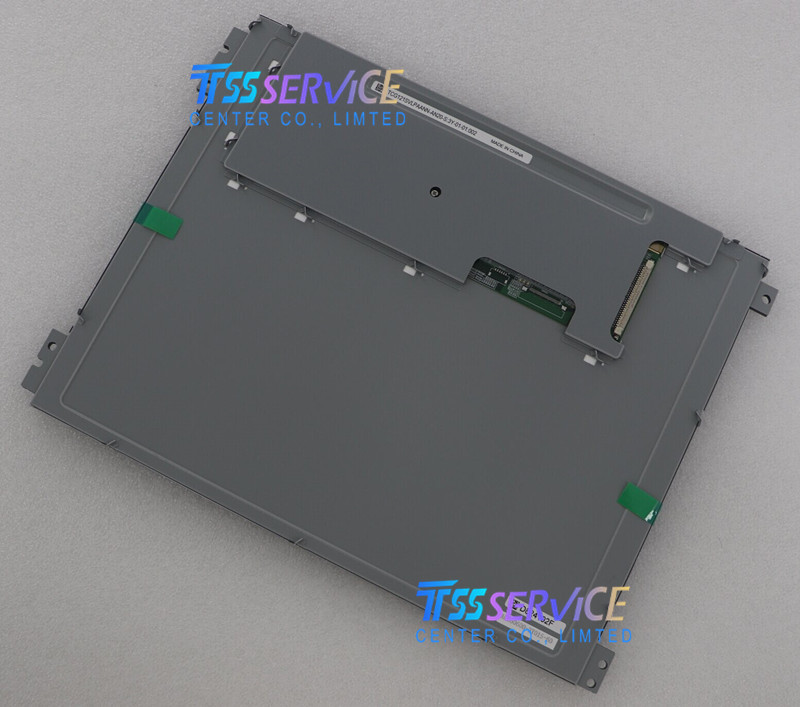

TCG121SVLPAANN-AN20-S LCD Display is a 12.1-inch LCD screen from Kyocera brand without touch. It has a resolution of 800x600 pixels (SVGA), a brightness of 500 cd/m ², a input voltage of 3.3V, and a working frequency of 60Hz. With a contrast ratio of 1000:1 and a wide operating temperature, this LCD screen is mainly used in these fields: Factory automation equipment field.
SPECIFICATION
| Active Area |
246(W)×184.5(H) mm |
Bezel Opening |
249.0(W)×187.5(H) mm |
| Outline Dim. |
278.3(H)×207.5(V) ×10(D) mm |
Treatment |
Antiglare |
| Luminance |
500 cd/m² (Typ.) |
Contrast Ratio |
1000:1 (Typ.) (TM) |
| Interface Type |
LVDS (1 ch, 8-bit) , 30 pins Connector |
Response Time |
4/22 (Typ.)(Tr/Td) |
