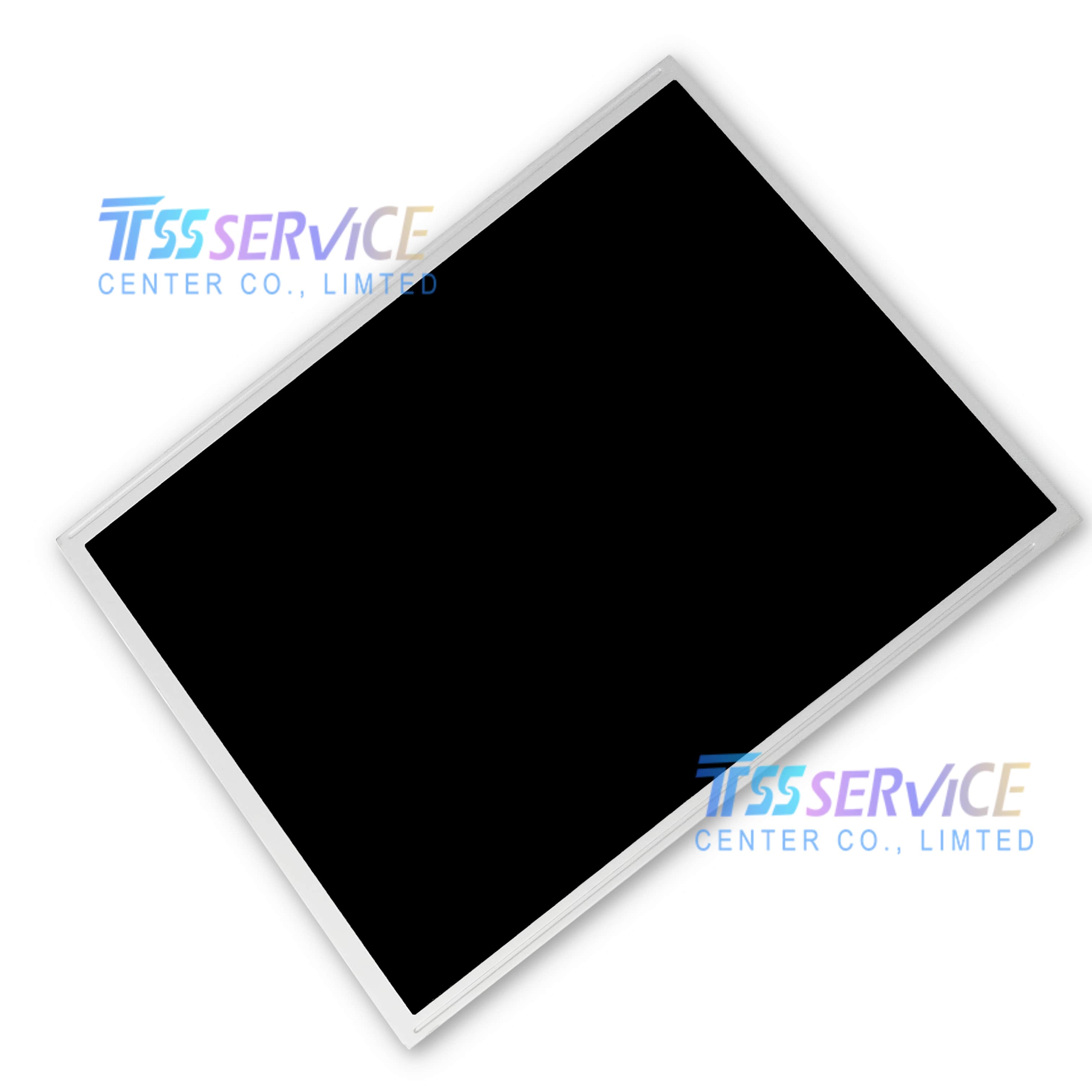

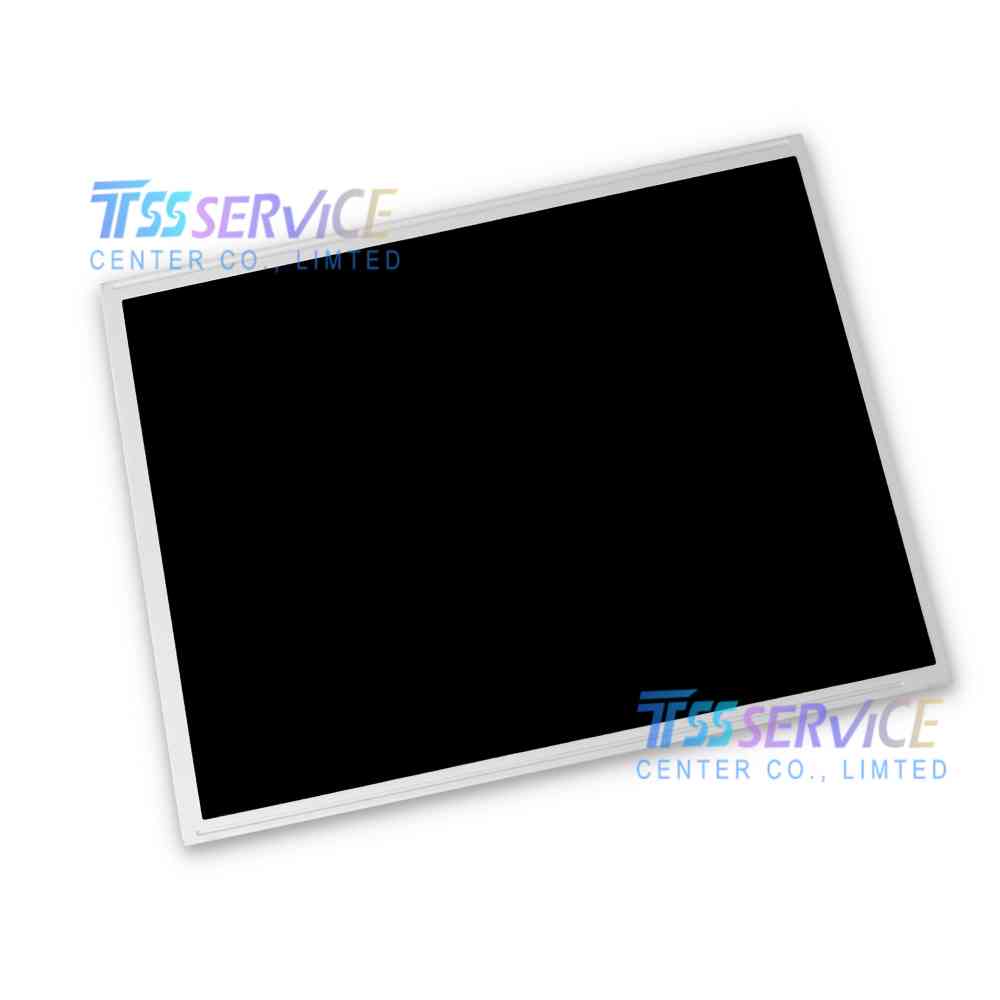

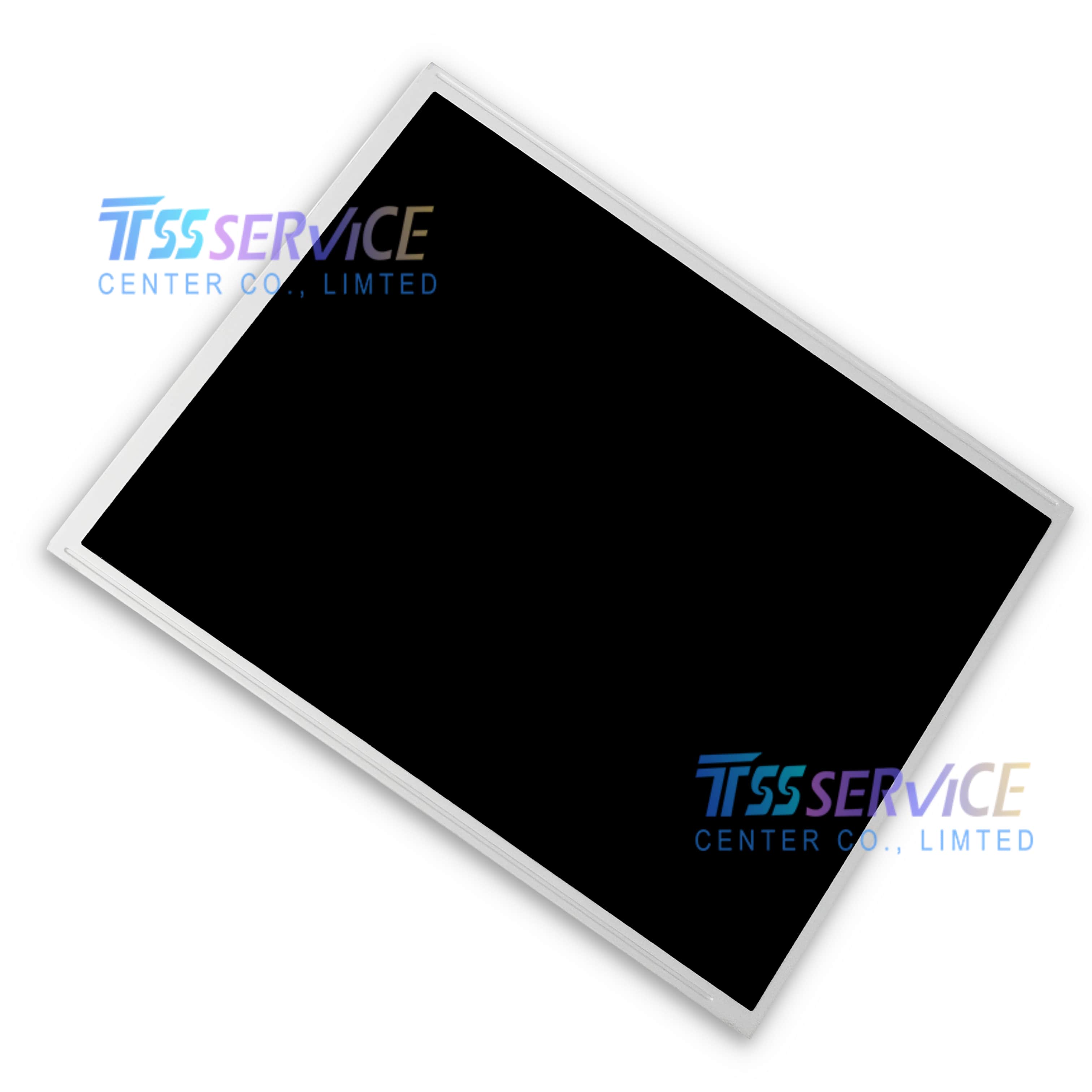

TCG121SVLPAANN-AN20-ZC 12.1 inch Kyocera LCD Panel for Industrial Machine
| Parameter |
Details |
| Manufacturer |
Kyocera |
| Model Number |
TCG121SVLPAANN-AN20-ZC |
| Display Size |
12.1-inch diagonal, 4:3 aspect ratio |
| Resolution |
800 × 600 (SVGA) |
| Display Type |
a-Si TFT-LCD, Transmissive, Normally White |
| Color Depth |
16.2M colors (18-bit RGB) |
| Brightness |
500 cd/m² (Typical) |
| Contrast Ratio |
1000:1 (Typical) |
| Backlight |
White LED (WLED), 70,000 hours lifetime |
| Driving Interface |
LVDS (1 channel, 8-bit, 30-pin) |
| Viewing Angle |
80°(L)/80°(R)/80°(U)/80°(D) (CR≥10) |
| Supply Voltage |
DC 3.3V |
| Operating Temperature |
-20°C ~ +70°C |
| Storage Temperature |
-30°C ~ +80°C |
| Outline Dimensions |
278.3 × 207.5 × 9.5 mm |
| Active Area |
246.0 × 184.5 mm |
| Weight |
645 g |
| Features |
Built-in LED constant current control, wide temperature, high reliability, industrial-grade |
TCG121SVLPAANN-AN20-ZC is a 12.1-inch industrial TFT LCD module designed for stable and long-term operation in harsh industrial environments.
Typical Application Fields:
-
Industrial Automation & HMI
- Human-machine interface panels
- Industrial control computers and PLC displays
- Factory automation monitoring systems
-
CNC & Machine Tools
- Numerical control systems for machining centers, lathes and grinders
- Industrial robot operation consoles
- Precision machinery control terminals
-
Test & Measurement Instruments
- Digital oscilloscopes and signal analyzers
- Portable field test equipment
- Data acquisition and monitoring devices
-
Medical & Professional Equipment
- Medical monitoring and diagnostic devices
- Commercial terminals and industrial tablets
- Specialized vehicle-mounted displays
