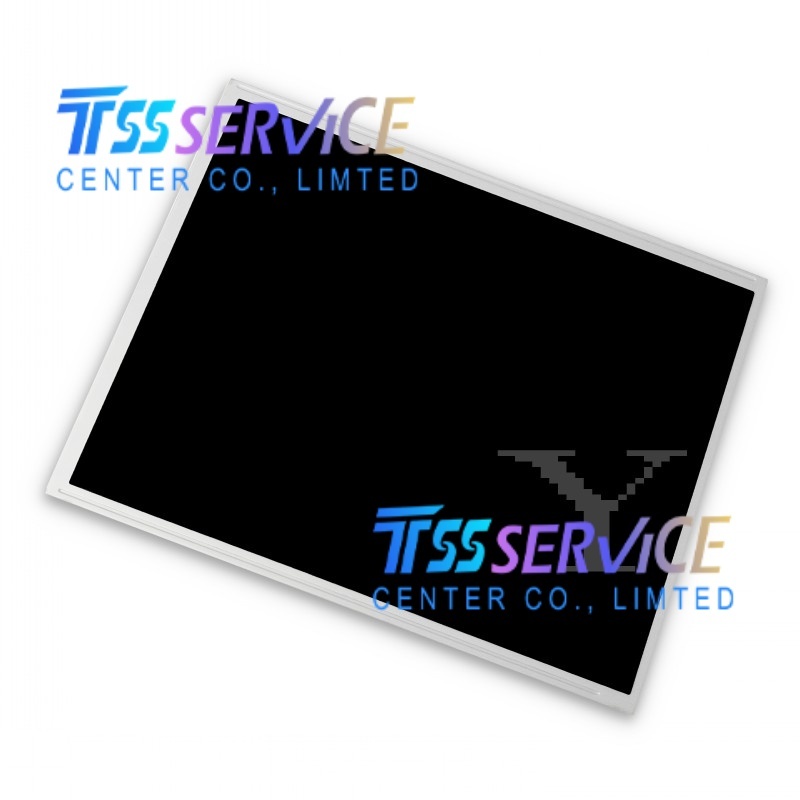

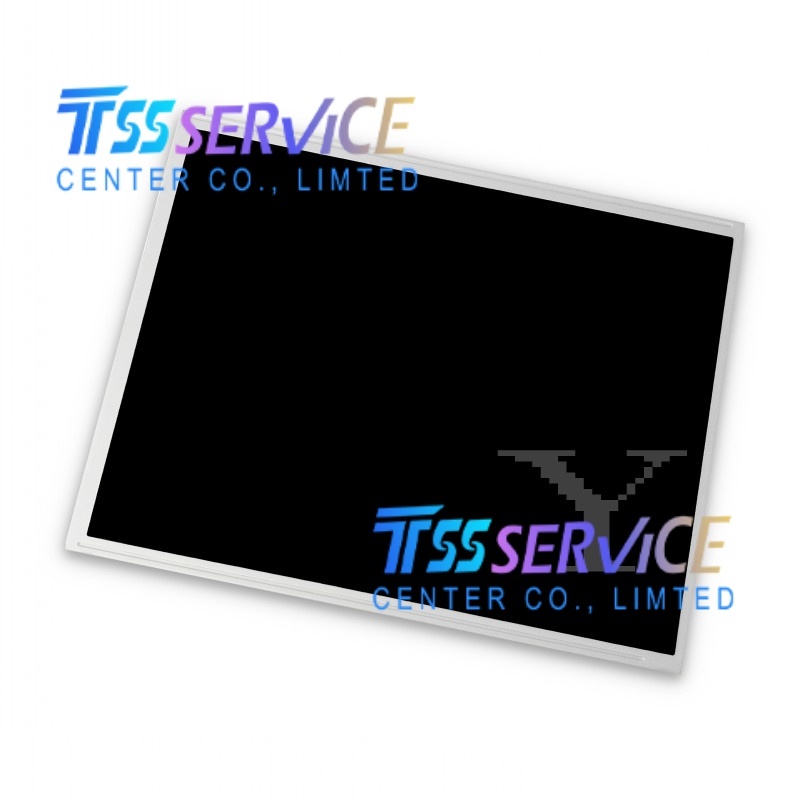

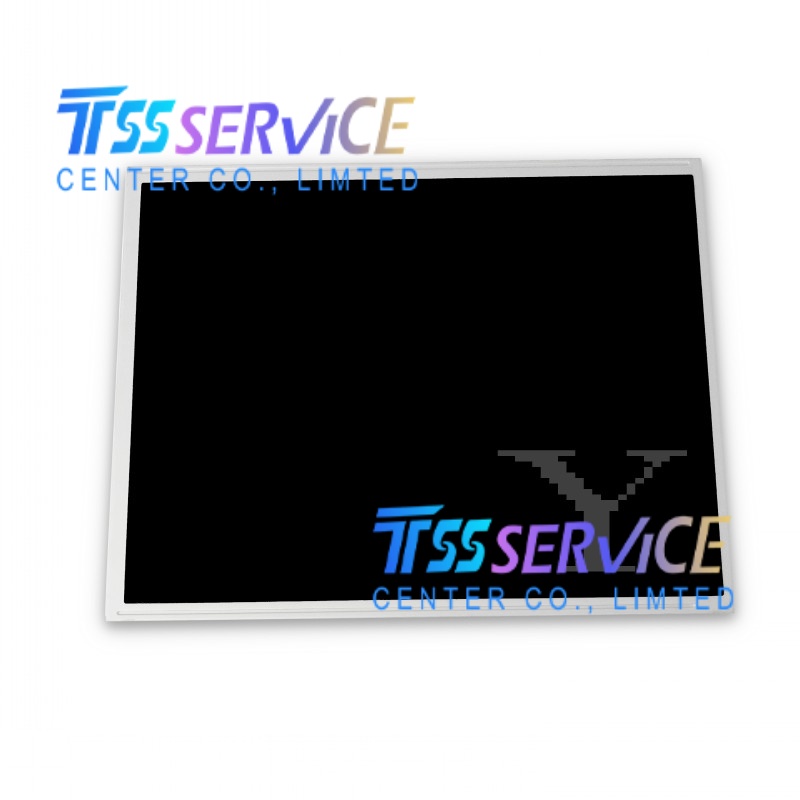

KYOCERA NEW 12.1 inch LCD Display Panel TCG121SVLPHANN-NN50 for Industrial
| Parameter |
Specification Details |
| Model Number |
TCG121SVLPHANN-NN50 (Series: TCG121SVL...) |
| Manufacturer |
Kyocera Display Solutions |
| Display Size |
12.1 inches (Diagonal) |
| Active Area |
Approx. 245.76 mm (H) × 184.32 mm (V) |
| Resolution |
800 (RGB) × 600 pixels (SVGA) |
| Pixel Pitch |
0.3072 mm (H) × 0.3072 mm (V) |
| Pixel Arrangement |
RGB Vertical Stripe |
| Display Mode |
Transmissive, Normally White (Typical for this series) |
| Panel Technology |
a-Si TFT-LCD |
| Brightness |
500 cd/m² (Typical) - High Brightness for indoor/semi-outdoor |
| Contrast Ratio |
1000:1 (Typical) |
| Viewing Angle |
80/80/80/65 (Left/Right/Up/Down) @ CR≥10 (May vary by specific sub-model) |
| Color Depth |
16.7 Million Colors (8-bit per color, 24-bit total) or 262k colors depending on interface config |
| Interface Type |
LVDS (Low Voltage Differential Signaling)
(Note: Some "PH" variants may support specific CMOS/TTL configs, but LVDS is standard for 12.1" 500nits) |
| Backlight Type |
WLED (White LED) with LED Driver |
| Backlight Life |
≥ 50,000 hours (to 50% brightness) |
| Operating Temperature |
-20°C to +70°C (Wide Temperature Range) |
| Storage Temperature |
-30°C to +80°C |
| Power Supply Voltage |
3.3V (Logic) / Backlight voltage varies by driver |
| RoHS Compliance |
Yes (Lead-free) |
| Touch Panel |
None (Open frame or Module only, touch is optional/add-on) |
| Mounting |
Standard industrial screw holes on metal bezel/frame |
Due to its rugged design, wide temperature range, and high brightness, the TCG121SVLPHANN-NN50 is engineered for demanding sectors:
-
Industrial Automation & HMI:
- Used as the primary Human-Machine Interface (HMI) for CNC machines, robotic control panels, and assembly line monitoring stations where dust, vibration, and temperature fluctuations are common.
-
Medical Equipment:
- Integrated into patient monitoring systems, diagnostic imaging consoles, and surgical navigation displays requiring high reliability and stable image quality over long periods.
-
Transportation & Railway:
- Deployed in train passenger information systems (PIS), onboard control desks, and signaling equipment. The wide temperature rating ensures operation in unheated/cooled cabins.
-
Test & Measurement Instruments:
- Serves as the display unit for oscilloscopes, spectrum analyzers, and industrial testers used in field services or factory floors.
-
Legacy System Replacement:
- Frequently used to upgrade older equipment that originally utilized CCFL backlights or lower-resolution screens, offering a direct form-factor fit with improved LED longevity and brightness.
-
Outdoor Kiosks (Shaded/Semi-Outdoor):
- The 500 nits brightness allows for visibility in brightly lit indoor areas or sheltered outdoor environments (e.g., gas station payment terminals, ticket vending machines under a roof).
