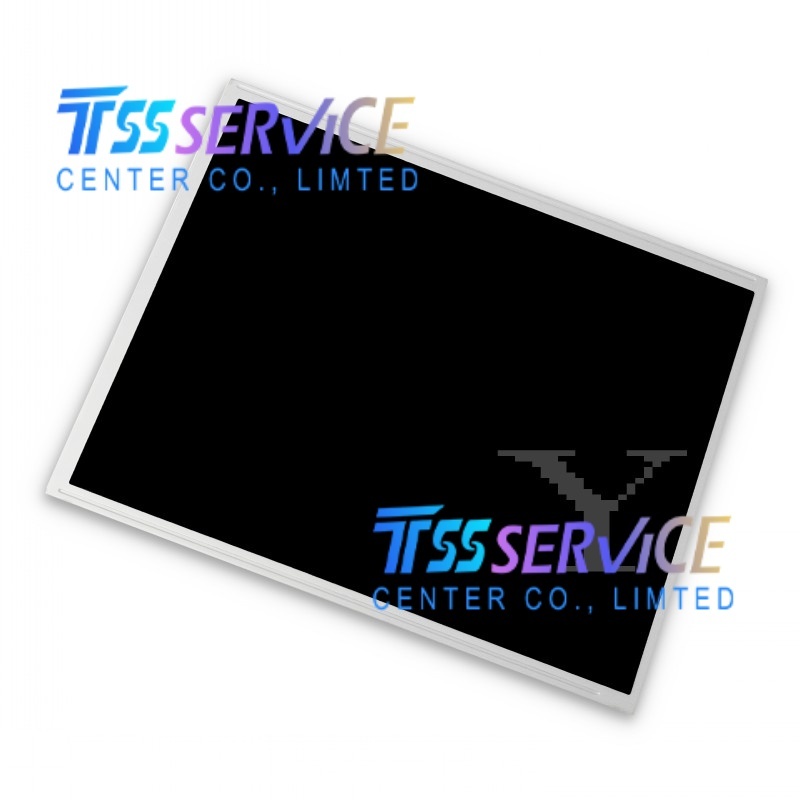

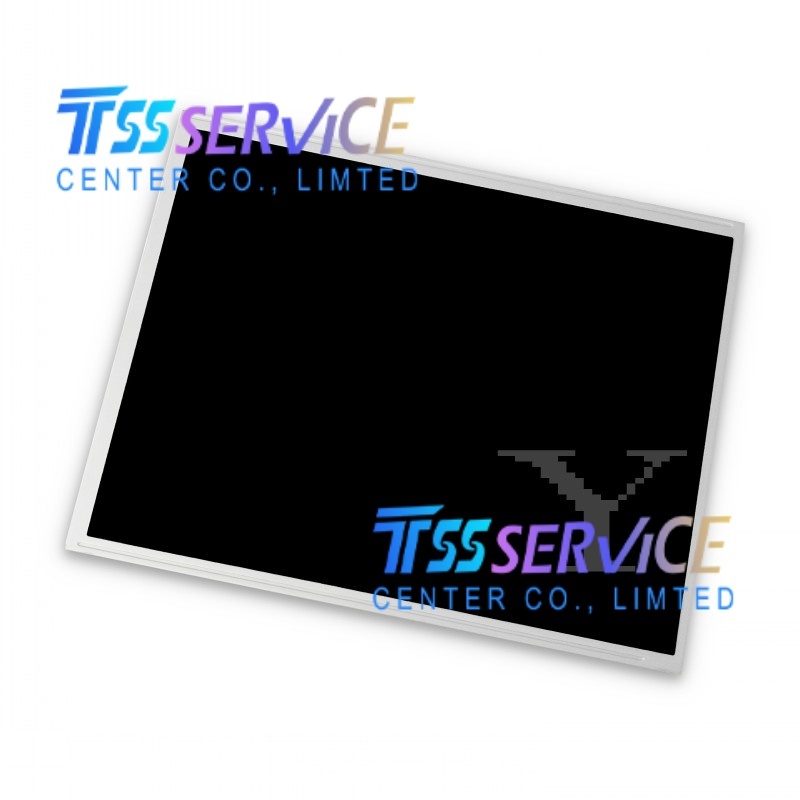

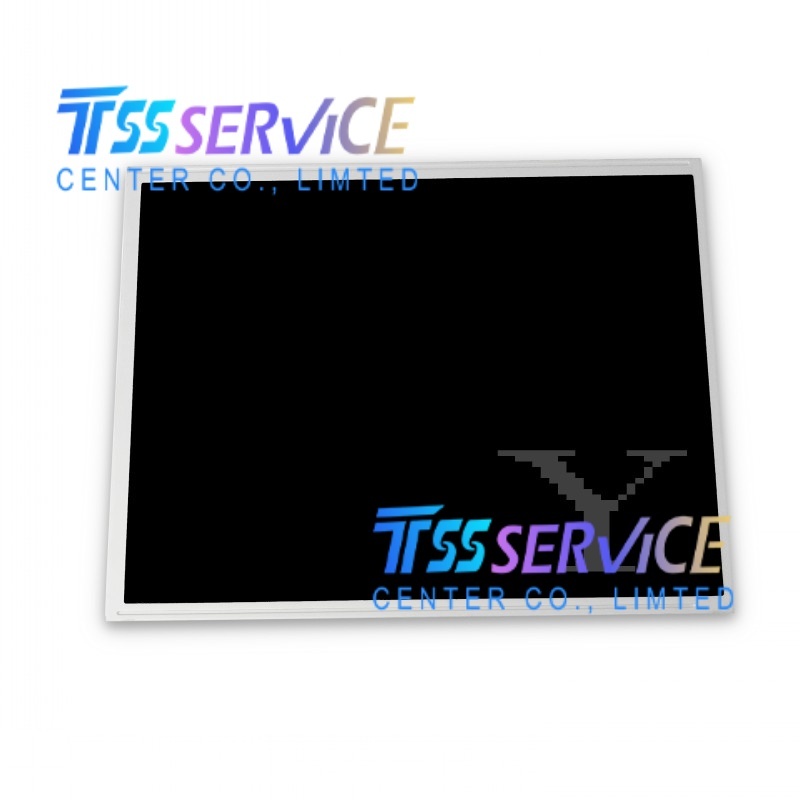

KYOCERA NEW 12.1 inch LCD Display Panel TCG121SVLPHANN-NN50AK for Industrial
| Parameter |
Specification Details |
| Model Number |
TCG121SVLPHANN-NN50AK (Series: TCG121SVL...) |
| Manufacturer |
Kyocera Display Solutions |
| Display Size |
12.1 inches (Diagonal) |
| Active Area (AA) |
245.76 mm (H) × 184.32 mm (V) |
| Resolution |
800 (RGB) × 600 pixels (SVGA) |
| Pixel Pitch |
0.3072 mm (H) × 0.3072 mm (V) |
| Pixel Arrangement |
RGB Vertical Stripe |
| Display Mode |
Transmissive, Normally White (Typical) |
| Panel Technology |
a-Si TFT-LCD |
| Brightness |
500 cd/m² (Typical) – High Brightness for indoor/semi-outdoor use |
| Contrast Ratio |
1000:1 (Typical) |
| Viewing Angle |
80°/80°/80°/65° (Left/Right/Up/Down) @ CR≥10 |
| Color Support |
16.7 Million Colors (8-bit) or 262k Colors (6-bit + FRC), depending on interface config |
| Interface Type |
LVDS (Low Voltage Differential Signaling)
(Note: Some "PH" variants may utilize specific TTL/CMOS; LVDS is standard for this brightness/size class) |
| Connector Type |
Specific to "NN50AK" variant (Often a 30-pin or 40-pin Hirose/DF13 style, verify with datasheet) |
| Backlight Type |
WLED (White LED) with integrated LED Driver |
| Backlight Lifetime |
≥ 50,000 hours (to 50% initial brightness) |
| Operating Temperature |
-20°C to +70°C (Wide Temperature Range) |
| Storage Temperature |
-30°C to +80°C |
| Power Supply |
3.3V ±0.3V (Logic); Backlight voltage controlled by driver |
| RoHS / REACH |
Compliant (Lead-free, Halogen-free options available) |
| Touch Panel |
None (Module only; compatible with resistive/capacitive overlays) |
| Mounting |
Standard industrial metal bezel with screw holes |
The TCG121SVLPHANN-NN50AK is tailored for sectors requiring reliability, long-term availability, and performance under stress:
-
Factory Automation & HMI (Human Machine Interface):
- Ideal for control panels on CNC machines, robotic arms, and conveyor systems where vibration, dust, and temperature swings (-20°C to 70°C) are common. The 500-nit brightness ensures visibility in brightly lit factory floors.
-
Medical Diagnostic & Monitoring Systems:
- Used in patient monitors, anesthesia workstations, and laboratory analyzers. The high reliability and stable color reproduction are critical for medical professionals, while the LED backlight ensures low heat emission and long maintenance intervals.
-
Transportation & Railway Control:
- Deployed in train driver consoles, passenger information displays (PIS), and signaling control rooms. The wide temperature rating allows operation in non-climate-controlled cabins or outdoor shelters.
-
Test & Measurement Equipment:
- Serves as the main display for oscilloscopes, power analyzers, and environmental testing chambers used in R&D and field service.
-
Legacy System Upgrades:
- Frequently utilized to retrofit older industrial equipment that originally used 12.1" CCFL screens. Its form factor compatibility and superior LED lifespan make it a drop-in replacement for aging infrastructure.
-
Semiconductor Manufacturing Equipment:
- Used in cleanroom environments for lithography and etching machine interfaces, where stability and resistance to chemical exposure (when properly sealed in the end unit) are required.
