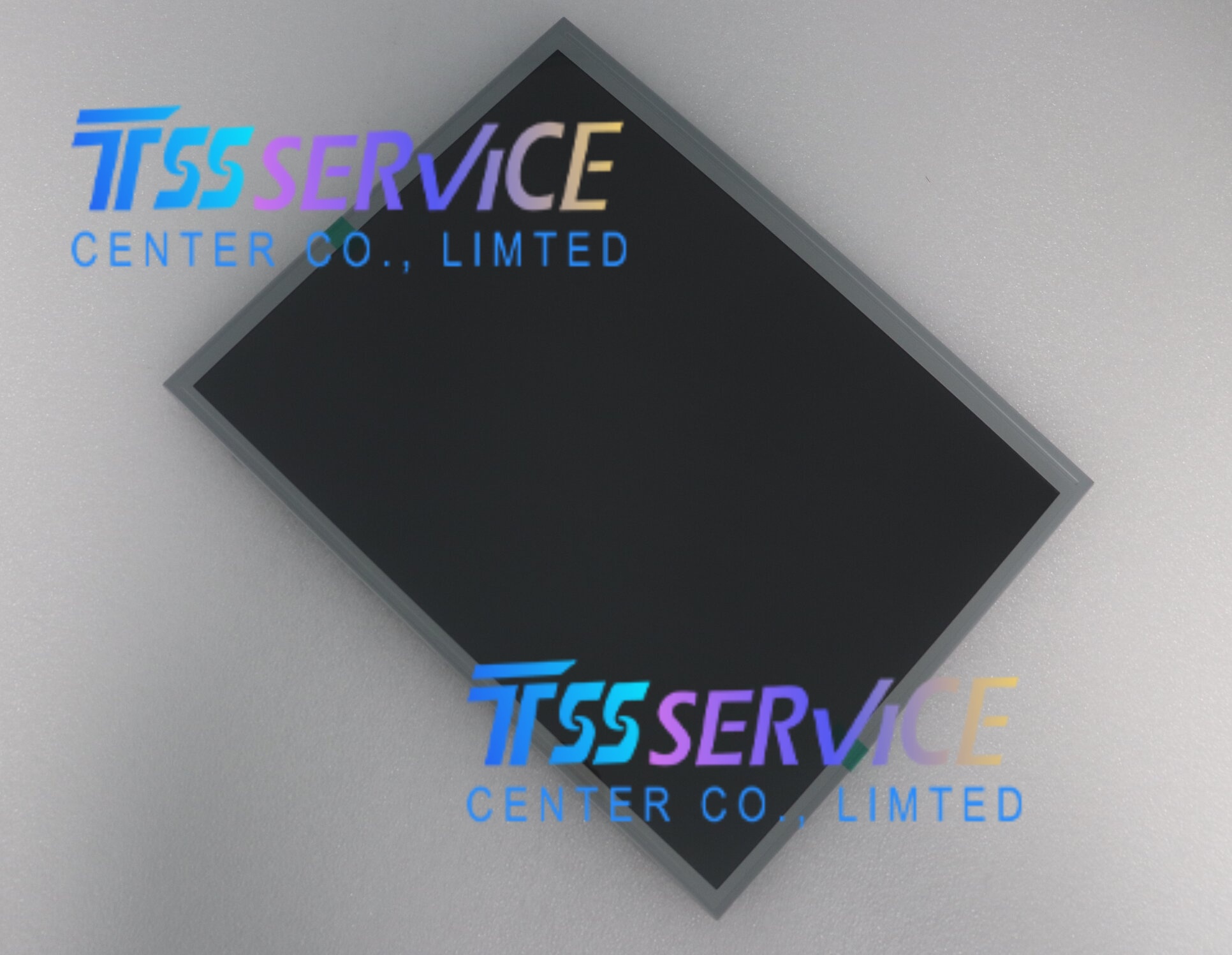

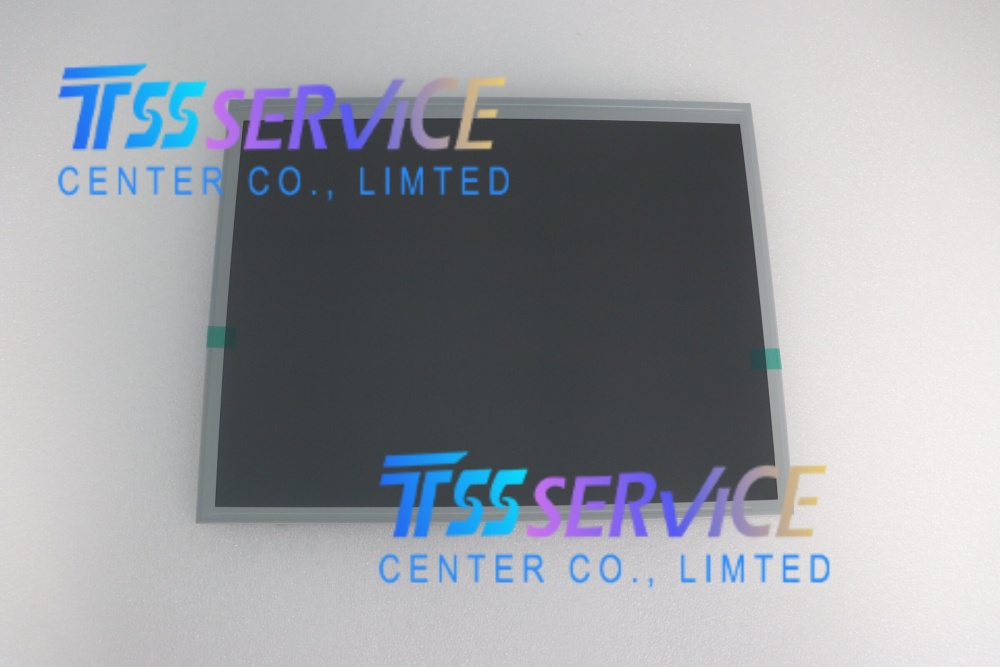

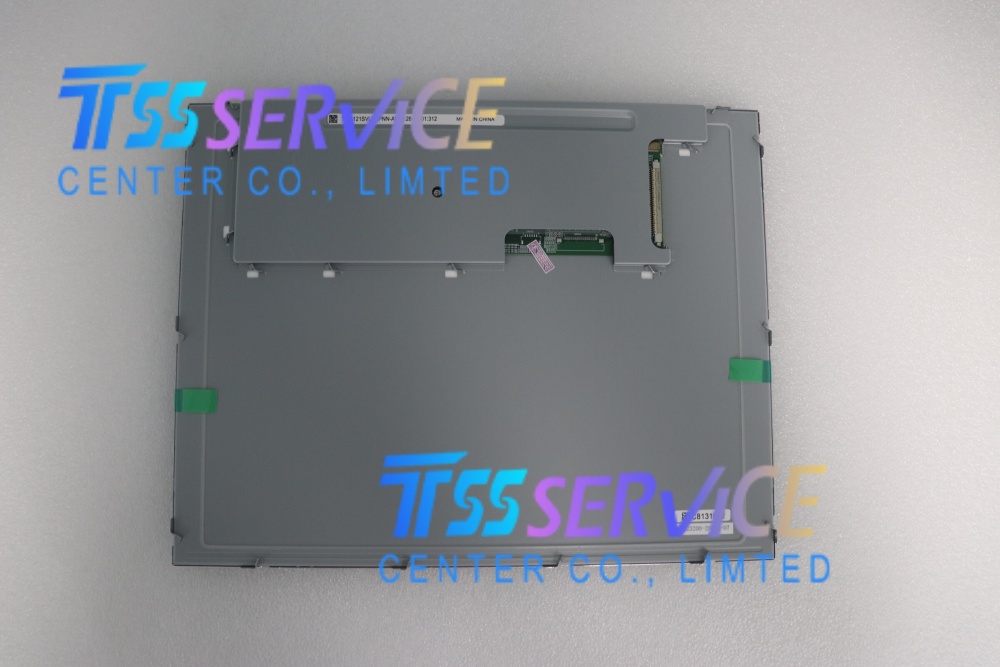

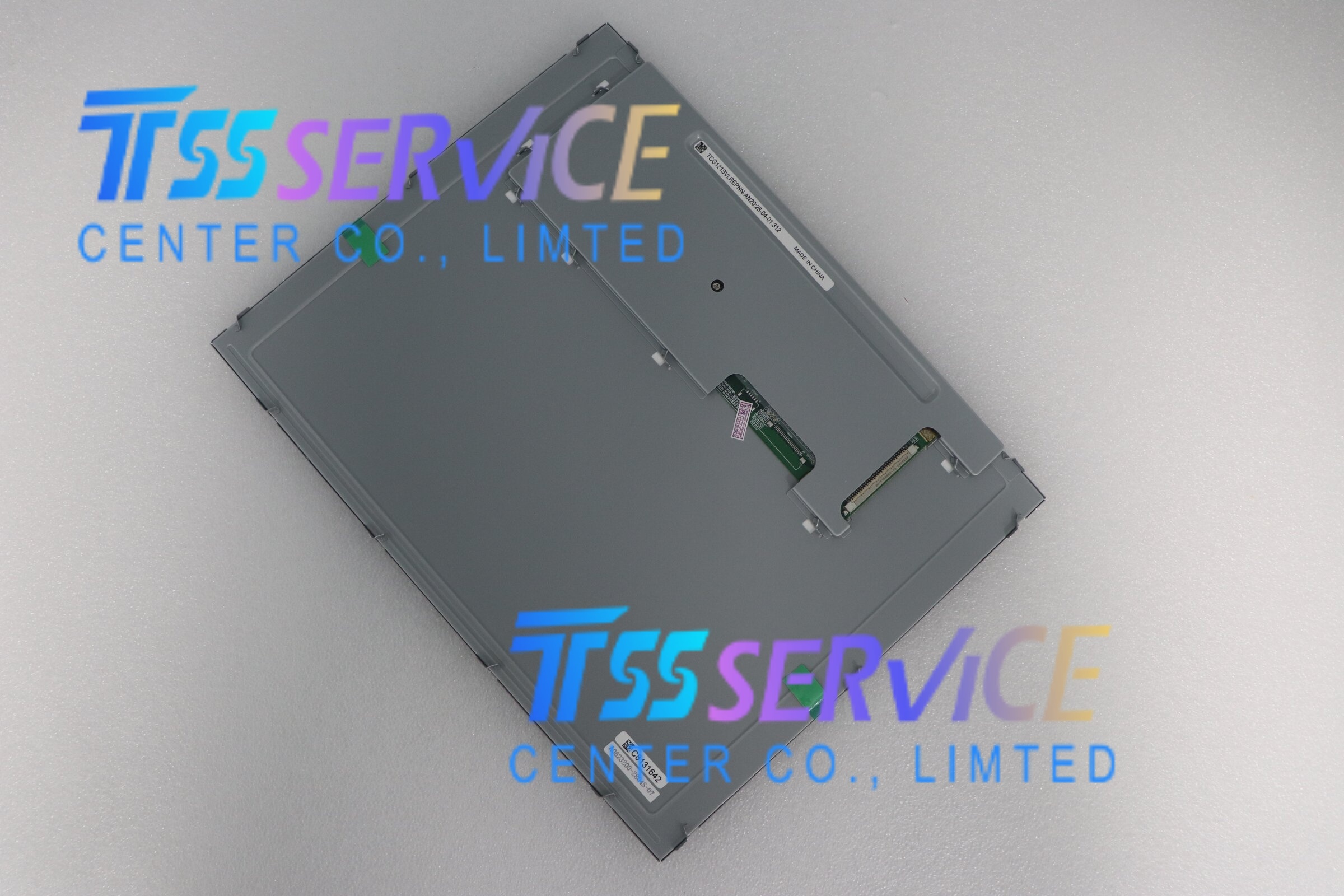

KYOCERA NEW 12.1 inch LCD Display Panel TCG121SVLREPNN-AN20 for Industrial
| Parameter |
Specification Details |

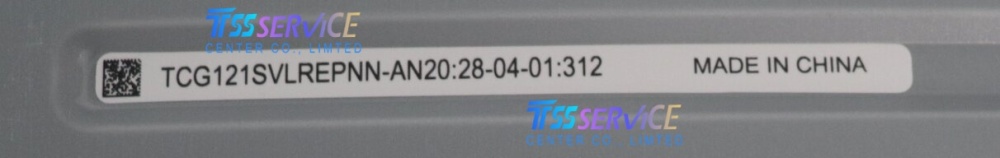

| Model Number |
TCG121SVLREPNN-AN20 |
| Manufacturer |
Kyocera Display Solutions |
| Display Size |
12.1 inches (Diagonal) |
| Active Area (AA) |
245.76 mm (H) × 184.32 mm (V) |
| Resolution |
800 (RGB) × 600 pixels (SVGA) |
| Pixel Pitch |
0.3072 mm (H) × 0.3072 mm (V) |
| Pixel Arrangement |
RGB Vertical Stripe |
| Display Mode |
Transmissive, Normally White |
| Panel Technology |
a-Si TFT-LCD |
| Brightness |
500 cd/m² (Typical) – High Brightness |
| Contrast Ratio |
1000:1 (Typical) |
| Viewing Angle |
80°/80°/80°/65° (Left/Right/Up/Down) @ CR≥10 |
| Color Depth |
16.7 Million Colors (8-bit per color via LVDS) |
| Interface Type |
LVDS (Low Voltage Differential Signaling)
(Typically 1-channel, 8-bit, JEIDA or VESA mapping) |

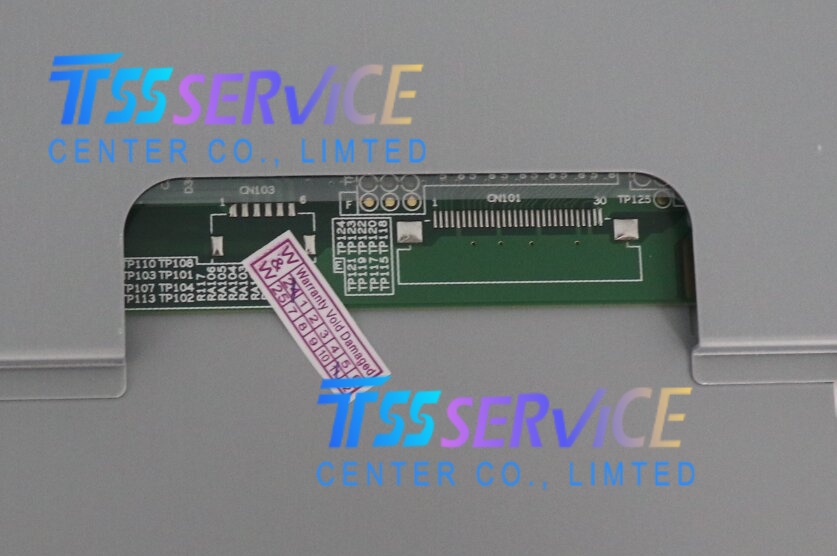

| Connector Type |
Industrial Locking Connector (e.g., Hirose DF19 series, pin count varies, typically 20-30 pins for LVDS+Power) |
| Backlight Type |
WLED (White LED) with integrated constant current driver |
| Backlight Lifetime |
≥ 50,000 hours (to 50% initial brightness) |
| Operating Temperature |
-20°C to +70°C (Wide Temperature Range) |
| Storage Temperature |
-30°C to +80°C |
| Power Supply |
3.3V ±0.3V (Logic); Backlight driven by internal circuit |
| Input Signals |
LVDS Data Pairs (TxIN0~3, TxCLK), HSYNC, VSYNC, DE (embedded or separate) |
| RoHS Compliance |
Yes (Lead-free, Halogen-free) |
| Touch Panel |
None (Module only; compatible with external resistive/capacitive touch) |
| Mounting |
Metal bezel with standard industrial screw holes |
The TCG121SVLREPNN-AN20 is widely deployed in sectors that demand ruggedness, long-term availability, and clear visibility:
-
Factory Automation & HMI (Human Machine Interface):
- Ideal for control panels on CNC machines, robotic arms, and assembly line monitors. The LVDS interface ensures signal integrity in electrically noisy factory environments, while the 500-nit brightness combats glare from overhead industrial lighting.
-
Medical Equipment:
- Used in patient monitoring systems, anesthesia workstations, and diagnostic imaging consoles. The high reliability, flicker-free LED backlight, and wide temperature tolerance meet the strict uptime requirements of medical facilities.
-
Transportation & Railway:
- Deployed in train driver consoles, onboard passenger information displays (PIS), and signaling control units. The -20°C to +70°C operating range allows it to function reliably in non-climate-controlled rail cars and outdoor shelters.
-
Test & Measurement Instruments:
- Serves as the main display for oscilloscopes, power analyzers, and environmental test chambers used in R&D labs and field service, where precise color reproduction and stability are critical.
-
Marine & Offshore Systems:
- Integrated into ship bridge navigation displays and engine room monitoring systems. The robust construction resists vibration, and the high brightness ensures readability against bright sea reflections.
-
Legacy System Modernization:
- Frequently used to upgrade older industrial equipment that previously used 12.1" CCFL displays. Its form-factor compatibility and superior LED lifespan provide a cost-effective solution to extend the life of expensive machinery without redesigning the entire enclosure.
KYOCERA
FAQ
Q: How long will I receive my goods ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX
Q:Can you give me a discount if I need a large quantity of ?
A:Of course!If you make a large order, we will give you a discount.
Q:Can I pay my order via credit card ?
A:Yes!you can use your credit card through your Paypal account.
- Q: May I ask what kind of packaging you use?
A: We use anti-static packaging and shock-resistant packaging.Anti-static packaging: Ensure that the packaging materials used comply with ESD standards, including anti-static bags and foam.Shock-resistant packaging: Use custom foam and sturdy outer boxes to ensure that they can pass through regular transportation tests (such as dropping and vibration).So the goods arrive at your hands in perfect condition.
Q: Do you conduct tests before shipment?
A: Yes, we strictly follow 100% pre-shipment testing procedures.Our testing process is standardized to ensure that every LCD panel sent to you is in compliance with specifications and is fully functional.
