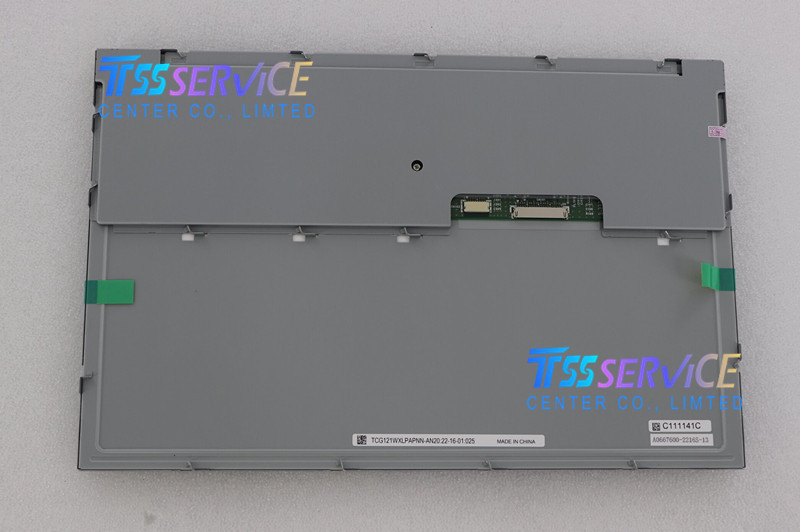

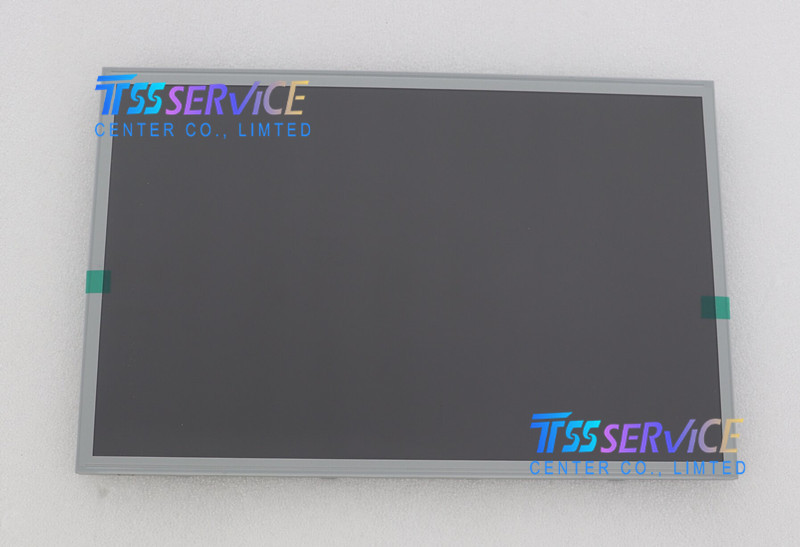

Kyocera 12.1inch LCD Display Screen TCG121WXLPAPNN-AN20 For Industrial

Name: Kyocera 12.1inch LCD Display Screen TCG121WXLPAPNN-AN20 For Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: TCG121WXLPAPNN-AN20
Price: 195 USD
Availability: InStock

SKU: TCG121WXLPAPNN-AN20

Condition: New Original
Warranty: 90 days
Shipping: DHL/ Fedex/ 4PX express/ SF express
Lead time: 1-3 days
Packaging: Bubble pad+Paper box

0.0 (0 Reviews)

0 Sold

~~$220.00~~ $195.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

TCG121WXLPAPNN-AN20 LCD Display is a 12.1-inch LCD screen from Kyocera brand without touch. It has a resolution of 1280x800 pixels (WXGA), a brightness of 500 cd/m ², a input voltage of 3.3V, and a working frequency of 60Hz. With a contrast ratio of 750:1 and a wide operating temperature, this LCD screen is mainly used in these fields: Factory automation equipment field.

SPECIFICATION

Diagonal Size	12.1"	Panel Type	a-Si TFT-LCD, LCM
Resolution	1280(RGB)×800, WXGA 124PPI	Pixel Format	RGB Vertical Stripe
Active Area	261.12(W)×163.2(H) mm	Bezel Opening	264.1(W)×166.2(H) mm

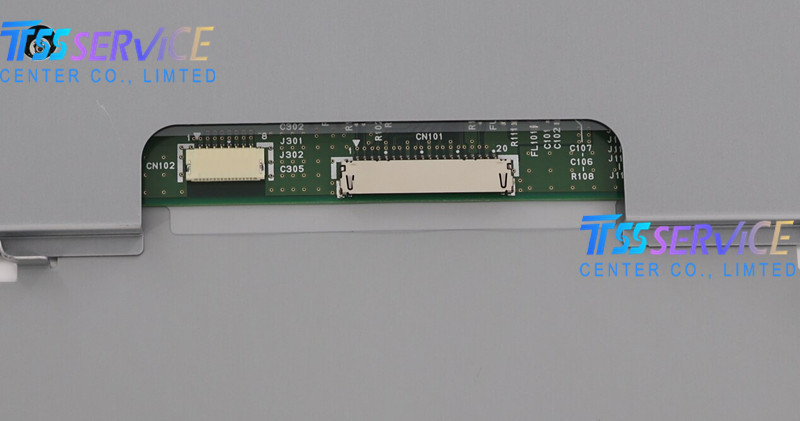

Light Source	WLED , 50K hours , With LED Driver	Interface Type	LVDS (1 ch, 8-bit) 20 pins Connector
