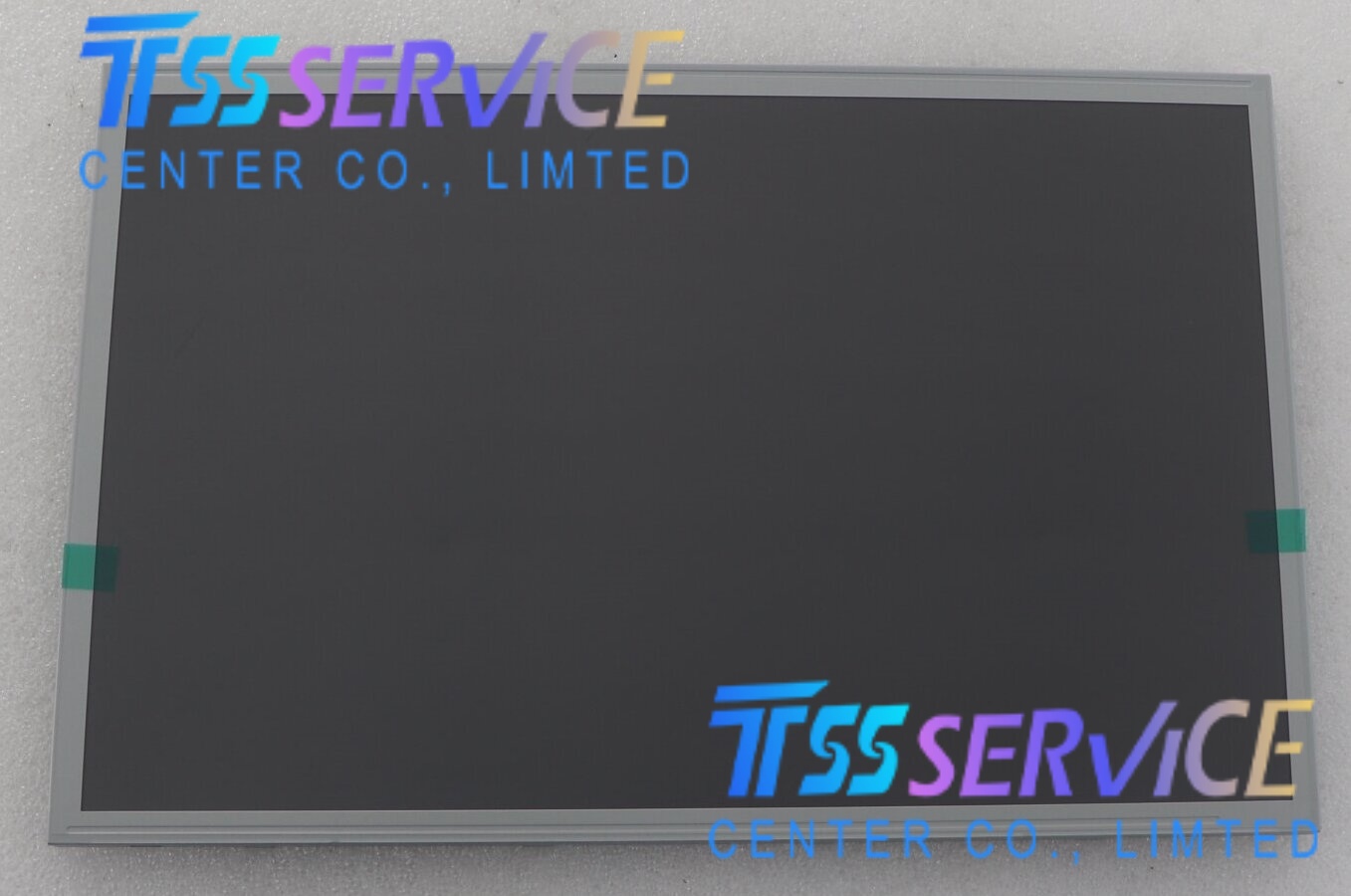

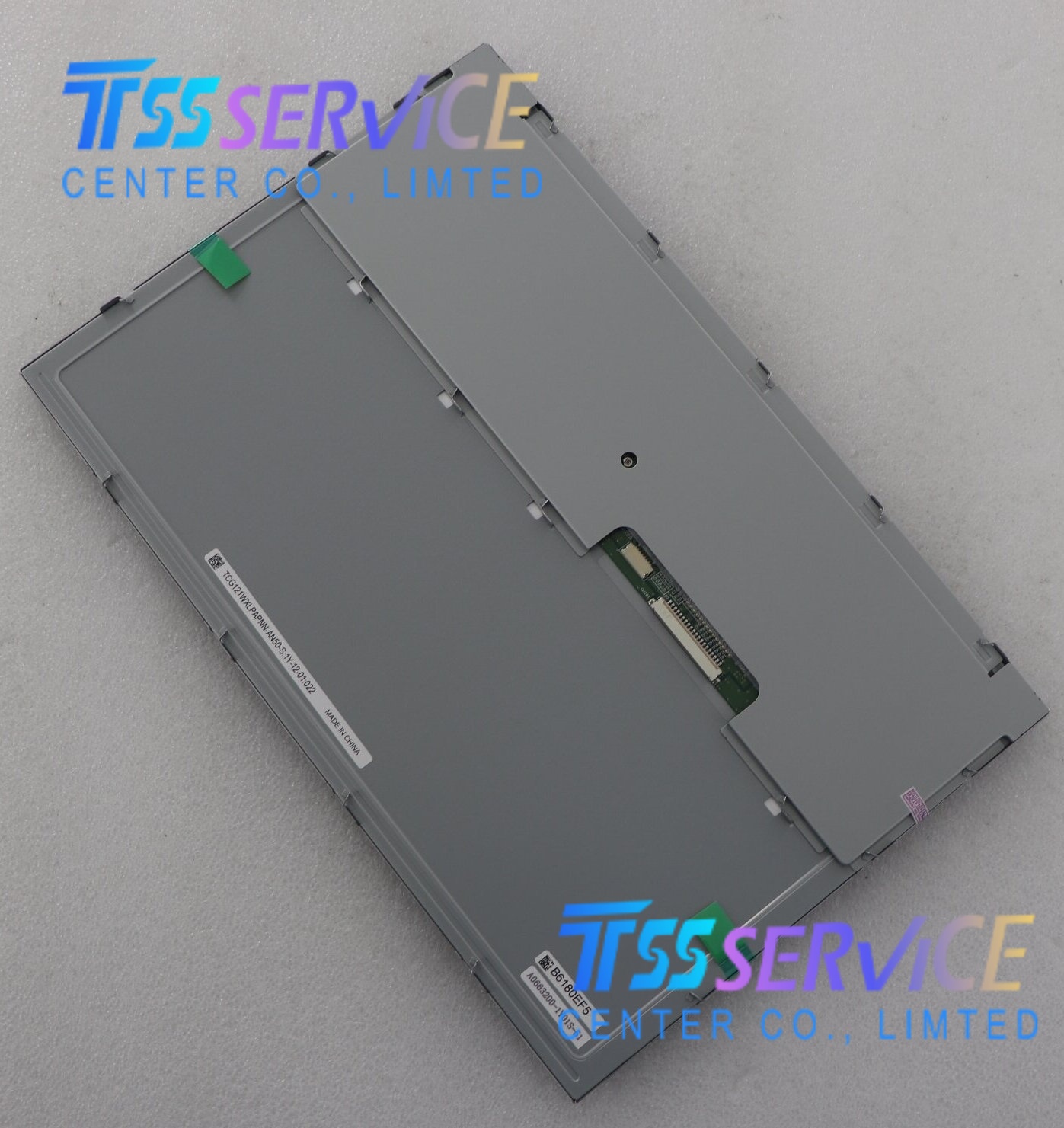

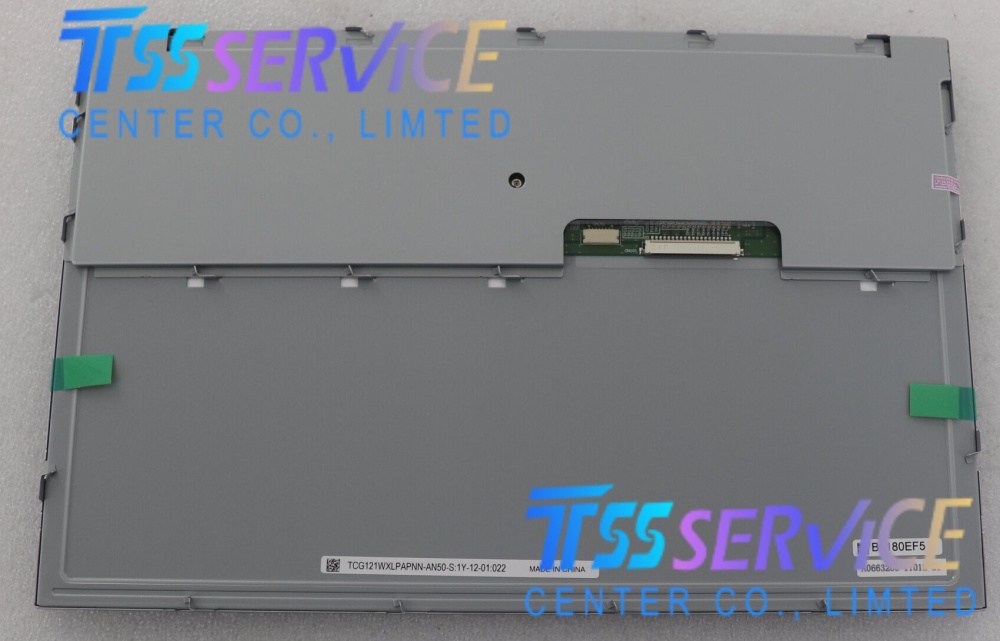

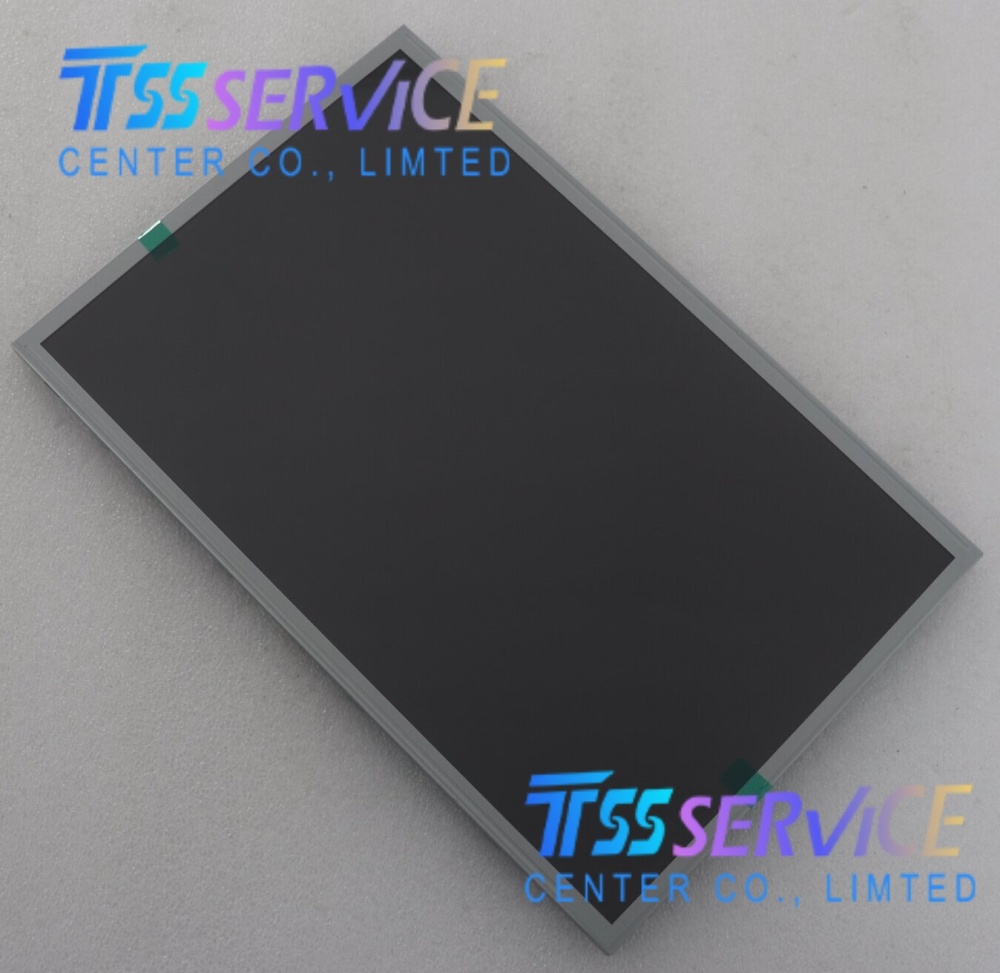

NEW Kyocera 5.7 inch LCD Display Panel TCG121WXLPAPNN-AN50 for Industrial
The TCG121WXLPAPNN-AN50 is engineered for mission-critical applications where visibility in direct sunlight, extreme temperature stability, and rugged reliability are non-negotiable. Its key applications include:
-
Outdoor Information & Digital Signage:
- Sunlight-Readable Kiosks: Used in ticket vending machines, parking payment terminals, and tourist information kiosks located outdoors, where standard screens would wash out.
- Bus Stop & Transit Displays: Provides real-time schedule, route maps, and advertising content visible even in bright midday sun.
- Wayfinding Systems: Installed in large outdoor complexes, campuses, or city centers for navigation maps.
-
Transportation & Automotive:
- Railway Driver Consoles (Cab Displays): Essential for train operators who need clear visibility of speed, signaling, and diagnostics regardless of external lighting conditions (tunnels vs. open sun).
- Marine Bridge Instruments: Used on ship decks and bridges where glare from water and sun is intense; the wide temperature range handles marine environmental fluctuations.
- Specialty Vehicle Terminals: Integrated into fire trucks, military vehicles, and agricultural machinery for onboard diagnostics and control, operating in extreme heat or cold.
-
Industrial Automation (Harsh Environments):
- Outdoor Oil & Gas Control Panels: Monitors drilling rigs, pipelines, and refineries where equipment is exposed to direct sunlight and wide temperature swings.
- Construction & Mining Machinery: Serves as the HMI for excavators, cranes, and loaders operating in dusty, bright, and vibrating environments.
- Solar & Wind Farm Monitoring: Displays performance data for renewable energy stations located in open fields.
-
Military & Defense:
- Rugged Handhelds & Vehicle Mounts: Used in tactical displays for situational awareness, mapping, and communication systems that must function in all weather conditions.
- Field Command Stations: Provides reliable visualization for command and control units deployed outdoors.
-
Medical (Outdoor/Emergency):
- Ambulance & Emergency Response Vehicles: Ensures paramedics can clearly read patient data and navigation maps in bright daylight or at night.
- Outdoor Medical Testing Stations: Used in temporary or mobile medical facilities set up outdoors.
| Parameter |
Specification |

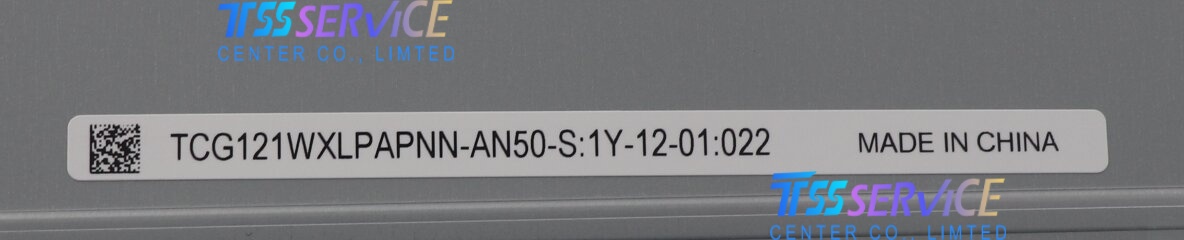

| Model Number |
TCG121WXLPAPNN-AN50 / AN50-S |
| Manufacturer |
Kyocera Corporation (Japan) |
| Panel Type |
a-Si TFT-LCD, Active Matrix |
| Screen Size |
12.1 inches (Diagonal) |
| Resolution |
1280 (RGB) × 800 pixels (WXGA) |
| Aspect Ratio |
16:10 (Widescreen) |
| Pixel Pitch |
0.192 mm (H) × 0.192 mm (V) |
| Display Mode |
AWV (All Way View) / IPS-type, Normally Black, Transmissive |
| Brightness |
1000 ~ 1200 cd/m² (Typical, Ultra-High Brightness for Sunlight Readability) |
| Contrast Ratio |
700:1 to 1000:1 (Typical, High Contrast for Outdoor) |
| Viewing Angle |
85/85/85/85 (L/R/U/D) (Typical, CR≥10) - Excellent Wide Viewing |
| Backlight Type |
WLED (White LED), Edge-lit or Direct-lit (High Power) |
| Backlight Driver |
Integrated LED Driver (Included in module) |

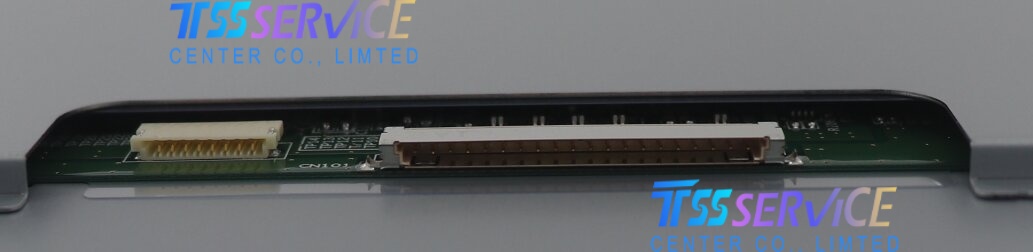

| Interface |
LVDS (Low Voltage Differential Signaling), 2-channel, 8-bit |
| Color Support |
16.7M colors (8-bit) |
| Surface Treatment |
Anti-Glare (AG), Hard Coat (3H or higher), often Anti-Reflection (AR) optimized |
| Operating Temperature |
-30°C to +80°C (Extreme Wide Temperature Range) |
| Storage Temperature |
-40°C to +90°C |
| Dimensions (Approx.) |
276.0 mm × 185.0 mm × 12.0 mm (May be slightly thicker due to high-brightness backlight) |
| Active Area |
261.1 mm × 163.2 mm |
| Weight |
Approx. 650g - 750g |
| Special Features |
Sunlight Readable, Ultra-High Brightness, Wide Temp (-30~80°C), AWV Technology, RoHS Compliant, Long Life LED |
Kyocera
FAQ
Q: How long will I receive my goods ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX
Q:Can you give me a discount if I need a large quantity of ?
A:Of course!If you make a large order, we will give you a discount.
Q:Can I pay my order via credit card ?
A:Yes!you can use your credit card through your Paypal account.
- Q: May I ask what kind of packaging you use?
A: We use anti-static packaging and shock-resistant packaging.Anti-static packaging: Ensure that the packaging materials used comply with ESD standards, including anti-static bags and foam.Shock-resistant packaging: Use custom foam and sturdy outer boxes to ensure that they can pass through regular transportation tests (such as dropping and vibration).So the goods arrive at your hands in perfect condition.
Q: Do you conduct tests before shipment?
A: Yes, we strictly follow 100% pre-shipment testing procedures.Our testing process is standardized to ensure that every LCD panel sent to you is in compliance with specifications and is fully functional.
