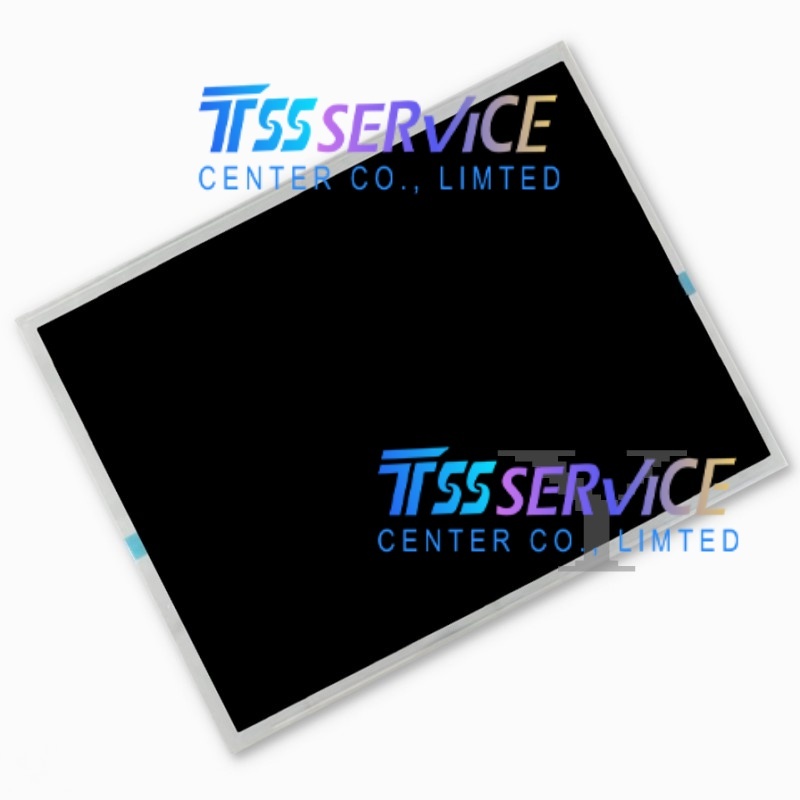

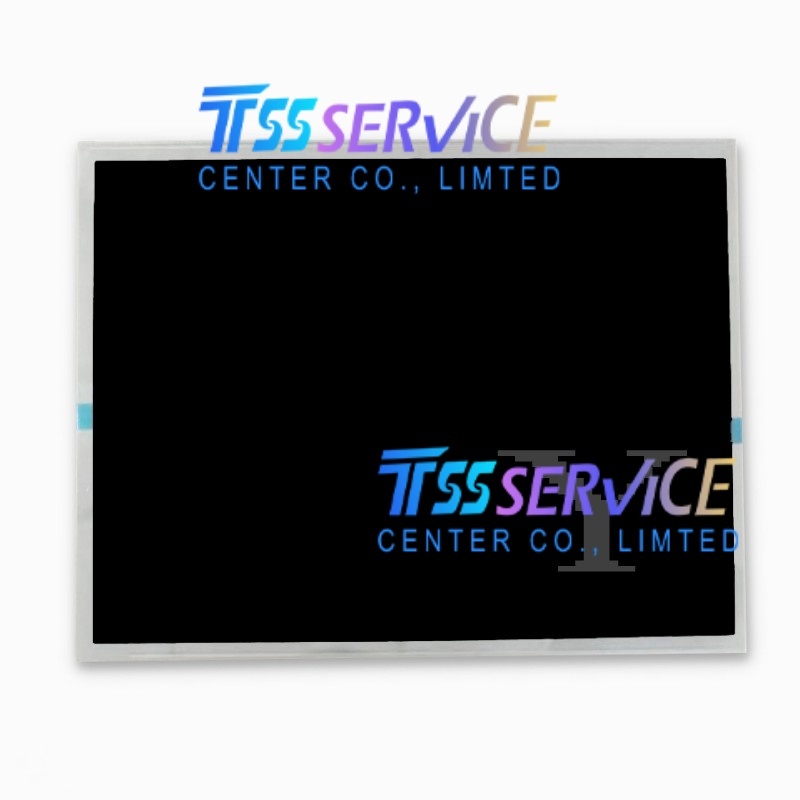

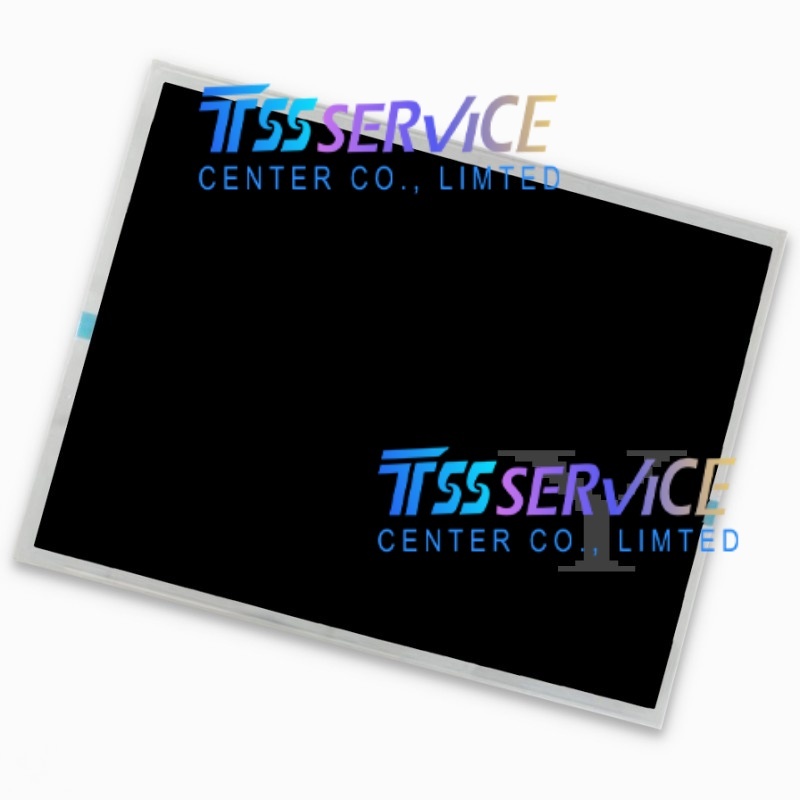

KYOCERA NEW 12.1 inch LCD Display Panel TCG121WXLP*PNN-AN*01 for Industrial
| Parameter |
Specification Details |
| Model Series |
TCG121WXLPPNN-AN01 (e.g., TCG121WXLRPNN-AN20, TCG121WXLQPNN-AN10) |
| Manufacturer |
Kyocera Display Solutions |
| Display Size |
12.1 inches (Diagonal) |
| Active Area (AA) |
261.12 mm (H) × 163.20 mm (V) |
| Resolution |
1280 (RGB) × 800 pixels (WXGA) |
| Pixel Pitch |
0.204 mm (H) × 0.204 mm (V) |
| Aspect Ratio |
16:10 (Widescreen) |
| Pixel Arrangement |
RGB Vertical Stripe |
| Display Mode |
Transmissive, Normally White |
| Panel Technology |
a-Si TFT-LCD |
| Brightness |
1000 ~ 1500 cd/m² (Typical) – Ultra-High / Sunlight Readable
(Exact value depends on specific sub-model) |
| Contrast Ratio |
1000:1 (Typical) |
| Viewing Angle |
85°/85°/85°/85° (Left/Right/Up/Down) @ CR≥10 (IPS or Advanced TN) |
| Color Depth |
16.7 Million Colors (8-bit per color, 24-bit total) |
| Interface Type |
Variable based on model code:
• LVDS (if code contains 'R', e.g., TCG121WXL R PNN)
• Parallel RGB / TTL (if code contains 'Q', e.g., TCG121WXL Q PNN) |
| Connector Type |
Industrial Locking Connector (Typically Hirose DF19 or equivalent, 30-40 pins) |
| Backlight Type |
WLED (White LED) with integrated high-current driver |
| Backlight Lifetime |
≥ 50,000 to 70,000 hours (to 50% brightness) |
| Operating Temperature |
-30°C to +80°C (Extreme Wide Temperature Range)
(Some variants: -20°C to +70°C) |
| Storage Temperature |
-40°C to +85°C |
| Power Supply |
3.3V ±0.3V (Logic); Backlight voltage/current varies by brightness level |
| Surface Treatment |
Anti-Glare (AG) / Hard Coat (3H or higher) for outdoor readability |
| RoHS Compliance |
Yes (Lead-free, Halogen-free) |
| Touch Panel |
None (Module only; designed for external capacitive/resistive touch bonding) |
| Mounting |
Metal bezel with reinforced screw holes for vibration resistance |
The TCG121WXLP series is the industry standard for applications requiring wide-format visibility in harsh lighting conditions:
-
Outdoor Digital Signage & Kiosks:
- Bus Stop Displays, Parking Guidance Systems, and Outdoor Advertising: The 16:10 aspect ratio is perfect for displaying maps and scrolling text, while the 1000+ nit brightness ensures content is readable in direct sunlight.
-
Transportation (Rail, Marine, Aviation):
- Train Driver Consoles (TCMS), Ship Bridge Navigation, and Aircraft Cockpit Auxiliary Displays: The wide screen allows for simultaneous display of speed, diagnostics, and route maps. The rugged design withstands vibration, and the wide temperature range handles unheated cabins.
-
Construction & Agricultural Machinery:
- Excavator, Crane, and Tractor Control Panels: Operators often work outdoors under bright sun. The anti-glare coating and high brightness ensure that hydraulic controls and GPS guidance systems are always visible.
-
Military & Defense Vehicles:
- Armored Vehicle Command Stations and Field Communication Terminals: Provides reliable operation in desert environments (high heat/high light) and cold climates, with the wide format supporting complex tactical maps.
-
Solar & Wind Energy Monitoring:
- Control Stations in Solar Farms and Wind Turbines: Located in open fields with extreme ambient light, these displays allow technicians to monitor power output and system status clearly.
-
Emergency Response Vehicles:
- Police Mobile Data Terminals (MDTs) and Fire Truck Command Screens: Ensures first responders can access critical data clearly during day or night operations, regardless of weather conditions.
