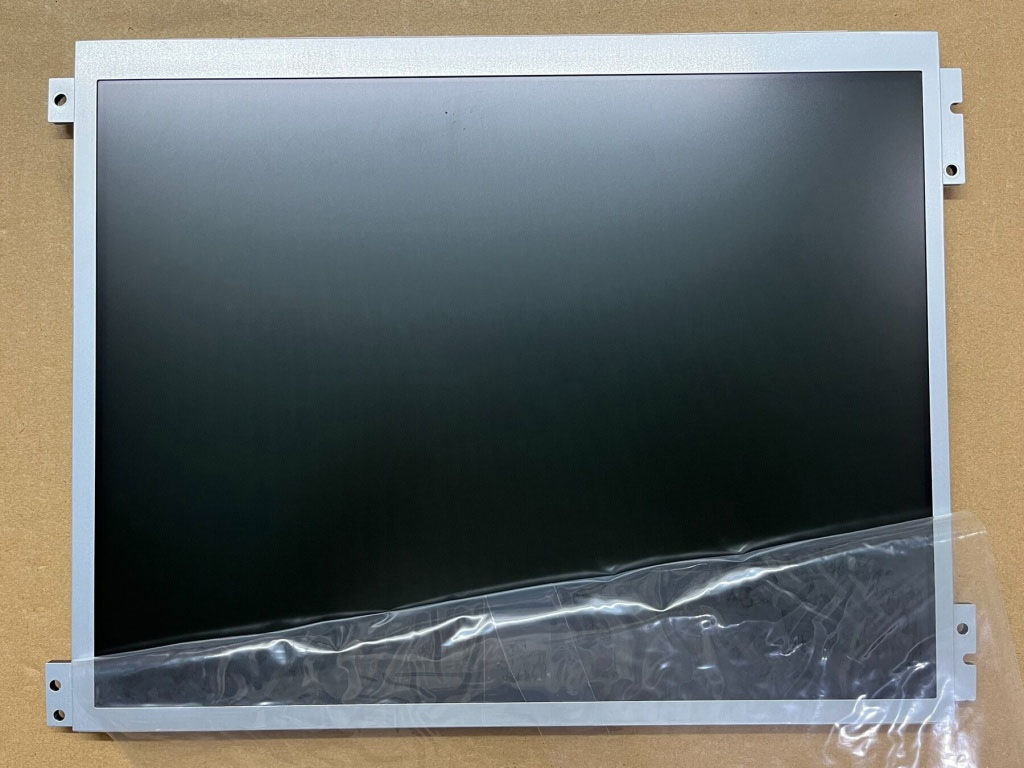

Kyocera 12.1 inch LCD Display Panel TCG121WXLPPNN-AN05 for Industrial
The TCG121WXLPPNN-AN05 is a high-performance 12.1-inch industrial TFT-LCD module manufactured by Kyocera. Designed for critical applications, it features an XGA resolution (1024x768) and utilizes an LVDS interface for reliable data transmission in noisy environments. As part of Kyocera's "WX" series, it typically offers enhanced brightness (often 800~1000 nits depending on the specific sub-revision) and a wide viewing angle, making it suitable for semi-outdoor use or brightly lit control rooms. It boasts exceptional durability with a wide operating temperature range (-20°C to +70°C) and a long backlight life, ensuring stability for long-lifecycle industrial projects.
| Parameter |
Specification |
| Model Number |
TCG121WXLPPNN-AN05 |
| Brand |
Kyocera |
| Screen Size |
12.1 inches |
| Resolution |
1024 (RGB) × 768 pixels (XGA) |
| Pixel Pitch |
0.240 mm (H) × 0.240 mm (V) |
| Display Mode |
Transmissive, IPS or Advanced TN (Wide View) |
| Brightness |
Typically 800 ~ 1000 cd/m² (High Brightness Variant)* |
| Contrast Ratio |
1000:1 (Typical) |
| Viewing Angle |
85/85/85/85 (Left/Right/Up/Down) at CR≥10 |
| Interface Type |
LVDS (Low Voltage Differential Signaling), 1-channel or 2-channel |
| Color Depth |
16.7M colors (24-bit) |
| Backlight |
WLED (White LED), Edge-lit |
| Backlight Life |
Typically 50,000 - 70,000 hours |
| Operating Temp. |
-20°C to +70°C |
| Storage Temp. |
-30°C to +80°C |
| Dimensions |
Approx. 260.5 × 203.4 × 10.8 mm (Active Area: 245.76 × 184.32 mm) |
| Weight |
Approx. 650g - 700g |
| RoHS Compliance |
Yes |
Kyocera
FAQ
Q: How long will I receive my goods ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX
Q:Can you give me a discount if I need a large quantity of ?
A:Of course!If you make a large order, we will give you a discount.
Q:Can I pay my order via credit card ?
A:Yes!you can use your credit card through your Paypal account.
- Q: May I ask what kind of packaging you use?
A: We use anti-static packaging and shock-resistant packaging.Anti-static packaging: Ensure that the packaging materials used comply with ESD standards, including anti-static bags and foam.Shock-resistant packaging: Use custom foam and sturdy outer boxes to ensure that they can pass through regular transportation tests (such as dropping and vibration).So the goods arrive at your hands in perfect condition.
Q: Do you conduct tests before shipment?
A: Yes, we strictly follow 100% pre-shipment testing procedures.Our testing process is standardized to ensure that every LCD panel sent to you is in compliance with specifications and is fully functional.
