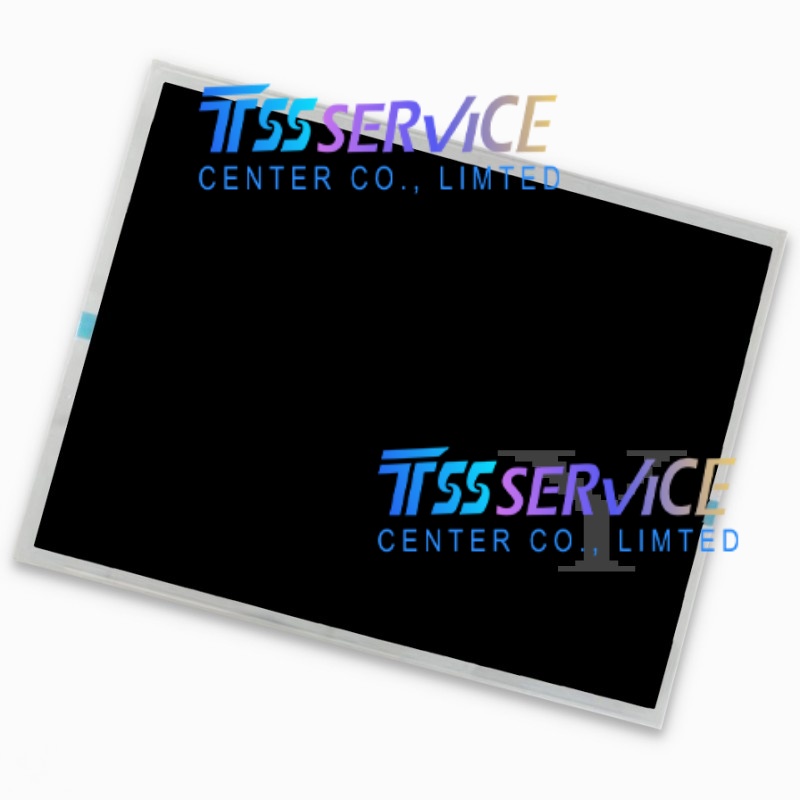

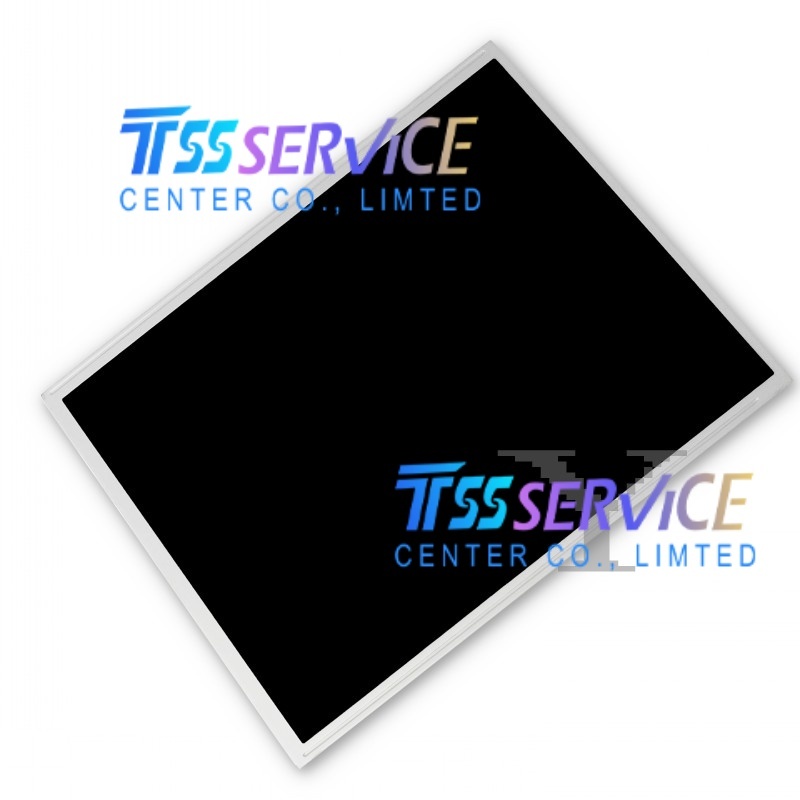

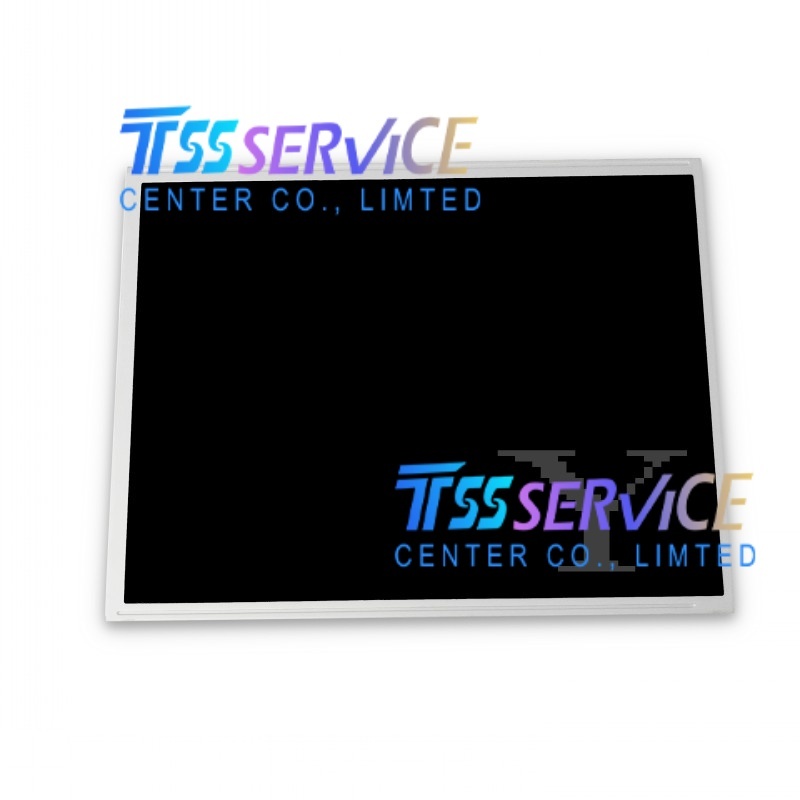

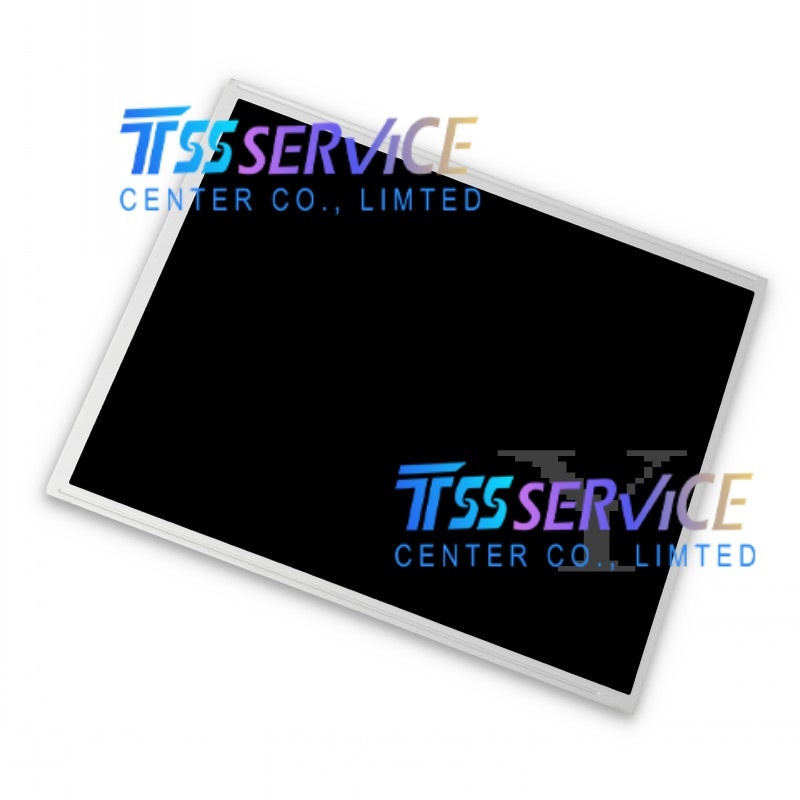

TCG121WXLRVNN-AN35 12.1 inch LCD Display Screen For Kyocera

Name: TCG121WXLR*VNN-AN*35 12.1 inch LCD Display Screen For Kyocera
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: TCG121WXLR*VNN-AN*35
Price: 248 USD
Availability: InStock

SKU: TCG121WXLR*VNN-AN*35

Model: TCG121WXLR*VNN-AN*35
Brand|: Kyocera
Diagonal Size:12.1 inch
Resolution: 1280 × 800（WXGA, 16:10）

0.0 (0 Reviews)

0 Sold

~~$250.00~~ $248.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

TCG121WXLR*VNN-AN*35 12.1 inch LCD Display Screen For Kyocera

Parameter	Description
Model	TCG121WXLRVNN-AN35
Brand	Kyocera
Diagonal Size	12.1 inch
Resolution	1280 × 800（WXGA, 16:10）
Display Type	Transmissive Color TFT, AWV (Advanced Wide View), Normally Black
Backlight	WLED, 50,000+ hours lifetime, built‑in constant current circuit
Brightness	1500 cd/m²（Typ., high brightness for sunlight readability）
Contrast Ratio	750:1（Typ.）
Viewing Angle	85°/85°/85°/85°（L/R/U/D, CR≥10）
Color Depth	16.7M colors (50% NTSC)
Interface	LVDS (20‑pin, 1‑channel 8‑bit)
Power Supply	3.3V（Typ.）
Operating Temperature	-20°C ~ +70°C
Storage Temperature	-30°C ~ +80°C
Outline Dimensions	277.7 × 182.5 × 9.8 mm
Active Area	261.12 × 163.2 mm
Dot Pitch	0.204 × 0.204 mm
Weight	600 g（Typ.）
Compliance	RoHS Certified

Specific Applications

Industrial HMI & Control Panels: Factory automation, CNC machinery, PLC interfaces, and industrial workstations (high resolution & wide viewing angle for multi‑operator use).
Outdoor & Semi‑Outdoor Terminals: Outdoor kiosks, solar‑powered displays, and marine navigation systems (1500 cd/m² high brightness ensures visibility in direct sunlight).
Medical Devices: Clinical workstations, diagnostic imaging auxiliary displays, and laboratory analytical instruments (reliable performance for 24/7 operation).
Vehicle‑Mounted Displays: Fleet management terminals, construction vehicle dashboards, and agricultural machinery monitors (wide temperature range adapts to harsh in‑vehicle environments).
Commercial & Retail Systems: High‑end POS terminals, smart vending machines, and digital signage (WXGA resolution delivers sharp visuals for customer engagement).
