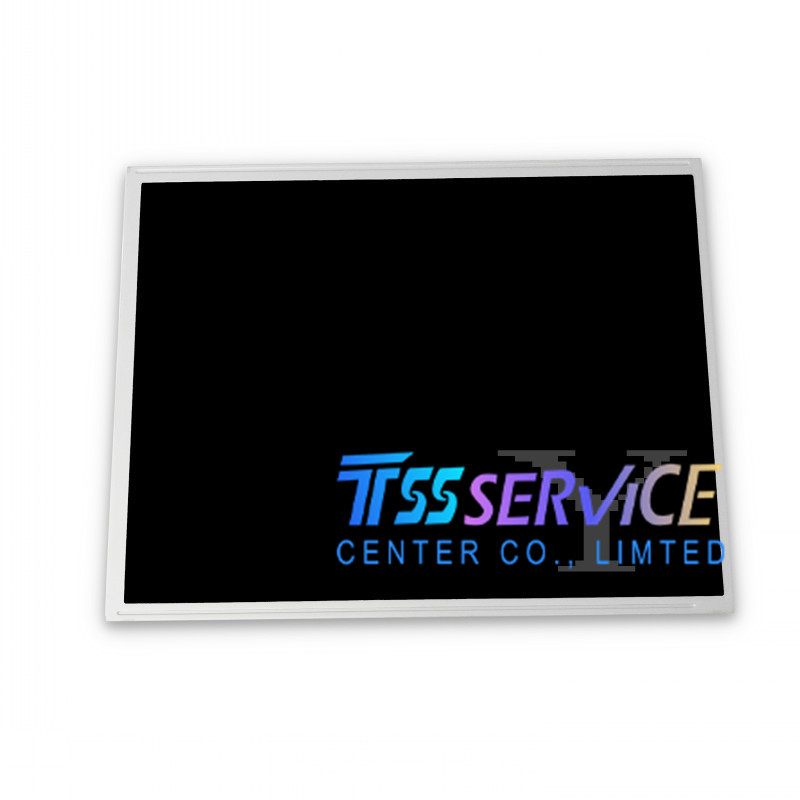

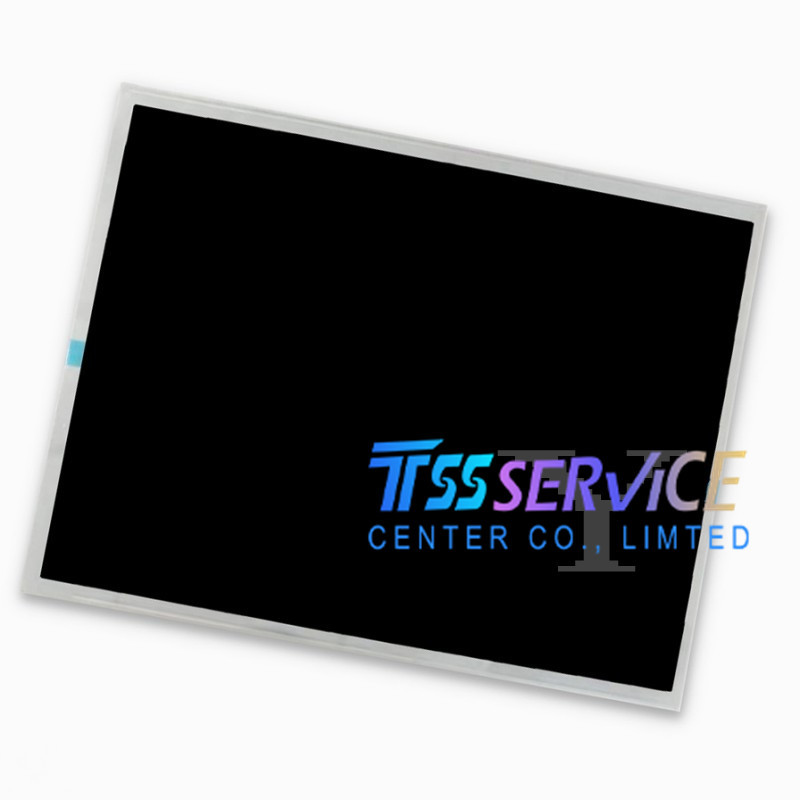

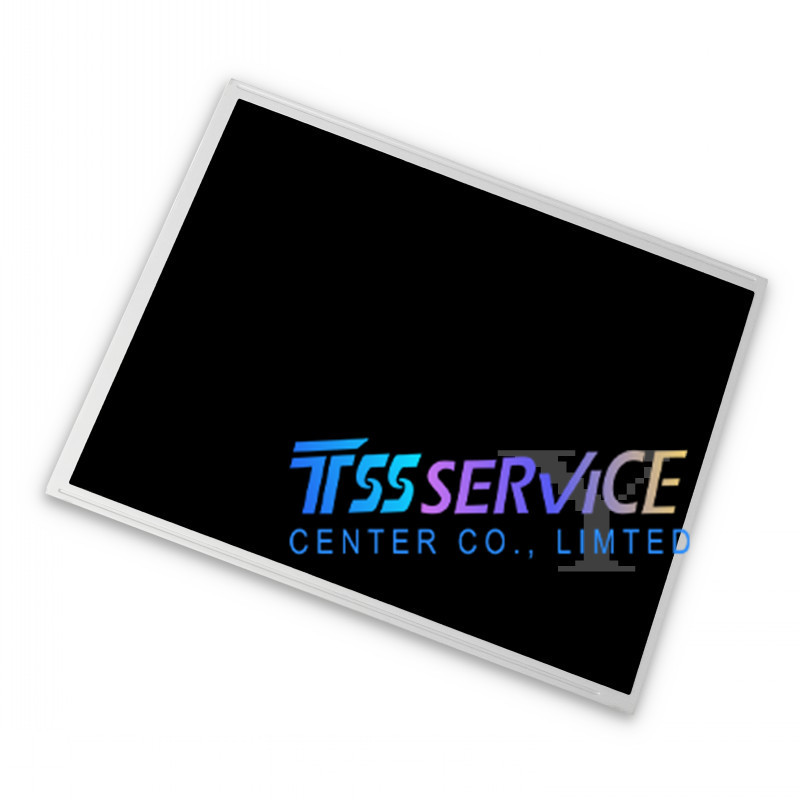

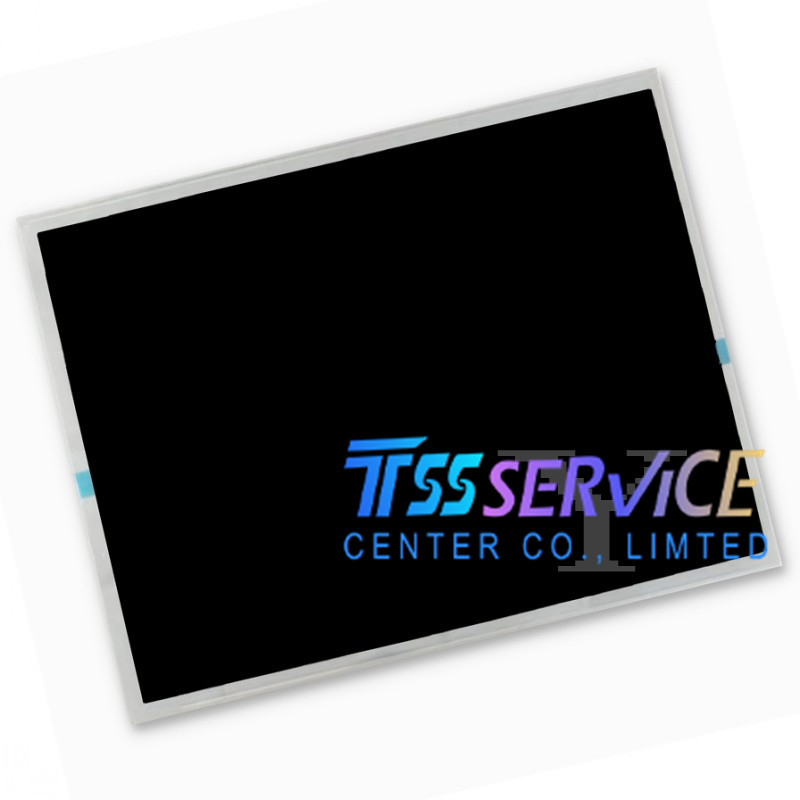

Kyocera TCG121XGLPAPNN-AN24-S 12.1 INCH LCD Panel for Industrial Machine

Name: Kyocera TCG121XGLPAPNN-AN24-S 12.1 INCH LCD Panel for Industrial Machine
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: TCG121XGLPAPNN-AN24-S
Price: 182 USD
Availability: InStock

SKU: TCG121XGLPAPNN-AN24-S

Model P/N: TCG121XGLPAPNN-AN24-S
Diagonal Size: 12.1"
Panel Type: a-Si TFT-LCD, LCM
Resolution: 1024(RGB)×768, XGA 105PPI
Pixel Format: RGB Vertical Stripe

0.0 (0 Reviews)

0 Sold

~~$184.00~~ $182.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Kyocera TCG121XGLPAPNN-AN24-S 12.1 INCH LCD Panel for Industrial Machine

Parameter	Specification
Manufacturer	Kyocera
Part Number	TCG121XGLPAPNN-AN24-S
LCD Type	a-Si TFT, Transmissive, Normally Black, AWV/IPS
Diagonal Size	12.1 inches
Resolution	1024 × 768 (XGA)
Active Area	245.76 × 184.32 mm
Outline Dimensions	260.5 × 203.4 × 10.8 mm
Pixel Pitch	0.240 × 0.240 mm (105 PPI)
Display Colors	16.2M (24-bit)
Brightness	400 cd/m² (Typ.)
Contrast Ratio	750:1 (Typ.)
Viewing Angle (CR≥10)	85/85/85/85° (U/D/L/R)
Response Time	Tr/Tf: 18/12 ms (Typ.)
Backlight	WLED, Side Light, 70,000 hrs (Typ.)
Interface	LVDS (1 ch, 6/8-bit), 20-pin Connector
Supply Voltage	3.3V / 12V (Backlight)
Operating Temp.	-30°C ~ +80°C
Storage Temp.	-30°C ~ +80°C
Weight	670 g (Max.)
Surface	Anti-glare (Matte)

Applications

Industrial Automation & HMI: Factory control panels, PLC systems, CNC machines
Medical & Healthcare: Diagnostic equipment, patient monitors
Marine & Avionics: Navigation and control systems
Test & Measurement: Oscilloscopes, signal analyzers
Rugged Embedded Systems: Military, aerospace, and outdoor industrial terminals
