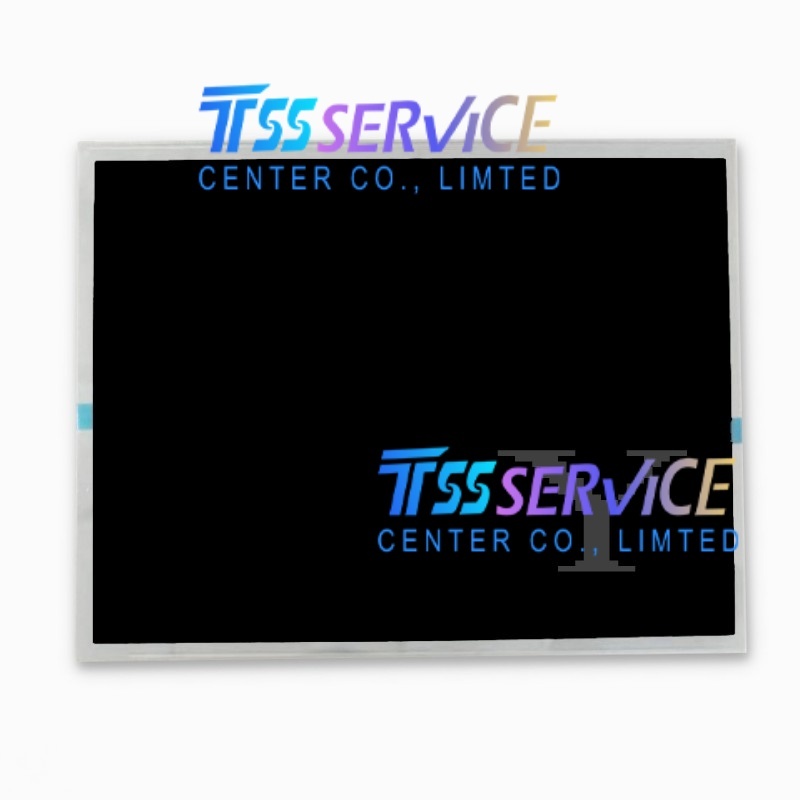

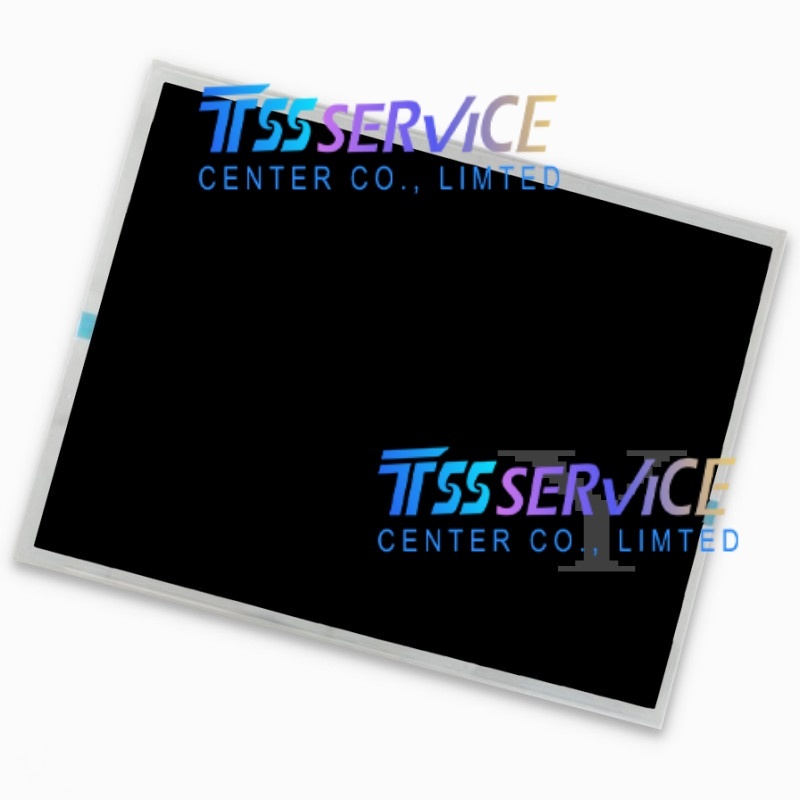

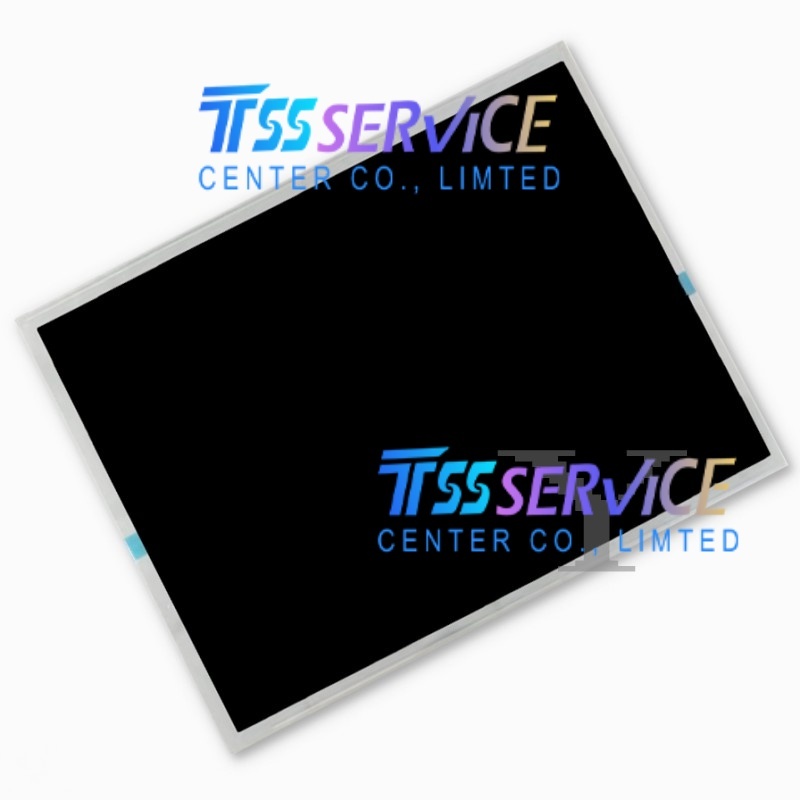

KYOCERA NEW 12.1 inch LCD Display Panel TCG121XGLPBPNN-AN40-S for Industrial
| Parameter |
Specification Details |
| Model Number |
TCG121XGLPBPNN-AN40-S |
| Manufacturer |
Kyocera Display Solutions |
| Display Size |
12.1 inches (Diagonal) |
| Active Area (AA) |
245.76 mm (H) × 184.32 mm (V) |
| Resolution |
1024 (RGB) × 768 pixels (XGA) |
| Pixel Pitch |
0.240 mm (H) × 0.240 mm (V) |
| Pixel Arrangement |
RGB Vertical Stripe |
| Display Mode |
Transmissive, Normally White |
| Panel Technology |
a-Si TFT-LCD |
| Brightness |
1200 cd/m² (Typical) – Ultra-High Brightness |
| Contrast Ratio |
1000:1 (Typical) |
| Viewing Angle |
85°/85°/85°/85° (Left/Right/Up/Down) @ CR≥10 (Wide View) |
| Color Depth |
16.7 Million Colors (8-bit per color, 24-bit total) |
| Interface Type |
LVDS (Low Voltage Differential Signaling)
(Typically 2-channel, 8-bit) |
| Connector |
Specific Hirose or similar industrial connector (Pin count varies, usually 30-40 pins) |
| Backlight Type |
WLED (White LED) with integrated LED Driver |
| Backlight Life |
≥ 50,000 to 70,000 hours (to 50% brightness) |
| Operating Temperature |
-20°C to +70°C (Wide Temperature Range) |
| Storage Temperature |
-30°C to +80°C |
| Power Supply |
3.3V ±0.3V (Logic); Backlight driven by constant current |
| Surface Treatment |
Anti-Glare (AG) / Hard Coat (Specific to "-S" variant) |
| RoHS Compliance |
Yes (Lead-free, Halogen-free) |
| Touch Panel |
None (Module only; supports external resistive/capacitive touch) |
| Mounting |
Metal bezel with standard industrial screw holes |
Due to its 1200 nits brightness and rugged construction, the TCG121XGLPBPNN-AN40-S is ideal for demanding environments where standard displays would appear washed out:
-
Transportation & Railway Systems:
- Driver Consoles & Passenger Information Displays (PIS): Perfect for train and bus cabins where sunlight streams through windows. The high brightness ensures critical speed, signal, and route information remains clearly visible at all times.
- Traffic Control Centers: Used in monitoring stations with high ambient lighting.
-
Outdoor & Semi-Outdoor Kiosks:
- ATMs, Ticket Vending Machines, and Gas Station Terminals: Deployed under canopies or in sheltered outdoor areas where glare from the sun is a major challenge. The 1200 nits output combats direct and indirect sunlight effectively.
-
Medical Equipment (High-Ambient Light):
- Surgical Lights & Emergency Room Monitors: In operating rooms with intense overhead surgical lighting, this display ensures doctors can view patient vitals and imaging without squinting or losing detail.
-
Industrial Automation & HMI:
- Factory Floor Control Panels: Suitable for brightly lit manufacturing plants, especially those with large windows or high-intensity safety lighting. It serves as a robust HMI for CNC machines, robotic cells, and assembly line controls.
-
Marine & Aviation Instruments:
- Bridge Displays & Cockpit Instruments: Provides reliable visibility on ship bridges or aircraft cockpits where reflections from water or sky can obscure lower-brightness screens.
-
Defense & Military Ground Vehicles:
- Used in armored vehicle command stations and field communication units where readability in diverse lighting conditions (from dark interiors to bright desert sun) is mission-critical.
