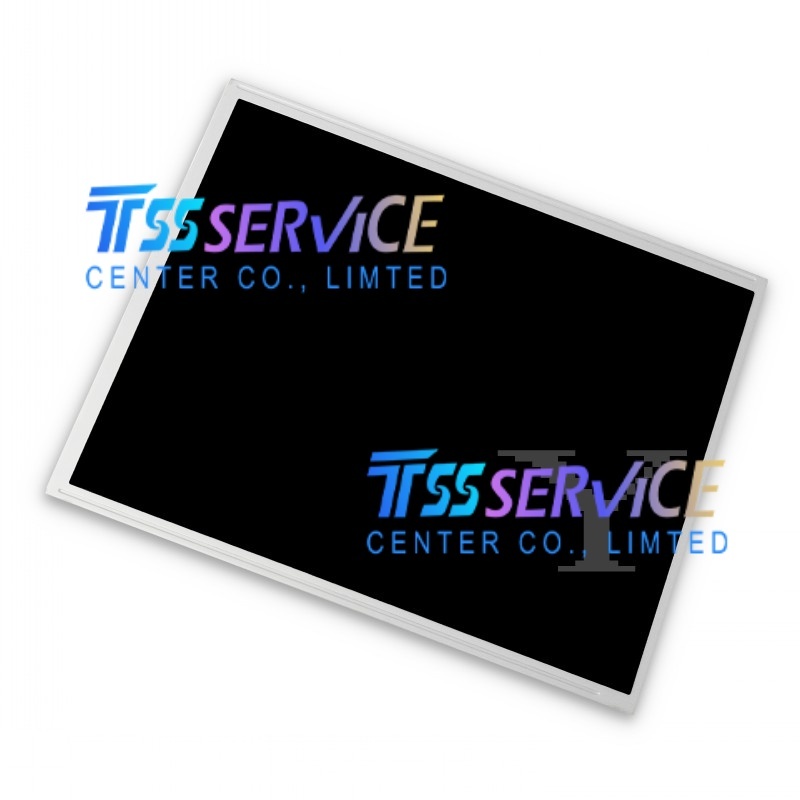

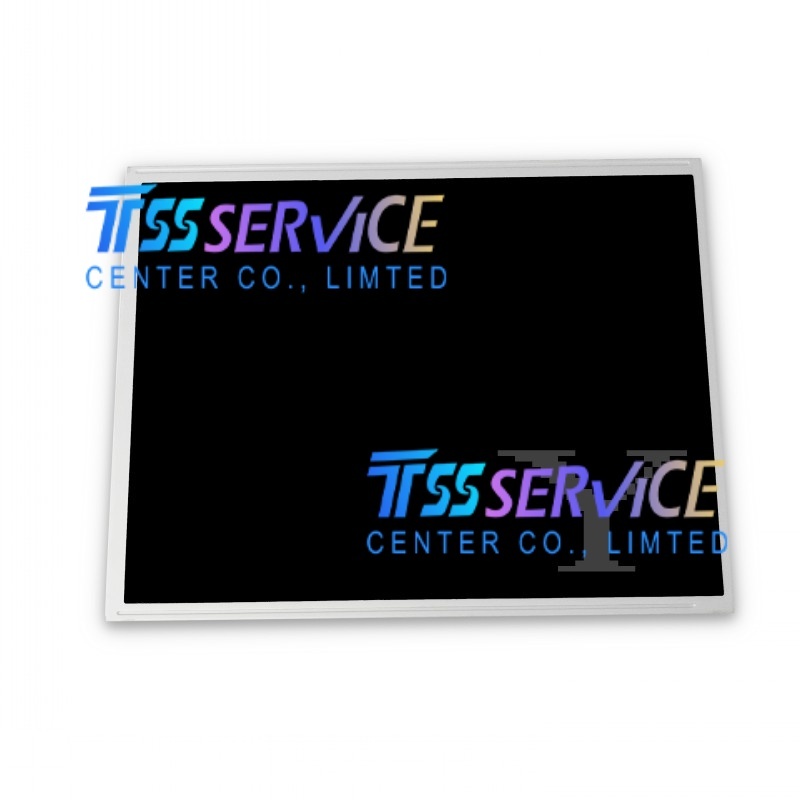

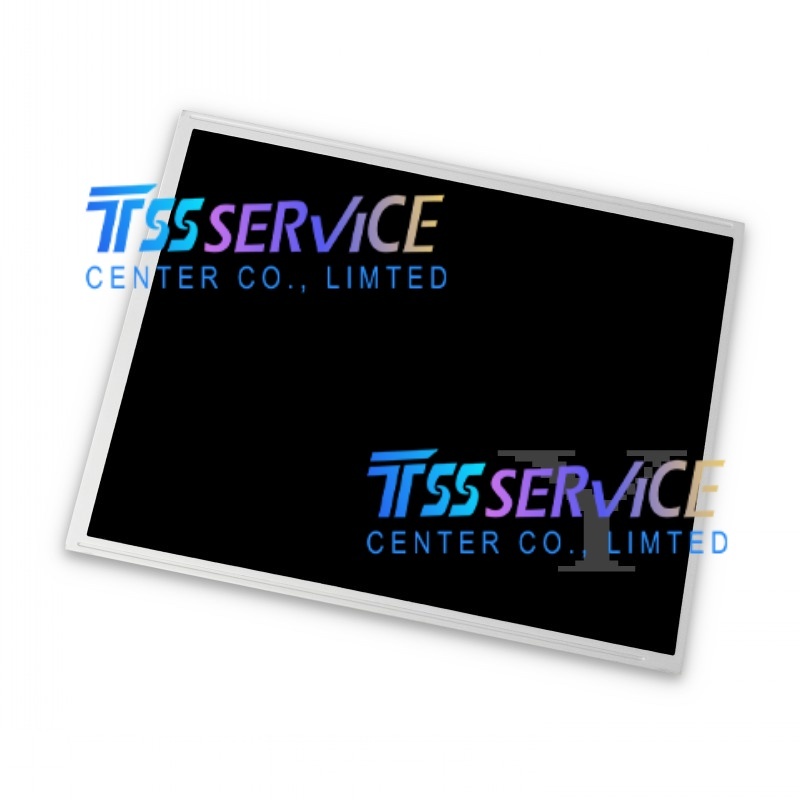

Kyocera TCG121XGLPCPNN-AN70-S 12.1" Industrial TFT-LCD Panel

SKU: TCG121XGLPCPNN-AN70-S
Model: TCG121XGLPCPNN-AN70-S
Brand: Kyocera
Size: 12.1 inches
Panel Type: a-Si TFT-LCD
Resolution:1024 × 768 (XGA), 105PPI
0.0 (0 Reviews)
0 Sold
$280.00 $275.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
  • Kyocera TCG121XGLPCPNN-AN70-S 12.1" Industrial TFT-LCD Panel
  • Kyocera TCG121XGLPCPNN-AN70-S 12.1" Industrial TFT-LCD Panel
  • Kyocera TCG121XGLPCPNN-AN70-S 12.1" Industrial TFT-LCD Panel
  • Kyocera TCG121XGLPCPNN-AN70-S 12.1" Industrial TFT-LCD Panel
  • Kyocera TCG121XGLPCPNN-AN70-S 12.1" Industrial TFT-LCD Panel
  • Kyocera TCG121XGLPCPNN-AN70-S 12.1" Industrial TFT-LCD Panel
1/1
  • Kyocera TCG121XGLPCPNN-AN70-S 12.1" Industrial TFT-LCD Panel
  • Kyocera TCG121XGLPCPNN-AN70-S 12.1" Industrial TFT-LCD Panel
  • Kyocera TCG121XGLPCPNN-AN70-S 12.1" Industrial TFT-LCD Panel
  • Description
Kyocera TCG121XGLPCPNN-AN70-S 12.1" Industrial TFT-LCD Panel
Parameter Details
Model TCG121XGLPCPNN-AN70-S
Brand Kyocera
Size 12.1 inches
Panel Type a-Si TFT-LCD (AWV, Normally Black)
Resolution 1024 × 768 (XGA), 105PPI
Brightness 1200 cd/m² (Typ.)
Contrast Ratio 750:1 (Typ.)
Viewing Angle 85/85/85/85 (CR≥10)
Display Colors 262K, 51% CIE1931
Display Area 245.76 × 184.32 mm
Outline Size 260.5 × 203 × 10.4 mm
Backlight WLED, 100,000 hours, no driver
Interface LVDS (1 ch 6/8-bit), 20 pins
Operating Temperature -30°C ~ +80°C
Storage Temperature -30°C ~ +80°C
Surface Treatment Anti-glare, Hard coating (3H)
Touchscreen Projected Capacitive (PCAP), multi-touch
Weight Approx. 800g

Applications

  • Outdoor Kiosks & Information Terminals: Sunlight-readable displays for ticketing, wayfinding, and outdoor monitoring.
  • Industrial HMI & Control Panels: Factory automation, CNC machinery, and robotic systems in harsh environments.
  • Transportation: Railway, marine, and heavy-duty vehicle dashboards (wide temp & high vibration resistance).
  • Medical Equipment: Diagnostic devices and patient monitors requiring high reliability and clarity.
  • Rugged & Military Systems: Defense terminals and field-deployed control interfaces.
