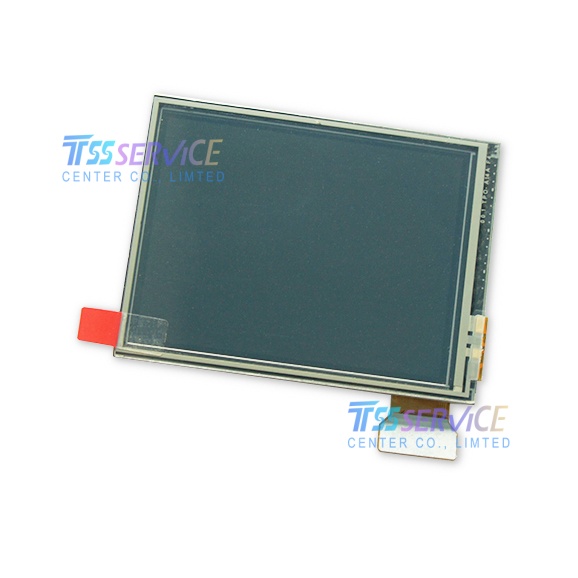

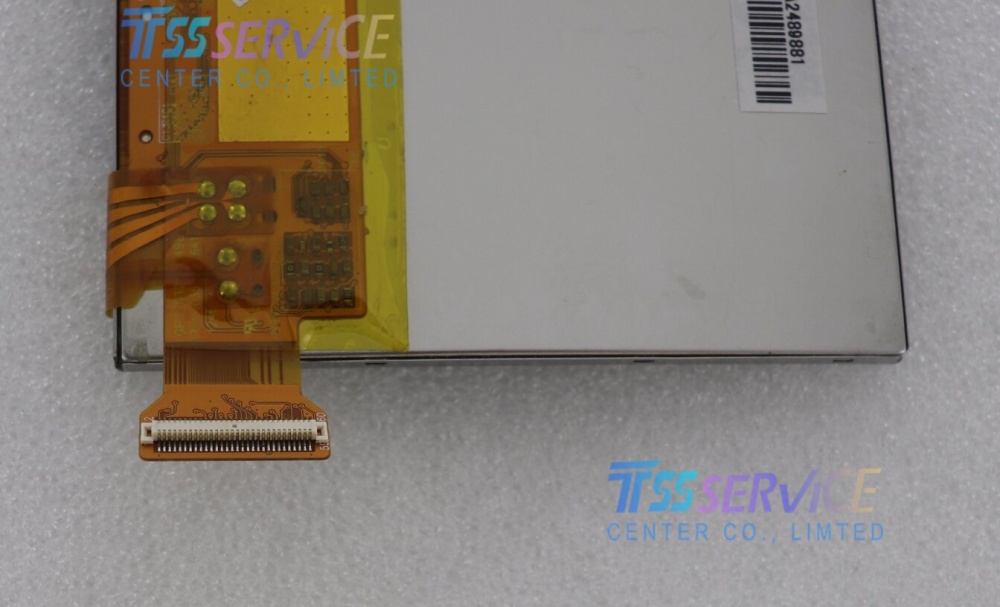

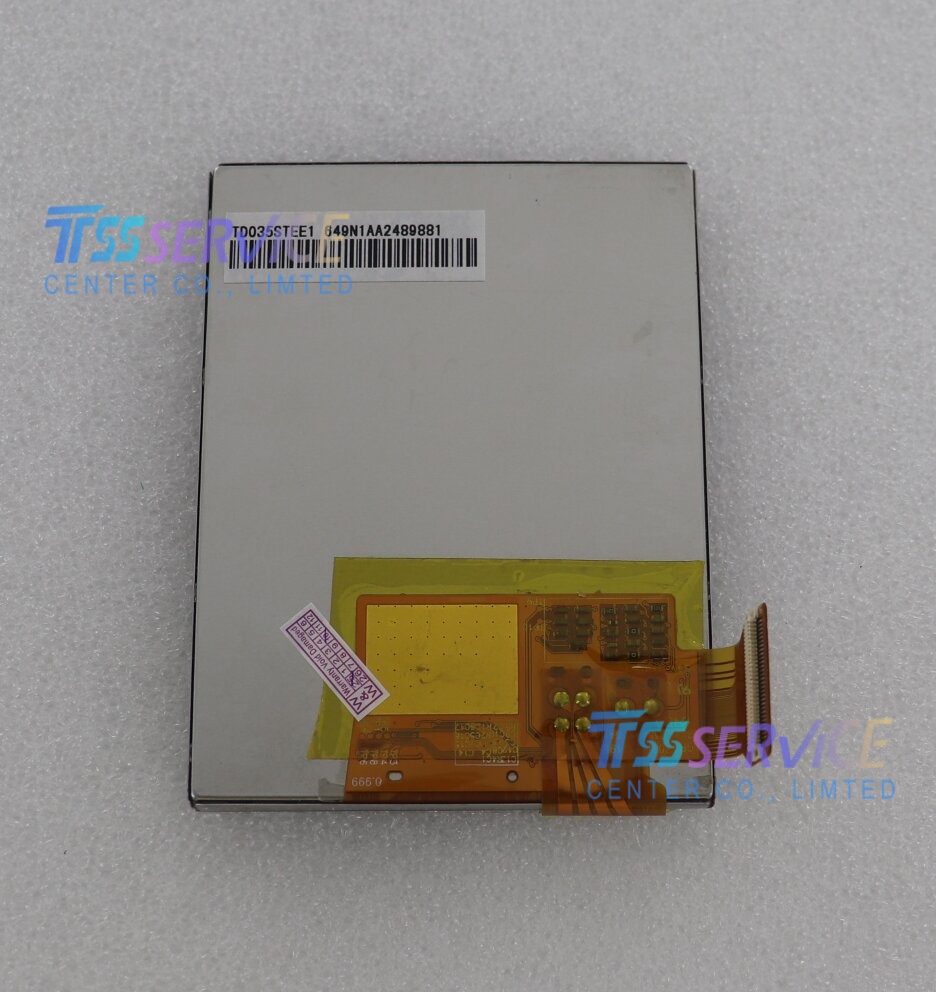

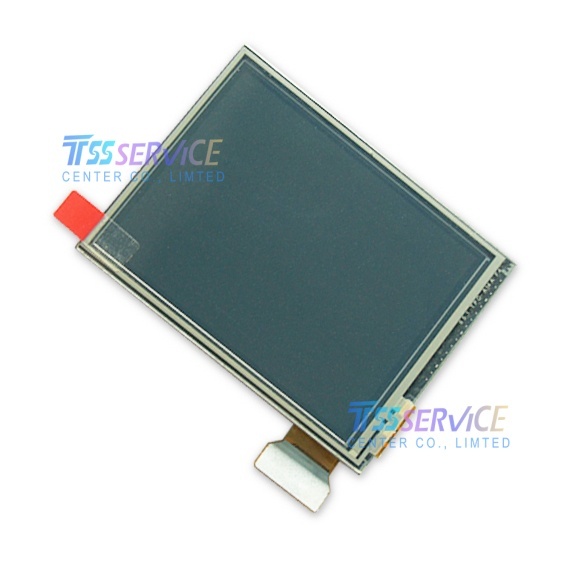

TD035STEE1 3.5 inch TPO Lcd Panel with 4-wire Resistive Touch

Name: TD035STEE1 3.5 inch TPO Lcd Panel with 4-wire Resistive Touch
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: TD035STEE1
Price: 48 USD
Availability: InStock

SKU: TD035STEE1

1，Condition: New，Grade A

2，Description: TD035STEE1 3.5 inch LCD Display Panel

3，Warranty: 90 Days

4，Lead Time: 1-3 Working days

5，Shipping: DHL ,FedEx, EMS , SF express or by air.

6，Packaging: Bubble pad+Paper box

7，Note: All LCD display panels will be full tested before shipping.

0.0 (0 Reviews)

0 Sold

~~$50.00~~ $48.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

The TPO TD035STEE1 is a 3.5-inch LTPS TFT-LCD module featuring an integrated 4-wire resistive touch panel. Designed with transflective technology, this display offers excellent sunlight readability and low power consumption, making it ideal for portable and outdoor applications.

Parameter	Value
Brand	TPO
Model	TD035TEE1
Diagonal Size	3.5 inch
Type	LTPS TFT-LCD, LCM
Pixel Number	480(RGB)×640, VGA, 3:4
Pixel Format	RGB Vertical Stripe
Active Area	53.28(H)×71.04(V) mm
Physical Size	64(H)×85(V)×6(D) mm
Mass	45.4±0.5g
Luminance	150 cd/m² (Typ.)
Contrast Ratio	200:1 (Typ.) (TM) / 8:1 (Typ.) (RF)
Response Time	35 (Typ.)(Tr+Td) ms
Viewing Angle	80/80/80/70 (Typ.)(CR≥5)
Operating Mode	TN, Normally White, Transflective
Support Color	262K, 37% NTSC
Light Source	6S1P WLED, 5K hrs, Without Driver
Touch Panel	4-wire Resistive Touch
Interface Type	Parallel RGB (1 ch, 6-bit), 60 pins Connector
Power Supply	3.0/3.0V (Typ.)(VDDIO/VDC)
Operating Temperature	-10 ~ 60 °C
Storage Temperature	-20 ~ 70 °C

Typical Applications:

Handheld industrial terminals
Outdoor medical devices
GPS navigation systems
Portable test and measurement equipment
Marine and aviation instruments
Outdoor kiosks and payment terminals
