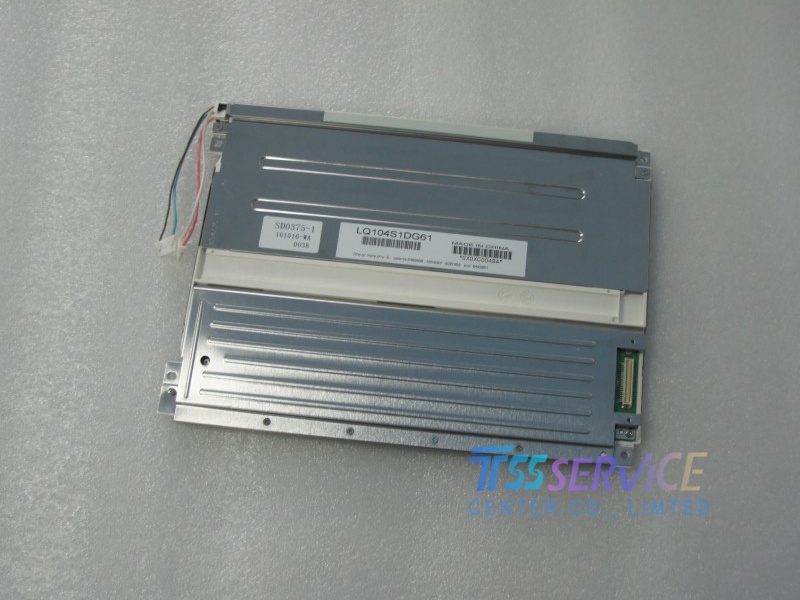

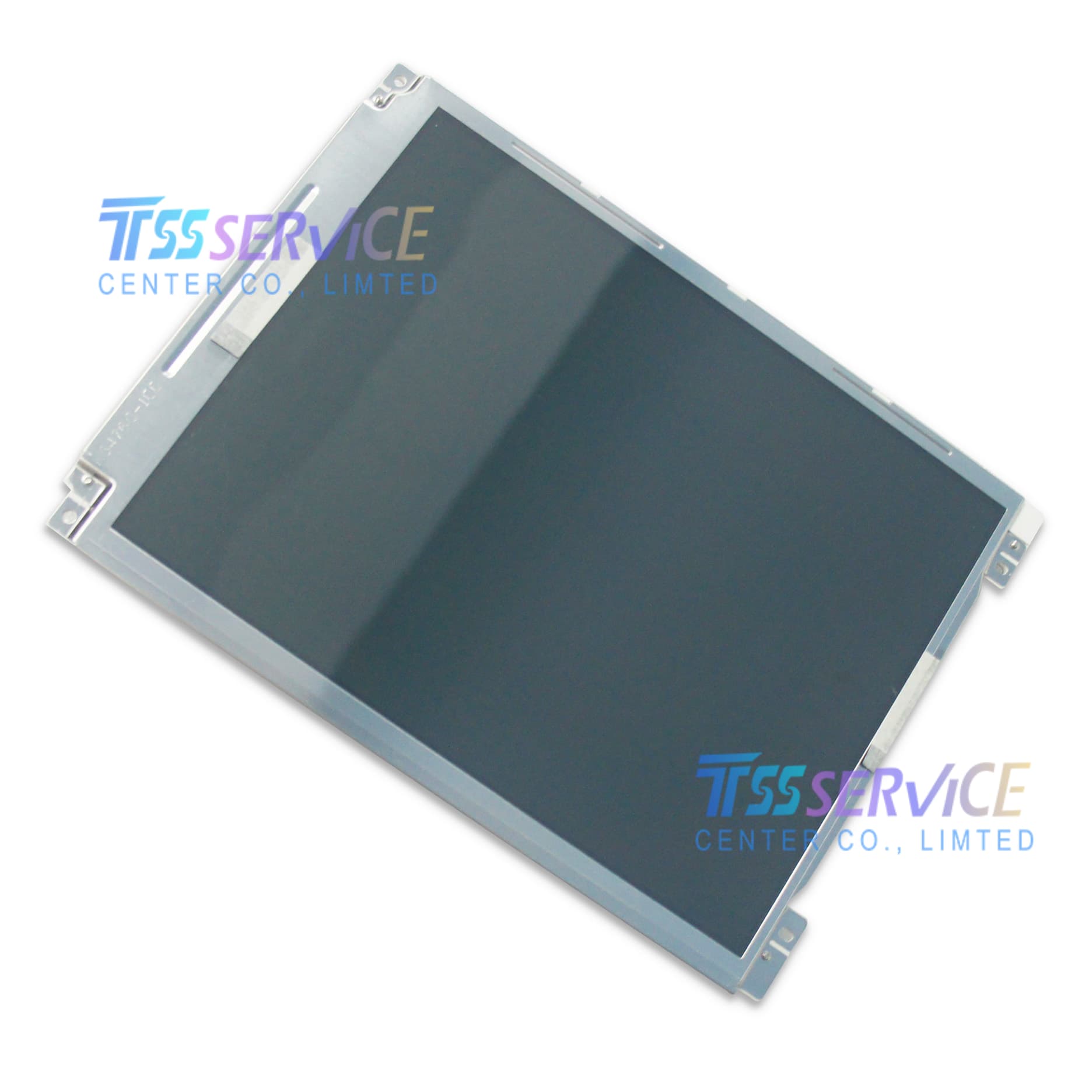

Part no :LQ104S1DG61
Brand : Sharp
INCH :10.4INC
Resolution 800 × 600
LCD Panel for Industrial Machine
| Parameter | Specification |
|---|---|
| Model Number | LQ104S1DG61 |
| Manufacturer | Sharp (SHARP) |
| Panel Size | 10.4 inch |
| Display Type | a-Si TFT-LCD, Transmissive |
| Display Mode | TN, Normally White |
| Resolution | 800 × 600 pixels (SVGA) |
| Pixel Arrangement | RGB Vertical Stripe |
| Aspect Ratio | 4:3 (Width:Height) |
| Display Area (H×V) | 211.2 × 158.4 mm |
| Viewable Area (H×V) | 214.6 × 162.4 mm |
| Outline Dimensions | 246.5 × 179.4 × 13.7 mm (Max) |
| Surface Treatment | Anti-reflective, Hazy (Hard Coating 3H) |
| Brightness (Typ.) | 420 cd/m² |
| Contrast Ratio (Typ.) | 600:1 |
| Viewing Angle (Typ.) | 70°/70°/50°/60° (Left/Right/Up/Down, CR≥10) |
| Optimal Viewing Direction | 6 o'clock |
| Color Depth | 262K colors (6-bit) |
| Response Time (Typ.) | 10 ms (Tr), 25 ms (Td) |
| Refresh Rate | 60 Hz |
| Backlight Type | 2 pcs CCFL, Side Light, 50,000 hours lifespan |
| Backlight Driver | Not included |
| Interface Type | 41-pin CMOS (1 channel, 6-bit), Terminal Connector |
| Supply Voltage (Typ.) | 3.3V / 5.0V (VCC) |
| Operating Temperature | -30°C to +80°C |
| Storage Temperature | -30°C to +80°C |
| Weight | 620 g (Max.) |
| Application | Industrial Equipment |
| Status | Discontinued (EOL: Q1 2013) |
