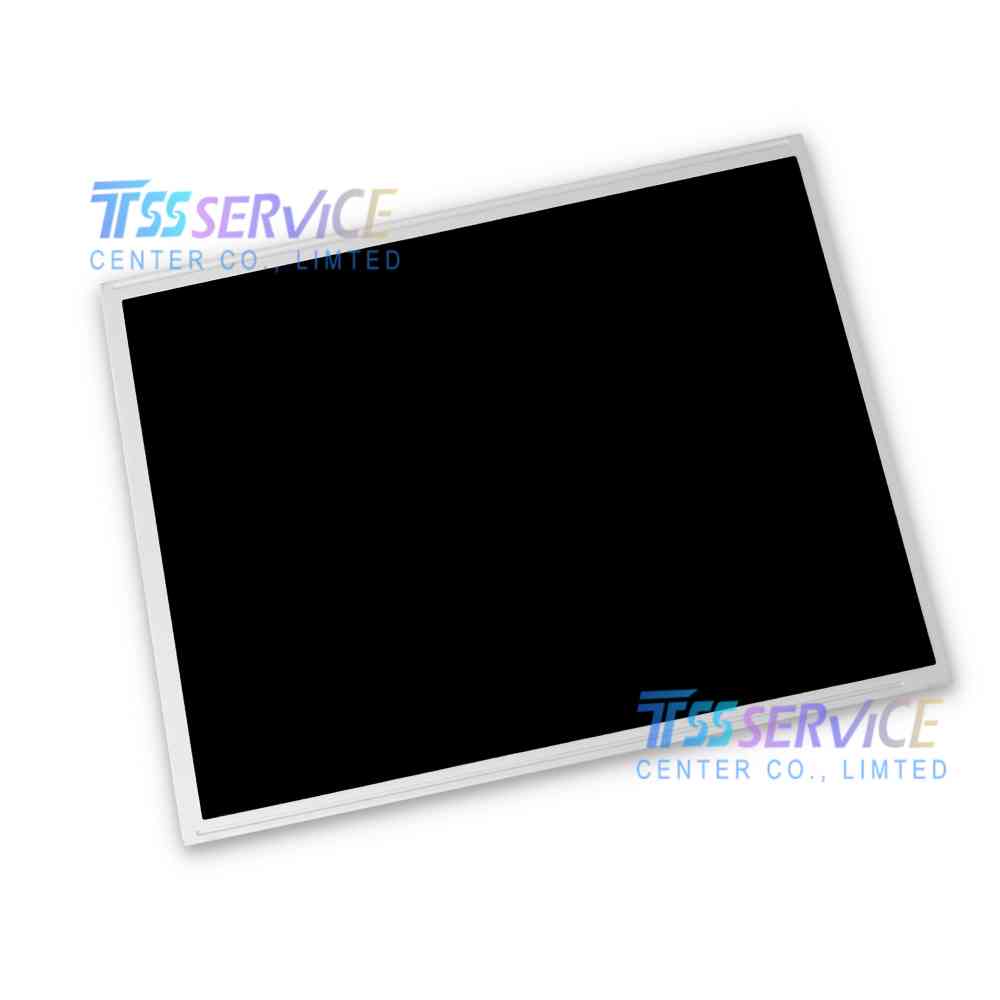

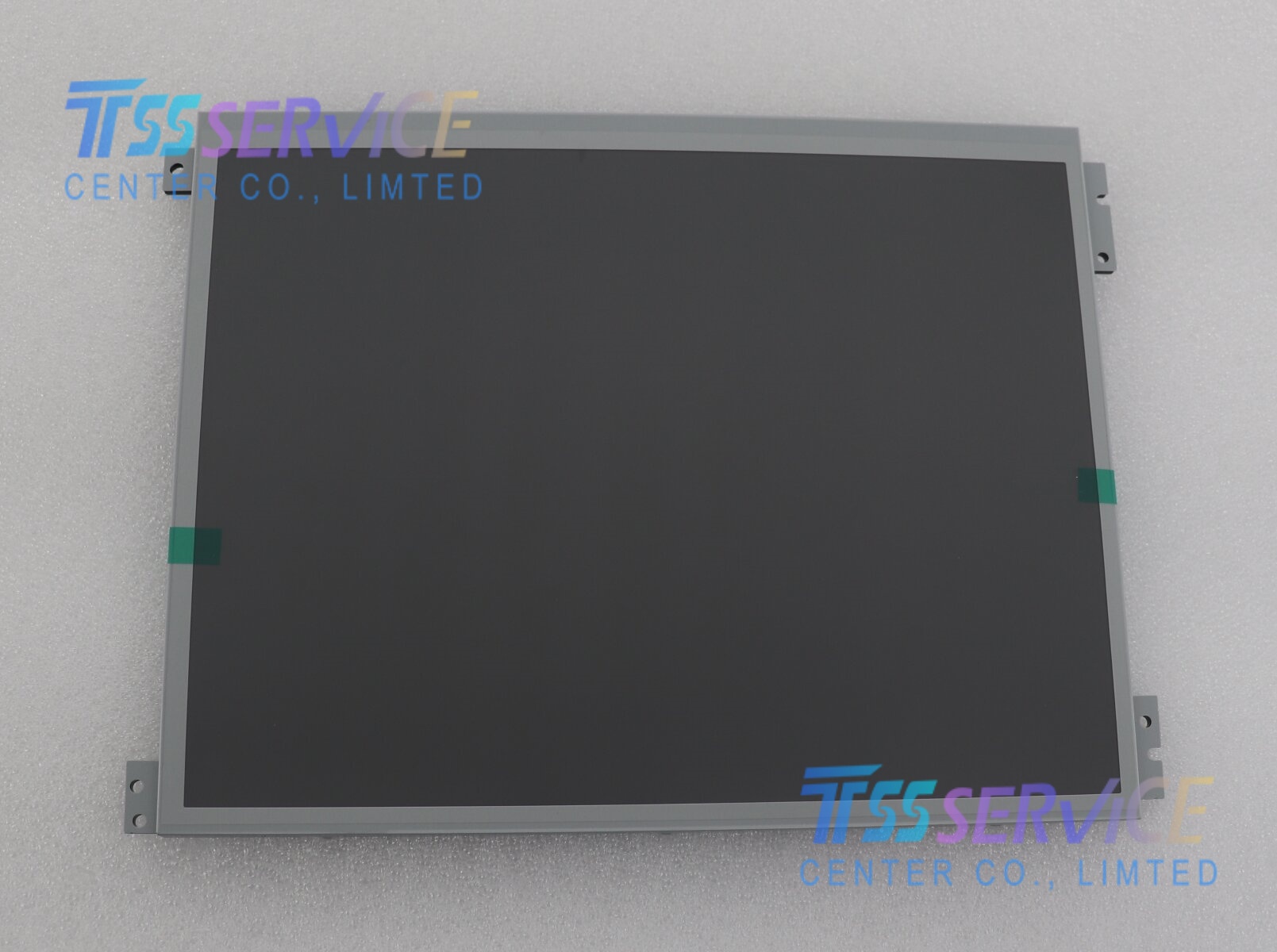

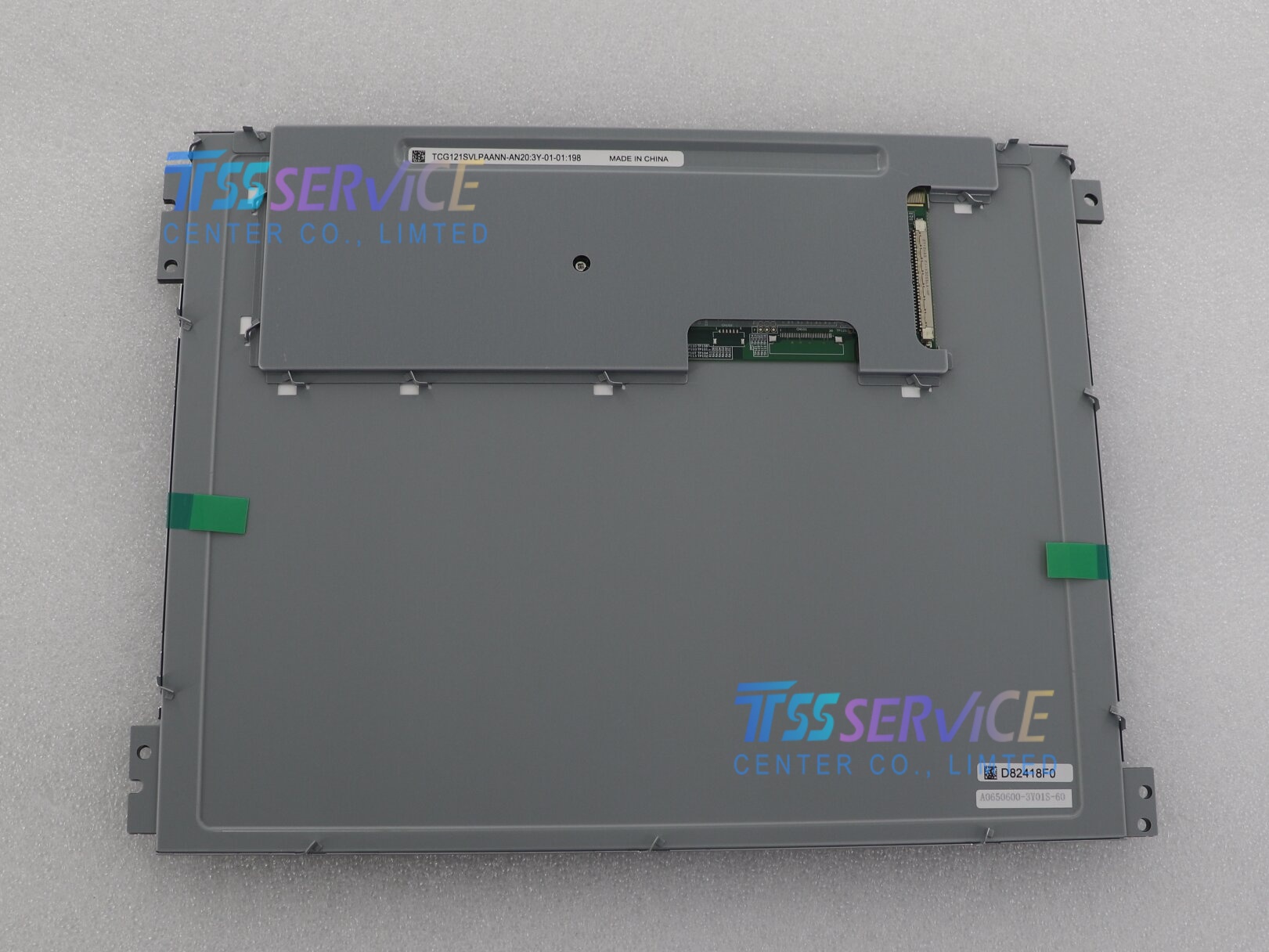

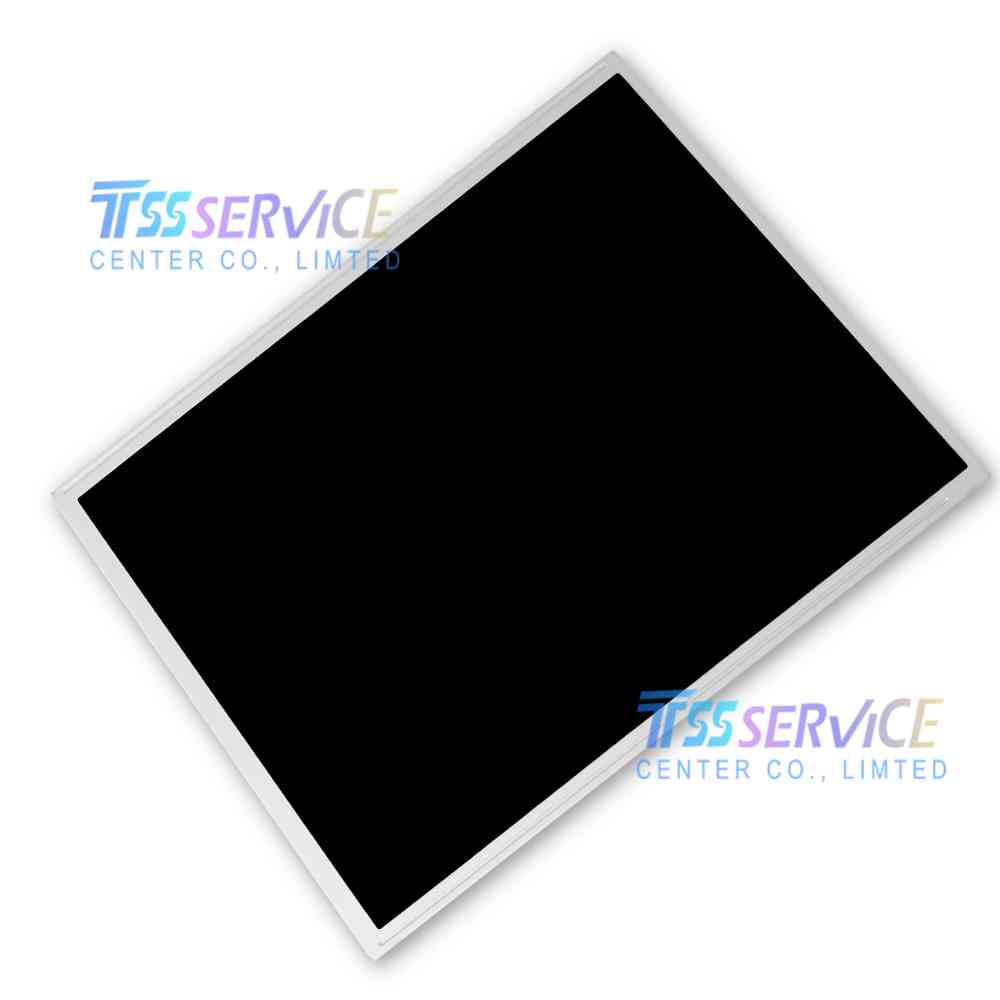

Part no : TCG121SVLPAANN-AN20
Brand : Kyocera
INCH :12.1 INCH
Resolution 800(RGB)×600
LCD Panel for Industrial Machine
| Parameter | Specification |
|---|---|
| Model Number | TCG121SVLPAANN-AN20 |
| Manufacturer | Kyocera Display |
| Panel Type | a-Si TFT-LCD, Liquid Crystal Module |
| Screen Size | 12.1 inches (Diagonal) |
| Resolution | 800 (RGB) × 600 pixels (SVGA) |
| Pixel Pitch | 0.3075 × 0.3075 mm |
| Display Mode | Normally White, Transmissive |
| Optical Mode | TN (Twisted Nematic) |
| Brightness | 500 cd/m² (Typical) |
| Contrast Ratio | 1000:1 (Typical) |
| Viewing Angle | 80/80/80/60 (Left/Right/Up/Down, Typ. CR≥10) |
| Display Colors | 16.2 Million (6-bit + FRC) |
| Backlight Type | White LED (WLED) |
| Backlight Life | > 70,000 hours (Typical) |
| Backlight Driver | Integrated LED Driver Included |
| Interface Type | 30-pin LVDS (1 channel, 8-bit) via Terminal Block |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -30°C to +80°C |
| RoHS Compliance | Compliant |
| Touch Panel | None (Open Frame Module) |
| Surface Treatment | Anti-Glare (Haze) |
