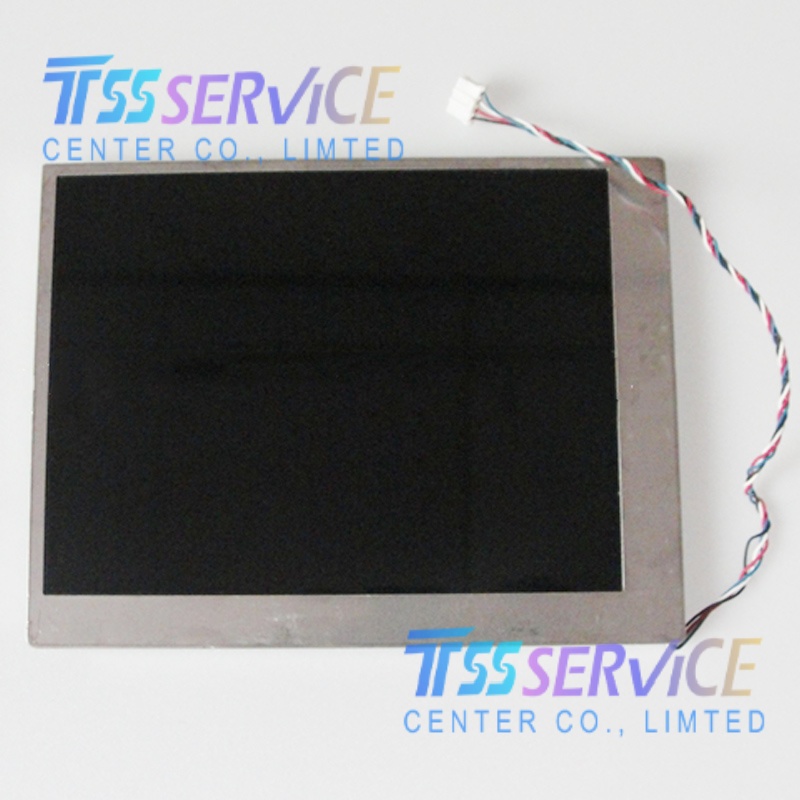

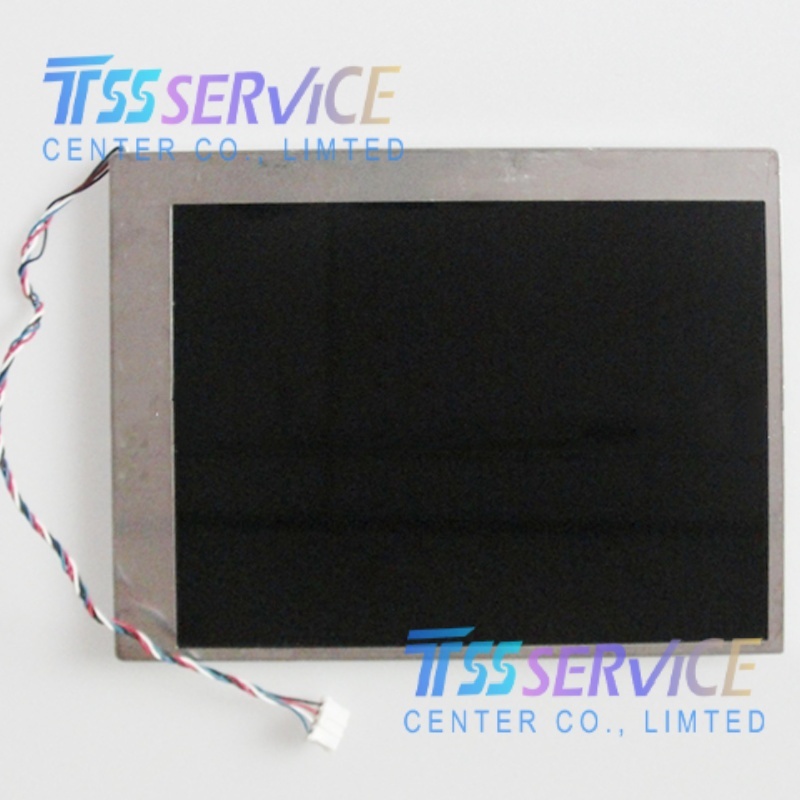

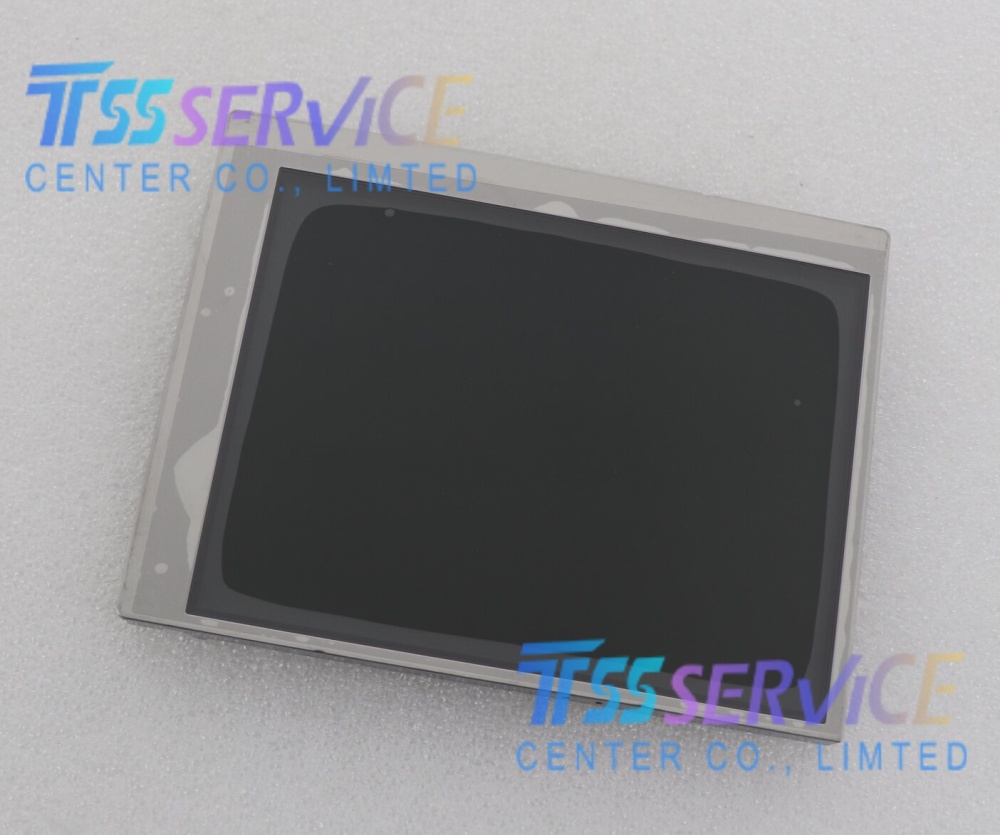

TG057QVLGF-G00 Kyocera 5.7" TFT LCD Display Module 320x240 QVGA Industrial Screen For HMI

Name: TG057QVLGF-G00 Kyocera 5.7" TFT LCD Display Module 320x240 QVGA Industrial Screen For HMI
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: TG057QVLGF-G00
Price: 174 USD
Availability: InStock

SKU: TG057QVLGF-G00

Model No.: TG057QVLGF-G00
Screen Size: 5.7 inch, 4:3 Aspect Ratio
Resolution: 320×240 (QVGA)
Panel Type: a-Si TFT-LCD, Normally White TN Transmissive

0.0 (0 Reviews)

0 Sold

~~$176.00~~ $174.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

TG057QVLGF-G00 Kyocera 5.7" TFT LCD Display Module 320x240 QVGA Industrial Screen For HMI

Parameter	Specification
Manufacturer	Kyocera
Model No.	TG057QVLGF-G00
Screen Size	5.7 inch, 4:3 Aspect Ratio
Resolution	320×240 (QVGA)
Panel Type	a-Si TFT-LCD, Normally White TN Transmissive
Active Area	115.2 × 86.4 mm (4.54 × 3.40 in)
Outline Dimension	134.5 × 103.4 × 8.5 mm (5.30 × 4.07 × 0.33 in)
Weight	140 g (Typ.)
Brightness	1100 cd/m² (Typ.)
Contrast Ratio	400:1 (Typ.)
Viewing Angle	65/65/80/60 (Typ., CR≥10)
Response Time	Tr/Td 10/25 ms (Typ.)
Backlight	2-strings WLED, 40,000 hrs lifetime, No Driver IC
Color Mode	Grayscale
Interface	Parallel RGB (1 ch, 6-bit), 33-pin Connector
Power Supply	3.3V (Typ.)
Operating Temp.	-20 ~ 70 °C
Storage Temp.	-30 ~ 80 °C
Touchscreen	Without
Surface Treatment	Glare (Haze 0%)

Applications

Outdoor Industrial HMI: Construction machinery, forklifts, agricultural equipment.
Medical Devices: High-brightness patient monitors, surgical equipment.
Marine & Vehicle: Shipboard displays, vehicle dashboards (sunlight readable).
Kiosks & POS: Outdoor ticket machines, petrol station displays.
Test & Measurement: High-end industrial controllers, data loggers.
