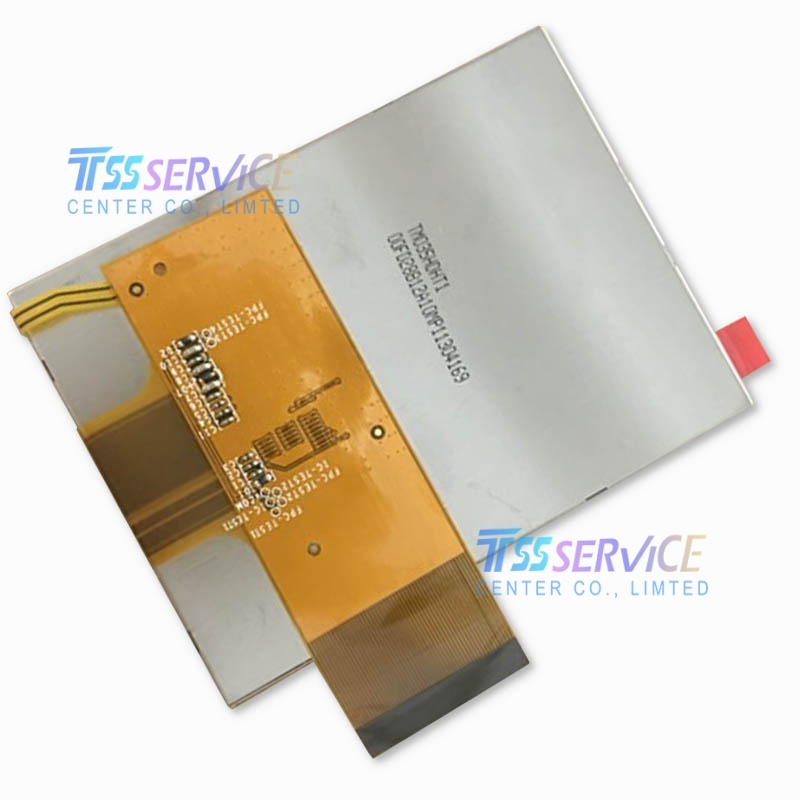

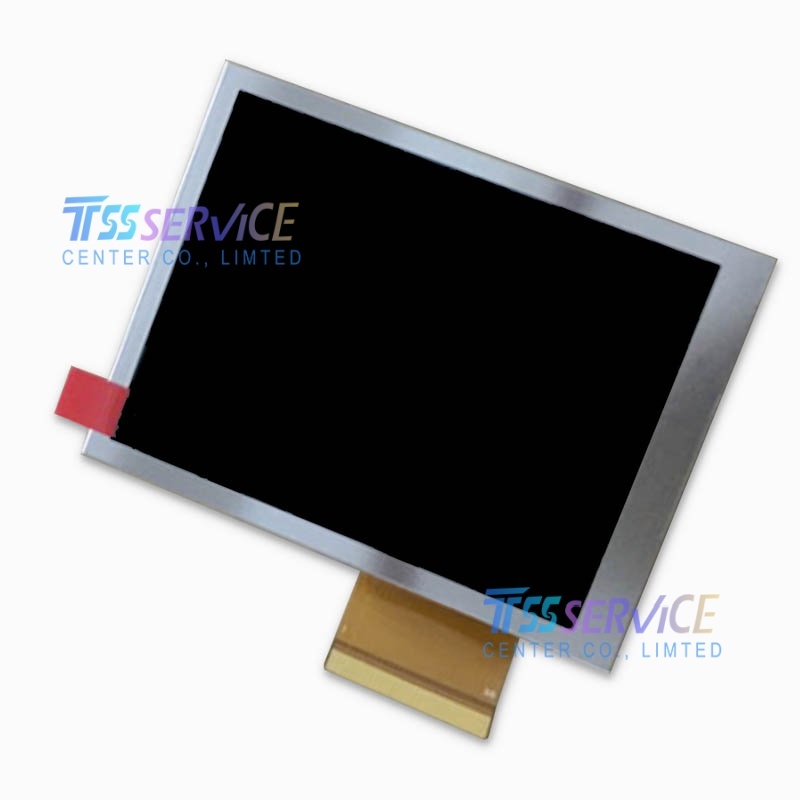

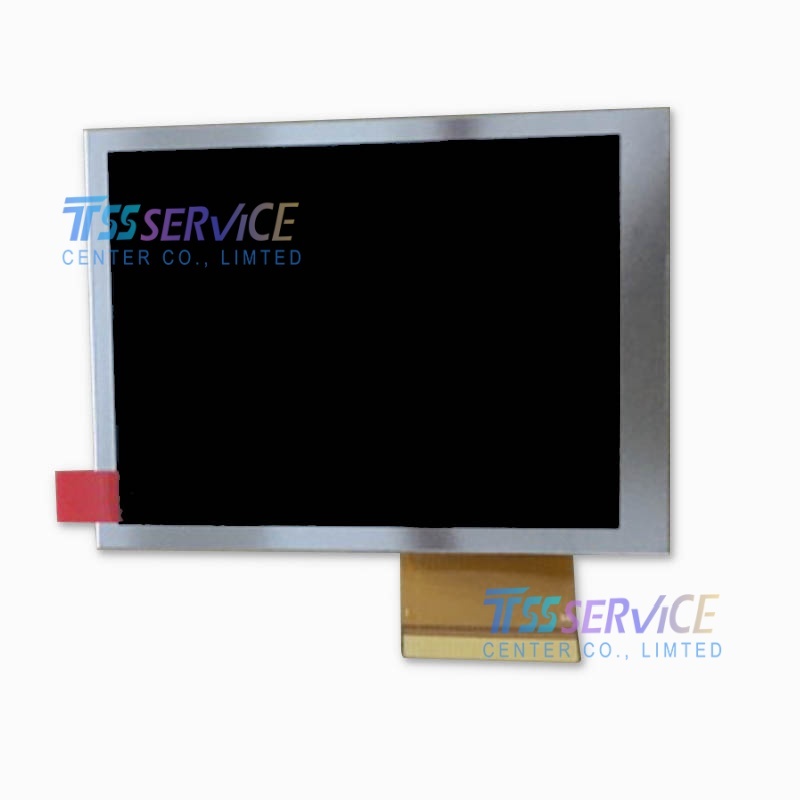

TIANMA 3.5INCH LCD Panel Screen TM035HDHT1 For Handheld & PDA

Name: TIANMA 3.5INCH LCD Panel Screen TM035HDHT1 For Handheld & PDA
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: TM035HDHT1
Price: 35 USD
Availability: InStock

SKU: TM035HDHT1

Condition: New Original
Warranty: 90 days
Shipping: DHL/ Fedex/ 4PX express/ SF express
Lead time: 1-3 days
Packaging: Bubble pad+Paper box

0.0 (0 Reviews)

0 Sold

~~$42.00~~ $35.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

TM035HDHT1 LCD Display is a 3.5-inch LCD screen from TIANMA brand without touch. It has a resolution of 240x320 pixels (QVGA), a brightness of 100 cd/m ², a input voltage of 2.8V, and a working frequency of 60Hz. With a contrast ratio of 150:1 and a wide operating temperature, this LCD screen is mainly used in these fields: Factory automation equipment field.

SPECIFICATION

Active Area	53.64(W)×71.52(H) mm	Bezel Opening	56.64(W)×74.52(H) mm
Outline Size	64(W)×85(H) ×3.13(D) mm	Surface	Hard coating
Brightness	100 cd/m² (Typ.)	Contrast Ratio	150:1 (Typ.) (TM) 2.5:1 (Typ.) (RF)
Viewing Angle	40/45/55/40 (Typ.)(CR≥10)	Display Mode	ECB, Normally White, Transflective
