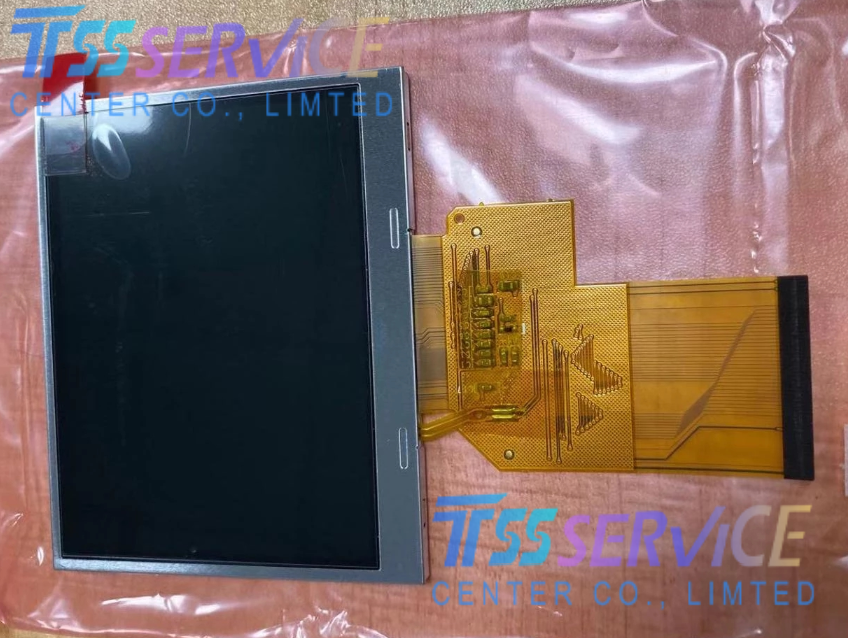

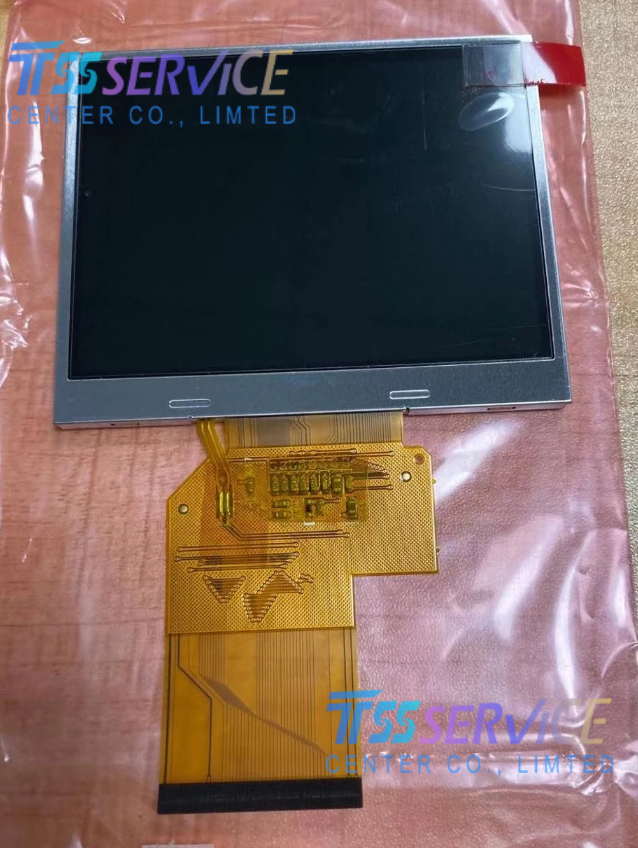

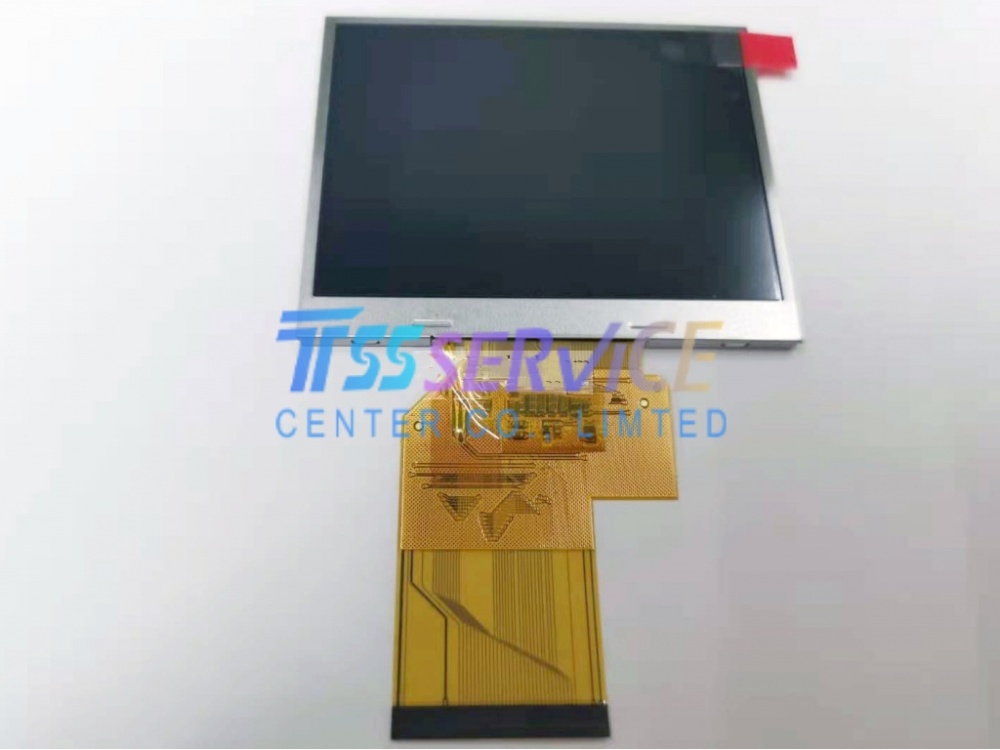

TM035KDHG04 3.5 Inch Tianma 320×240 TFT LCD Screen Display Panel for Industrial

Name: TM035KDHG04 3.5 Inch Tianma 320×240 TFT LCD Screen Display Panel for Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: TM035KDHG04
Price: 45 USD
Availability: InStock

SKU: TM035KDHG04

Model Number: TM035KDHG04
Brand: TIANMA Micro-electronics a-Si TFT-LCD LCM
Diagonal Display Size: 3.5 Inch Landscape
Native Resolution: 320(RGB) × 240 QVGA, 4:3 Aspect Ratio, 115 PPI
Pixel Layout: RGB Vertical Stripe

0.0 (0 Reviews)

0 Sold

~~$55.00~~ $45.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

TM035KDHG04 3.5 Inch Tianma 320×240 TFT LCD Screen Display Panel for Industrial

Item	Specification Parameter
Model Number	TM035KDHG04
Brand	TIANMA Micro-electronics a-Si TFT-LCD LCM
Diagonal Display Size	3.5 Inch
Native Resolution	320(RGB) × 240 QVGA, 4:3 Aspect Ratio, 115 PPI
Pixel Layout	RGB Vertical Stripe
Panel Display Mode	TN, Normally White, Transmissive
Active Display Area	70.08 (W) × 52.56 (H) mm
Overall Outline Dimension	76.9 (W) × 63.9 (H) × 3.35 (T) mm
Net Weight	29.3g
Surface Treatment	Clear Hard Coating (3H), Anti-scratch
Typical Brightness	300 cd/m²
Typical Contrast Ratio	400:1 (TM Transmission Mode)
Viewing Angle L/R/U/D (CR≥10)	70° / 70° / 60° / 70°
Optimal View Direction	6 O’Clock
Response Time Tr+Td (Typ.)	25 ms
Refresh Frequency	60Hz Standard Industrial Rate
Color Performance	16.7M True Color (8-bit RGB), 50% NTSC Color Gamut
Backlight Light Source	6S1P Built-in WLED, Lifespan 30,000 Hours, No On-board LED Driver IC
Signal Interface	Digital RGB (8/24-bit) + SPI, CCIR601/656, 54 pins FPC
Logic Input Voltage	3.3V Standard Industrial Voltage
Touch Screen Function	Without Integrated Touch Digitizer (4-wire resistive touch glass optional)
Operating Temperature Range	-20℃ ~ +60℃
Storage Temperature Range	-30℃ ~ +70℃

Applications

Portable Handheld Industrial HMI & Field Test Terminals
Field pipeline inspection handheld monitors, portable PLC debugging controllers, construction site data collectors, battery-powered industrial gas detectors, assembly line handheld parameter recording equipment.
Portable Medical Diagnostic Equipment
Handheld vital sign testers, portable blood analysis instruments, field emergency ECG diagnostic terminals, veterinary portable inspection devices, mini portable infusion control panels.
Laboratory & Mini Precision Measuring Instruments
Handheld environmental gas leak analyzers, portable power quality field testers, miniature optical inspection equipment, industrial portable data loggers, small signal detection devices.
Light On-board & Compact Machinery Auxiliary Displays
Mini forklift handheld parameter screens, portable agricultural machinery control units, small construction vehicle diagnostic handheld terminals, wireless site monitoring controllers.
Compact Commercial Portable Smart Devices
Handheld access verification terminals, small portable charging pile data screens, industrial barcode data recorders, compact vending machine auxiliary control modules.
