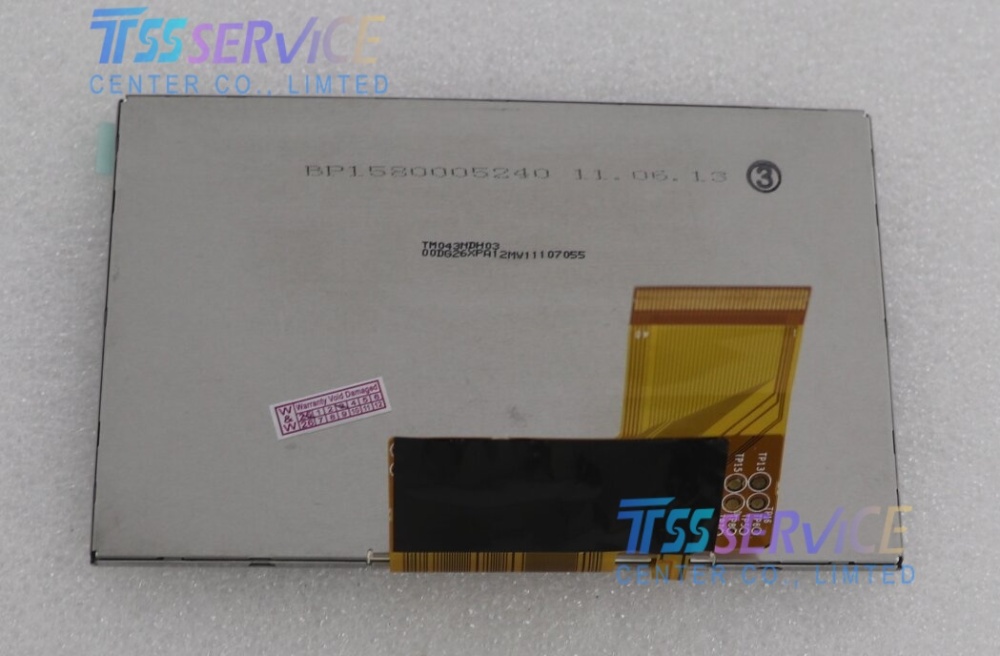

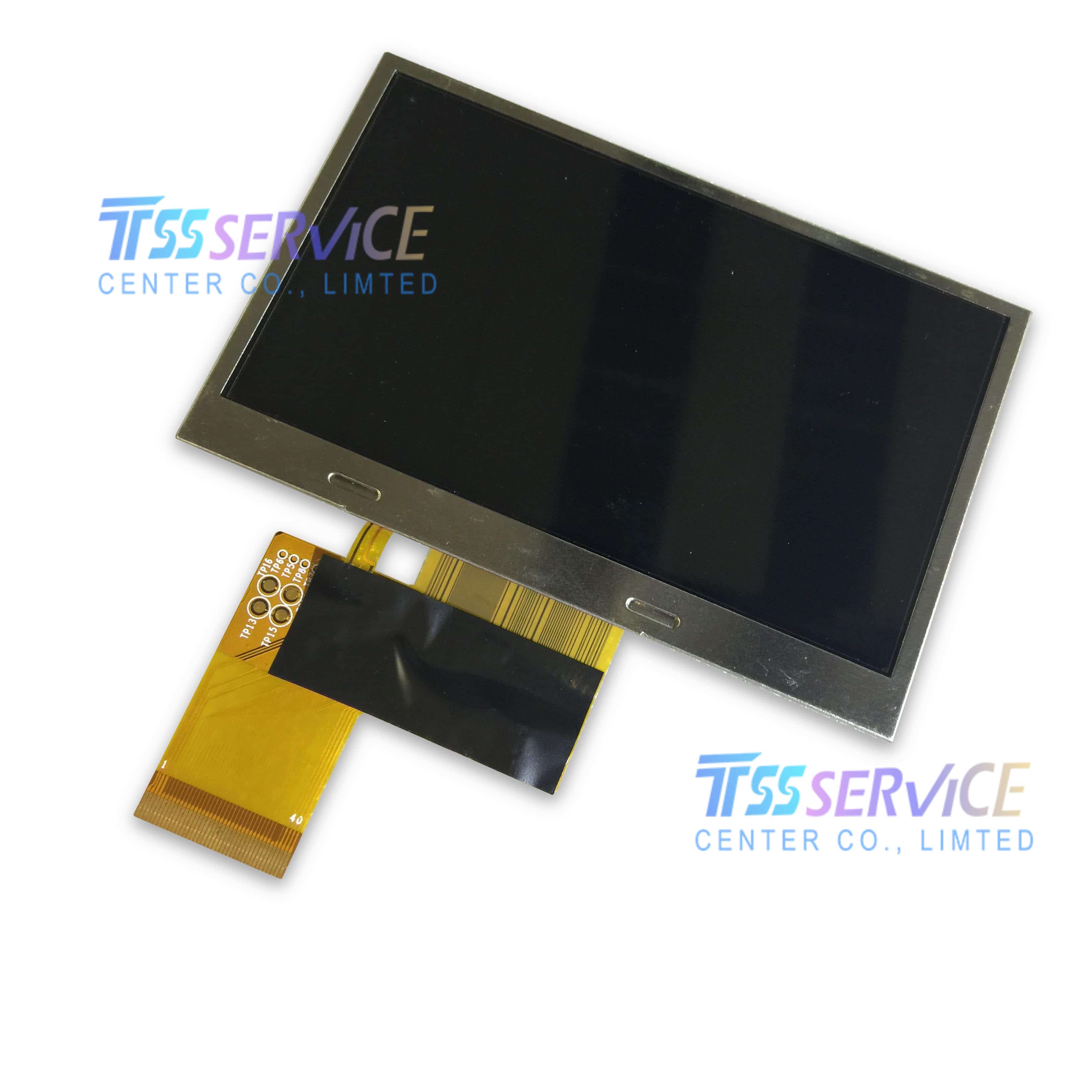

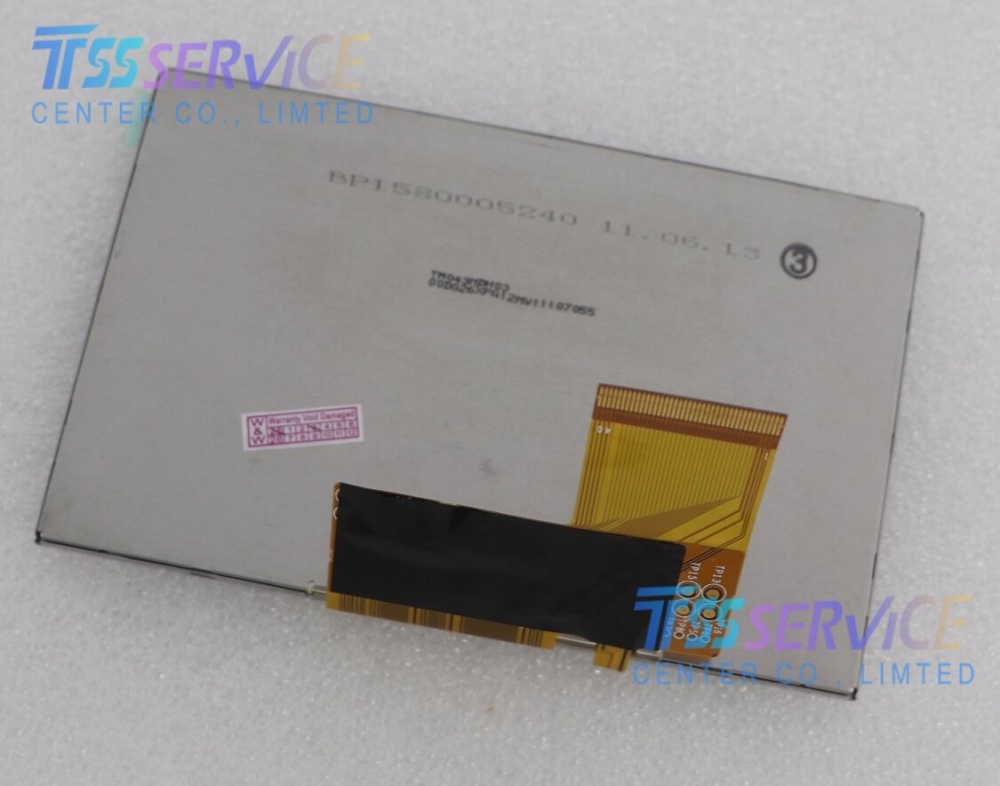

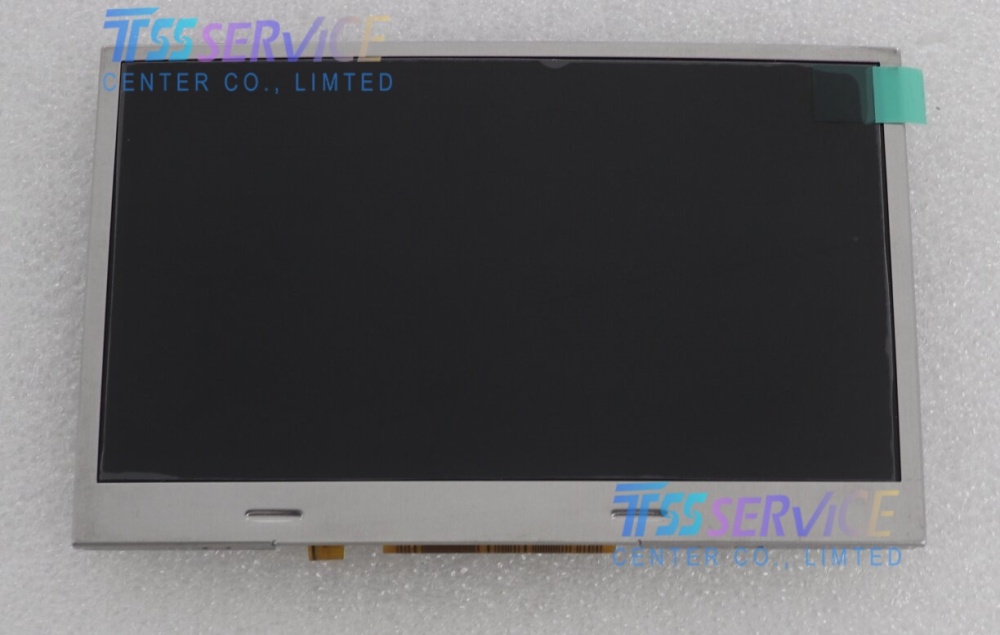

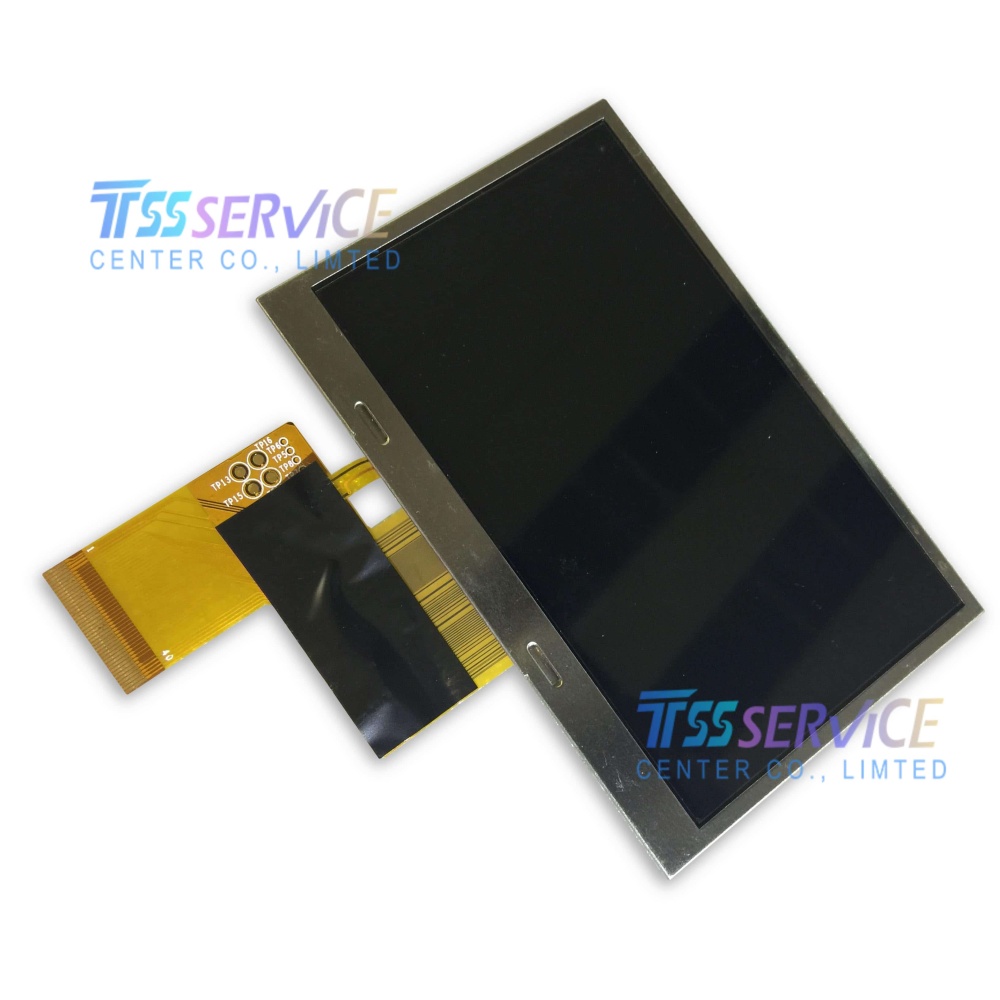

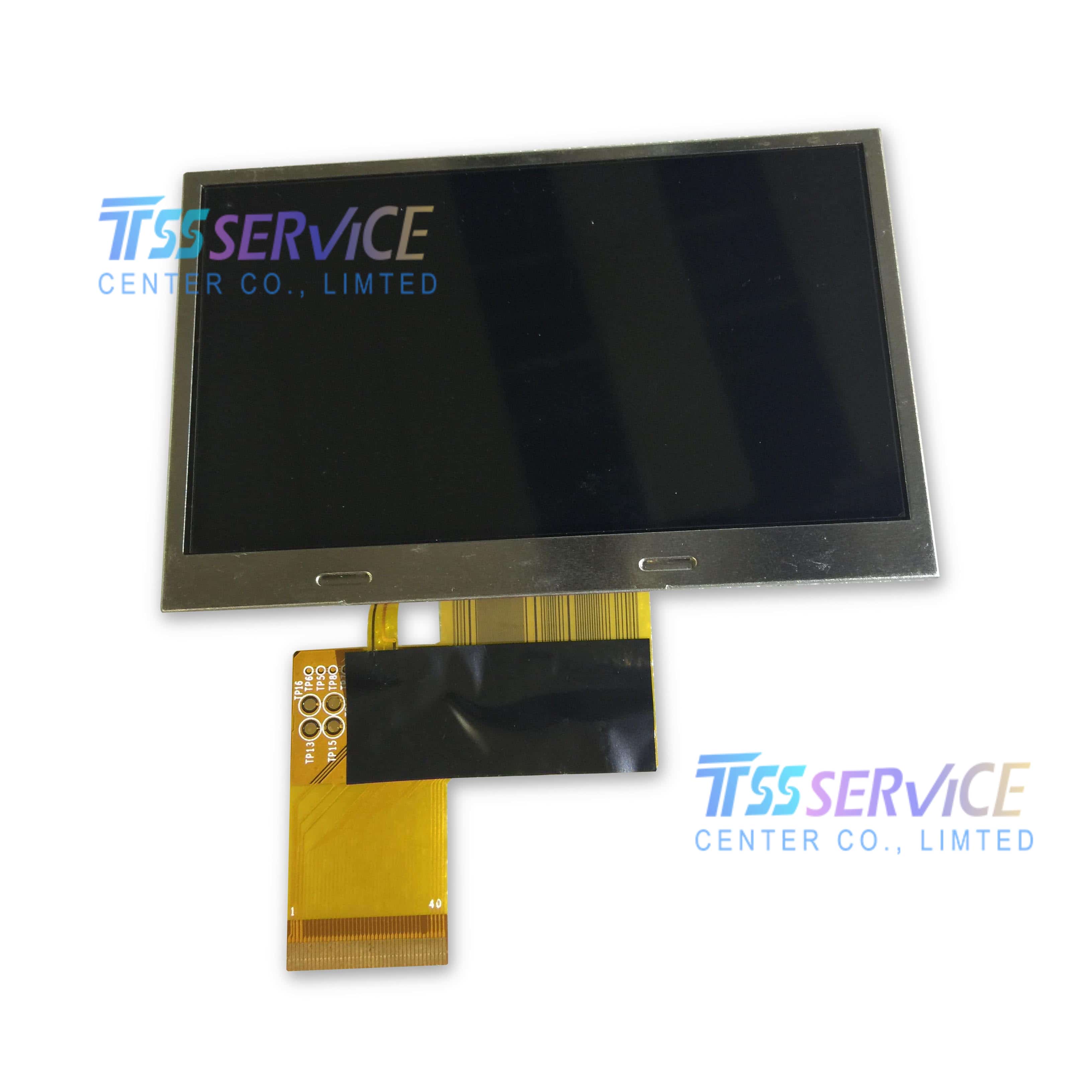

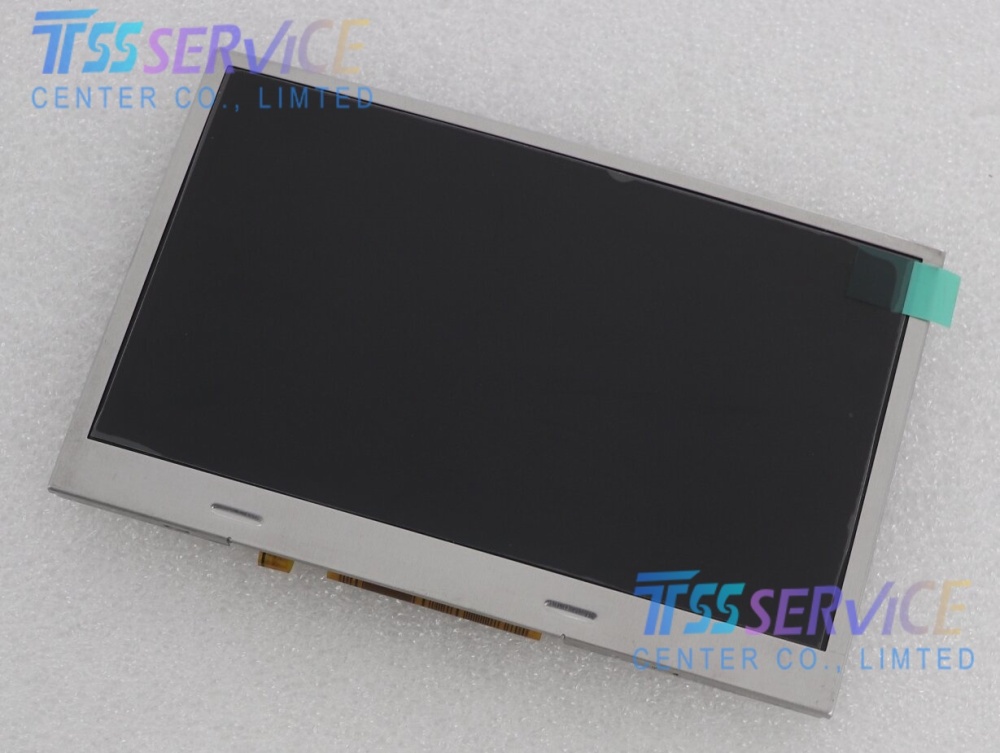

TM043NDH03 4.3 Inch Tianma 480×272 TFT LCD Screen Display Panel for Industrial

Name: TM043NDH03 4.3 Inch Tianma 480×272 TFT LCD Screen Display Panel for Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: TM043NDH03
Price: 25 USD
Availability: InStock

SKU: TM043NDH03

Model Number: TM043NDH03
Brand: TIANMA Micro-electronics a-Si TFT-LCD LCM
Diagonal Display Size: 4.3 Inch Landscape
Native Resolution: 480(RGB) × 272 WQVGA, 16:9 Aspect Ratio, 128 PPI
Pixel Layout: RGB Vertical Stripe

0.0 (0 Reviews)

0 Sold

~~$26.00~~ $25.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

TM043NDH03 4.3 Inch Tianma 480×272 TFT LCD Screen Display Panel for Industrial

Item	Specification Parameter
Model Number	TM043NDH03
Brand	TIANMA Micro-electronics a-Si TFT-LCD LCM
Diagonal Display Size	4.3 Inch Landscape
Native Resolution	480(RGB) × 272 WQVGA, 16:9 Aspect Ratio, 128 PPI
Pixel Layout	RGB Vertical Stripe Pixel Arrangement
Panel Display Mode	TN, Normally White, Transmissive
Active Display Area	95.04 (W) × 53.856 (H) mm
Overall Outline Dimension	105.5 (W) × 67.2 (H) × 3.2 (T) mm
Net Weight	43.7g Ultra Lightweight
Surface Treatment	Matte Anti-Glare Hard Coating (3H), Anti-scratch
Typical Brightness	450 cd/m² High Brightness
Typical Contrast Ratio	500:1 (TM Transmission Mode)
Viewing Angle L/R/U/D (CR≥10)	70° / 70° / 50° / 70°
Optimal View Direction	3 O’Clock
Typical Response Time Tr+Td	20 ms
Refresh Frequency	60Hz Standard Industrial Rate
Color Performance	16.7M True Color (8-bit RGB), 50% NTSC Color Gamut
Backlight Light Source	Edge-lit 10S1P WLED, Lifespan 20,000 Hours, No On-board LED Driver IC
Signal Interface	Single Channel Parallel RGB 8-bit, 40Pin Downside FPC Connector
Logic Input Voltage	3.3V Standard Industrial Voltage
Touch Screen Function	Without Integrated Touch Digitizer
Operating Temperature Range	-20℃ ~ +70℃
Storage Temperature Range	-20℃ ~ +70℃

Applications

Automotive Aftermarket Navigation & Infotainment Systems
Aftermarket car GPS multimedia navigation screens, commercial vehicle auxiliary dashboard monitors, forklift cabin vehicle parameter display terminals, portable car fault diagnostic equipment main panels, mini vehicle rear view display modules.
Portable Handheld Industrial HMI & Field Test Terminals
Construction field inspection data collectors, portable PLC debugging controllers, underground pipeline inspection handheld monitors, battery-powered industrial gas leak detectors, assembly line handheld parameter recording devices.
Portable Medical Diagnostic Equipment
Handheld vital sign testers, portable blood analysis instruments, field emergency ECG diagnostic terminals, veterinary portable inspection devices, mini portable infusion pump control display panels.
Laboratory & Mini Precision Measuring Instruments
Handheld environmental gas detection analyzers, portable power quality field testers, miniature optical inspection equipment, industrial portable environmental data loggers, small signal detection measuring devices.
Compact Commercial Portable Smart Devices
Handheld access verification terminals, small new energy charging pile parameter display screens, industrial barcode data recorders, compact vending machine auxiliary control modules, portable media player display panels.
