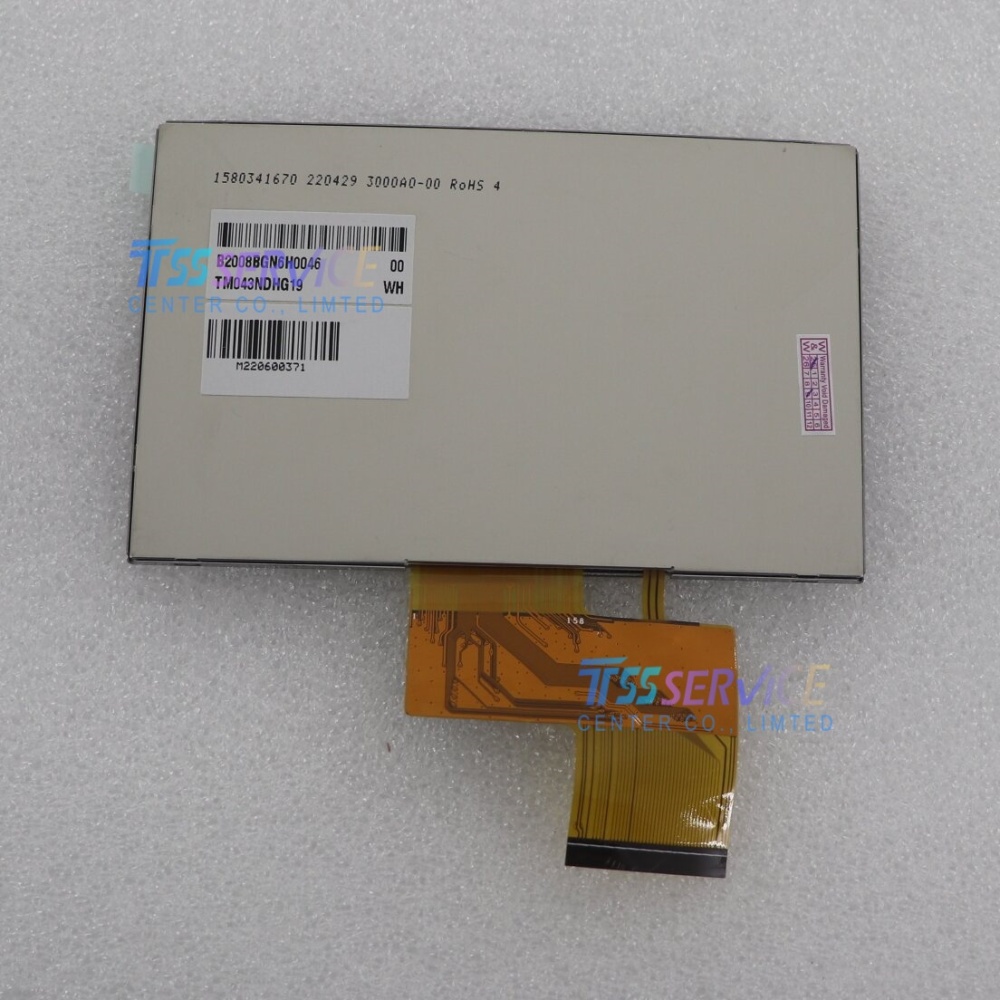

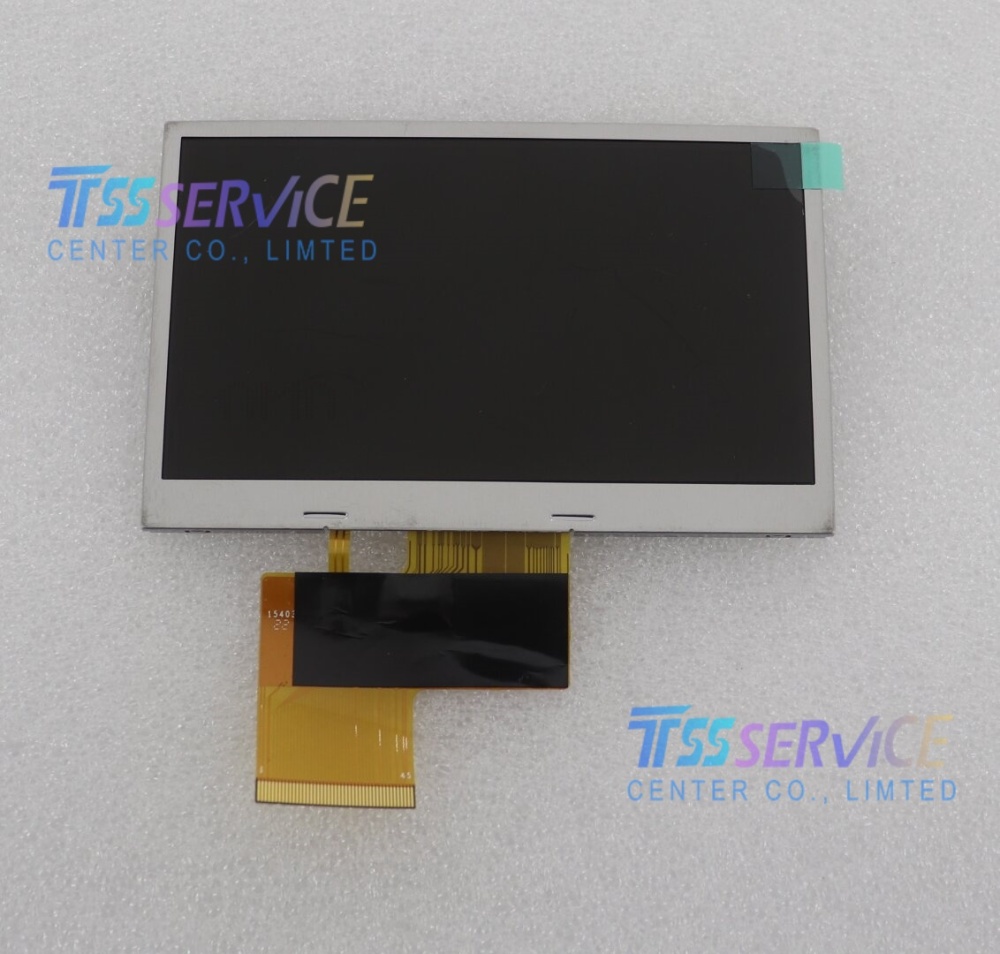

TM043NDHG08 4.3inch 480×272 WQVGA TFT-LCD PANEL for TIANMA

Name: TM043NDHG08 4.3inch 480×272 WQVGA TFT-LCD PANEL for TIANMA
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: TM043NDHG08
Price: 30 USD
Availability: InStock

SKU: TM043NDHG08

1，Condition: New，Grade A

2，Description: TM043NDHG08 4.3inchLCD Display Panel

3，Warranty: 90 Days

4，Lead Time: 1-3 Working days

5，Shipping: DHL ,FedEx, EMS , SF express or by air.

6，Packaging: Bubble pad+Paper box

7，Note: All LCD display panels will be full tested before shipping.

0.0 (0 Reviews)

0 Sold

~~$32.00~~ $30.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

The TM043NDHG08 is a 4.3-inch industrial TFT-LCD display module manufactured by TIANMA, a leading provider of display solutions. Featuring WQVGA resolution (480×272) and a compact mechanical design, this panel delivers excellent image quality and robust environmental tolerance, making it an ideal choice for space-constrained industrial and consumer applications.

Parameter	Specification
Brand	TIANMA
Model P/N	TM043NDHG08
Diagonal Size	4.3"
Panel Type	a-Si TFT-LCD, LCM
Resolution	480(RGB)×272, WQVGA (128 PPI)
Pixel Format	RGB Vertical Stripe
Active Area	95.04(W) × 53.856(H) mm
Bezel Opening	99.6(W) × 56.7(H) mm
Outline Size	105.9(W) × 69.5(H) × 5.76(D) mm
Surface	Antiglare
Brightness	450 cd/m² (Typ.)
Contrast Ratio	500:1 (Typ.) (TM)
Viewing Angle	70/70/70/60 (Typ.) (CR≥10)
Display Mode	TN, Normally White, Transmissive
Best View on	12 o'clock
Response Time	20 ms (Typ.) (Tr+Td)
Display Colors	16.7M (50% NTSC)
Lamp Type	5S2P WLED, 50K hours, Without Driver
Frequency	60 Hz
Touch Screen	Without
Panel Weight	60.0 g (Typ.)
Signal Interface	Parallel RGB (1 ch, 8-bit), 40 pins FPC
Input Voltage	3.3V (Typ.)
Environment	Operating Temp.: -20 ~ 75°C; Storage Temp.: -30 ~ 80°C

Typical Applications

Portable medical devices
Industrial handheld terminals
Home automation control panels
Automotive infotainment displays
POS (Point of Sale) systems
GPS navigation devices
Smart home interfaces
Test and measurement equipment
