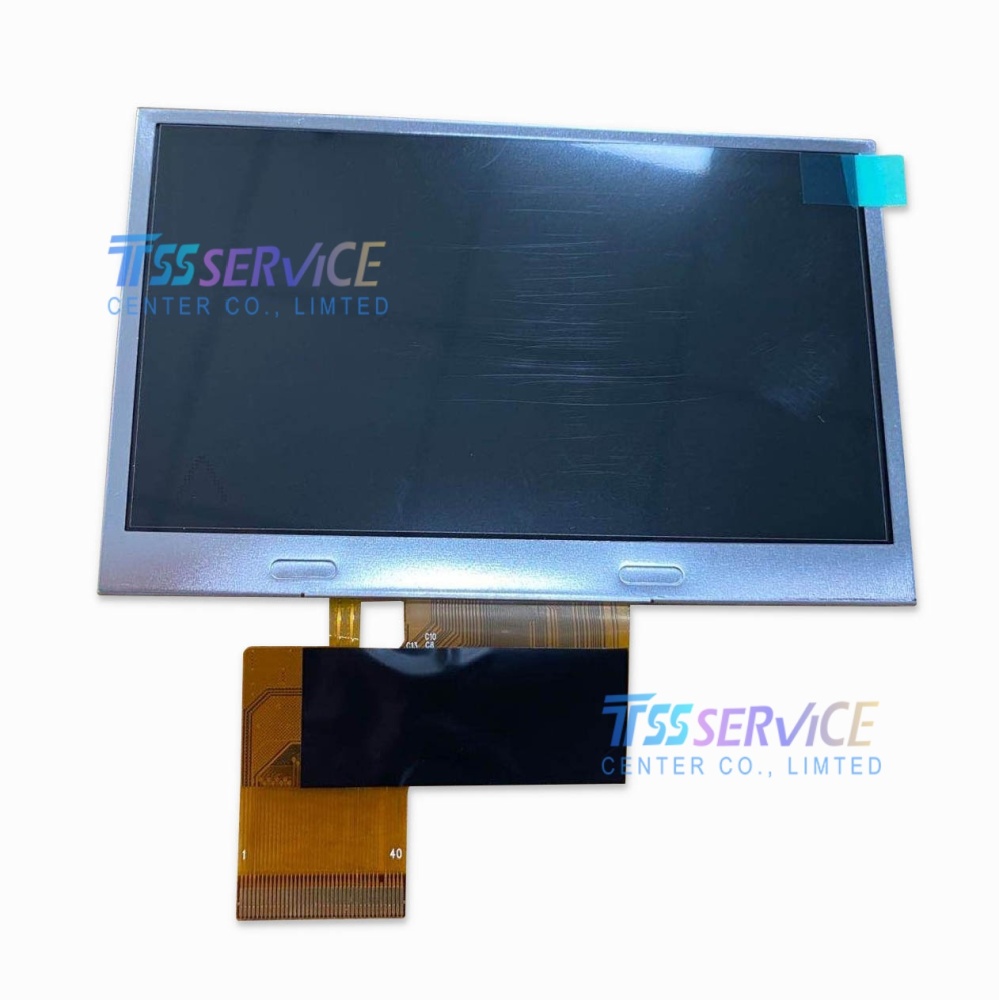

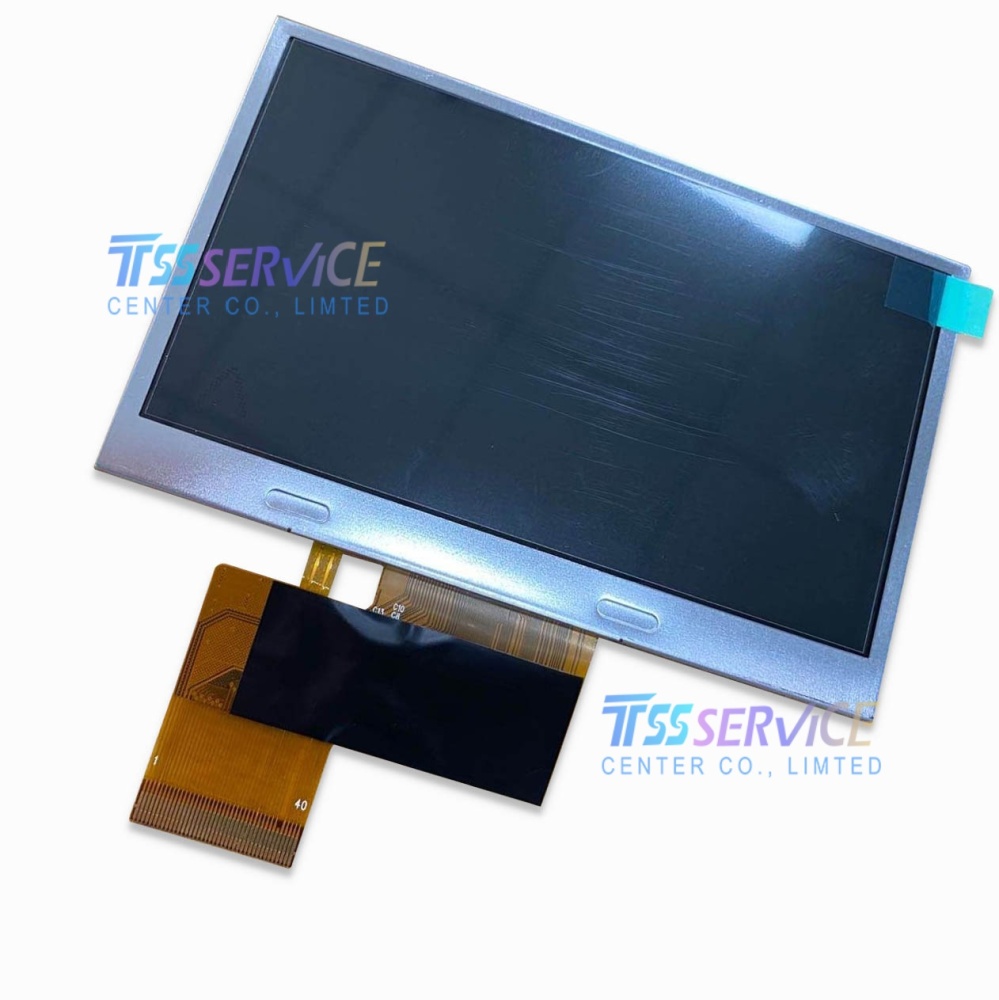

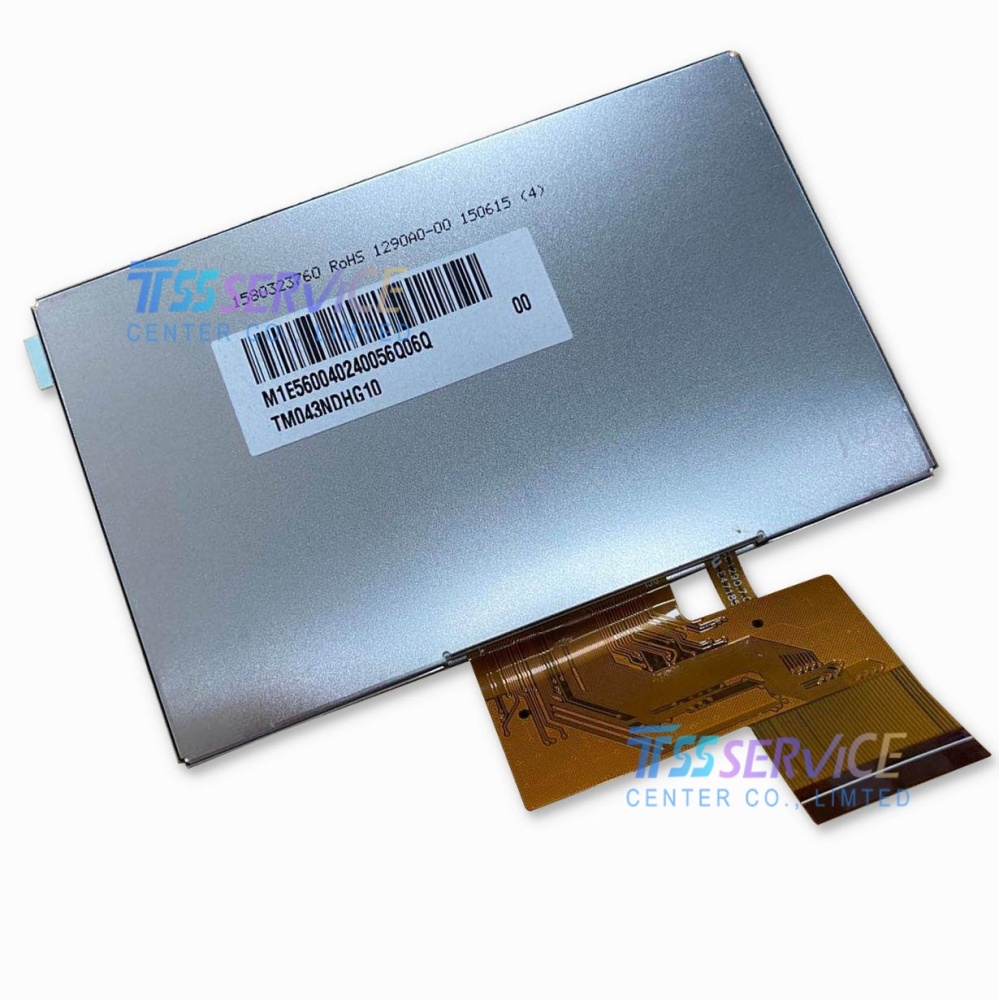

TM043NDHG11 4.3inch 480×272 TIANMA TFT-LCD Panel

SKU: TM043NDHG11

1,Condition: New,Grade A

2,Description: TM043NDHG11 4.3inch  LCD Display Panel

3,Warranty: 90 Days

4,Lead Time: 1-3 Working days

5,Shipping: DHL ,FedEx, EMS , SF express  or by air.

6,Packaging: Bubble pad+Paper box

7,Note: All LCD display panels will be full tested before shipping.

0.0 (0 Reviews)
0 Sold
$33.00 $32.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
  • TM043NDHG11 4.3inch  480×272 TIANMA TFT-LCD Panel
  • TM043NDHG11 4.3inch  480×272 TIANMA TFT-LCD Panel
  • TM043NDHG11 4.3inch  480×272 TIANMA TFT-LCD Panel
  • TM043NDHG11 4.3inch  480×272 TIANMA TFT-LCD Panel
  • TM043NDHG11 4.3inch  480×272 TIANMA TFT-LCD Panel
  • TM043NDHG11 4.3inch  480×272 TIANMA TFT-LCD Panel
1/1
  • TM043NDHG11 4.3inch  480×272 TIANMA TFT-LCD Panel
  • TM043NDHG11 4.3inch  480×272 TIANMA TFT-LCD Panel
  • TM043NDHG11 4.3inch  480×272 TIANMA TFT-LCD Panel
  • Description
The TM043NDHG11 is a high-brightness 4.3-inch industrial TFT-LCD display module manufactured by TIANMA. Featuring WQVGA resolution (480×272) and an ultra-slim 3.2mm profile, this panel delivers exceptional image quality with outstanding luminance, making it an ideal solution for portable and industrial applications requiring superior visibility in bright environments.

Parameter Specification
Brand TIANMA
Model P/N TM043NDHG11
Diagonal Size 4.3"
Panel Type a-Si TFT-LCD, LCM
Resolution 480(RGB)×272, WQVGA (128 PPI)
Pixel Format RGB Vertical Stripe
Active Area 95.04(W) × 53.856(H) mm
Bezel Opening 99.04(W) × 54.86(H) mm
Outline Dim. 105.5(H) × 67.2(V) × 3.2(D) mm
Treatment Antiglare, Hard coating (3H)
Luminance 880 cd/m² (Typ.)
Contrast Ratio 800:1 (Typ.) (TM)
View Direction 12 o'clock
Response Time 25 ms (Typ.) (Tr+Td)
Viewing Angle 70/70/70/60 (Typ.) (CR≥10)
Operating Mode TN, Normally White, Transmissive
Support Color 16.7M (50% NTSC)
Light Source WLED [8S2P], 20K hours, W/O Driver
Weight 44.6 g (Typ.)
Frame Rate 60 Hz
Touch Panel Without
Interface Type Parallel RGB (1 ch, 8-bit), 40 pins FPC
Power Supply 3.3V (Typ.)
Environment Operating Temperature: -20 ~ 70°C; Storage Temperature: -30 ~ 80°C

Typical Applications

  • Outdoor handheld terminals and PDAs

  • Marine and aviation displays

  • Automotive infotainment systems

  • Industrial control panels

  • Portable medical devices

  • GPS navigation equipment

  • Kiosk and vending machine interfaces

  • High-brightness consumer electronics
