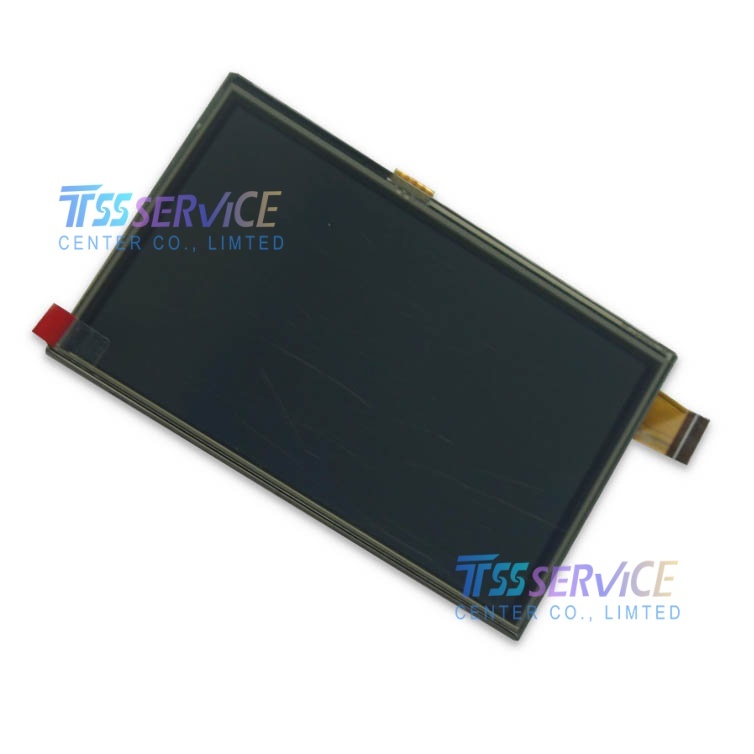

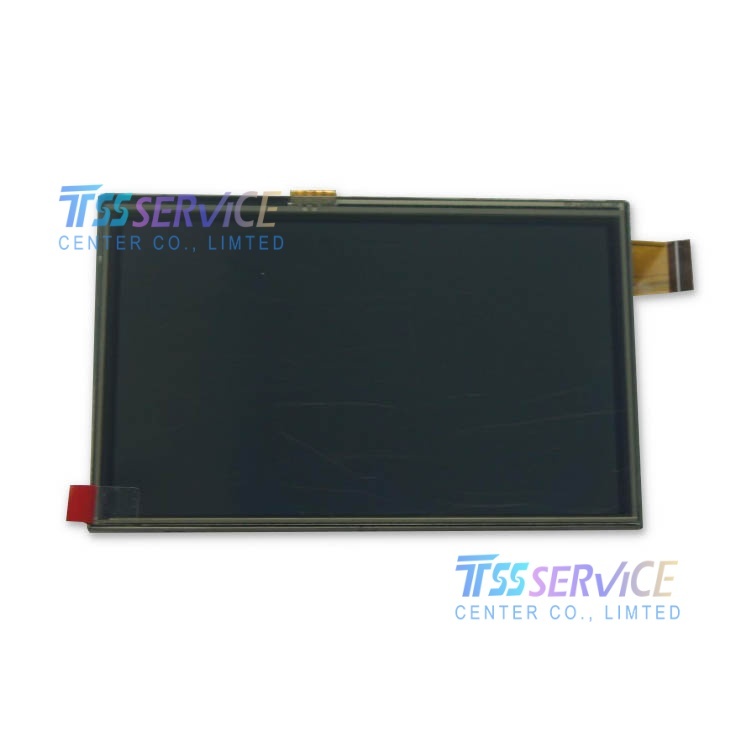

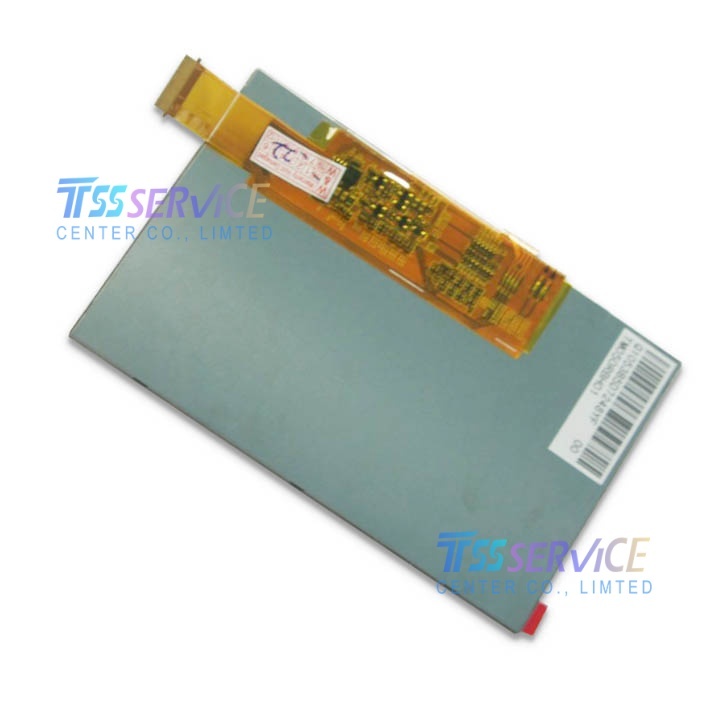

TIANMA TM050RBH01-41 5.0" 800×480 LCD Display with Touch Panel

Name: TIANMA TM050RBH01-41 5.0" 800×480 LCD Display with Touch Panel
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: TM050RBH01-41
Price: 35 USD
Availability: InStock

SKU: TM050RBH01-41

1，Condition: New，Grade A

2，Description: TM050RBH01-41 5.0 inch LCD Display Panel

3，Warranty: 90 Days

4，Lead Time: 1-3 Working days

5，Shipping: DHL ,FedEx, EMS , SF express or by air.

6，Packaging: Bubble pad+Paper box

7，Note: All LCD display panels will be full tested before shipping.

0.0 (0 Reviews)

0 Sold

~~$40.00~~ $35.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

The TIANMA TM050RBH01-41 is a 5.0-inch a-Si TFT-LCD module featuring an integrated 4-wire resistive touch panel, designed for industrial and consumer applications that require reliable touch interaction and high-quality visual performance. With a resolution of 800×480 (WVGA) and a pixel density of 188 PPI, this display delivers sharp, detailed images suitable for a wide range of human-machine interface (HMI) applications.

Parameter	Specification
Brand	TIANMA
Model P/N	TM050RBH01-41
Diagonal Size	5.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	800(RGB)×480, WVGA 188PPI
Pixel Format	RGB Vertical Stripe
Active Area	108(W)×64.8(H) mm
Bezel Opening	—
Outline Size	120.7(W)×75.8(H)×6.3(D) mm
Surface	Antiglare, Hard coating (3H)
Brightness	300 cd/m² (Typ.)
Contrast Ratio	450:1 (Typ.) (TM)
Viewing Angle	70/70/50/70 (Typ.)(CR≥10)
Display Mode	TN, Normally White, Transmissive
Best View on	6 o'clock
Response Time	20 ms (Typ.)(Tr+Td)
Display Colors	16.7M 50% NTSC
Lamp Type	6S3P WLED, 20K hours, Without Driver
Frequency	60Hz
Touch Screen	4-wire Resistive Touch
Weight	76.3g
Signal Interface	Parallel RGB (1 ch, 8-bit), 45 pins FPC
Input Voltage	3.3V (Typ.)
Operating Temperature	-20 ~ 70 °C
Storage Temperature	-30 ~ 80 °C
