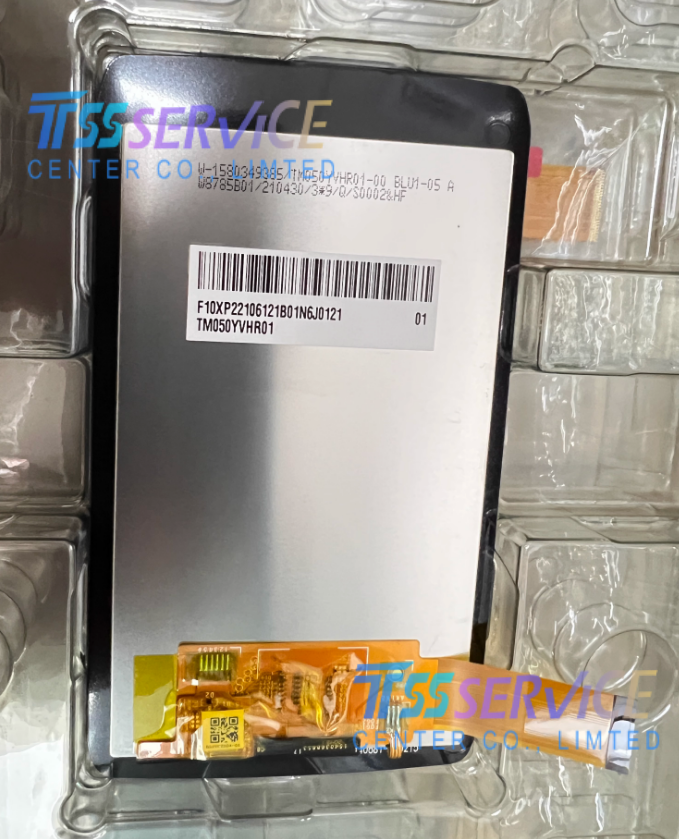

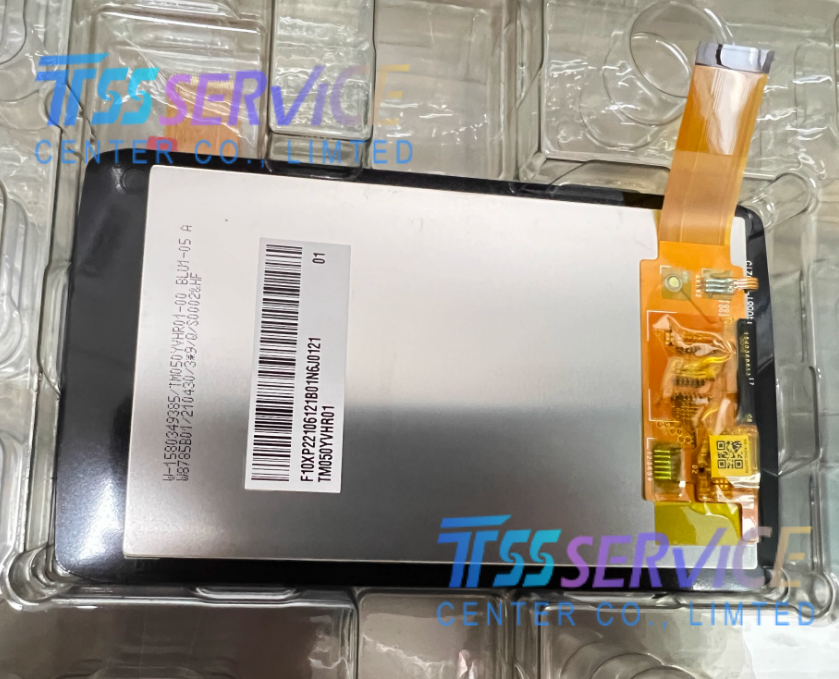

Tianma 5 inch 480×800 TM050YVHR01 LCD Panel Display For Industrial

SKU: TM050YVHR01
Model: TM050YVHR01
Diagonal Size: 5.0 inch
Display Type: a-Si TFT-LCD, LCM (Transmissive, Normally White)
Resolution: 480 (RGB) × 800 pixels (WVGA, 188 PPI)
Pixel Arrangement: RGB Vertical Stripe
0.0 (0 Reviews)
0 Sold
$70.00 $65.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
  • Tianma 5 inch 480×800 TM050YVHR01 LCD Panel Display For Industrial
  • Tianma 5 inch 480×800 TM050YVHR01 LCD Panel Display For Industrial
  • Tianma 5 inch 480×800 TM050YVHR01 LCD Panel Display For Industrial
  • Tianma 5 inch 480×800 TM050YVHR01 LCD Panel Display For Industrial
  • Tianma 5 inch 480×800 TM050YVHR01 LCD Panel Display For Industrial
  • Tianma 5 inch 480×800 TM050YVHR01 LCD Panel Display For Industrial
1/1
  • Tianma 5 inch 480×800 TM050YVHR01 LCD Panel Display For Industrial
  • Tianma 5 inch 480×800 TM050YVHR01 LCD Panel Display For Industrial
  • Tianma 5 inch 480×800 TM050YVHR01 LCD Panel Display For Industrial
  • Description
Tianma 5 inch 480×800 TM050YVHR01 LCD Panel Display For Industrial
Parameter Specification (English)
Manufacturer TIANMA
Model TM050YVHR01
Diagonal Size 5.0 inch
Display Type a-Si TFT-LCD, LCM (Transmissive, Normally White)
Resolution 480 (RGB) × 800 pixels (WVGA, 188 PPI)
Pixel Arrangement RGB Vertical Stripe
Active Area 64.8 mm (W) × 108.0 mm (H)
Outline Dimension 80.41×140.6×6.02 mm (H×V×D)
Brightness 140 cd/m² (Typ.)
Contrast Ratio 40:1 (Typ.)
Viewing Angle 25/25/35/35 (Typ.)(CR≥10)
Response Time 30 ms (Typ., Tr+Tf)
Color Depth 65K, 20% NTSC
Backlight WLED (Edge-lit, 14 LEDs), 15,000 hrs lifespan
Operating Temperature -20°C ~ +70°C
Storage Temperature -30°C ~ +80°C
RoHS Compliance Yes
Weight ~39 g
Surface Treatment Anti-Glare (AG), Hard Coating (3H)
Production Status Discontinued (EOL since 2019 Q1)

Applications

  • Industrial HMI & Control Panels: Factory automation terminals, PLC operator interfaces, and industrial control displays requiring compact size and reliable performance.
  • Medical Devices: Portable diagnostic equipment, patient monitors, and handheld medical instruments needing clear visibility and moderate brightness.
  • Smart Home & Building Automation: Intelligent control panels, door intercoms, and home automation hubs with touch-enabled display interfaces.
  • Consumer Electronics: Portable media players, digital photo frames, and handheld gaming devices (cost-effective WVGA resolution).
  • Automotive Accessories: Rear-seat entertainment displays, vehicle diagnostic tools, and non-safety-critical in-vehicle infotainment (limited temperature range).
  • Point-of-Sale (POS) & Kiosks: Compact POS terminals, self-service payment kiosks, and vending machine displays requiring vibrant color output.
