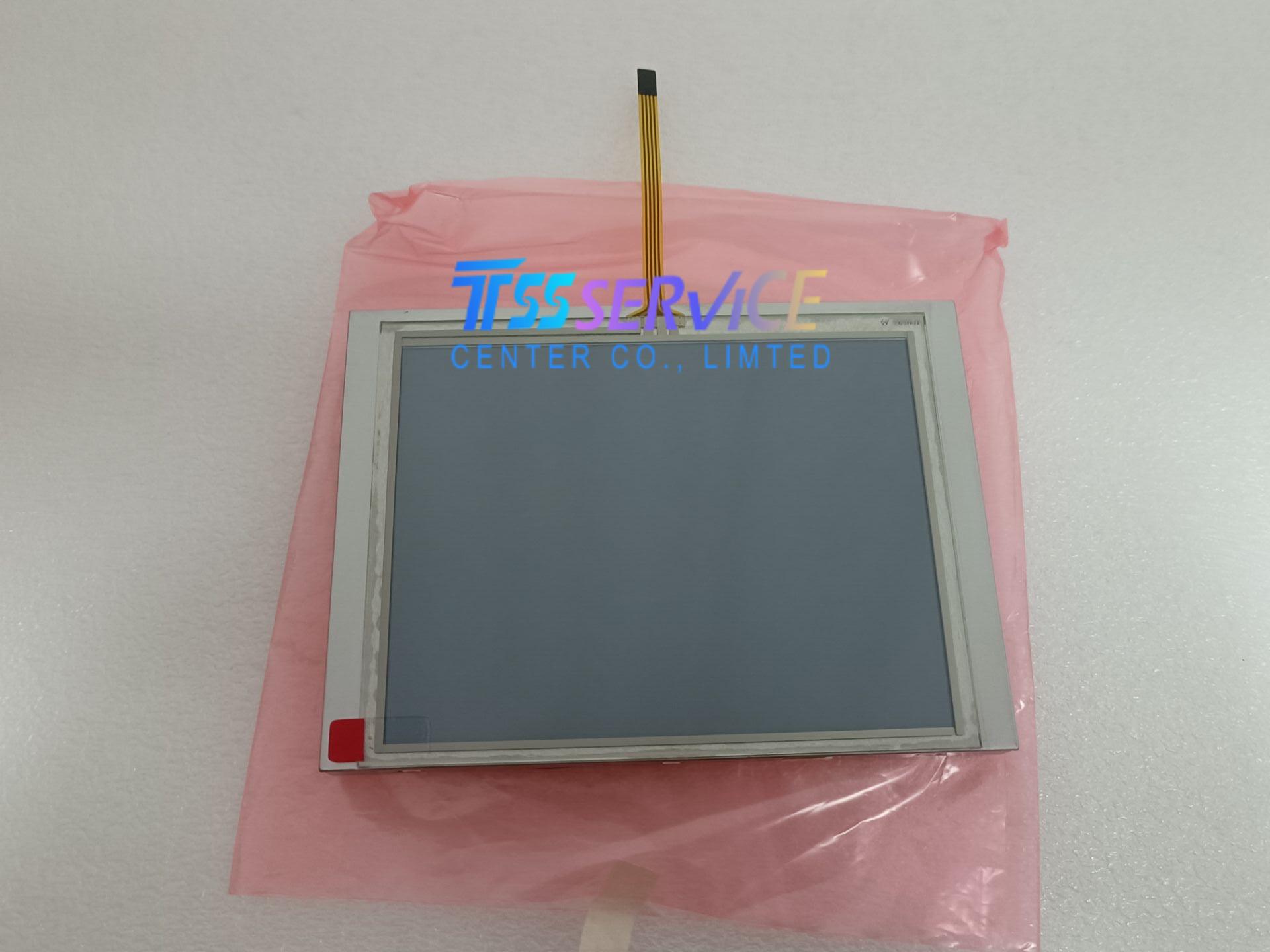

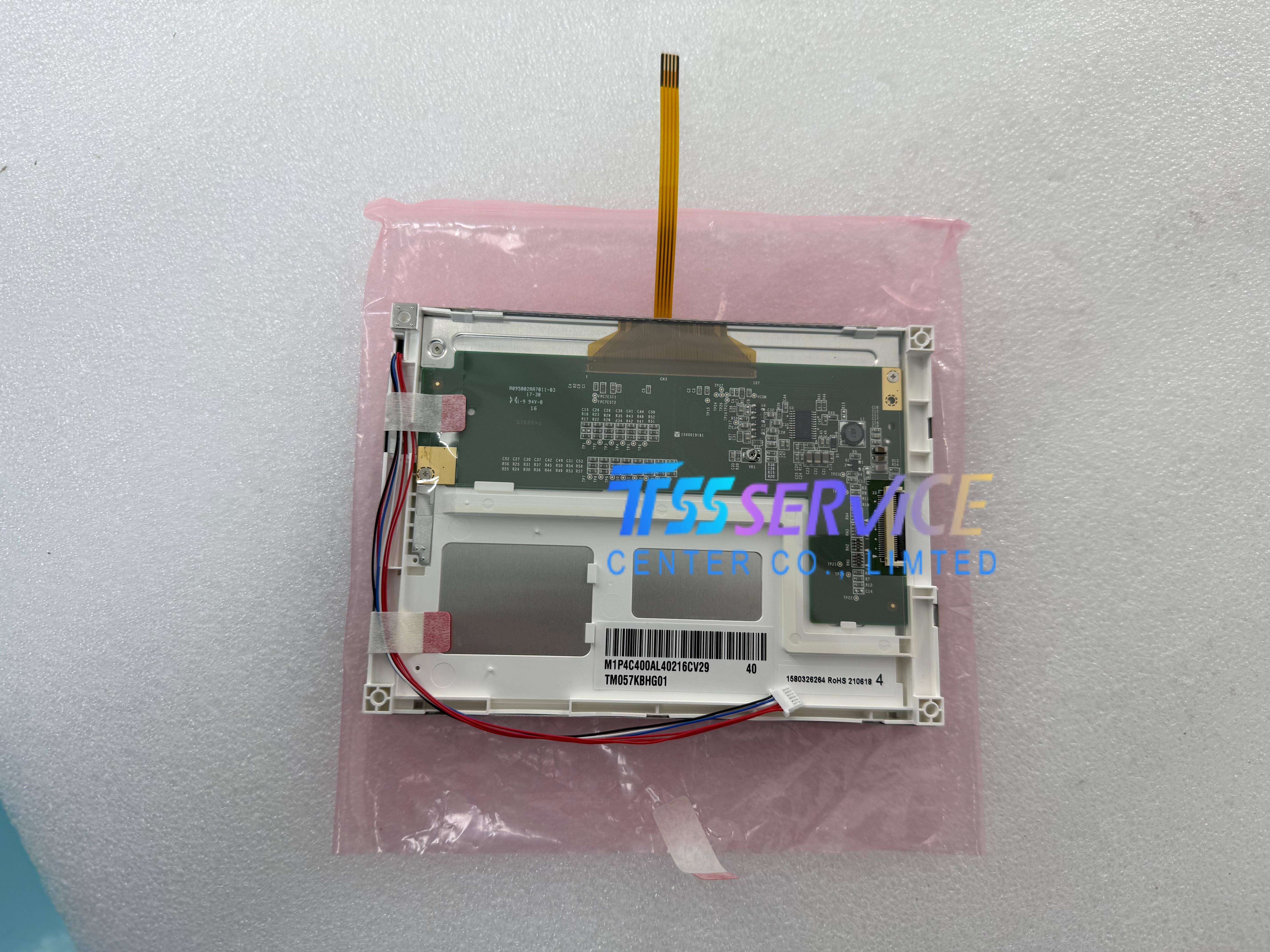

The TM057KBHG01-40 is a 5.7-inch diagonal a-Si TFT-LCD module from TIANMA, featuring QVGA (320×240) resolution with a 4:3 aspect ratio. This integrated display solution combines a reliable TFT panel with a 4-wire resistive touch panel, making it an excellent choice for industrial and commercial applications requiring user interaction.
| Parameter |
Value |
| Mfr. |
TIANMA |
| Model Name |
TM057KBHG01-40 |
| Display Size |
5.7" |
| Panel Type |
a-Si TFT-LCD, LCM |
| Resolution |
320(RGB)×240, QVGA, 4:3 |
| Dot Layout |
RGB Vertical Stripe |
| Display Area |
115.2(W)×86.4(H) mm |
| Panel Weight |
TBD |
| Outline Size |
144(W)×104.6(H)×14(D) mm |
| Surface |
Antiglare, Hard coating (3H) |
| Brightness |
320 cd/m² (Typ.) |
| Contrast Ratio |
500:1 (Typ.) (TM) |
| Viewing Angle |
70/70/70/60 (Typ.)(CR≥10) |
| Display Mode |
TN, Normally White, Transmissive |
| View Direction |
12 o'clock |
| Response Time |
20 (Typ.)(Tr+Td) ms |
| Display Colors |
262K, 50% NTSC |
| Touch Screen |
4-wire Resistive Touch |
| Light Source |
5S3P WLED, 50K hrs, Without Driver |
| Frequency |
60Hz |
| Interface |
Parallel RGB (1 ch, 6-bit), 33 pins Connector |
| Input Voltage |
3.3V (Typ.) |
| Operating Temperature |
-20 ~ 70 °C |
| Storage Temperature |
-30 ~ 80 °C |
Typical Applications
The TM057KBHG01-40 is ideal for interactive industrial and embedded systems:
