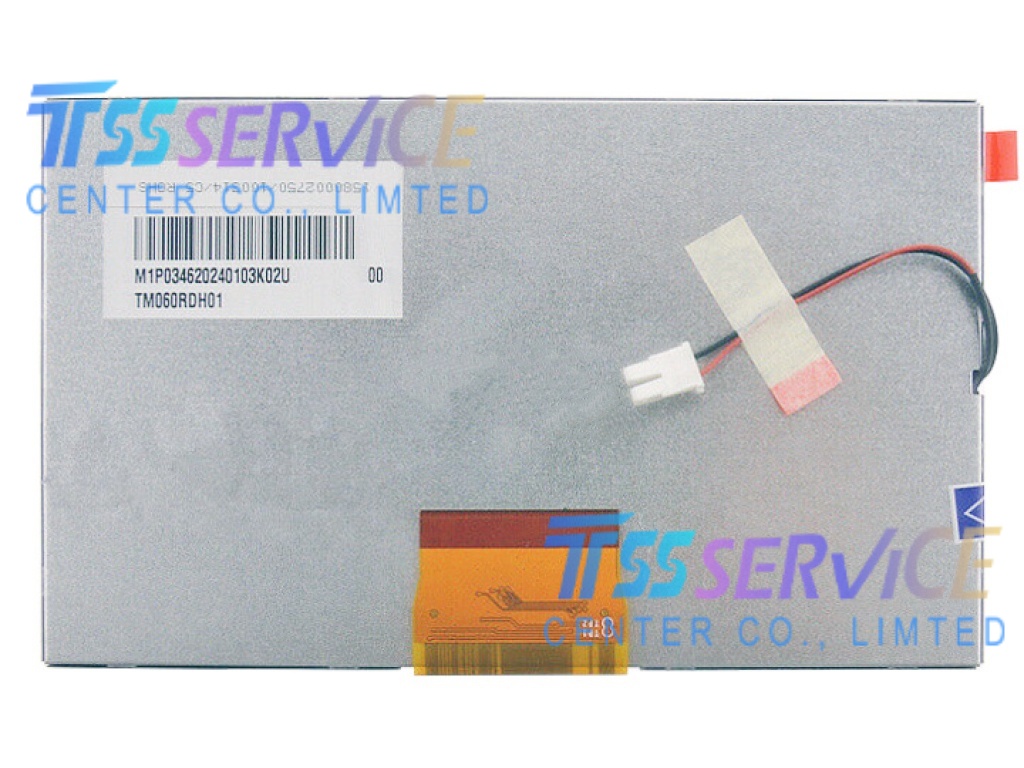

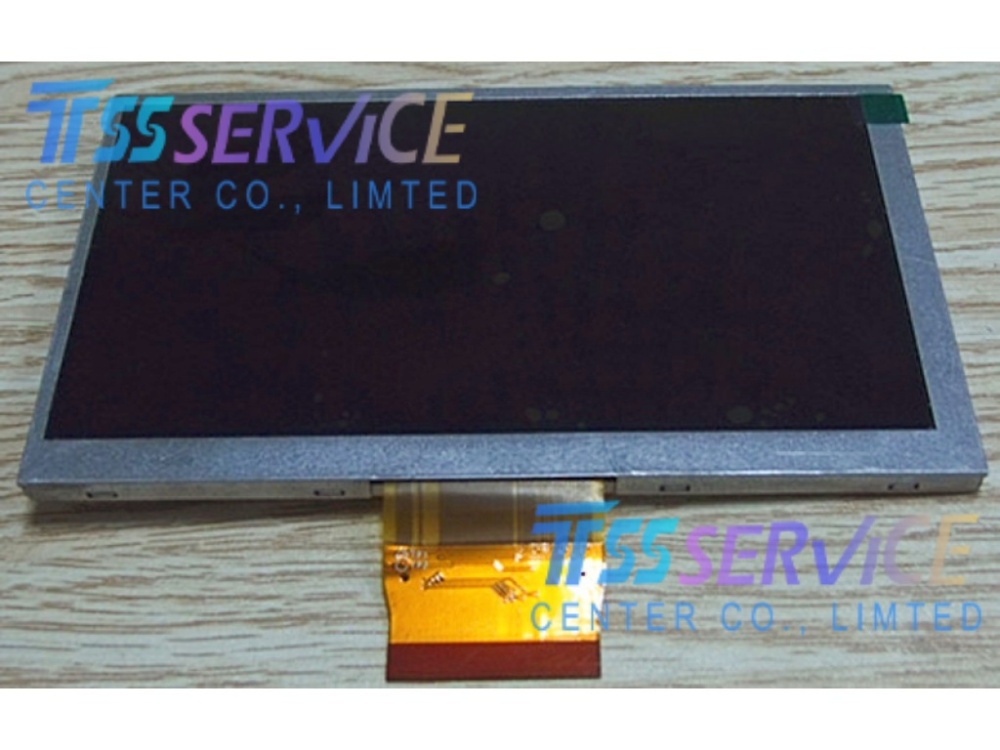

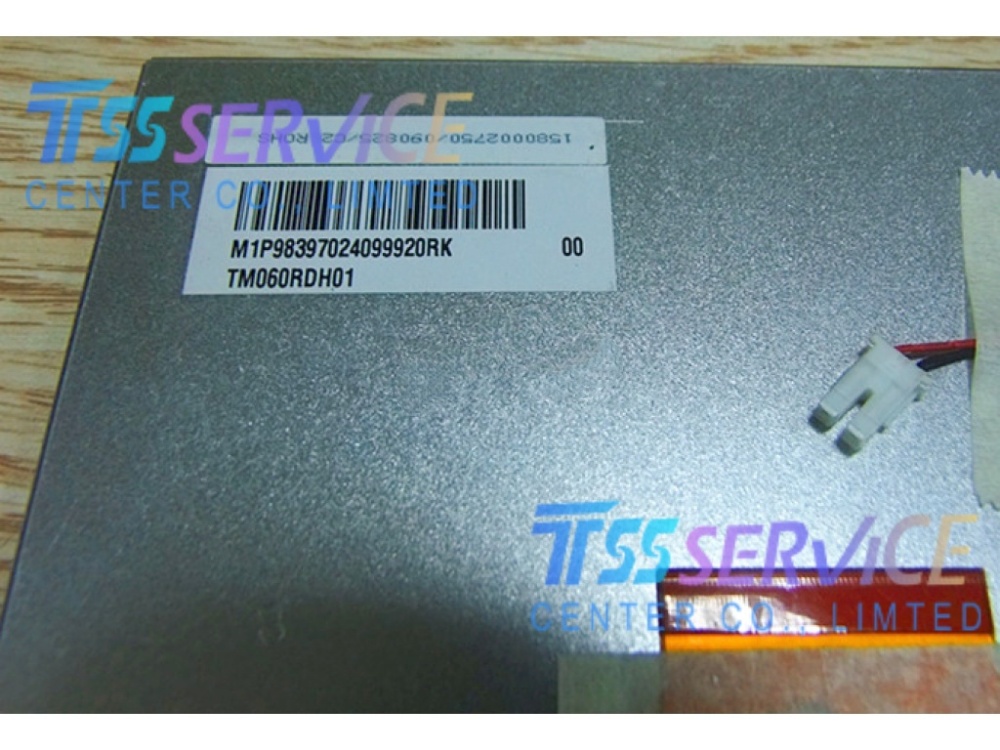

TM060RDH01 6 Inch Tianma TFT LCD Screen 800×480 Display Panel for HMI Industrial Equipment

Name: TM060RDH01 6 Inch Tianma TFT LCD Screen 800×480 Display Panel for HMI Industrial Equipment
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: TM060RDH01
Price: 60 USD
Availability: InStock

SKU: TM060RDH01

Model Number: TM060RDH01
Brand: TIANMA a-Si TFT-LCD LCM
Diagonal Display Size: 6.0 Inch Landscape
Native Resolution: 800(RGB) × 480 WVGA, 16:9 Aspect Ratio
Panel Display Mode: TN, Normally White, Transmissive

0.0 (0 Reviews)

0 Sold

~~$62.00~~ $60.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

TM060RDH01 6 Inch Tianma TFT LCD Screen 800×480 Display Panel for HMI Industrial Equipment

Item	Specification Parameter
Model Number	TM060RDH01
Brand	TIANMA a-Si TFT-LCD LCM
Diagonal Display Size	6.0 Inch Landscape
Native Resolution	800(RGB) × 480 WVGA, 16:9 Aspect Ratio
Pixel Pitch	0.1665(W) × 0.1538(H) mm
Panel Display Mode	TN, Normally White, Transmissive
Active Display Area	133.20 (W) × 73.80 (H) mm
Overall Outline Dimension	145.50 (W) × 87.80 (H) × 5.40 (T) mm
Net Weight	113.3g
Surface Treatment	Anti-Glare Matte Hard Coating, Anti-scratch
Typical Brightness	400 cd/m²
Typical Contrast Ratio	500:1 (Transmissive Mode)
Viewing Angle L/R/U/D (CR≥10)	70° / 70° / 60° / 70°
Optimal View Direction	6 O’Clock
Response Time Tr+Td (Typ./Max.)	20ms / 30ms
Refresh Frequency	60Hz Standard Rate
Color Performance	262K / 16.2M True Color , 50% NTSC Gamut
Backlight Light Source	3S7P WLED, Lifespan 20,000 Hours, No On-board LED Driver IC
Signal Interface	Single Channel Parallel RGB 6/8-bit, 60Pin Downside FPC Connector
Logic Input Voltage	3.3/9.84/19.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL)
Touch Screen Function	Without integrated touch digitizer
Operating Temperature Range	-20℃ ~ +70℃
Storage Temperature Range	-30℃ ~ +80℃

Applications

Automotive Aftermarket Navigation & Infotainment Systems
Aftermarket car central multimedia GPS navigation screens, commercial vehicle auxiliary dashboard monitors, construction forklift cabin entertainment & parameter display terminals, portable car diagnostic device main panels.
Portable Handheld Industrial HMI & Field Test Terminals
Portable PLC debugging controllers, field inspection data collectors, pipeline underground inspection handheld monitors, battery-powered portable industrial detection equipment, assembly line handheld parameter recording devices.
Portable Medical Diagnostic Equipment
Handheld vital sign testers, portable blood analysis instruments, field emergency ECG diagnostic terminals, veterinary portable inspection devices, portable infusion pump control display panels.
Portable Consumer & Commercial Multimedia Devices
Portable DVD player display modules, digital photo frame main screens, compact portable media player panels, small handheld industrial barcode data recorders.
Laboratory & Mini Precision Measuring Instruments
Handheld environmental gas leak detection analyzers, portable power quality field testers, miniature optical inspection equipment, portable industrial environmental data loggers.
