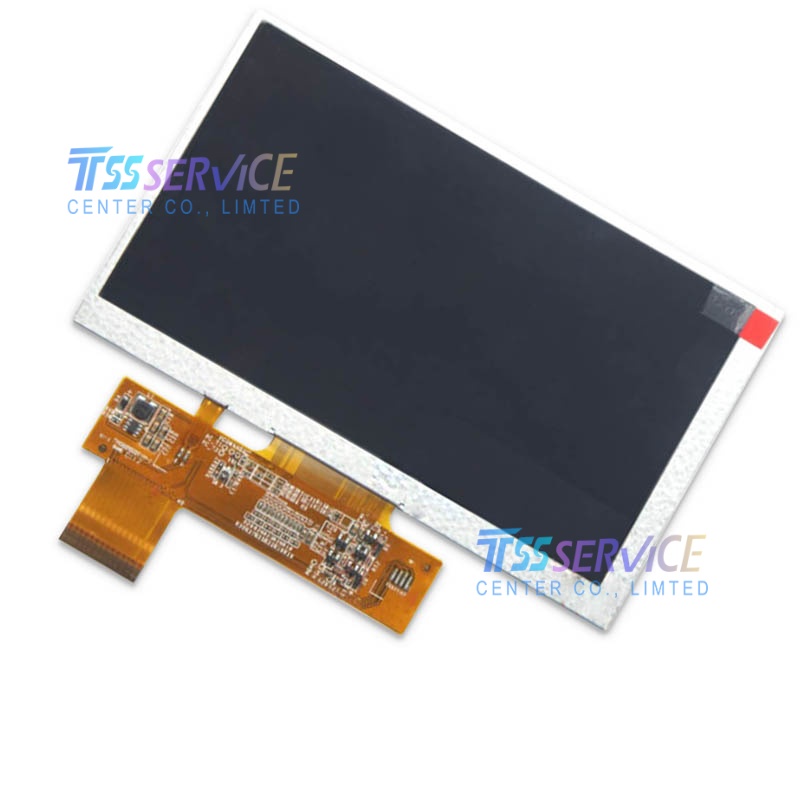

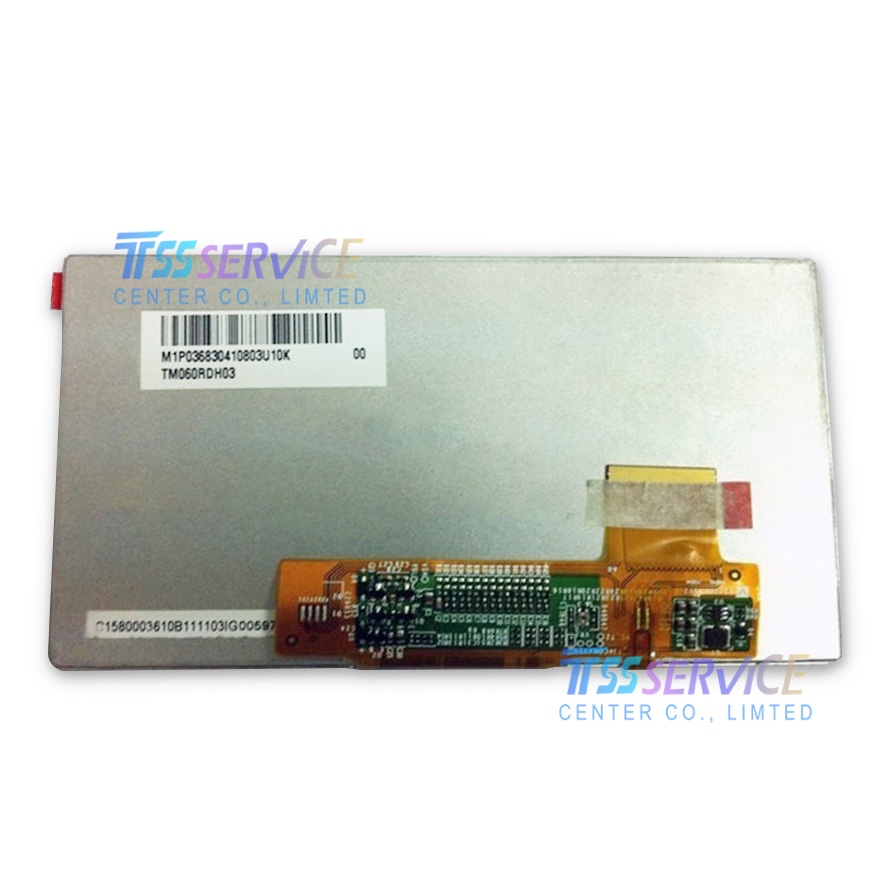

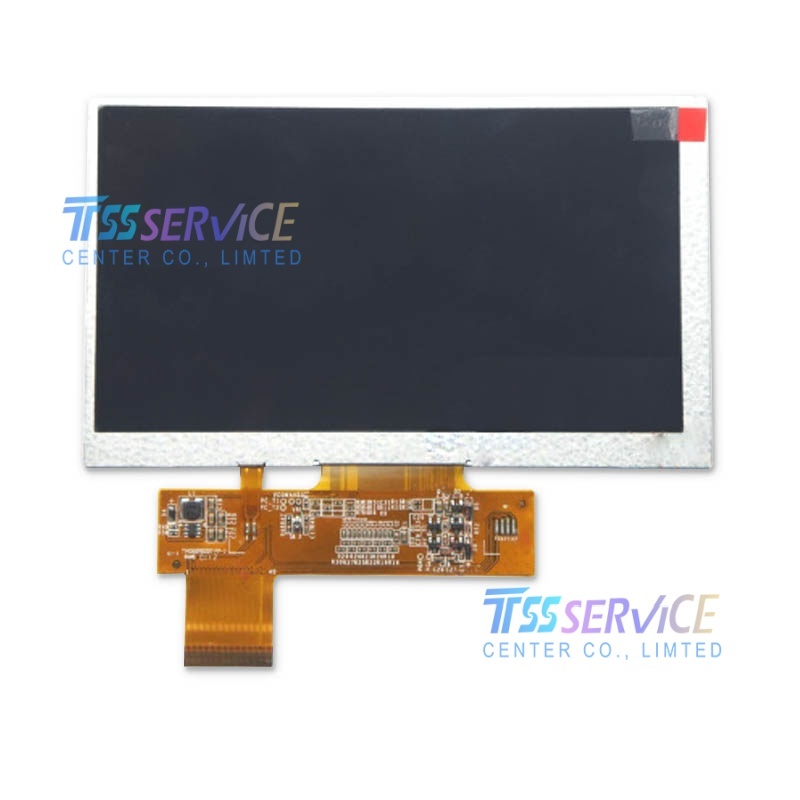

The TM060RDH03 is a 6.0-inch diagonal a-Si TFT-LCD (Thin-Film Transistor Liquid Crystal Display) module manufactured by TIANMA. It features a resolution of 800(RGB)×480 pixels, commonly referred to as WVGA with a 16:9 aspect ratio. The display utilizes RGB Vertical Stripe pixel arrangement, delivering sharp and clear images suitable for medium-sized screen applications.
| Parameter |
Value |
| Brand |
TIANMA |
| Model |
TM060RDH03 |
| Diagonal Size |
6.0 inch |
| Type |
a-Si TFT-LCD, LCM |
| Pixel Number |
800(RGB)×480, WVGA, 16:9 |
| Pixel Format |
RGB Vertical Stripe |
| Active Area |
133.2(H)×73.8(V) mm |
| Physical Size |
145.5(H)×87.8(V)×3.6(D) mm |
| Mass |
TBD |
| Surface Coating |
Antiglare |
| Luminance |
350 cd/m² (Typ.) |
| Contrast Ratio |
500:1 (Typ.) (TM) |
| View Direction |
6 o'clock |
| Response Time |
20/30 (Typ./Max.)(Tr+Td) ms |
| Viewing Angle |
70/70/60/70 (Typ.)(CR≥10) |
| Operating Mode |
TN, Normally White, Transmissive |
| Support Color |
16.7M, 50% NTSC |
| Light Source |
7S3P WLED, 20K hrs, Without Driver |
| Frame Rate |
60Hz |
| Touch Panel |
Without |
| Interface Type |
Parallel RGB (1 ch, 8-bit), 40 pins FPC |
| Power Supply |
3.3V (Typ.) |
| Environment |
Operating Temperature -20 ~ 70 °C, Storage Temperature -30 ~ 80 °C |
Typical Applications
Thanks to its compact size, moderate brightness, wide temperature range, and standard RGB interface, the TM060RDH03 is well-suited for the following applications:
-
Industrial Control Equipment – HMI panels, CNC machine displays, PLC interfaces
-
Home Appliances – Smart washing machines, refrigerators, microwave ovens, air conditioner control panels
-
In-vehicle Displays (non-automotive grade) – Rear-seat entertainment systems, bus/truck monitoring screens
-
Medical Devices – Patient monitoring terminals, portable diagnostic equipment
-
POS & Kiosk Systems – Cash registers, self-service terminals, ticket vending machines
-
Consumer Electronics – Portable DVD players, digital photo frames, video door phones
-
Test & Measurement Instruments – Oscilloscopes, signal analyzers, bench meters
