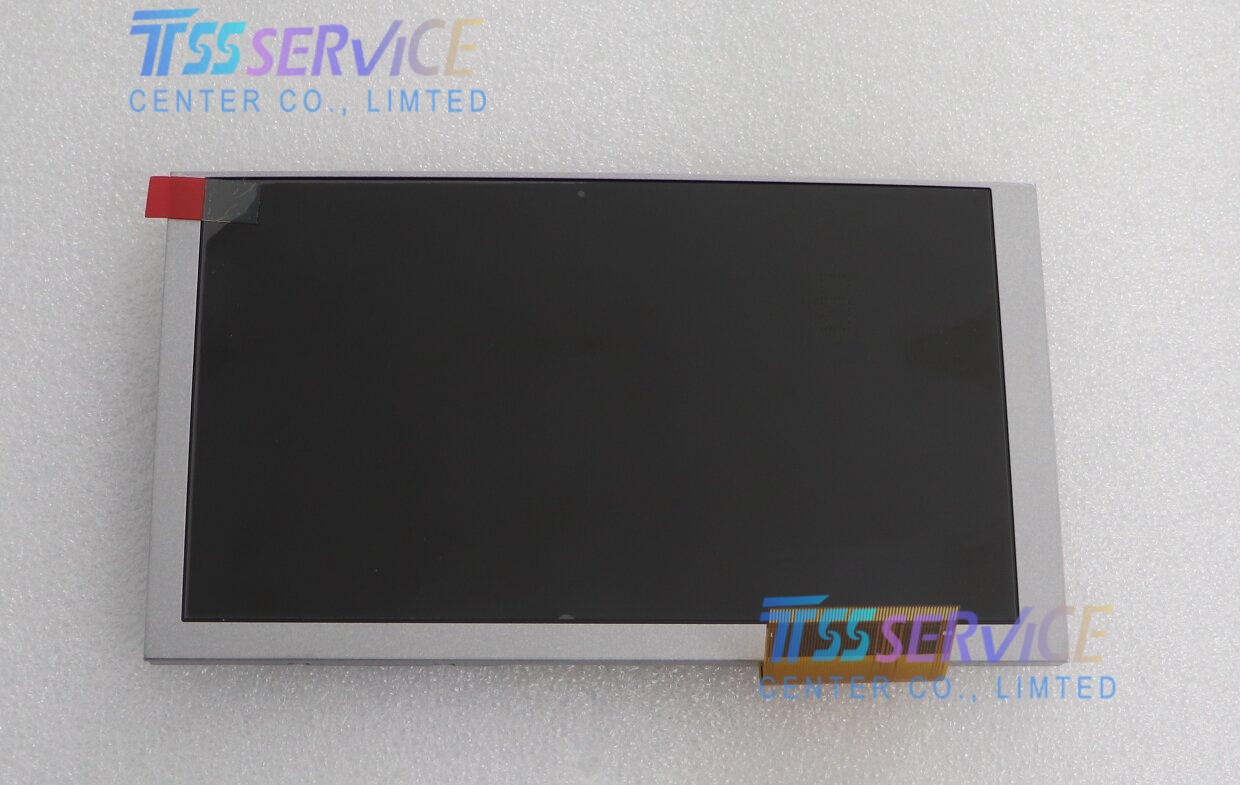

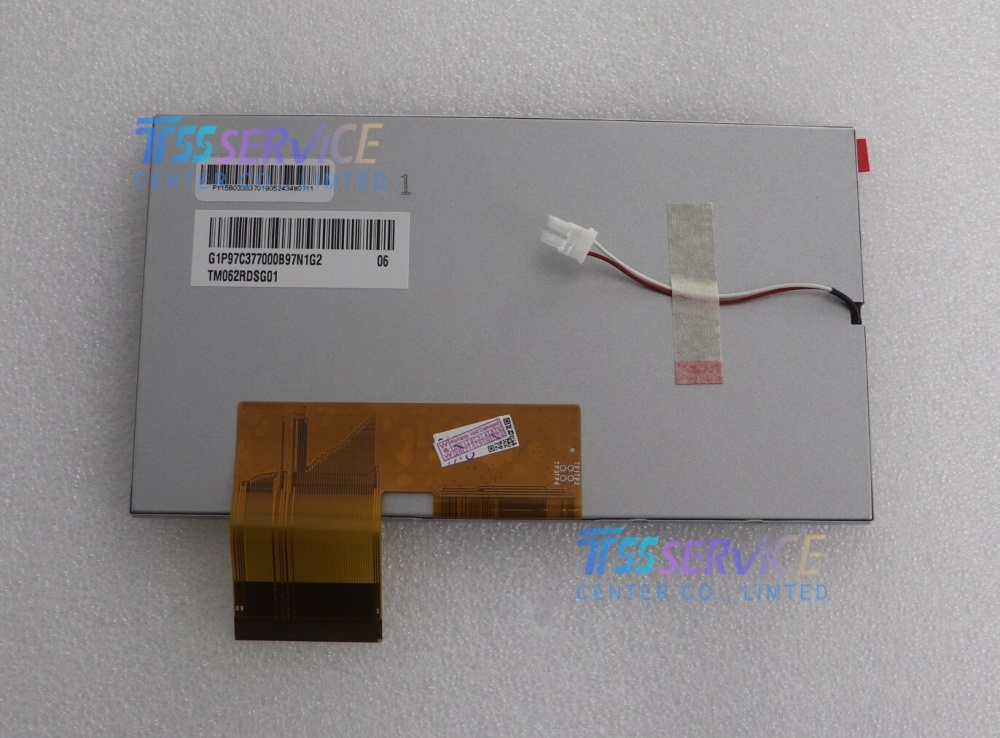

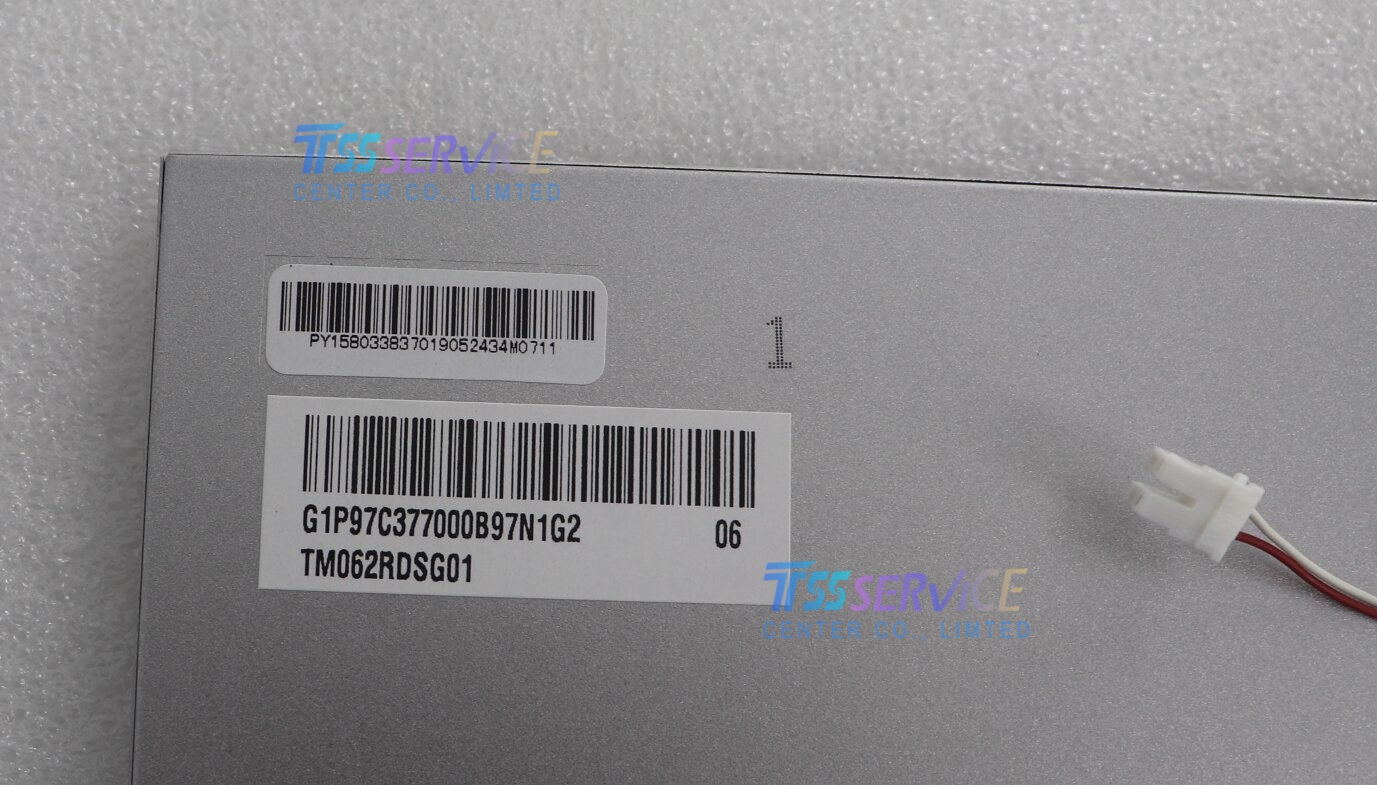

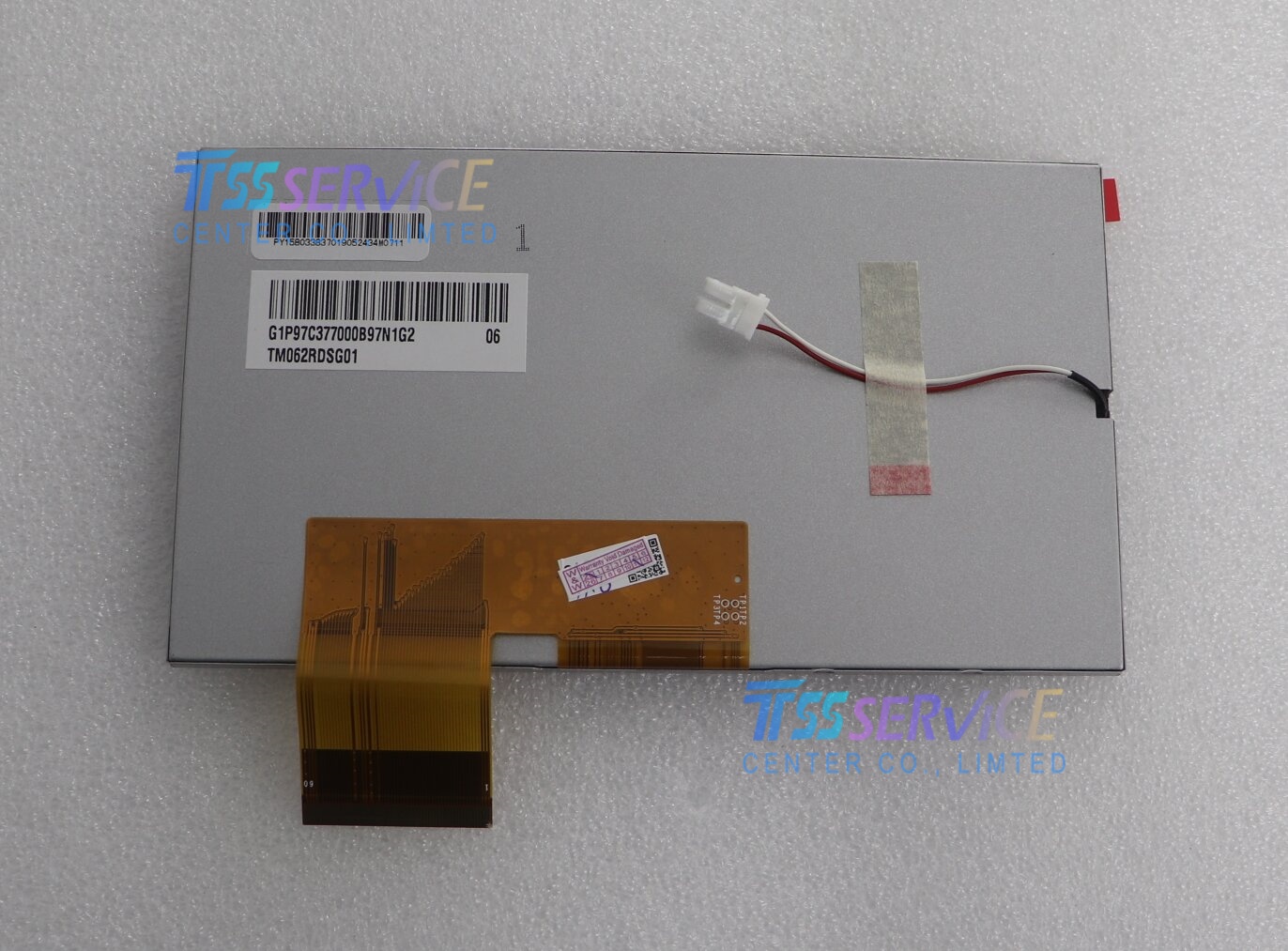

TM062RDSG01 Tianma 6.2 inch 800×480 LCD Panel Display For Industrial
| Parameter |
Specifications |
| Manufacturer |
Tianma |
| Part Number |
TM062RDSG01 |
| Panel Type |
a-Si TFT-LCD, TN, Normally White, Transmissive |
| Diagonal Size |
6.2 inches |
| Resolution |
800 (RGB) × 480 (WVGA, Landscape) |
| Pixel Format |
RGB Vertical Stripe |
| Active Area |
137.4 mm (W) × 77.28 mm (H) |
| Outline Dimensions |
155.2 mm (W) × 88.2 mm (H) × 5.2 mm (T) |
| Surface Treatment |
Anti-glare (Matte) |
| Brightness |
400 cd/m² (Typical) |
| Contrast Ratio |
500:1 (Typical, Transmissive) |
| Color Depth |
262K colors (6-bit) / 16.7M colors (6-bit + Hi-FRC) |
| Color Gamut |
50% NTSC (CIE1931) |
| Response Time |
30 ms (Typical) (Tr+Td) |
| Viewing Angle (CR≥10) |
75° (L) / 75° (R) / 60° (U) / 70° (D) |
| Viewing Direction |
6 o'clock |
| Refresh Rate |
60 Hz |
| Backlight |
WLED (White LED), Edge type, 50,000 hrs life |
| Signal Interface |
Parallel RGB (1 channel, 6/8-bit) |
| Supply Voltage |
3.3V (Typical) (VCC) |
| Power Consumption |
355 mW (Typical) |
| Operating Temperature |
-20°C to +70°C |
| Storage Temperature |
-30°C to +80°C |
| Weight |
118 g (Typical) |
| Touch Screen |
No |
| Features |
Ultra-slim design (5.2mm), Wide temperature |
| Status |
Discontinued |
|
|
The TM062RDSG01 is a 6.2-inch WVGA ultra-slim TFT-LCD module designed for portable and space-constrained embedded applications. Its key applications include:
- Car DVD Players & Headrest Monitors: Rear-seat entertainment systems.
- Car Navigation Systems: Central control GPS displays.
- Automotive Infotainment: Dashboard multimedia interfaces.
- Industrial PDAs & Handheld Terminals: Mobile data collection and logistics scanners.
- Portable Test & Measurement: Compact oscilloscopes, multimeters, and field analyzers.
- Industrial HMI: Small operator interfaces for machinery and control panels.
- Portable DVD Players: Compact media players.
- Digital Photo Frames: High-resolution picture displays.
- GPS Navigation Devices: Handheld and dashboard-mounted GPS units.
- Portable Medical Monitors: Vital signs monitors and small diagnostic equipment.
- Medical Handheld Devices: Mobile patient data terminals.
- Ultra-slim 5.2mm Profile: Fits easily into thin, compact device designs.
- High Brightness (400 cd/m²): Good visibility in indoor and semi-outdoor environments.
- Wide Temperature Range: Stable performance in industrial and automotive settings.
- Low Power Consumption: Ideal for battery-powered portable devices.
- Cost-effective WVGA Resolution: Balances clarity and affordability for mainstream applications.
