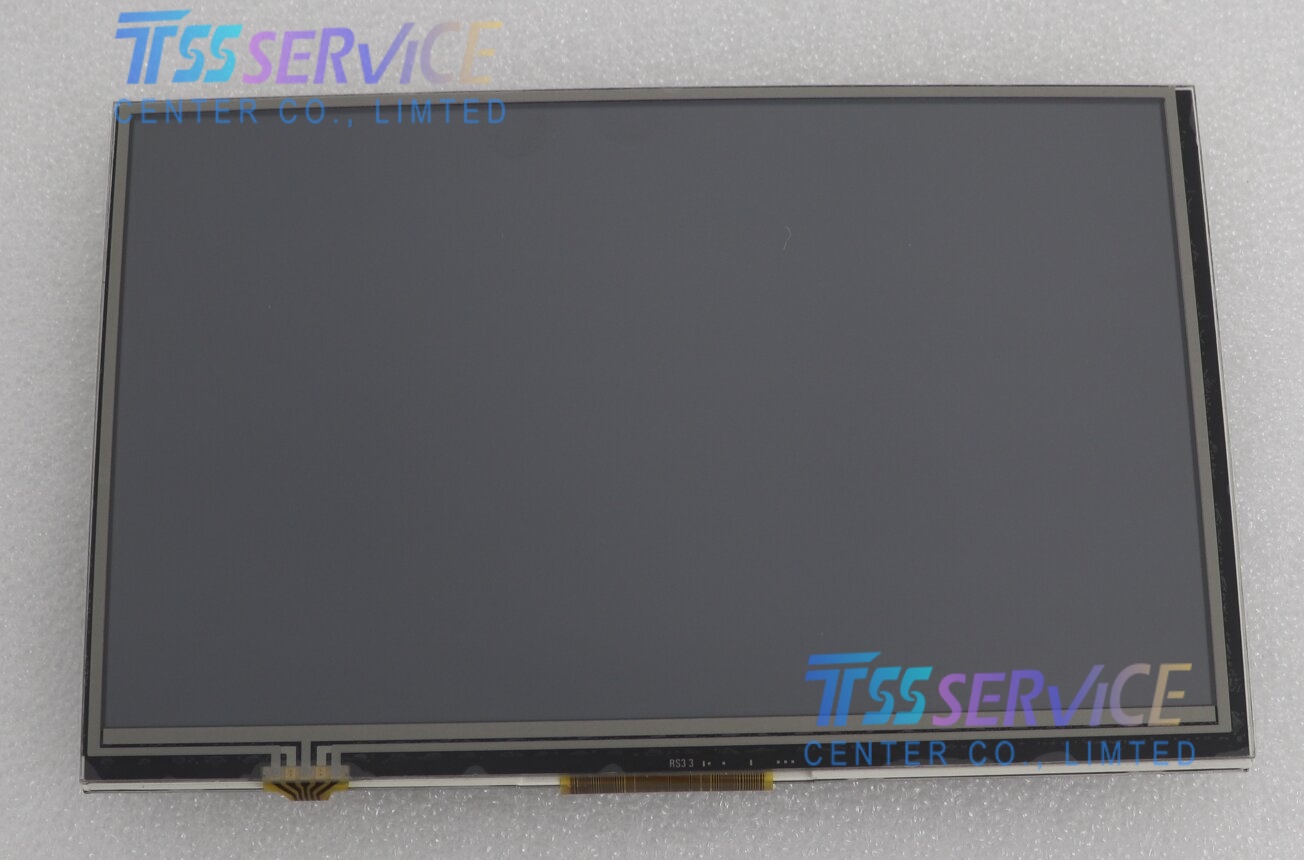

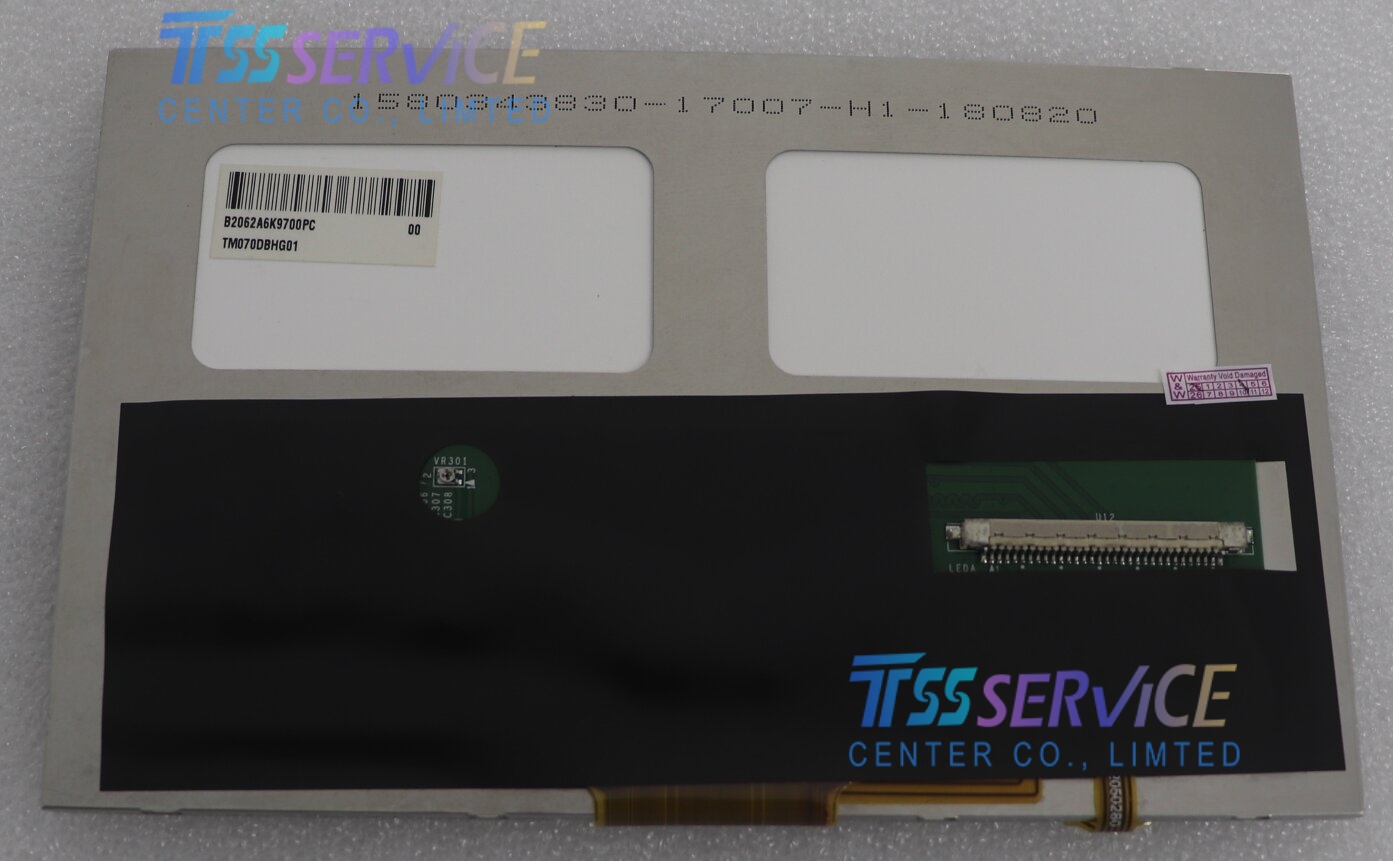

Tianma TM070DBHG01 7 inch 1024×600 LCD Panel Display For Industrial
| Parameter |
Specifications |
| Manufacturer |
Tianma Microelectronics |
| Part Number |
TM070DBHG01 |
| Panel Type |
a-Si TFT-LCD, LCM, Normally White, Transmissive |
| Diagonal Size |
7.0 inches |
| Resolution |
1024 (RGB) × 600 (WSVGA, Landscape) |
| Pixel Format |
RGB Vertical Stripe |
| Active Area |
153.6 mm (W) × 90.0 mm (H) |
| Outline Dimensions |
171.5 mm (W) × 110.3 mm (H) × 5.3 mm (T) |
| Surface Treatment |
Anti-glare (Matte) |
| Brightness |
450 cd/m² (Typical) |
| Contrast Ratio |
500:1 (Typical, Transmissive) |
| Color Depth |
16.7M colors (8-bit) |
| Color Gamut |
50% NTSC (CIE1931) |
| Response Time |
20 ms (Typical) (Tr+Td) |
| Viewing Angle (CR≥10) |
75° (L) / 75° (R) / 70° (U) / 75° (D) |
| Viewing Direction |
12 o'clock |
| Refresh Rate |
60 Hz |
| Backlight |
WLED (White LED), Edge type, 3S6P, 20,000 hrs life, No Driver IC |
| Signal Interface |

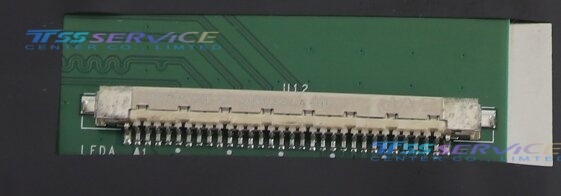

LVDS (1 channel, 8-bit), 40-pin FPC connector |
| Supply Voltage |
3.3V (VDD), 11.0V (AVDD), 16.0V (VGH), -6.8V (VGL) |
| Operating Temperature |
-20°C to +70°C |
| Storage Temperature |
-30°C to +80°C |
| Weight |
180 g (Typical) |
| Touch Screen |
No |
| Special Features |
Wide temperature, AAS wide viewing angle, Ultra-slim profile (5.3mm) |
| Status |
Discontinued |
|
|
|
The TM070DBHG01 is a 7-inch WSVGA industrial-grade TFT-LCD module featuring AAS (IPS) wide viewing angles and a thin profile, designed for high-reliability embedded systems requiring clear visibility from all directions. Its key applications include:
- Industrial HMI & Panel PCs: Operator interfaces for factory automation, PLCs, and process control systems.
- CNC & Machine Tools: Compact displays for machining centers and industrial robotics.
- Test & Measurement Equipment: Portable oscilloscopes, data loggers, and field analyzers.
- Factory Automation Terminals: Monitoring and control interfaces for assembly lines.
- Portable Medical Monitors: Patient vital signs monitors and bedside displays.
- Medical Carts & Diagnostics: High-visibility screens for mobile medical workstations.
- Veterinary Equipment: Compact displays for portable veterinary diagnostic tools.
- Automotive Infotainment: Car navigation systems and central control displays.
- Fleet Management: On-board computers and vehicle tracking terminals.
- Railway & Public Transit: Passenger information systems and driver control panels.
- Marine Navigation: Small-scale chart plotters and marine electronics.
- Outdoor Kiosks: Information terminals for semi-outdoor industrial settings.
- Rugged Handhelds: Mobile data terminals for field service and logistics.
- AAS (IPS) Technology: Exceptional wide viewing angles (75°/75°/70°/75°) for consistent image quality.
- High Brightness (450 cd/m²): Excellent readability in industrial and high ambient light environments.
- Wide Temperature (-20°C to +70°C): Stable operation in harsh industrial conditions.
- Ultra-slim 5.3mm Design: Fits into space-constrained embedded devices.
- LVDS Interface: Reliable, noise-resistant signal transmission for industrial environments.
