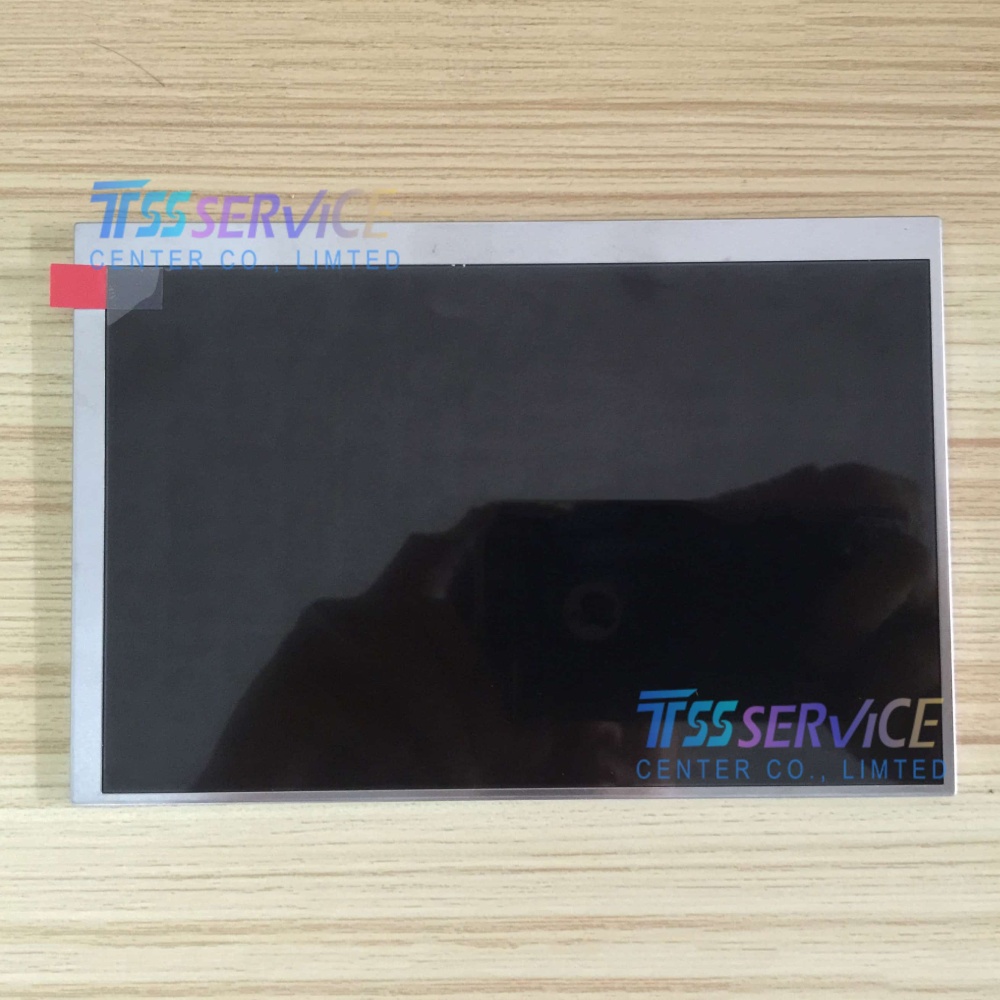

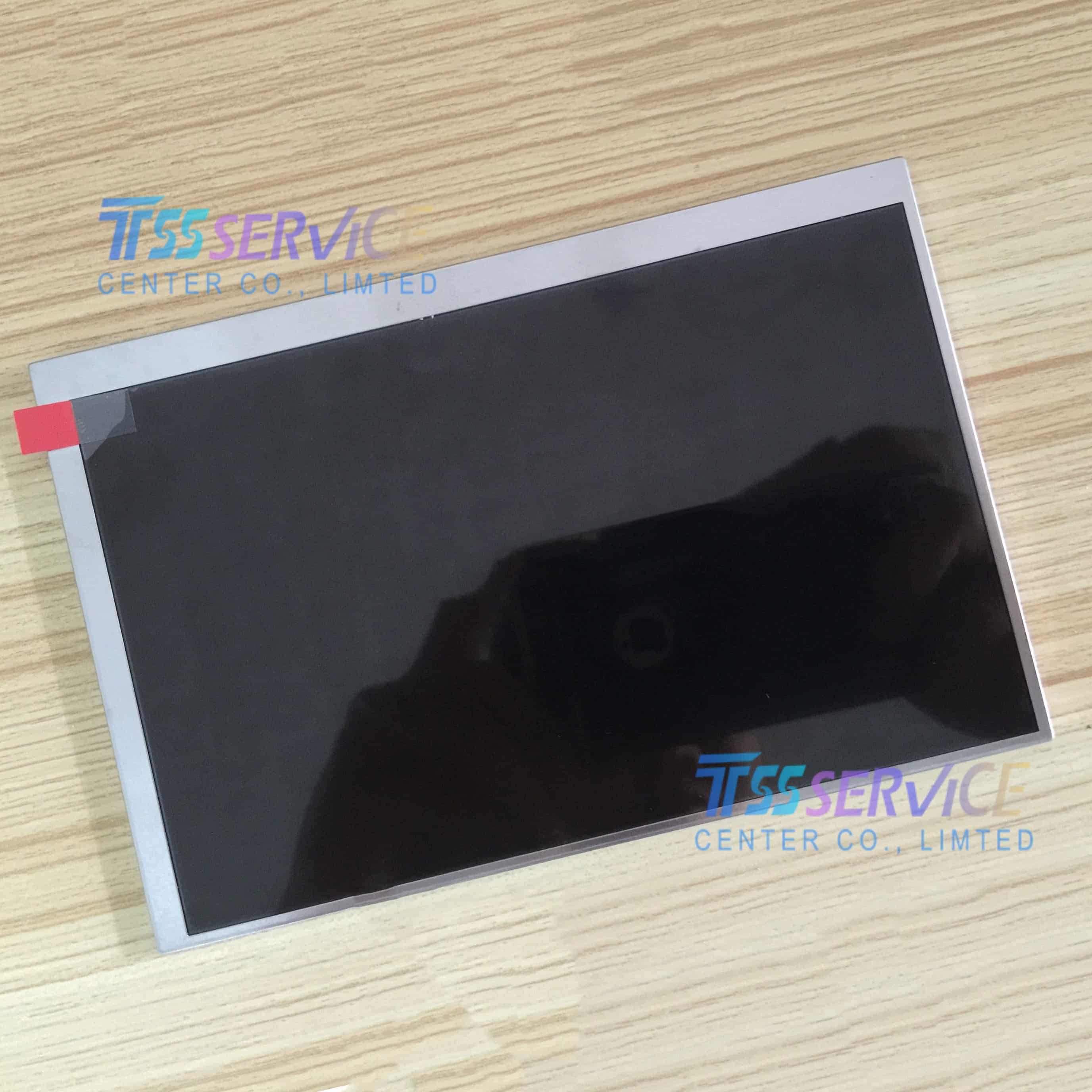

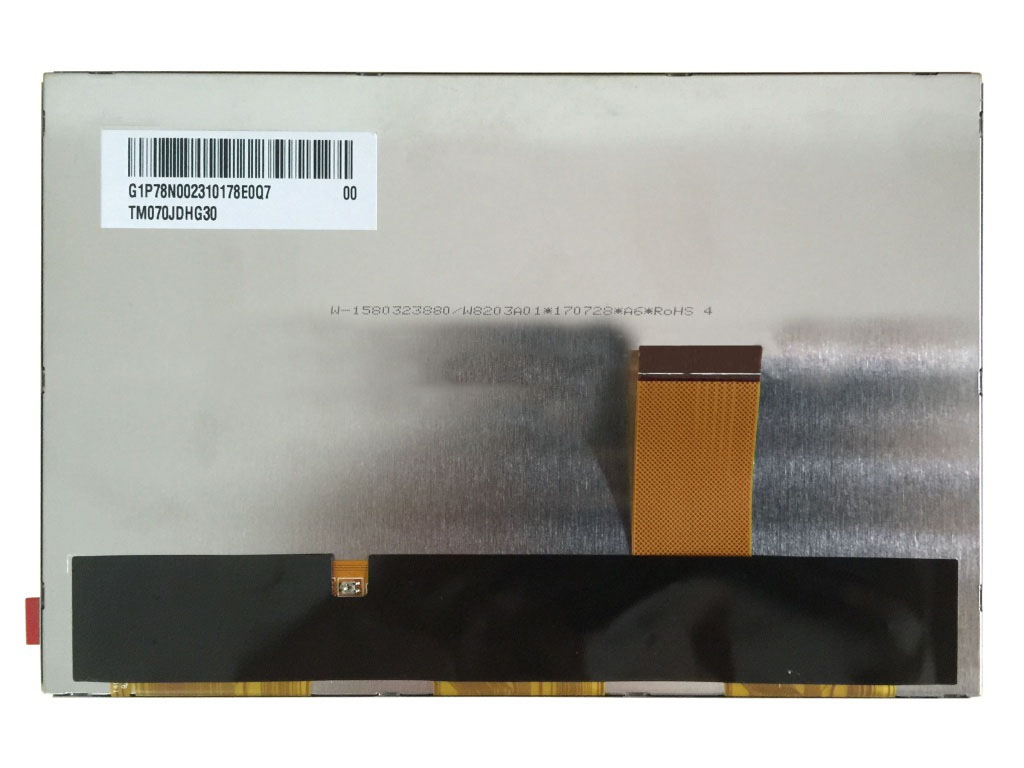

TM070JDHG30 7.0inch 1280×800 lcd display panel for TIANMA

SKU: TM070JDHG30
Model P/N:TM070JDHG30
Diagonal Size:7.0"
Panel Type:a-Si TFT-LCD, LCM
Resolution:1280(RGB)×800, WXGA  217PPI
Pixel Format:RGB Vertical Stripe
0.0 (0 Reviews)
0 Sold
$55.00 $45.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
  • TM070JDHG30 7.0inch 1280(RGB)×800 lcd display panel  for TIANMA
  • TM070JDHG30 7.0inch 1280(RGB)×800 lcd display panel  for TIANMA
  • TM070JDHG30 7.0inch 1280(RGB)×800 lcd display panel  for TIANMA
  • TM070JDHG30 7.0inch 1280(RGB)×800 lcd display panel  for TIANMA
  • TM070JDHG30 7.0inch 1280(RGB)×800 lcd display panel  for TIANMA
  • TM070JDHG30 7.0inch 1280(RGB)×800 lcd display panel  for TIANMA
1/1
  • TM070JDHG30 7.0inch 1280(RGB)×800 lcd display panel  for TIANMA
  • TM070JDHG30 7.0inch 1280(RGB)×800 lcd display panel  for TIANMA
  • TM070JDHG30 7.0inch 1280(RGB)×800 lcd display panel  for TIANMA
  • Description

TM070JDHG30: 7.0-Inch TFT LCD Display Panel by TIANMA
The TM070JDHG30 is a high-resolution 7.0-inch TFT LCD module designed and manufactured by Tianma, a leading global supplier of display technologies. This panel stands out by packing a high pixel density into a compact form factor, making it ideal for applications that demand sharp, detailed visuals in a space-constrained design.

Feature Specification
Model TM070JDHG30
Manufacturer Tianma
Type a-Si TFT-LCD, LCM
Screen Size 7.0 inches
Active Area 149.76(W)×93.6(H) mm
Resolution 1280 (RGB) × 800 (WXGA)
Pixel Arrangement RGB Stripe
Display Mode Normally White, Transmissive
Brightness (Typ.) 400 cd/m² (Typ.)
Contrast Ratio (Typ.) 800:1 (Typ.) (TM)
Viewing Angle 88/88/88/88 (Typ.)(CR≥10)
Interface
  • LVDS (1 ch, 8-bit) , 40 pins FPC
Backlight LED Edge-Light, Long-Life
Surface Treatment Anti-Glare/Hard Coating (optional)*
Operating Temperature -20 ~ 70 °C

Applications

This high-performance, rugged panel is designed for the industrial and professional sectors . Typical applications include :

  • Human-Machine Interfaces (HMI): Industrial control panels and automation equipment

  • Medical Equipment: Patient monitoring and diagnostic devices

  • Smart Transportation: In-vehicle terminals and navigation systems

  • Test and Measurement Instruments: Various industrial and laboratory equipment

    Why Choose Us? (Your Business Value)

    As a 14-year veteran in the LCD industry, we specialize in providing original Tianma stock directly from our Hong Kong warehouse.

    Ready Stock: Immediate shipping for the TM070JDHG30.

    Flexible MOQ: Supporting both sample orders and small batch production.

    Professional Expertise: Deep technical understanding to help you with cross-references and replacement solutions.

    Small Batch Support: Flexible MOQ to support your repairs, maintenance, or low-volume specialized production.

    Quality Assured: 100% original and strictly tested before shipment.
