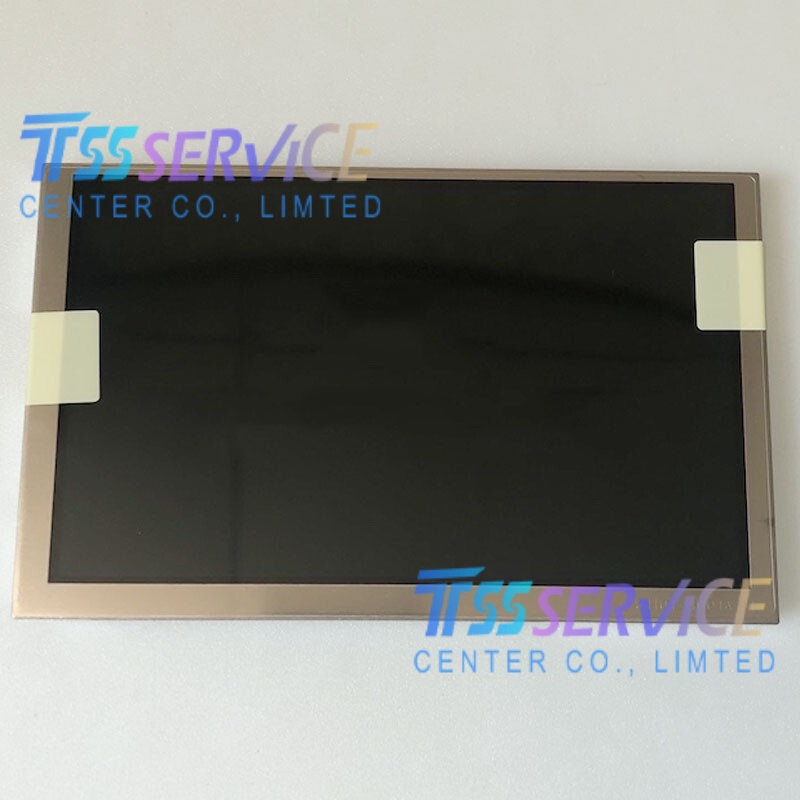

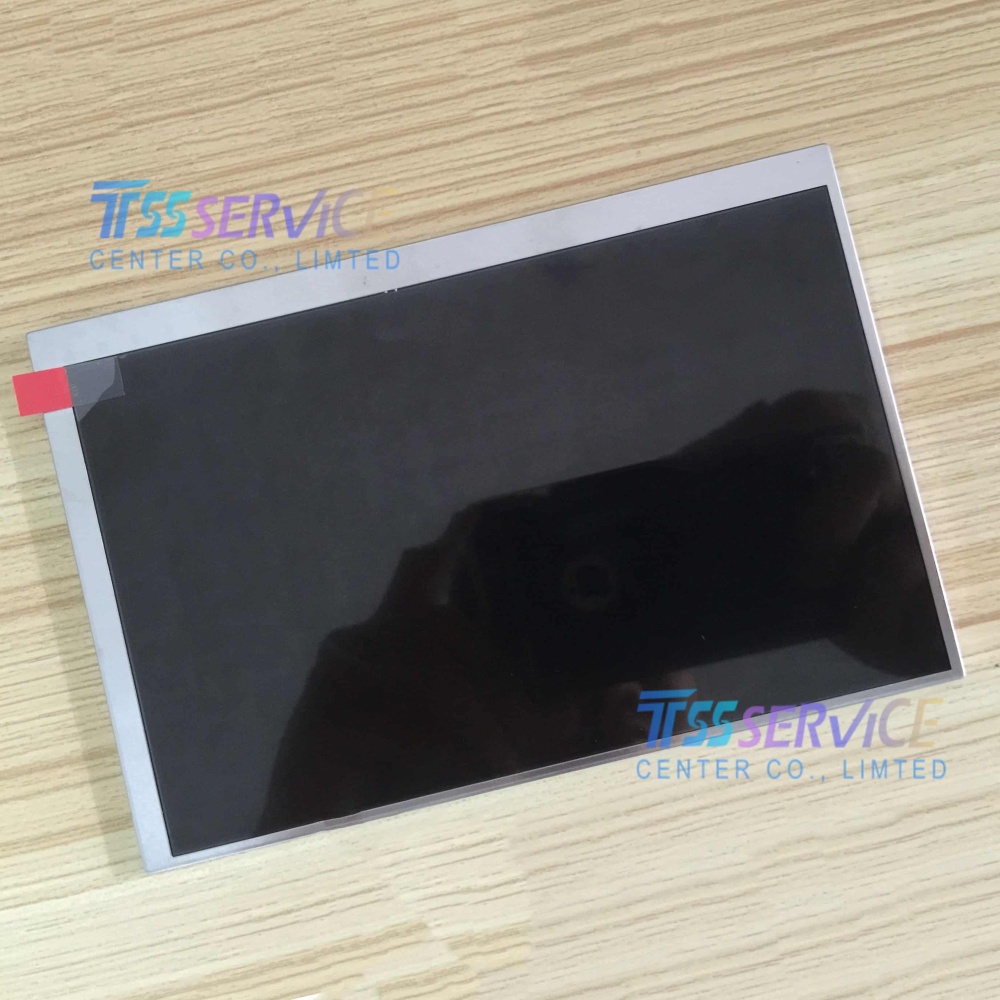

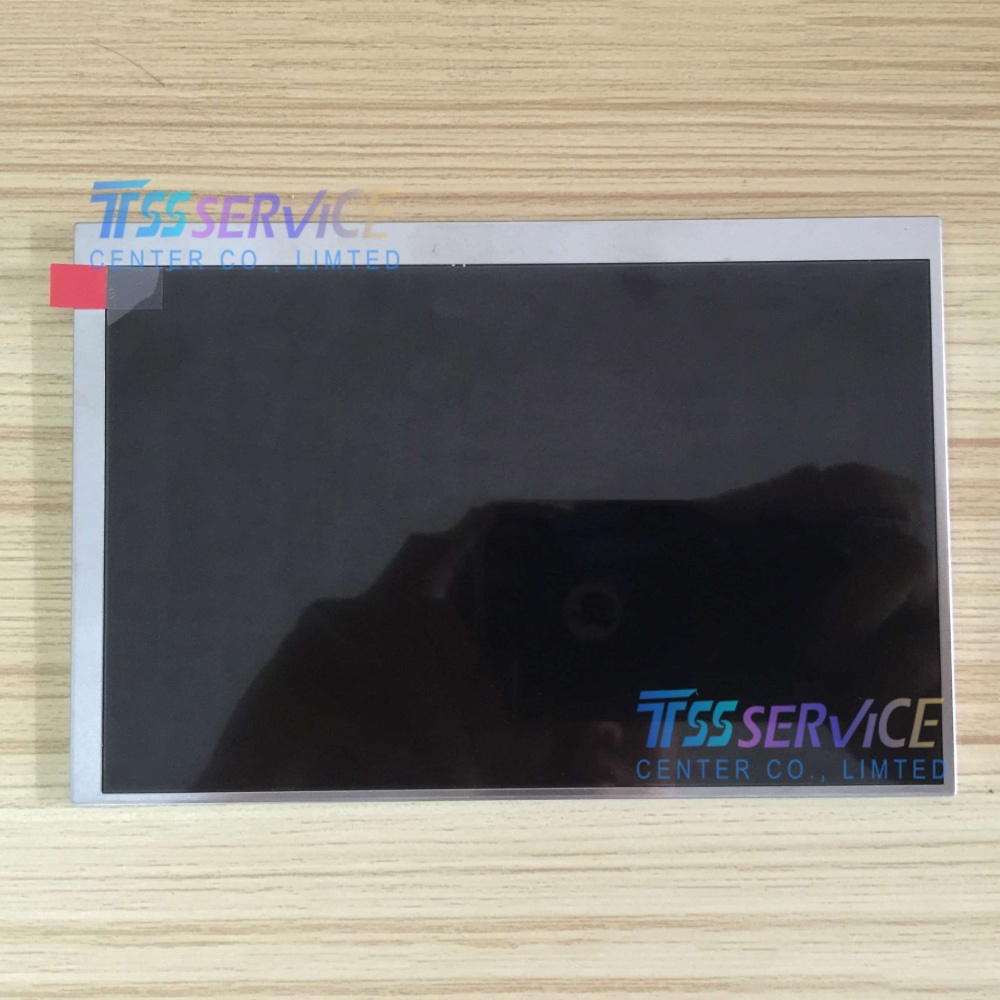

Tianma TM070JDHG33 7" WXGA TFT LCD Panel 1280x800 Industrial Display Module

SKU: TM070JDHG33
Model: TM070JDHG33
Size: 7.0 inches
Resolution: 1280 × 800 (WXGA)
Display Mode: SFT, Normally Black, Transmissive
0.0 (0 Reviews)
0 Sold
$58.00 $55.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
  • Tianma TM070JDHG33 7" WXGA TFT LCD Panel 1280x800 Industrial Display Module
  • Tianma TM070JDHG33 7" WXGA TFT LCD Panel 1280x800 Industrial Display Module
  • Tianma TM070JDHG33 7" WXGA TFT LCD Panel 1280x800 Industrial Display Module
  • Tianma TM070JDHG33 7" WXGA TFT LCD Panel 1280x800 Industrial Display Module
  • Tianma TM070JDHG33 7" WXGA TFT LCD Panel 1280x800 Industrial Display Module
  • Tianma TM070JDHG33 7" WXGA TFT LCD Panel 1280x800 Industrial Display Module
1/1
  • Tianma TM070JDHG33 7" WXGA TFT LCD Panel 1280x800 Industrial Display Module
  • Tianma TM070JDHG33 7" WXGA TFT LCD Panel 1280x800 Industrial Display Module
  • Tianma TM070JDHG33 7" WXGA TFT LCD Panel 1280x800 Industrial Display Module
  • Description
Tianma TM070JDHG33 7" WXGA TFT LCD Panel 1280x800 Industrial Display Module
Parameter Details
Brand Tianma
Model TM070JDHG33
Size 7.0 inches
Resolution 1280 × 800 (WXGA)
Display Mode SFT, Normally Black, Transmissive
Brightness 1000 cd/m² (Typ.)
Contrast Ratio 800:1 (Typ.)
Viewing Angle 88°/88°/88°/88° (L/R/U/D, CR≥10)
Color Depth 16.7M Colors (8-bit)
Backlight WLED, 100,000 hrs lifetime
Interface LVDS (40-pin)
Active Area 149.76 × 93.6 mm
Outline Dimensions 166.89(W)×108.34(H) mm
Weight 228.5g (Typ.)
Surface Treatment Hard Coating (3H)
Operating Temperature -20°C ~ 70°C
Storage Temperature -30°C ~ 80°C

Applications

  • Industrial HMI & Control Panels: Factory automation, PLC, CNC machinery, and process monitoring.
  • Outdoor Kiosks & POS: Sunlight-readable displays for self-service terminals and outdoor signage.
  • Marine & Heavy Machinery: Dashboard displays for boats, construction, and agricultural equipment.
  • Automotive Displays: In-vehicle infotainment, navigation, and rear-seat entertainment systems.
  • Medical Equipment: Portable patient monitors, diagnostic devices, and medical HMI.
  • Rugged Portable Devices: Handheld terminals, data collectors, and field instruments.
