Condition: New and orignal , Grade A
Warranty : 1 year
Lead time : 1-3 working days
Shipping : DHL , FEDEX , EMS , UPS ..

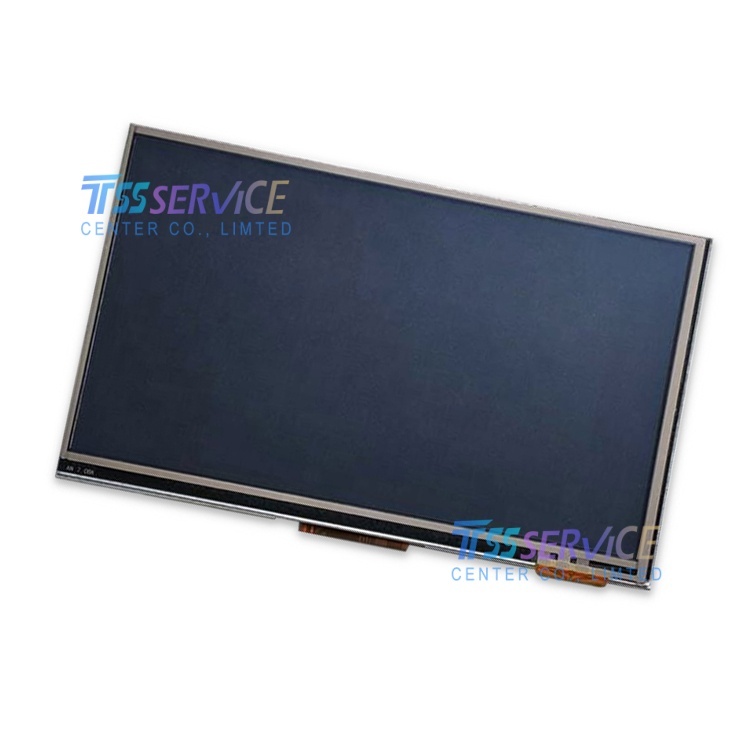

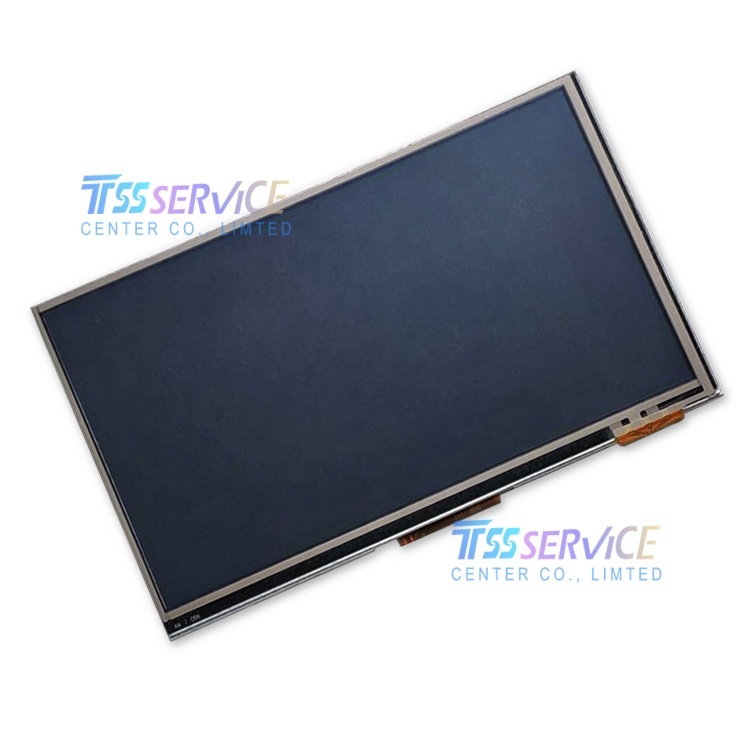

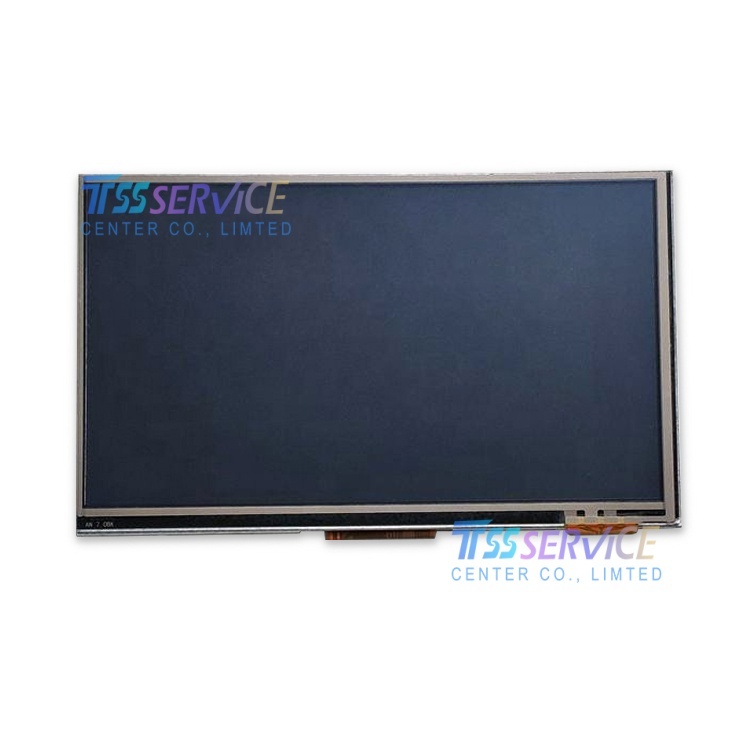

The Tianma TM070RBH10-41 is a high-performance 7.0-inch TFT-LCD (Thin-Film Transistor Liquid Crystal Display) module designed for a wide range of industrial and multimedia applications. It comes with an integrated 4-wire resistive touch screen, providing a complete and reliable display solution
| Brand | TIANMA |
| Model P/N | TM070RBH10-41 |
| Diagonal Size | 7.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×480, WVGA 134PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 154.08(W)×85.92(H) mm |
| Outline Size | 164.9(W)×100(H) ×7.1(D) mm |
| Surface | Antiglare |
| Brightness | 350 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing Angle | 80/80/60/80 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | 6 o'clock |
| Response Time | 25 (Typ.)(Tr+Td) |
| Display Colors | 262K/16.7M 49% NTSC |
| Lamp Type | 3S8P WLED, 20K hours, Without Driver |
| Frequency | 60Hz |
| Touch Screen | 4-wire Resistive Touch |
| Panel Weight | 195g (Typ.) |
| Application | Industrial control, vehicle-mounted, and notebook devices |
| Signal Interface | Parallel RGB (1 ch, 6/8-bit), 50 pins FPC |
| Input Voltage | 3.3/10.4/16.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL) |
| Environment | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
Industrial Control Panels: Human-Machine Interfaces (HMI) for factory automation and equipment control.
Portable Multimedia Devices: Such as portable DVD players and MP3/PMP players.
Digital Photo Frames
Medical Equipment
In-vehicle Displays
Q: Do you conduct tests before shipment?
A: Yes, we strictly follow 100% pre-shipment testing procedures.Our testing process is standardized to ensure that every LCD panel sent to you is in compliance with specifications and is fully functional.
Q: What if the product doesn't work ?
A: Please test the product as soon as you receive it. If it does not work, take clear photos and videos of the issue and contact us immediately. We will then provide technical support or arrange a return or exchange.
