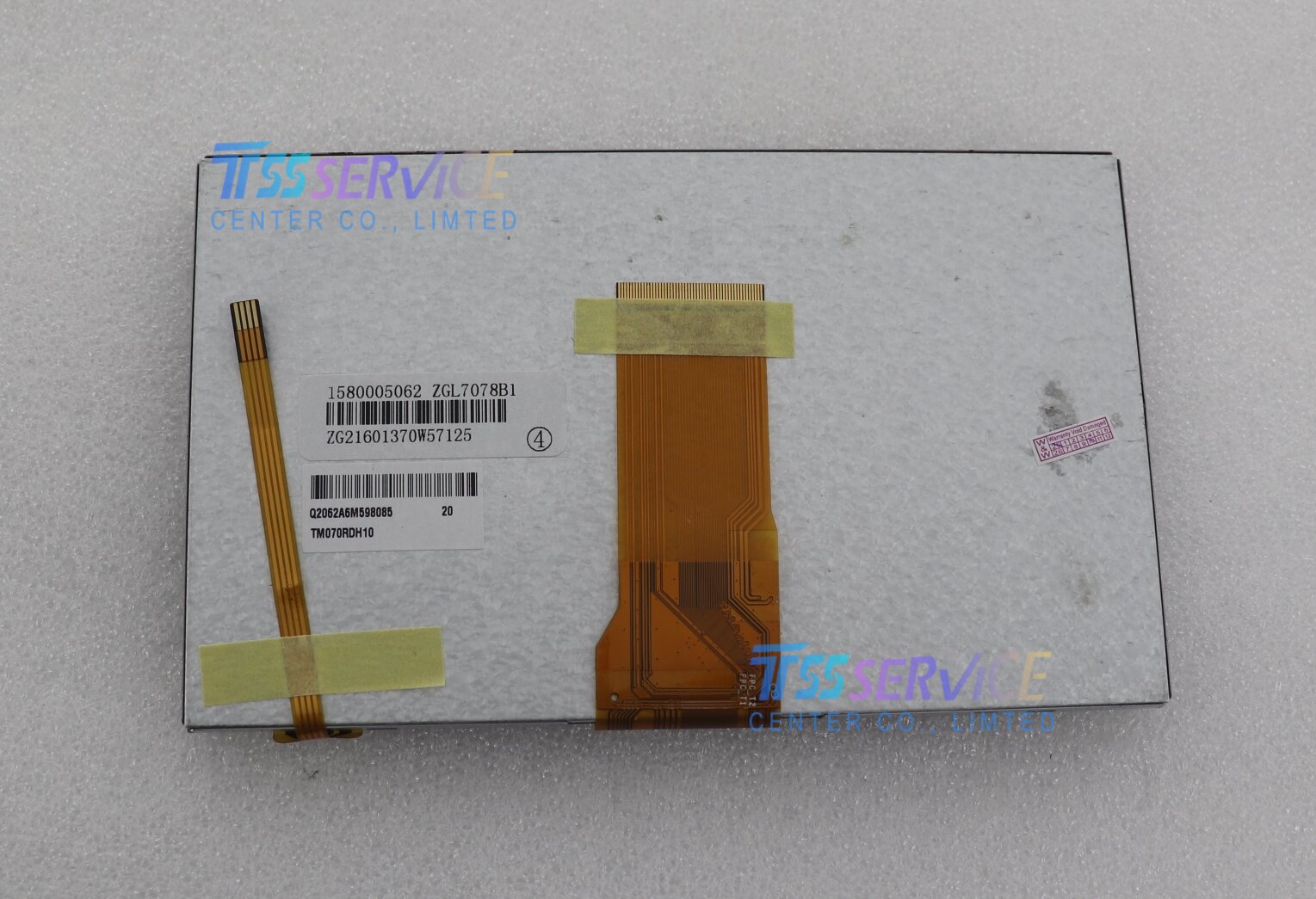

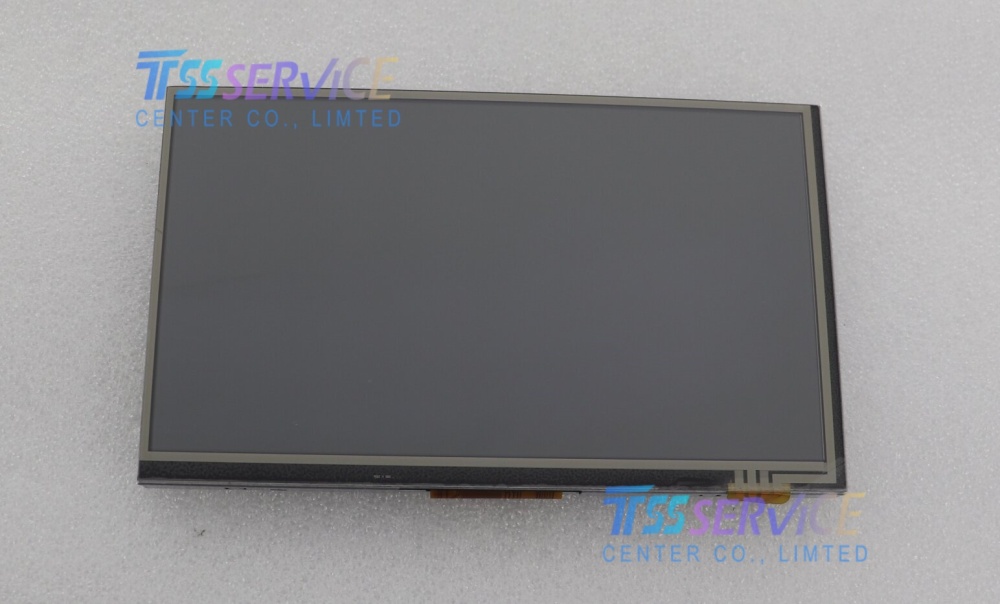

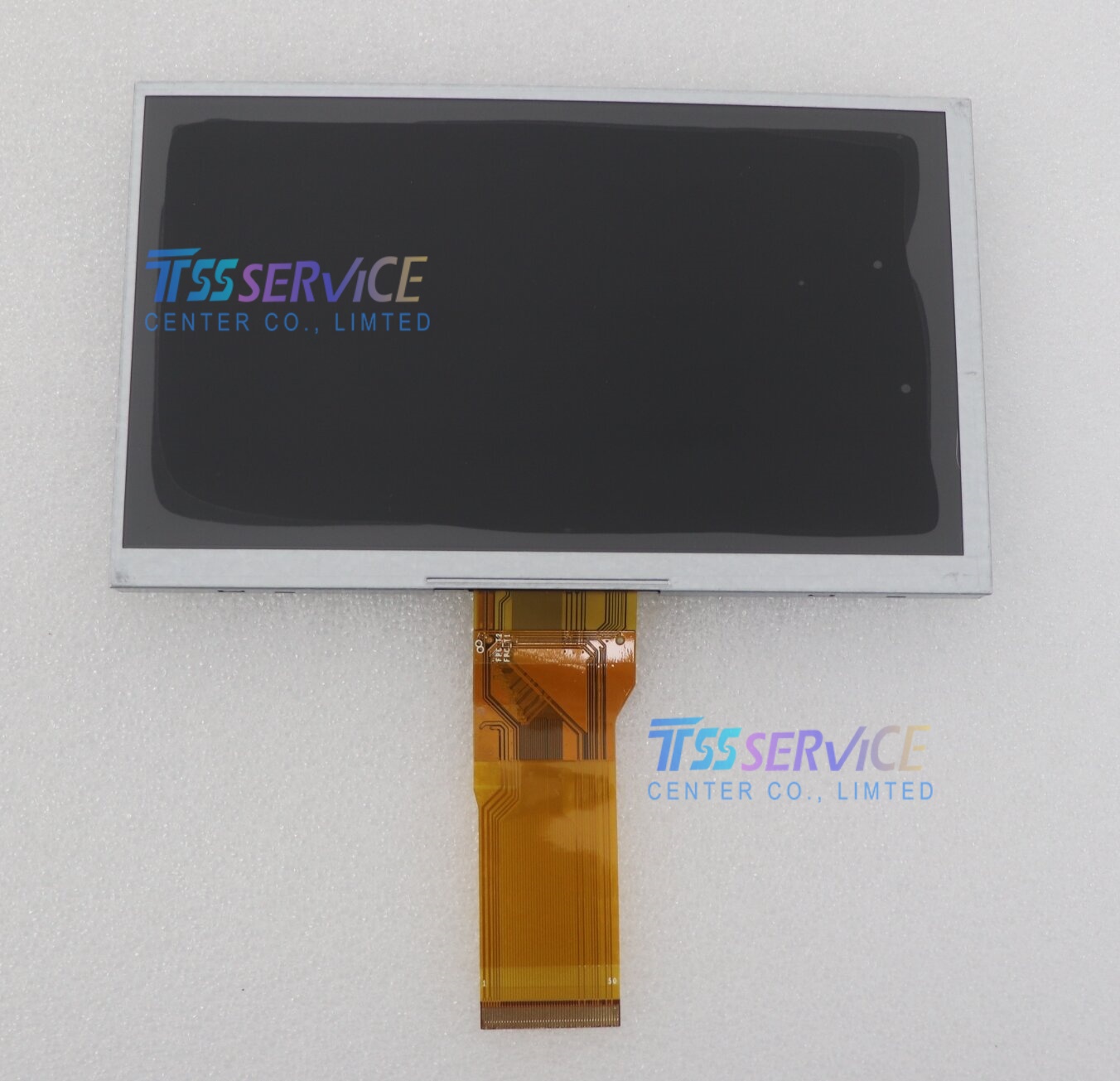

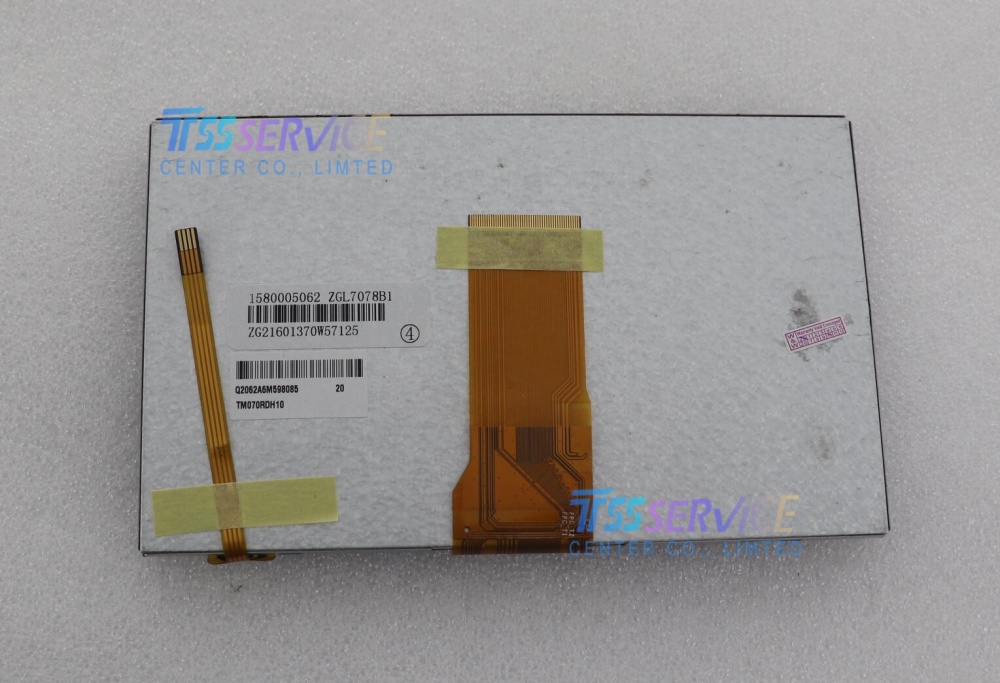

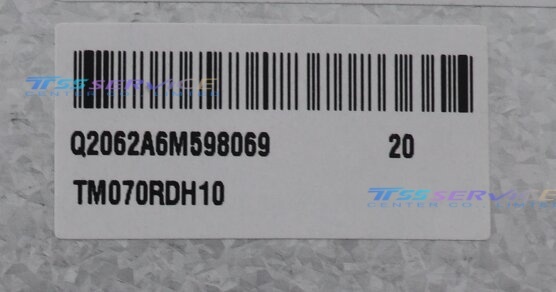

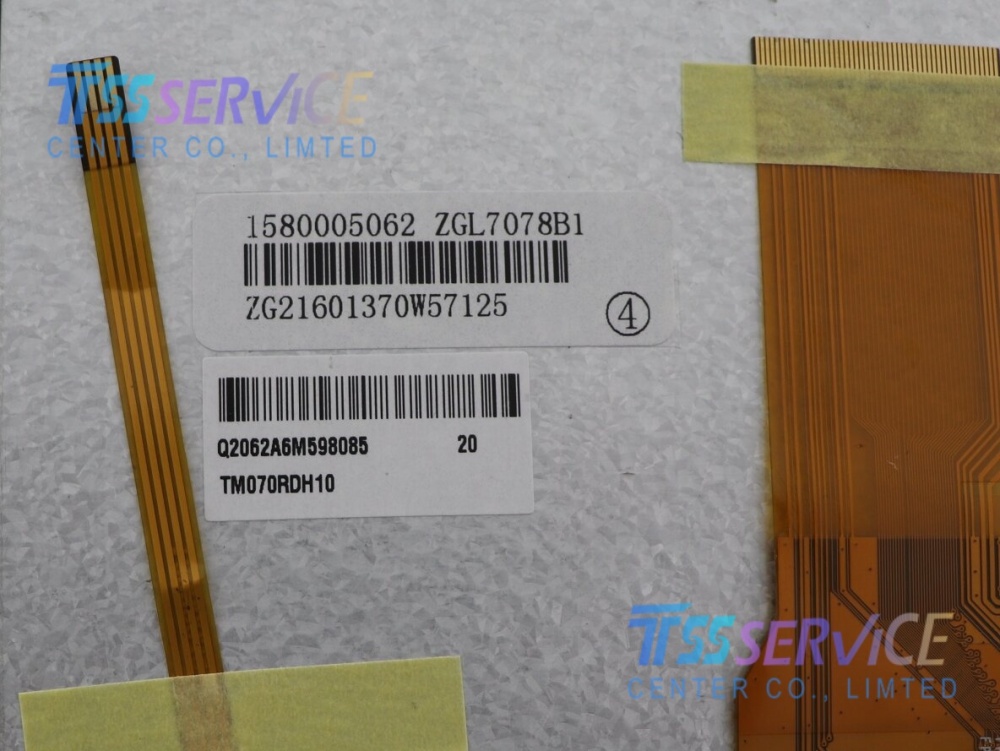

Tianma TM070RDH10-20 7 inch 800×480 LCD Panel Display Screen for Industrial
| Parameter |
Details |
| Manufacturer |
TIANMA (Shanghai Tianma Micro-Electronics) |
| Part Number |
TM070RDH10-20 |
| Display Type |
a-Si TFT-LCD, Transmissive, TN, Normally White |
| Diagonal Size |
7.0" (177.8 mm) |
| Resolution |
800 (H) × 480 (V) pixels (WVGA) |
| Pixel Format |
RGB Vertical Stripe |
| Active Area |
154.08 (W) × 85.92 (H) mm |
| Outline Dimensions |
164.9 (W) × 100.0 (H) × 6.0 (D) mm |
| Brightness |
350 cd/m² (Typical) |
| Contrast Ratio |
500:1 (Typical) |
| Response Time |
25 ms (Typical, Tr+Tf) |
| Viewing Angle |
70/70/60/70° (L/R/U/D, CR≥10) |
| Backlight |
WLED, 20,000 hours (Typical) |
| Color Depth |
16.7M Colors (8-bit) |
| Interface |
Parallel RGB (1 ch, 6/8-bit), 50-pin FPC |
| Supply Voltage |
3.3 V |
| Power Consumption |
- LCD: 150 mW (Typical)
- Backlight: 280 mW (Typical) |
| Operating Temperature |
-20°C to +70°C |
| Storage Temperature |
-30°C to +80°C |
| Touch Panel |
No |
| Surface Treatment |
Anti-glare (AG) |
| RoHS Compliance |
Yes |
| Production Status |
Discontinued (Superseded by newer models) |
This module is designed for cost-effective, reliable embedded displays in industrial and consumer electronics. Key applications include:
- Industrial HMI & Control Panels: Factory automation, machinery interfaces, PLC displays
- Medical Devices: Portable diagnostic equipment, patient monitors, handheld scanners
- Automotive & Marine: Car infotainment systems, GPS navigation, marine plotters
- Consumer Electronics: Digital photo frames, portable DVD players, car headrest monitors
- Smart Home & IoT: Security control panels, thermostats, intercom systems
- Test & Measurement: Portable meters, data loggers, handheld oscilloscopes
- Retail & POS: Compact point-of-sale terminals, price checkers, small kiosks
