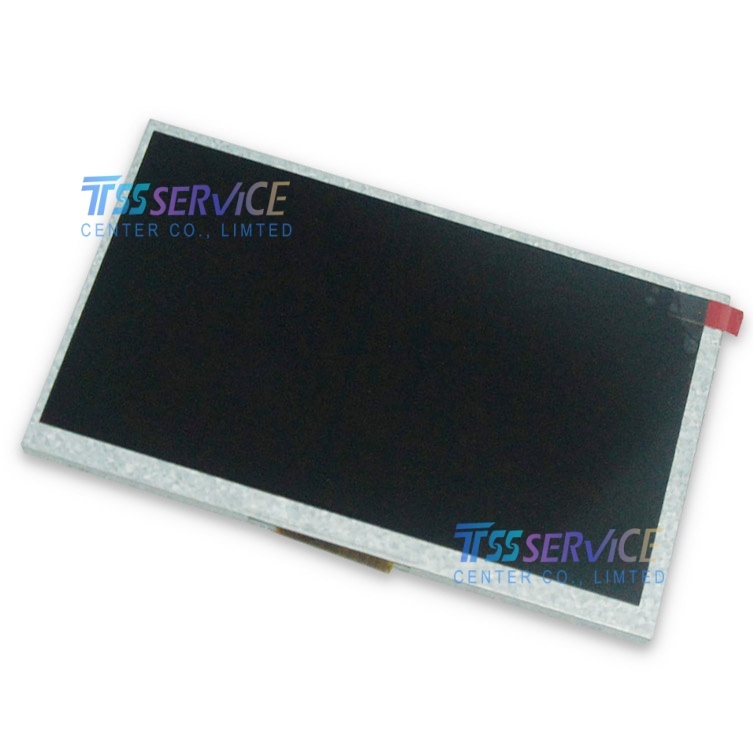

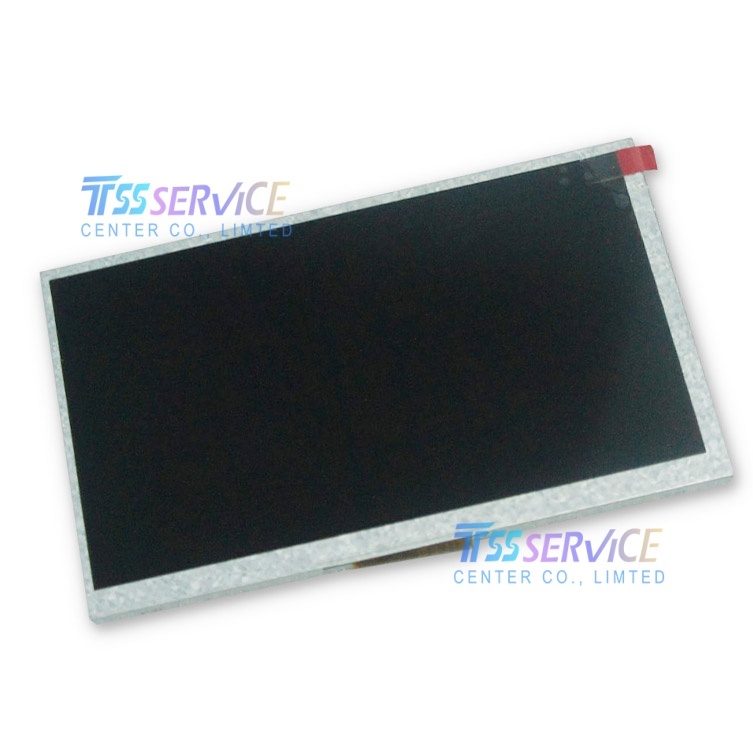

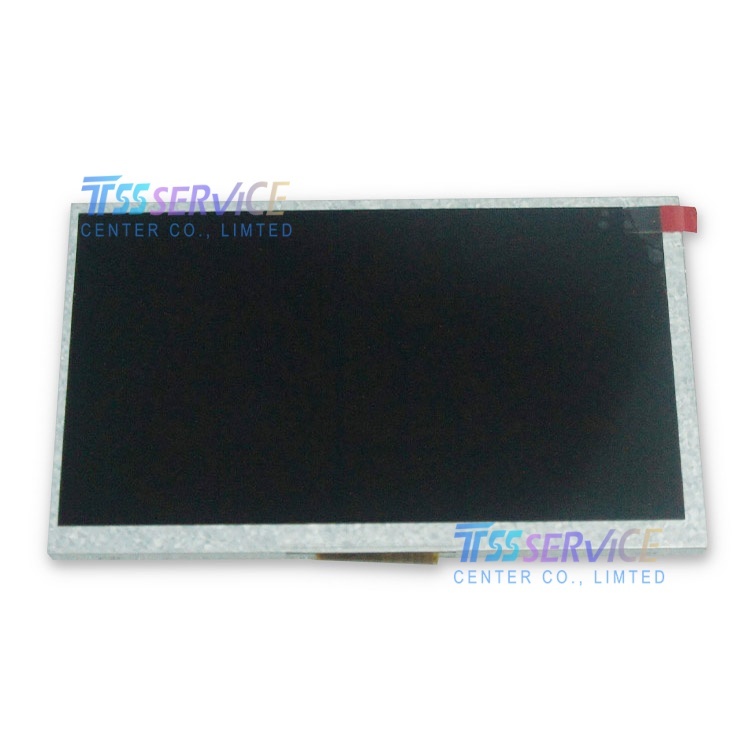

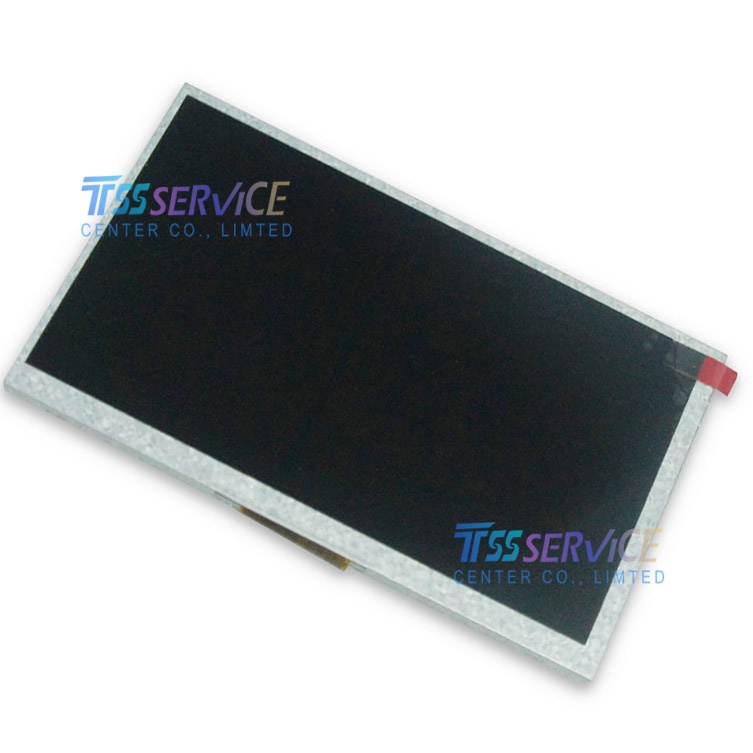

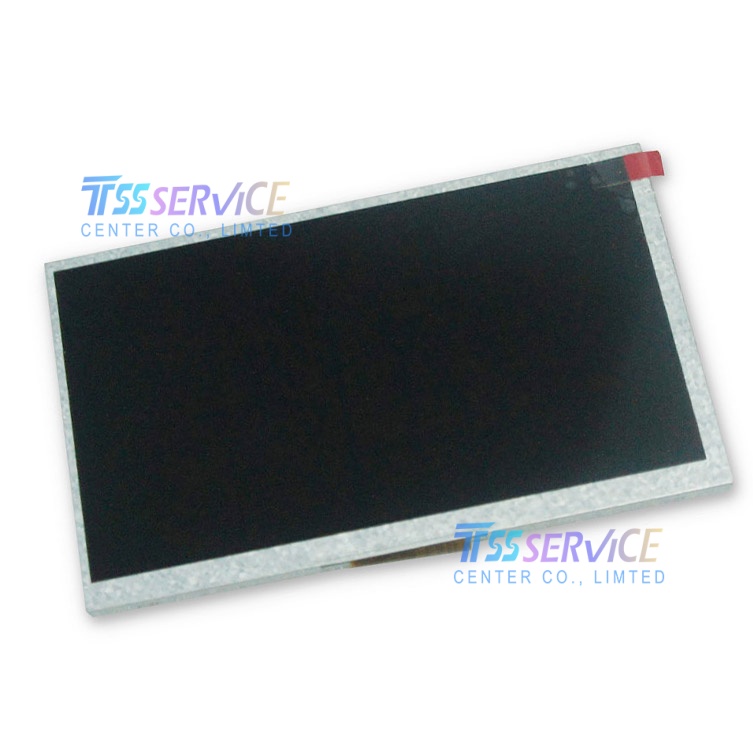

Tianma TM070RDH10-47 800×480 7 inch LCD Panel Display Screen for Industrial
| Parameter |
Value |
Unit |
| Manufacturer |
Tianma |
- |
| Model |
TM070RDH10-47 |
- |
| Display Type |
a-Si TFT LCD |
- |
| Diagonal Size |
7.0 |
inch |
| Resolution |
800(RGB) × 480 |
pixels (WVGA) |
| Aspect Ratio |
16:9 |
- |
| Pixel Configuration |
RGB Vertical Stripe |
- |
| Pixel Pitch |
0.1926(H) × 0.179(V) |
mm |
| Display Mode |
Transmissive, Normally White |
- |
| Surface Treatment |
Anti-Glare |
- |
| Viewing Area |
154.08(W) × 85.92(H) |
mm |
| Module Dimensions |
164.9(W) × 100(H) × 5.7(D) |
mm |
| Weight |
160 |
g |
| Brightness |
450 |
cd/m² |
| Contrast Ratio |
800:1 (Typical) |
- |
| Response Time |
16 |
ms |
| Viewing Angle |
80/80/60/80 |
degree |
| Interface |
Parallel RGB (1 ch, 6/8-bit) , 50 pins FPC |
- |
| Driver IC |
COG Built-in HIX8264D + HX8664B |
- |
| Operating Voltage |
3.3 |
V |
| Analog Supply (AVDD) |
10.3–10.5 |
V |
| LED Backlight |
3S8P WLED , 30K hours , No Driver |
mA |
| Backlight Lifetime |
20,000–30,000 |
hrs |
| Operating Temperature |
-20 to +70 |
°C |
| Storage Temperature |
-30 to +80 |
°C |
| Touch Panel |
Without |
- |
| Color Depth |
16.7M |
colors |
| Mating Connector |
HIROSE FH12A-50S-0.5H |
- |
TM070RDH10-47 is a 7-inch WVGA industrial-grade TFT LCD module, widely used in scenarios requiring stable display, wide temperature tolerance, and reliable performance:
- Industrial Control & HMI
- Industrial human-machine interfaces (HMI), PLC operation panels, factory automation equipment, and instrumentation displays. It supports stable operation in harsh industrial environments.
- Automotive Electronics
- In-vehicle infotainment systems, car navigation units, and dashboard displays. It meets automotive-grade temperature and reliability requirements.
- Medical Devices
- Portable medical monitors, diagnostic equipment, and bedside terminals, providing clear and stable image output.
- Commercial & Retail
- POS systems, self-service kiosks, restaurant ordering terminals, and small digital signage for indoor retail.
- Smart Home & Building Automation
- Smart home control panels, building management system (BMS) interfaces, and thermostat displays.
- Portable & Handheld Devices
- Rugged handheld terminals, industrial data collectors, and outdoor measurement instruments.
