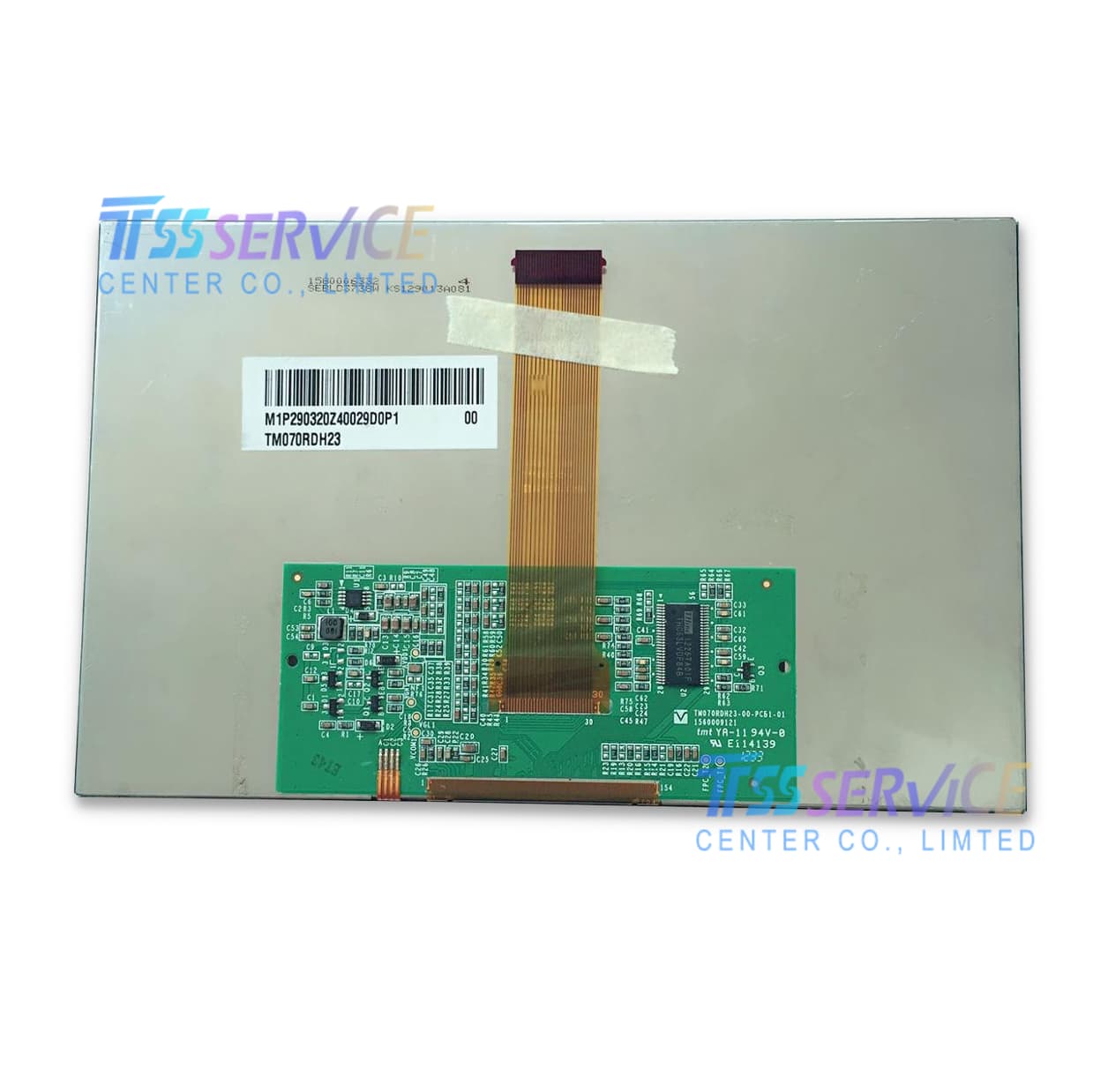

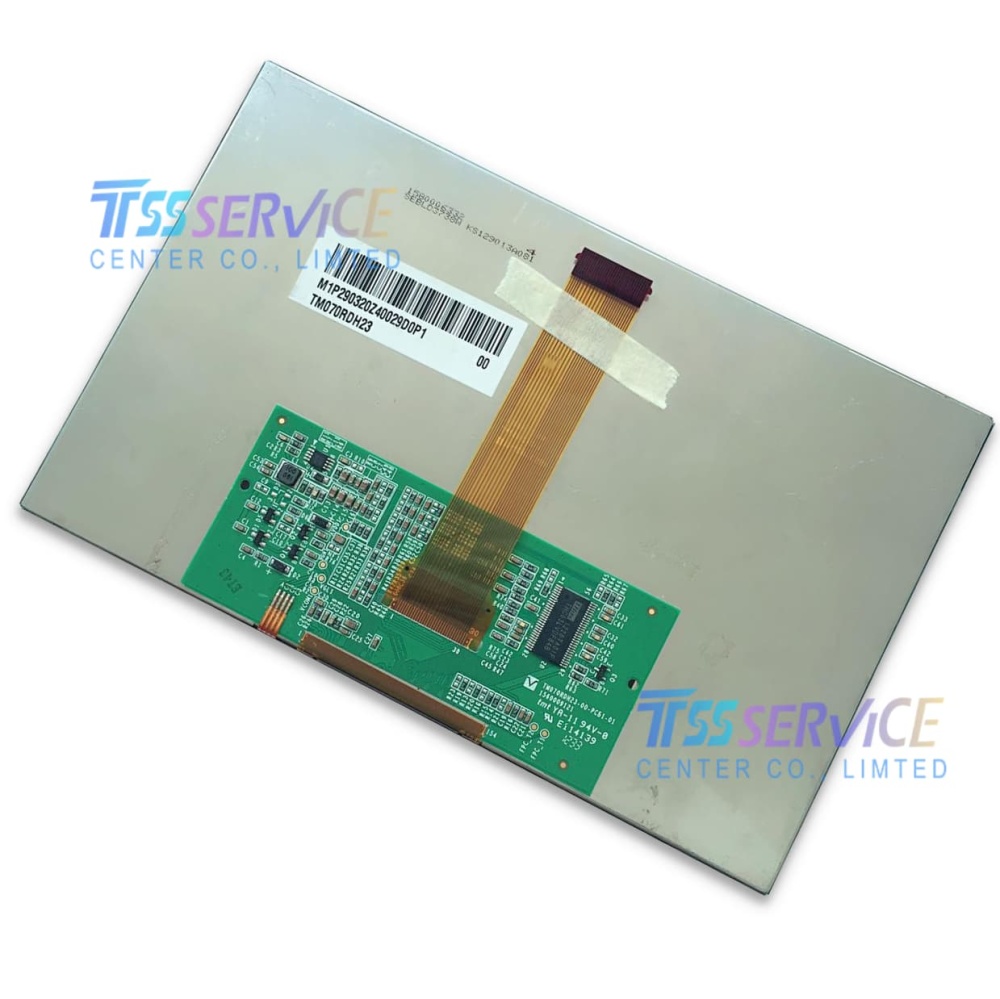

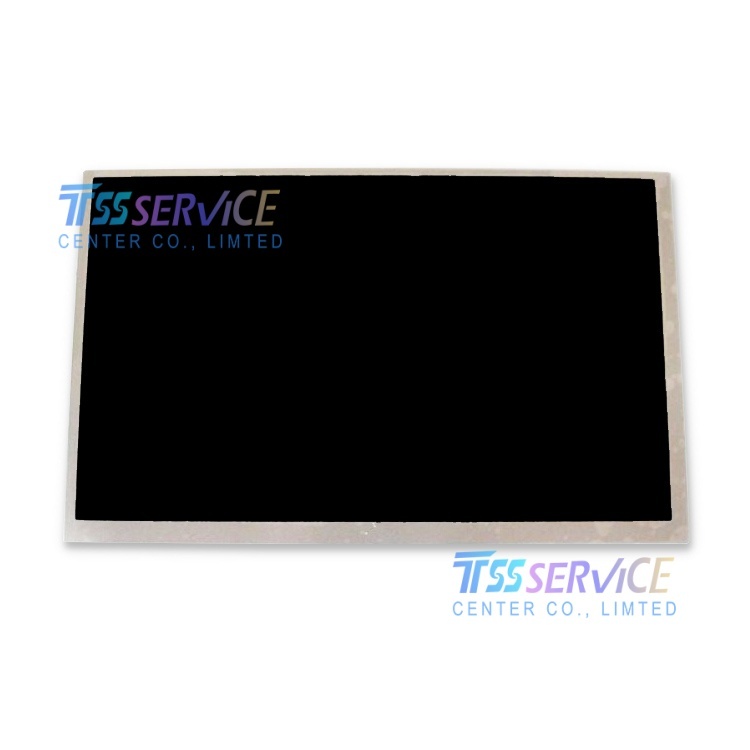

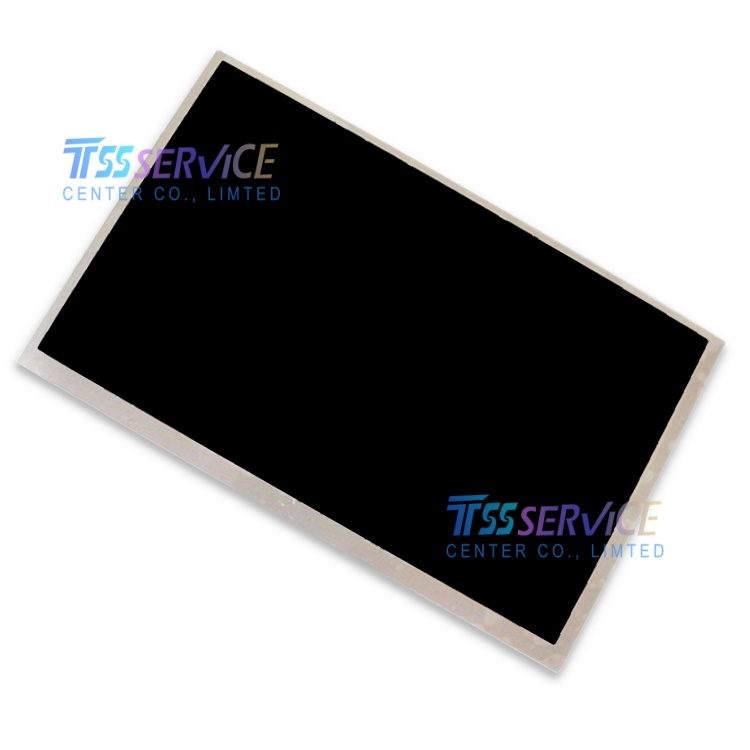

Tianma TM070RDH23 7 Inch TFT LCD Screen 800×480 Industrial Display Panel

Name: Tianma TM070RDH23 7 Inch TFT LCD Screen 800×480 Industrial Display Panel
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: TM070RDH23
Price: 90 USD
Availability: InStock

SKU: TM070RDH23

Model No.: TM070RDH23
Display Size: 7.0 Inches
Panel Type: a-Si TFT-LCD, LCM, TN Transmissive
Native Resolution: 800(RGB) × 480 WVGA, 16:9 Aspect Ratio, 134PPI
Dot Layout: RGB Vertical Stripe

0.0 (0 Reviews)

0 Sold

~~$96.00~~ $90.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Tianma TM070RDH23 7 Inch TFT LCD Screen 800×480 Industrial Display Panel

Spec Item	Detailed Parameter
Manufacturer	Tianma
Model No.	TM070RDH23
Display Size	7.0 Inches
Panel Type	a-Si TFT-LCD, LCM, TN Transmissive
Native Resolution	800(RGB) × 480 WVGA, 16:9 Aspect Ratio, 134PPI
Dot Layout	RGB Vertical Stripe
Display Active Area	154.08(W) × 85.92(H) mm
Outline Overall Size	164.9(W) × 104(H) mm
Thickness	3.8mm (Typ.) / 6.8mm (Max.)
Brightness	350 cd/m² (Typ.)
Contrast Ratio	500:1 (Typ., TM)
Viewing Angle	70°/70°/50°/70° (Typ., CR≥10)
Best View Direction	6 O'Clock
Display Color Depth	262K Colors, 45% NTSC Color Gamut
Refresh Rate	60Hz
Surface Treatment	AG Matte Hard Coating (Anti-glare)
Backlight Source	8S3P WLED, 20,000 Hours Lifespan, External Driver Required
Signal Interface	Single Channel 6-bit LVDS, 30 Pins FPC Connector
Touch Screen	Without Touch Digitizer
Net Weight	~150g (Typical)
Operating Temperature	-20 ℃ ~ +70 ℃
Storage Temperature	-30 ℃ ~ +80 ℃
