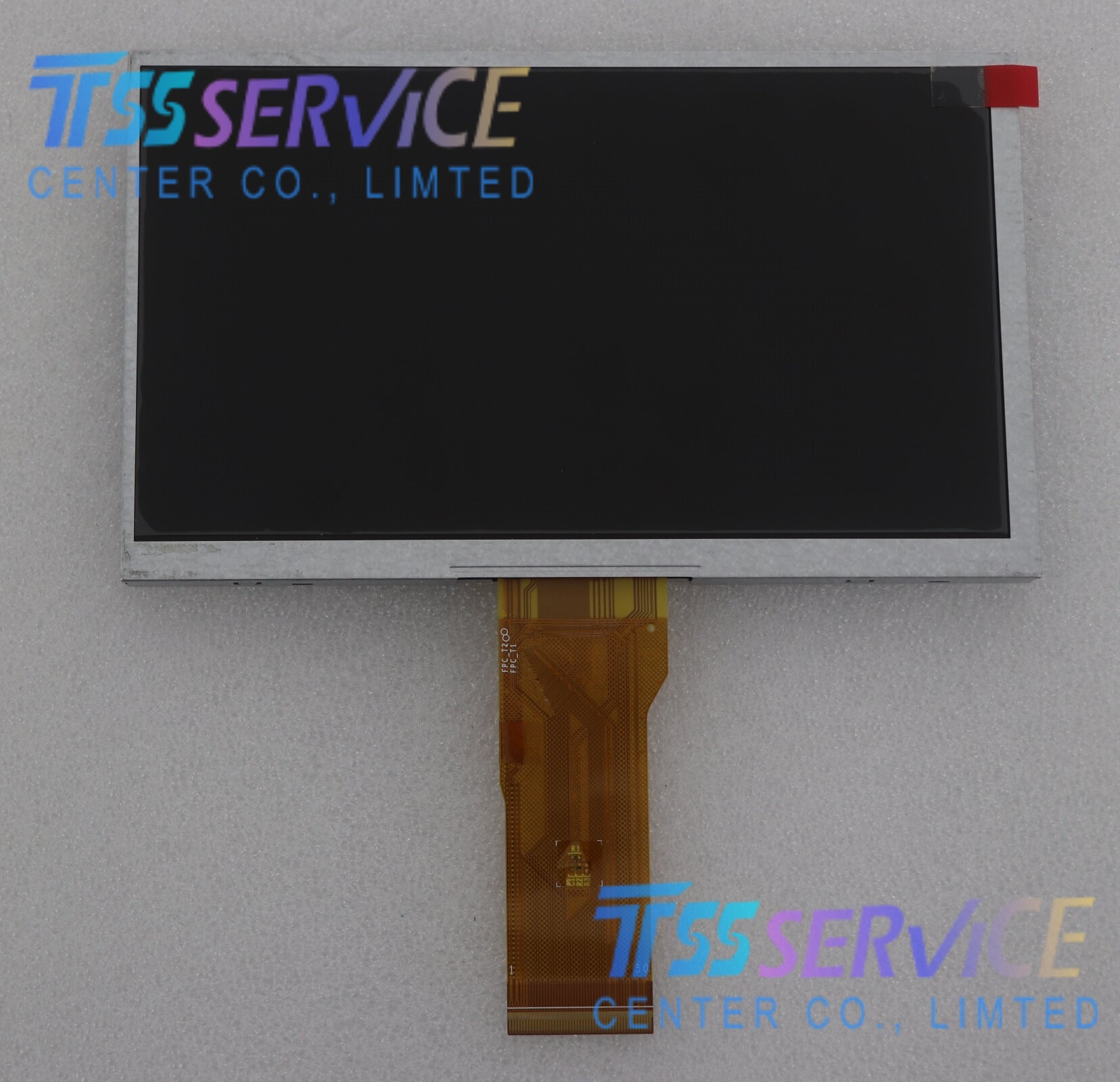

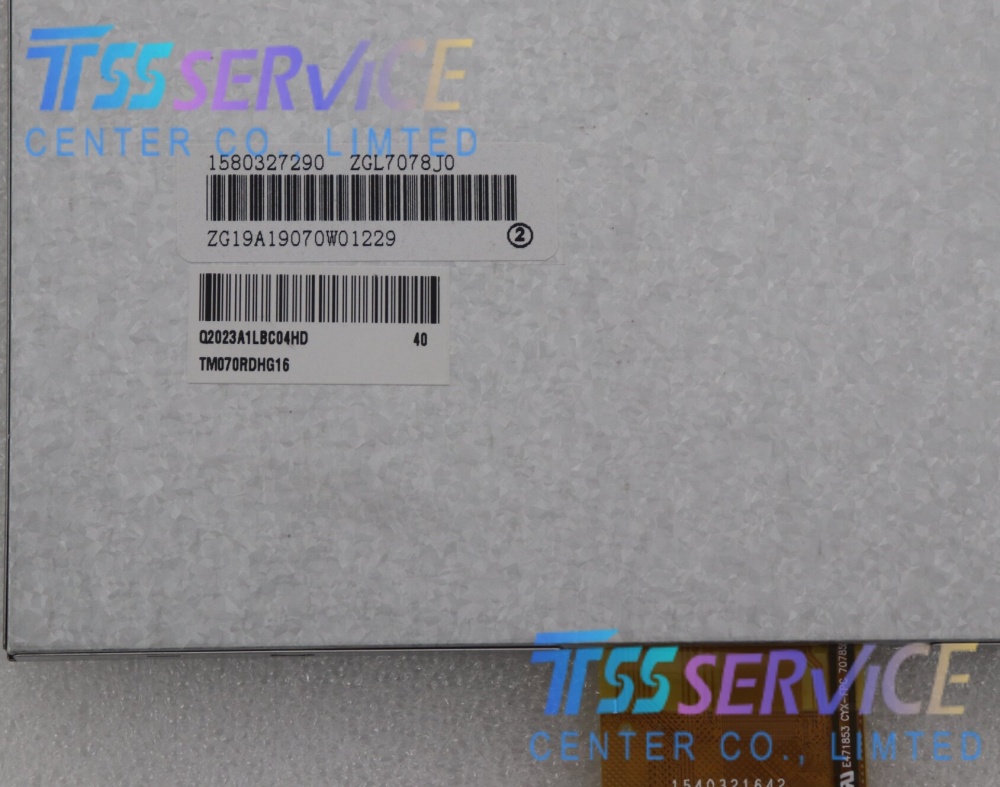

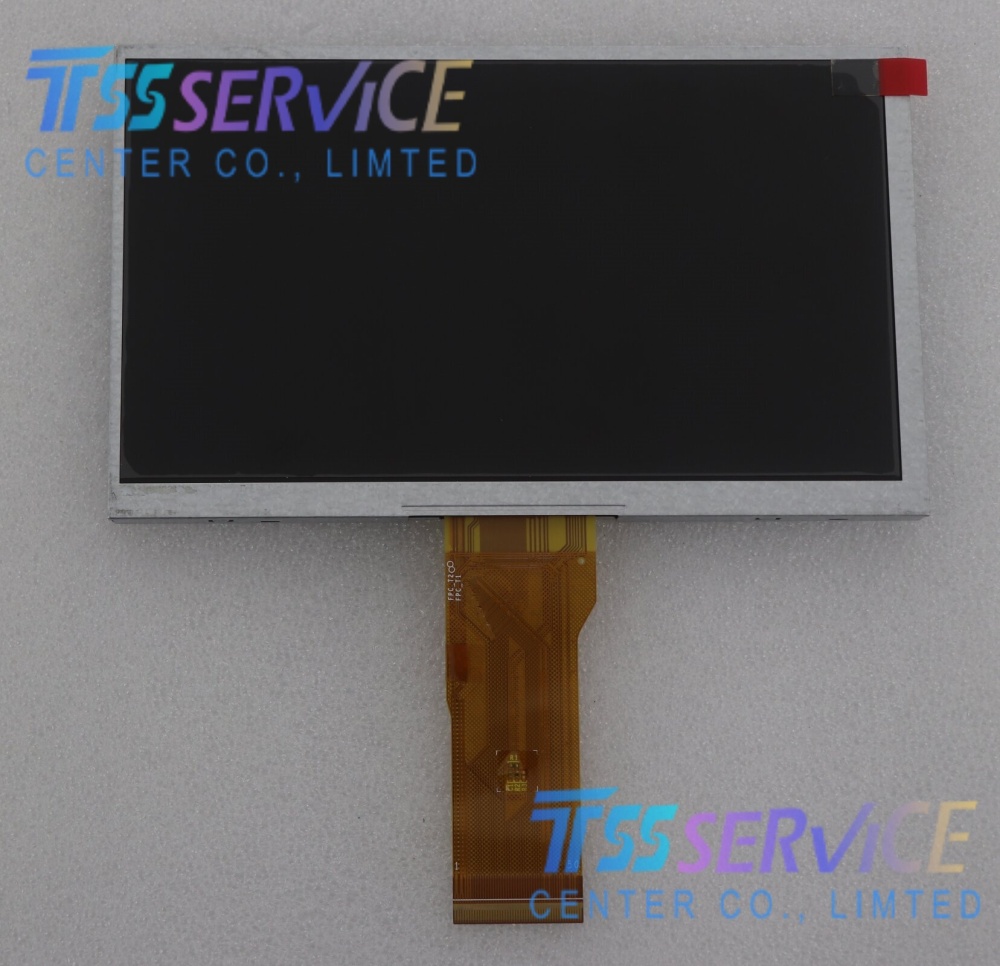

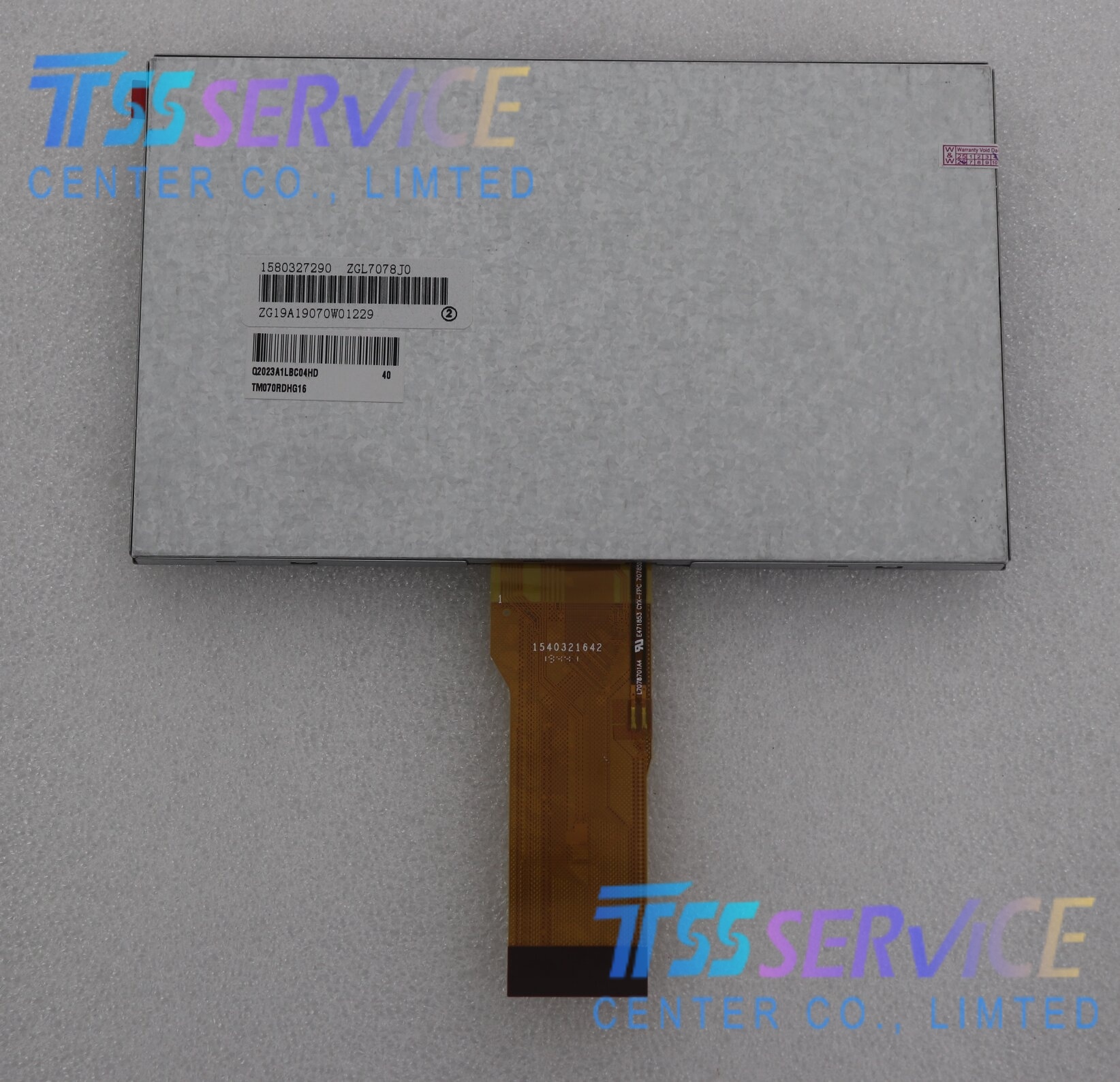

Tianma TM070RDHG16 7 inch WVGA 800×480 Industrial LCD Module

Name: Tianma TM070RDHG16 7 inch WVGA 800×480 Industrial LCD Module
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: TM070RDHG16
Price: 77 USD
Availability: InStock

SKU: TM070RDHG16

Model: TM070RDHG16
Brand: Tianma
Size: 7.0 inch (Diagonal), 16:9
Display Type: a-Si TFT-LCD, TN, Normally White, Transmissive
Resolution: 800(RGB)×480, WVGA, 134PPI

0.0 (0 Reviews)

0 Sold

~~$79.00~~ $77.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Tianma TM070RDHG16 7 inch WVGA 800×480 Industrial LCD Module

Item	Specification
Model	TM070RDHG16
Brand	Tianma
Size	7.0 inch (Diagonal), 16:9
Display Type	a-Si TFT-LCD, TN, Normally White, Transmissive
Resolution	800(RGB)×480, WVGA, 134PPI
Brightness	400 cd/m² (Typ.)
Contrast Ratio	500:1 (Typ.)
Viewing Angle	L/R/U/D: 70°/70°/60°/70° (CR≥10)
Display Colors	16.7M (8-bit RGB)
Backlight	WLED, Lifespan: 30,000 Hours, Without Driver
Interface	Parallel RGB (1 ch, 8-bit), 60 Pin FPC
Supply Voltage	3.3V (Typ.)
Operating Temperature	-20℃ ~ +70℃
Storage Temperature	-30℃ ~ +80℃
Active Area	154.08(W) × 85.92(H) mm
Outline Dimension	164.9(W) × 100(H) × 6.0(D) mm
Weight	165g (Typ.)
Refresh Rate	60Hz
Touch Panel	Without Touch
Surface	AG (Anti-glare, Matte)
Compliance	RoHS
Status	Active (In production)
