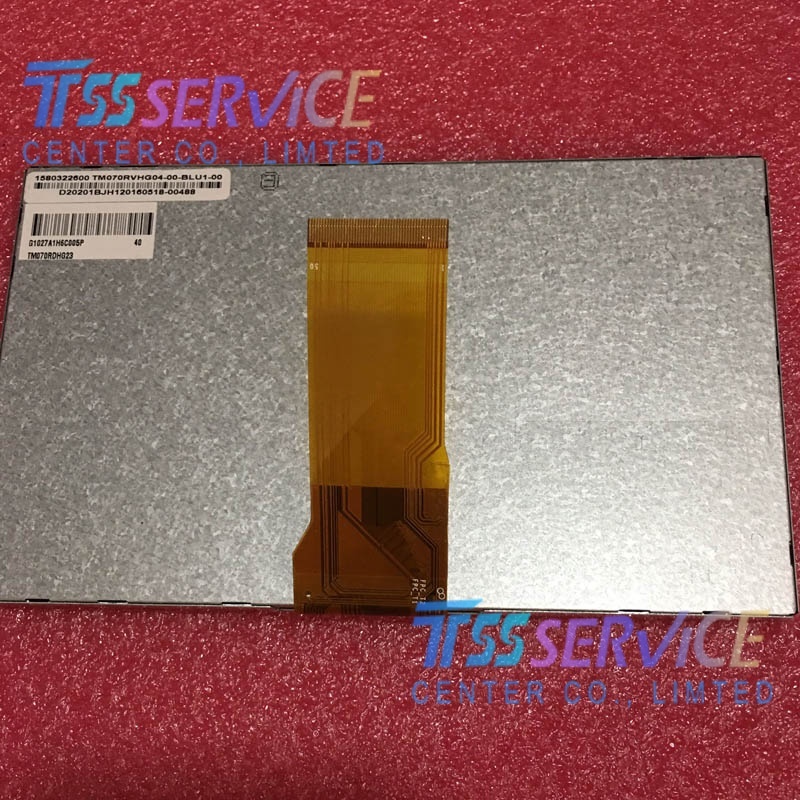

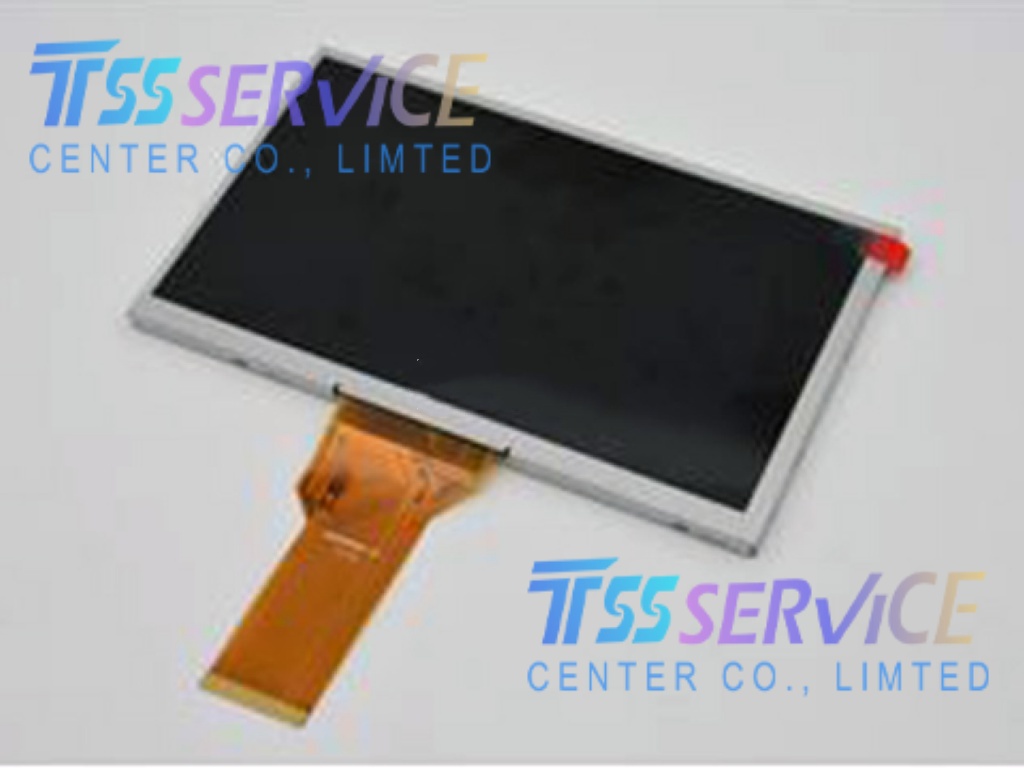

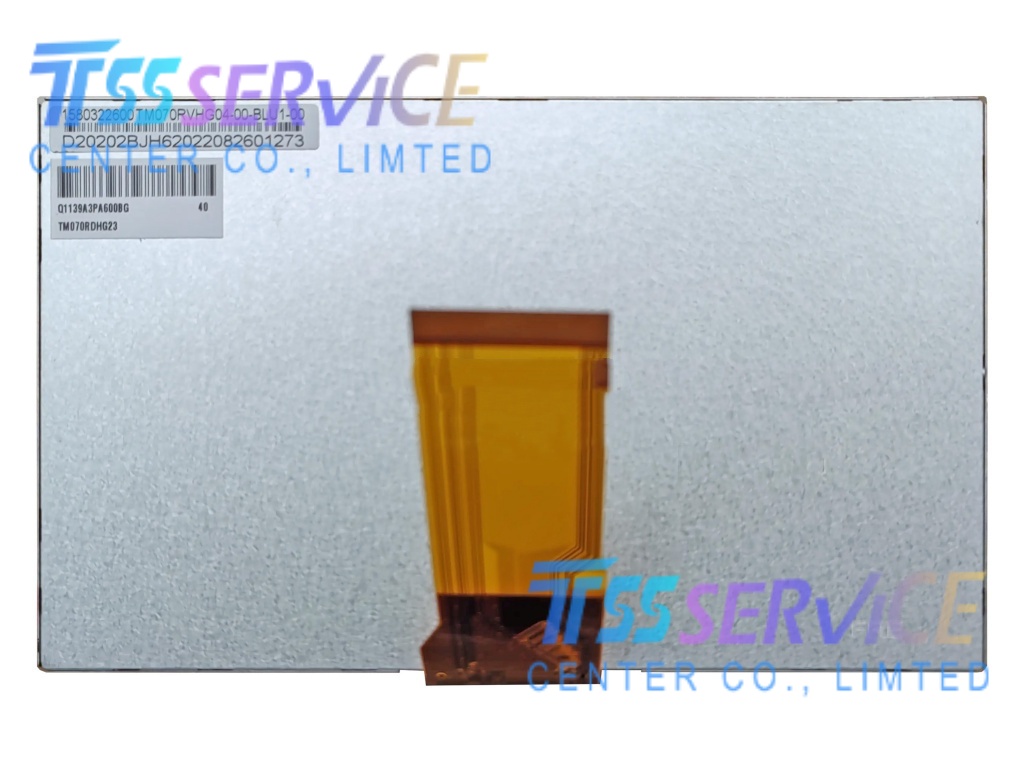

Tianma TM070RDHG23-40 7 Inch 800×480 TFT LCD Panel Industrial Display Screen
| Item |
Detailed Parameter |
| Manufacturer |
Tianma (Tianjin Tianma Microelectronics) |
| Model Number |
TM070RDHG23-40 |
| Diagonal Screen Size |
7.0 Inch |
| Panel Type |
a-Si TFT-LCD, Transmissive LCM Module |
| Native Resolution |
800(RGB) × 480 (WVGA), 16:9 Aspect Ratio |
| Pixel Format |
RGB Vertical Stripe |
| Active Display Area |
154.08(W) × 85.92(H) mm |
| Visible View Area |
157.08(W) × 89.39(H) mm |
| Overall Outline Dimension |
165(W) × 100(H) × 6(D) mm |
| Typical Net Weight |
150g |
| Surface Treatment |
Antiglare Matte, 3H Hard Scratch Resistant Coating |
| Typical Luminance (Brightness) |
1400 cd/m² (Sunlight Readable) |
| Typical Contrast Ratio |
1000:1 (TM Mode) |
| Viewing Angle (U/D/L/R) |
80° / 60° / 80° / 80° (CR≥10) |
| Optimal View Direction |
12 o'clock |
| Total Response Time |
25ms (Tr+Td Typical) |
| Display Operating Mode |
TN, Normally White, Transmissive |
| Supported Display Colors |
16.7M True Colors, 50% NTSC Color Gamut |
| Refresh Frame Rate |
60Hz |
| Touch Panel Function |
Without Touch Screen |
| Backlight Light Source |
6S5P WLED, 40,000 Hours Lifespan, Without Built-in LED Driver IC |
| Signal Interface Type |
Parallel RGB (1 Channel, 8-bit), 50 Pins FPC Connector |
| Typical Supply Voltage |
3.3V / 10.4V / 16.0V / -7.0V (VCC/AVDD/VGH/VGL) |
| Operating Temperature Range |
-20 ℃ ~ +70 ℃ |
| Storage Temperature Range |
-30 ℃ ~ +80 ℃ |
Application Scenarios
Outdoor & Vehicle Equipment
- Construction machinery cabin control HMI panels
- Agricultural machinery operation display terminals
- Forklift, engineering vehicle dashboard screens
- Outdoor marine ship parameter monitoring displays
- RV and special vehicle control touch base screens
Portable Industrial Measuring Devices
- Handheld industrial detection & testing instruments
- Portable environmental monitoring equipment
- Field survey and mapping data display terminals
- Portable medical diagnostic outdoor equipment
Outdoor Self-Service & Commercial Kiosks
- Outdoor parking payment self-service terminals
- Roadside vending machine interactive display panels
- Outdoor information inquiry public service kiosks
- Outdoor advertising small-size digital signage
Other Industrial Embedded Displays
- Factory workshop semi-outdoor control display modules
- Security outdoor monitoring auxiliary screens
- 3D printing equipment operation interface panels
