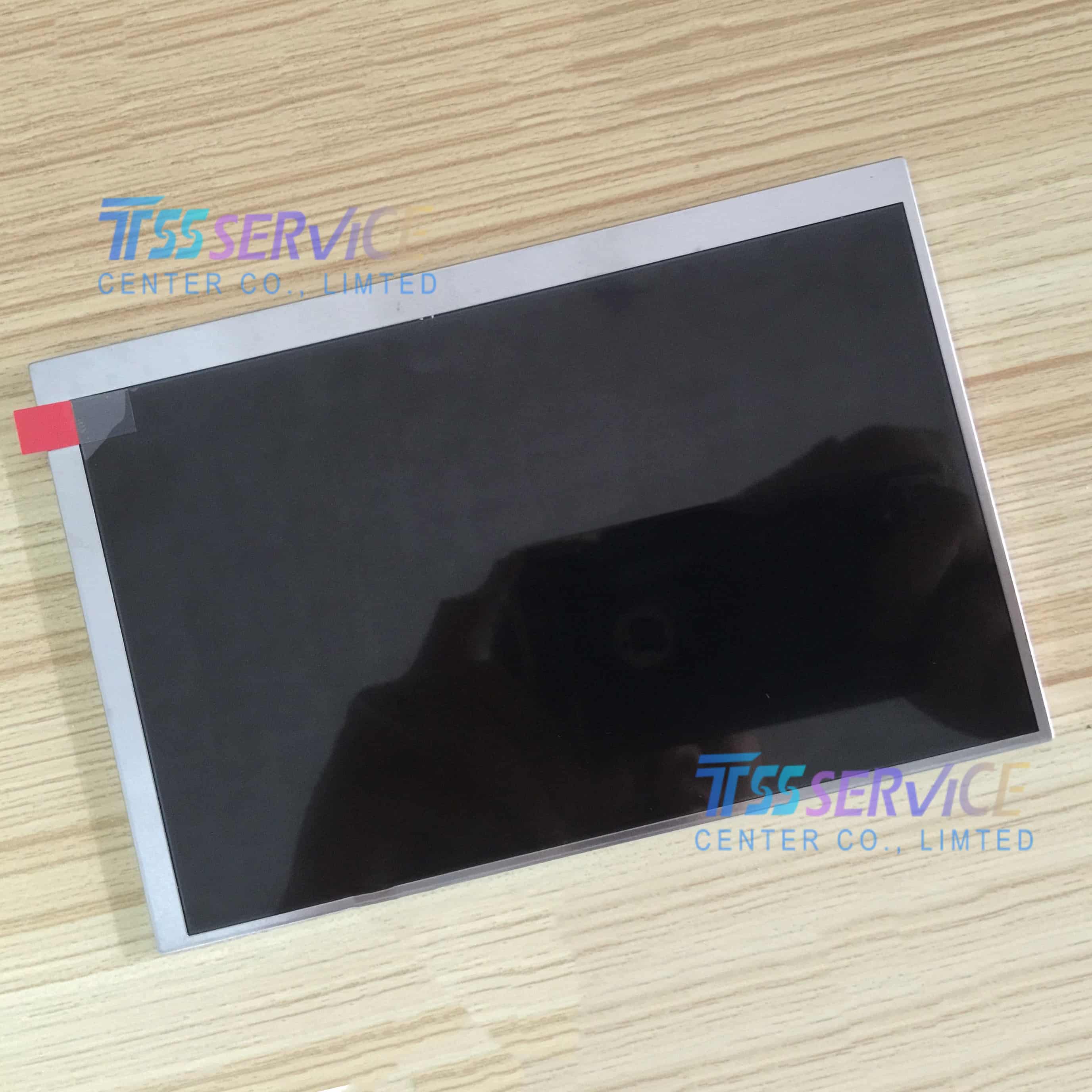

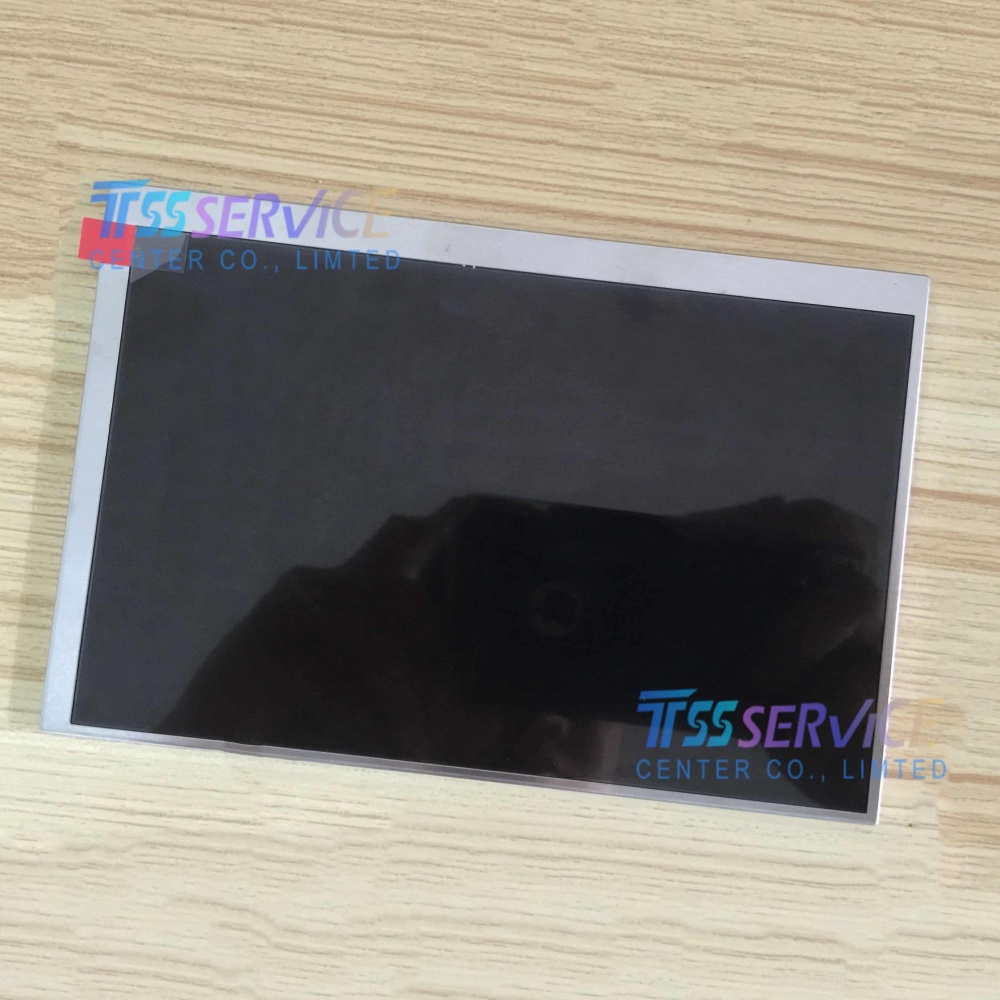

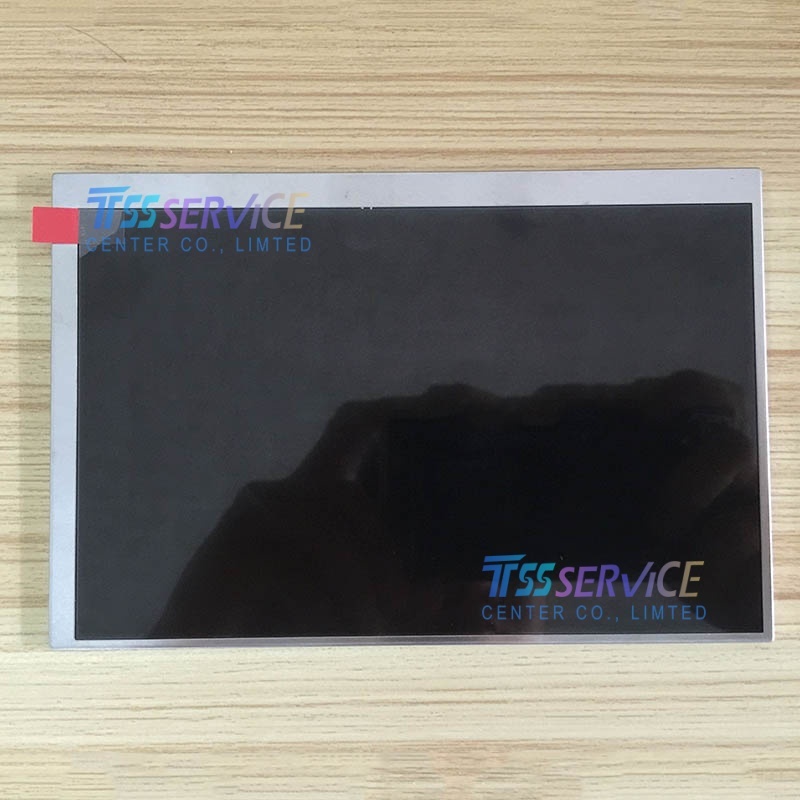

TM070RDHG71-00 Tianma 7 inch 800×480 LCD Display Panel Screen for Industrial

Name: TM070RDHG71-00 Tianma 7 inch 800×480 LCD Display Panel Screen for Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: TM070RDHG71-00
Price: 56 USD
Availability: InStock

SKU: TM070RDHG71-00

Model P/N: TM070RDHG71-00
Diagonal Size: 7"
Panel Type: a-Si TFT-LCD, LCM
Resolution: 800(RGB)×480, WVGA 134PPI
Pixel Format: RGB Vertical Stripe

0.0 (0 Reviews)

0 Sold

~~$58.00~~ $56.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

TM070RDHG71-00 Tianma 7 inch 800×480 LCD Display Panel Screen for Industrial

Parameter	Details
Part Number	TM070RDHG71-00
Diagonal Size	7.0" (inch)
Resolution	800(RGB) × 480 (WVGA)
Aspect Ratio	16:9 (W:H)
Pixel Format	RGB Vertical Stripe
Active Area	154.08 (W) × 85.92 (H) mm
Outline Dimensions	164.9 (W) × 100.0 (H) × 6.0 (D) mm
Panel Type	a-Si TFT-LCD, Transmissive, SFT, Normally Black
Surface Treatment	Antiglare (AG)
Weight	156 g (Typ.)
Brightness	555 cd/m² (Typ.)
Contrast Ratio	900:1 (Typ.) (TM)
Response Time	20 ms (Typ.) (Tr+Td)
Viewing Angle	88° (U) / 88° (D) / 88° (L) / 88° (R) (Typ.) @ CR≥10
Color Gamut	70% NTSC (Typ.)
Display Colors	16.7M (8-bit)
Backlight	WLED, Edge type, 3S9P, No driver
Backlight Lifetime	30,000 hours (Typ.)
Backlight Voltage	9.3 ± 0.3 V
Backlight Current	180 mA (Typ.)
Interface	Parallel RGB (1 ch, 8-bit)
Supply Voltage	VCC=3.3V, AVDD=10.4V, VGH=16.0V, VGL=-7.0V (Typ.)
Operating Temperature	-20°C ~ +70°C
Storage Temperature	-30°C ~ +80°C
Touch Screen	No
RoHS	Compliant
