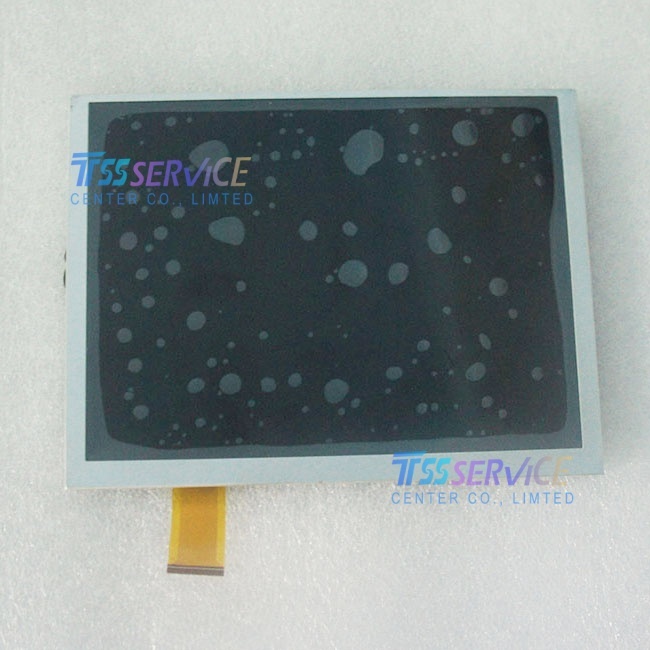

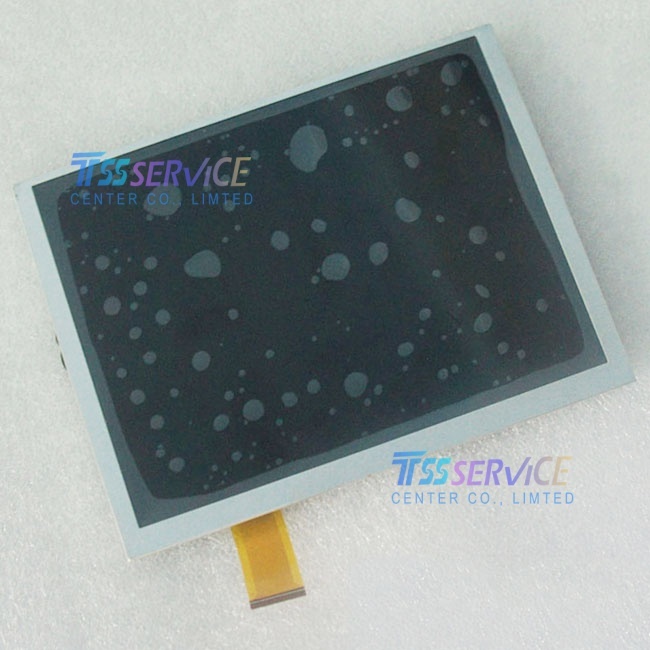

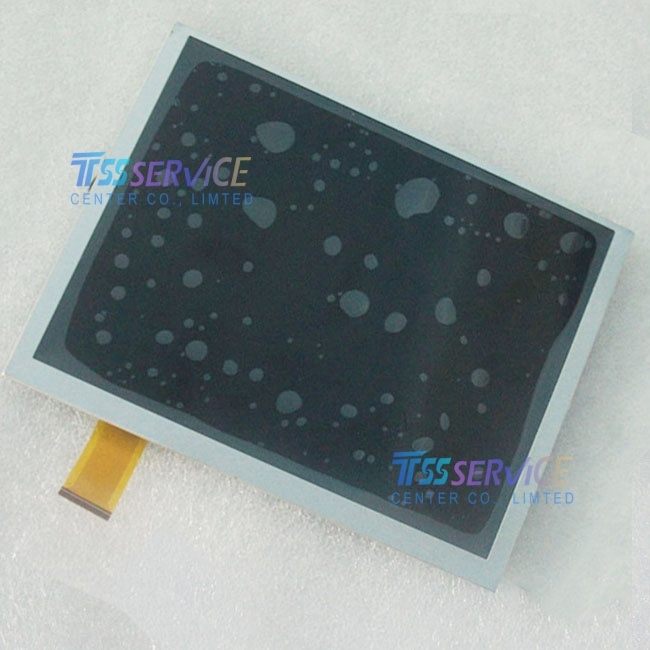

Tianma TM070SDH01 7 Inch 800×600 TFT LCD Panel Industrial HMI Display Screen
| Item |
Detailed Parameter |
| Manufacturer |
Tianma (Tianjin Tianma Microelectronics) |
| Model Number |
TM070SDH01 |
| Diagonal Screen Size |
7.0 Inch |
| Panel Type |
a-Si TFT-LCD, Transmissive LCM Module |
| Native Resolution |
800(RGB) × 600 (SVGA), 4:3 Aspect Ratio |
| Pixel Format |
RGB Vertical Stripe |
| Surface Treatment |
Antiglare Matte, 3H Hard Scratch Resistant Coating |
| Typical Brightness |
200 cd/m² |
| Typical Contrast Ratio |
400:1 (TM Mode) |
| Display Mode |
TN, Normally White, Transmissive |
| Supported Display Colors |
262K, 50% NTSC Color Gamut |
| Refresh Frequency |
60Hz |
| Touch Function |
Without Touch Screen |
| Backlight Light Source |
3S6P WLED, 20,000 Hours Lifespan, Without Built-in LED Driver IC |
| Signal Interface |
Parallel RGB (1 Channel, 6-bit), 60 Pins FPC Connector |
| Operating Temperature |
-20 ℃ ~ +70 ℃ |
| Storage Temperature |
-30 ℃ ~ +80 ℃ |
Application Scenarios
1. Industrial Automation HMI Equipment
- CNC machine tool auxiliary operation panels
- Injection molding machine small control terminals
- Packaging & textile machinery parameter display screens
- PLC compact industrial control cabinets
- Assembly line mini data monitoring modules
2. Laboratory & Testing Instruments
- Portable environmental detection analyzers
- Medical laboratory testing equipment operation interfaces
- Industrial measuring & calibration instruments
- Rehabilitation therapy machine control display panels
3. Consumer & Embedded Digital Devices
- Digital photo frames & portable media players
- Small-size smart home control terminals
- Visual doorbell indoor display screens
- Small retail self-service information kiosks
4. Vehicle & Portable Industrial Equipment
- Light-duty vehicle auxiliary parameter display
- Handheld industrial data collection terminals
- Agricultural machinery mini operation display screens
